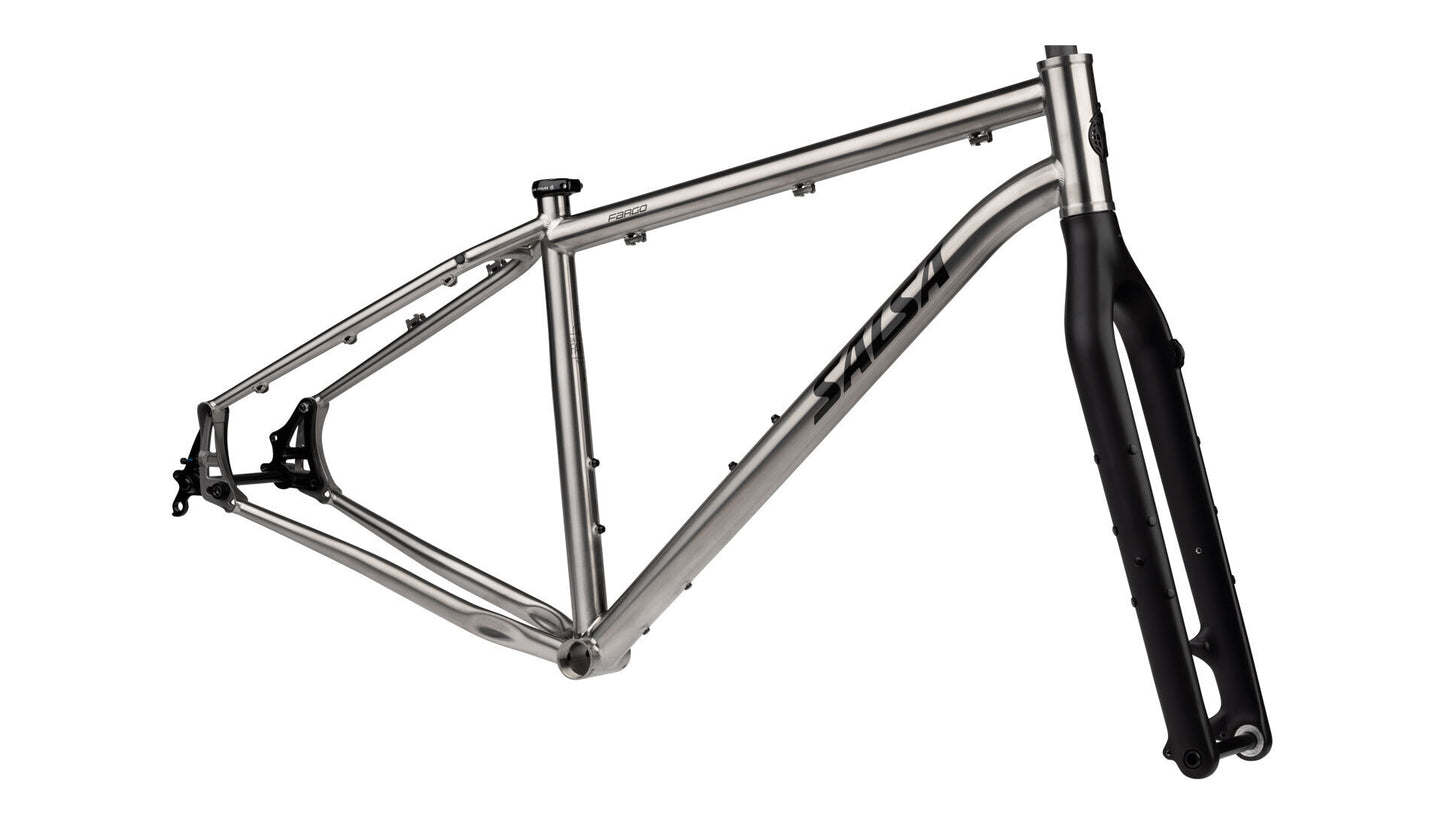

• Salsa Fargo Ti frameset side view

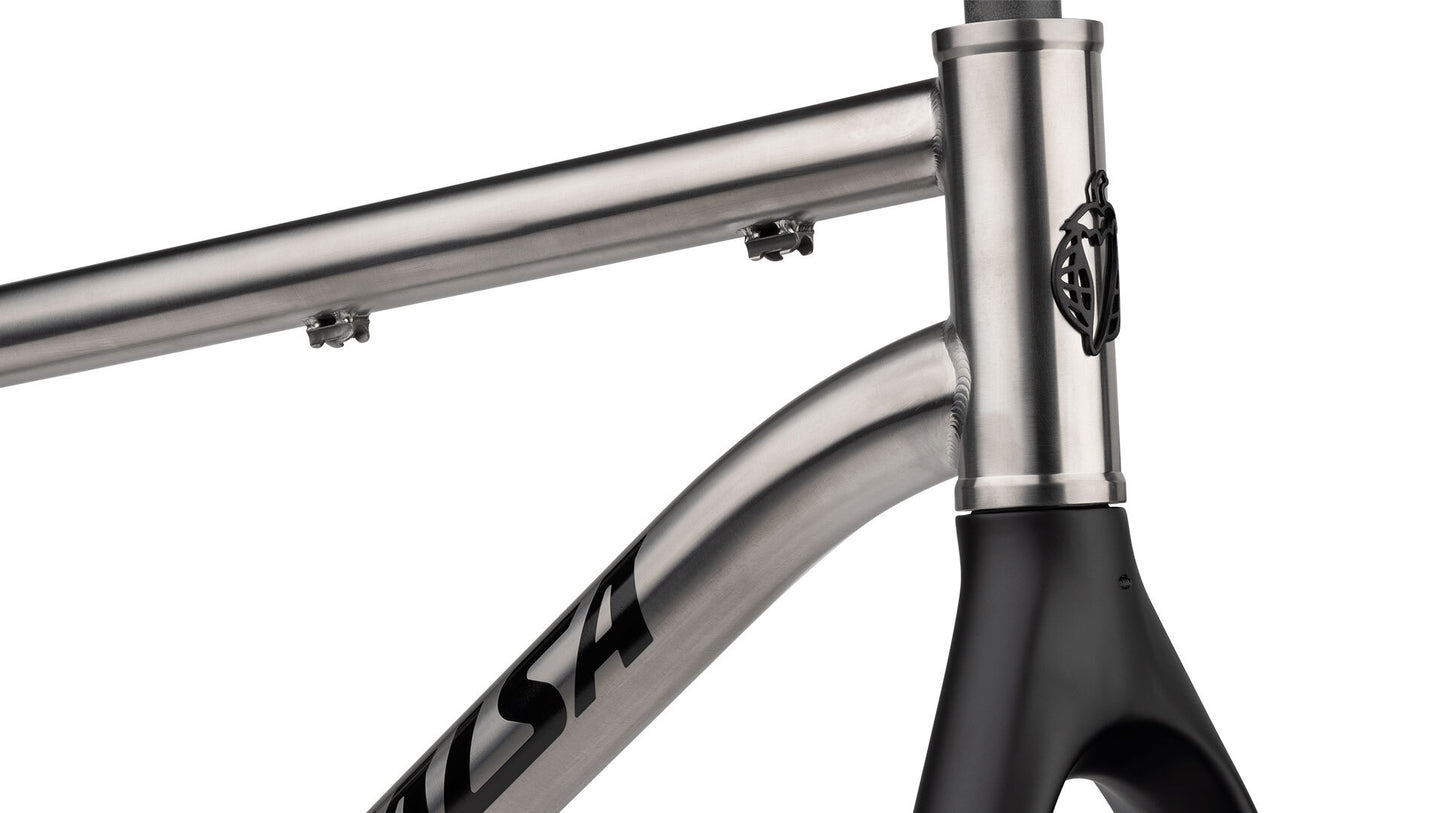

  • Salsa Fargo Ti frameset headtube area focus

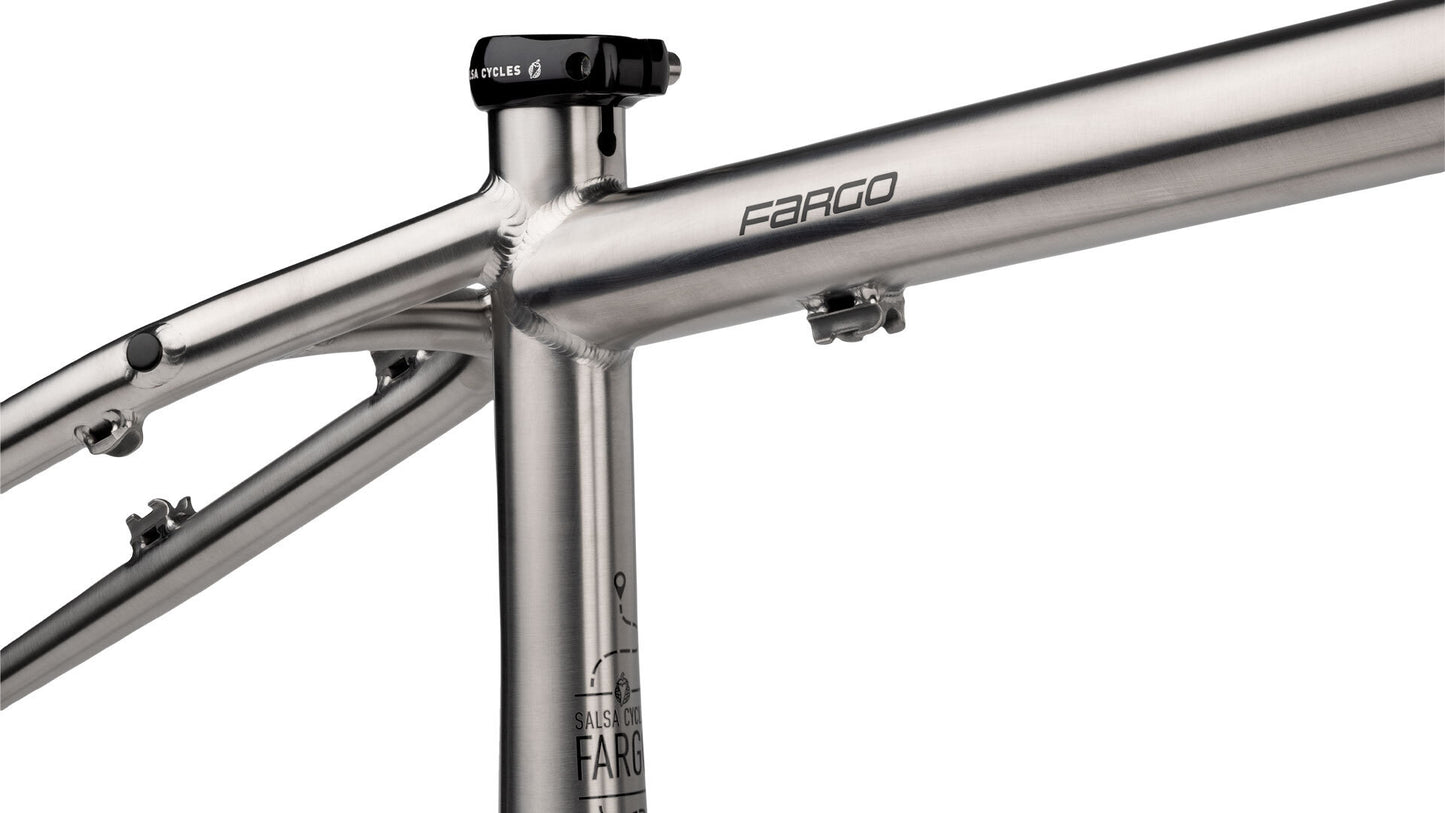

  • Salsa Fargo Ti frameset top tube and seat tube area focus

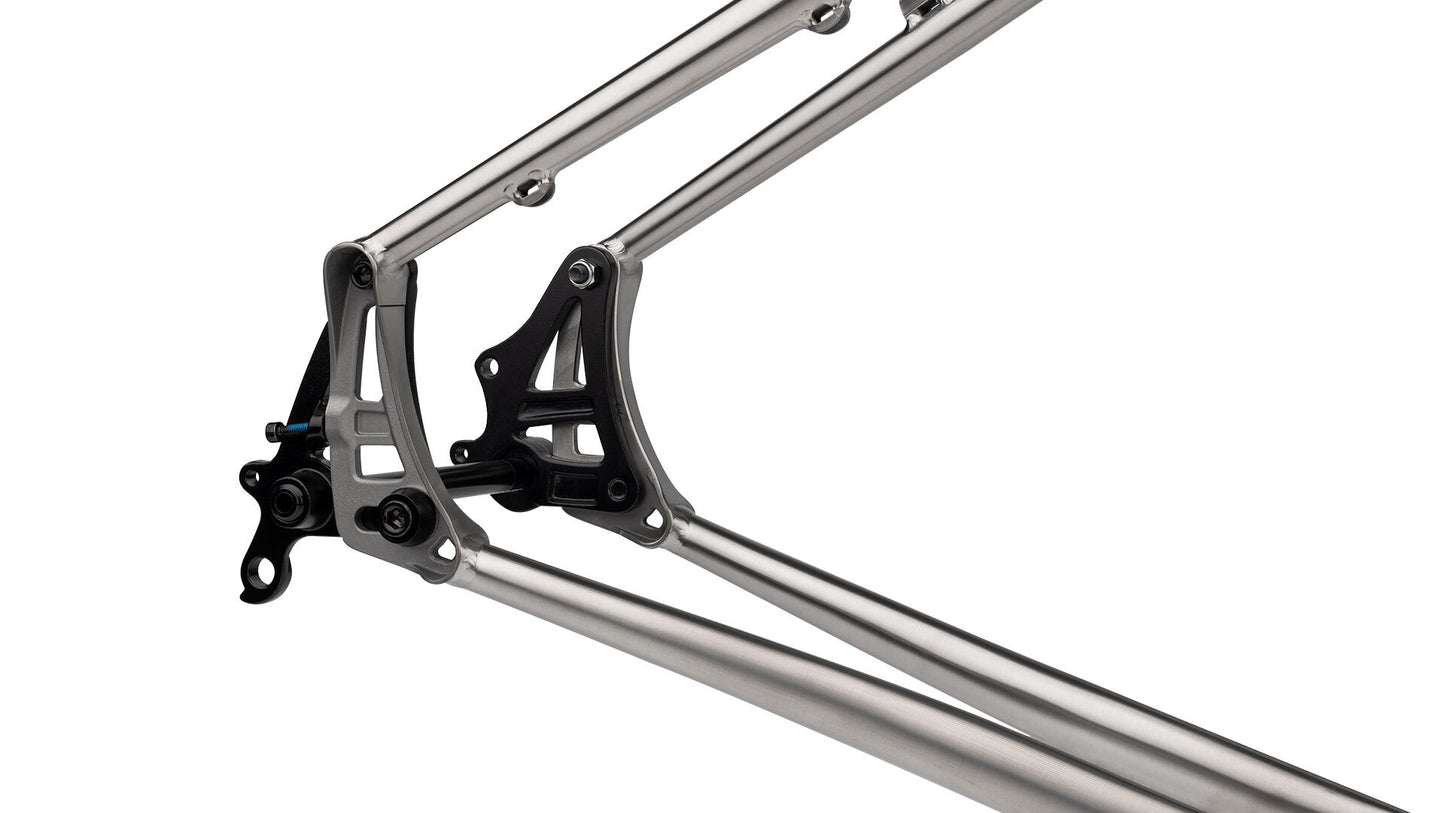

  • Salsa Fargo Ti frameset top rear dropout area focus

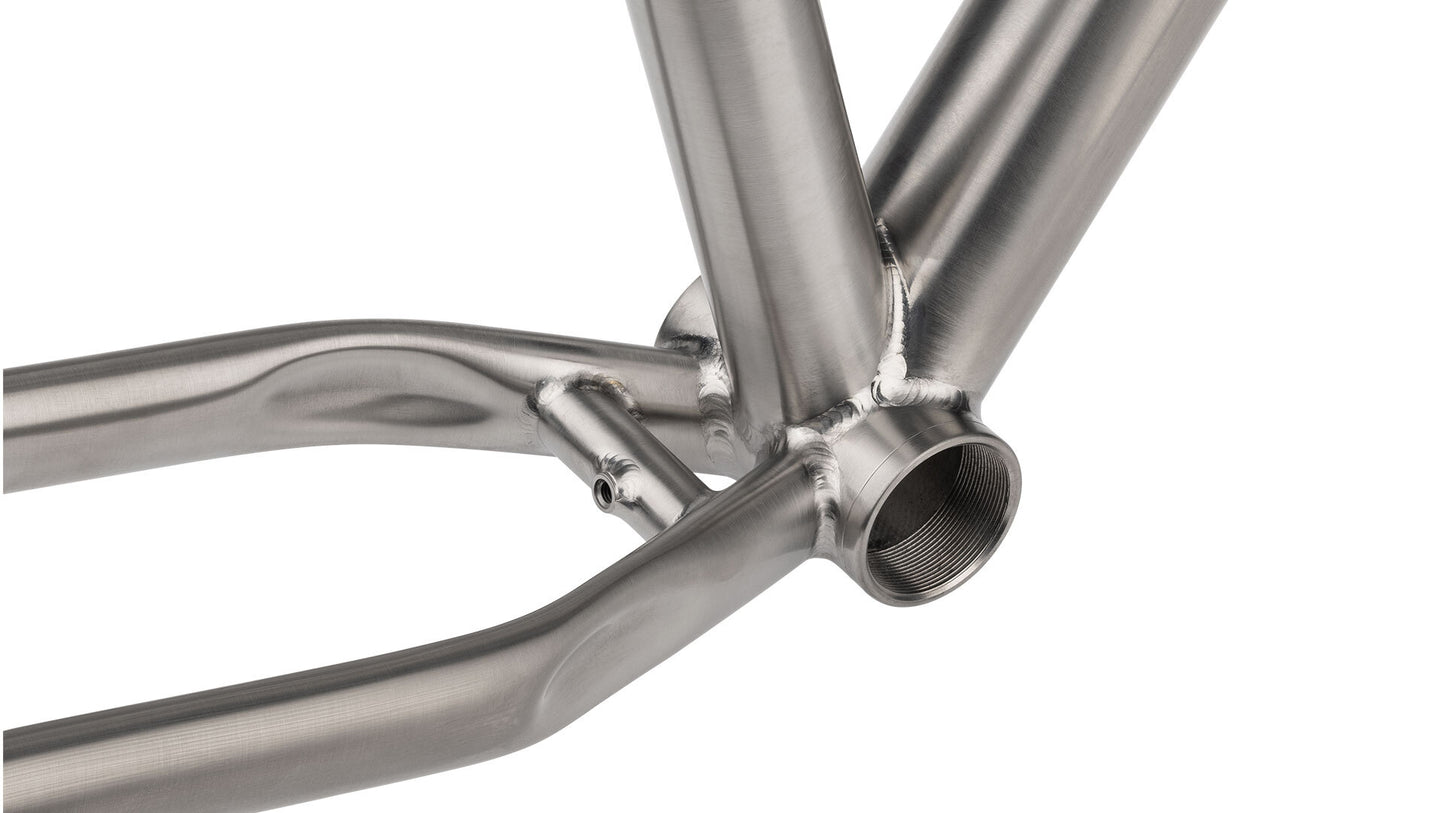

  • Salsa Fargo Ti frameset bottom bracket area focus
1 5

2023 Fargo Ti Frameset

2023 Fargo Ti Frameset

Archived

We put decades of experience into making the best titanium bikepacking bike possible. The premium titanium version of our Fargo frameset features a 3/2.5 seamless tubeset, split-able Alternator v1.5 dropouts, and our feature-rich Firestarter 110 Deluxe fork. Fargo Ti brings the amazing ride quality of titanium to the mixed surface, bikepacking world of the Fargo.

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Fargo 3/2.5 seamless triple-butted Titanium
  • Fork: Firestarter 110 Deluxe
  • Color: Raw
  • Headset: FSA Orbit ITA
  • Seatpost: Salsa Lip-Lock seat post collar
  • Front Wheel: Deadbolt UL thru axle
  • Rear Wheel: Deadbolt UL thru axle
  • Weight: 6 lbs 2 oz (includes fork, headset, front/rear thru axles, seat collar, alternator plates)

Frame Specs

  • Design Wheel/Tire Size: 29 x 2.4"
  • Alternative Wheel/Tire Size: 27.5 x 3.0" / 27.5 x 2.2" with fender / 29 x 3.0" (Small through X-Large) / 29 x 3.0" (Small through X-Large)
  • Suspension Fork Length (Travel): 501–511mm (100 mm)
  • Rigid Fork Length: 483–486mm
  • Fork Offset: 45-51mm, Firestarter Carbon Boost (15 x 110 mm) fork features 51mm offset
  • Front Brake (Rotor): 180mm maximum rotor size
  • Headset-Upper: ZS44
  • Headset-Lower: EC44
  • Seatpost: 27.2mm
  • Seat Collar: 32mm
  • Front Derailleur Mount: 148mm rear spacing: high direct-mount (29mm offset) Problem Solvers Bracket (FS1328) / 142mm rear spacing: high direct-mount (26.5mm offset) via 34.9mm clamp Problem Solvers Bracket (FS1323)
  • Bottom Bracket: 73mm BSA, threaded
  • Crankset (Max Ring): 1x crankset: 36t max / Boost and 34t non-boost or 46t / Gates Belt Drive sprocket / 2x crankset: 42/28t max Boost and Non-Boost
  • Rear Brake (Rotor): 51mm I.S. (160–180mm)
  • Rear Spacing: 148mm or 142mm thru-axle / 135mm QR with Alternator Reduction Plates
  • Rear Axle Size: 148mm rear spaced: 12 x 180L, TP = 1.5**, TL = 20 / 142mm rear spaced: 12 x 174L, TP = 1.5**, TL = 20 / 135mm rear spaced: quick release / 142 & 135mm spacing require the use of Salsa Alternator Reduction plates (FS2360) **Pre-2022 Fargo models use Alternator plates and thru-axles with 1.75 TP (thread pitch). Both 1.5 and 1.75 TP plates are compatible with the Fargo frame. Ensure TP of plate and axle match before installing.
  • Derailleur Hanger: QR = FS1312; TA = FS1385; SS = FS1318; SSTA = FS1375; L Rohloff = FS1371; TA Kit = FS1370
  • Frameset Weight: 6 lb, 4 oz for size Large w/ fork and Lip-Lock

Geometry

Geometry Diagram
XS SM MD LG XL
Top Tube Effective Metric 520 540 565 590 620
Seat Tube Length Metric 355.6 406.4 457.2 508 558.8
Head Tube Length Metric 90 110 140 170 190
Head Tube Angle 68.5 69 69 69 69
Seat Tube Angle 74 74 73 73 73
BB Drop Metric 70 70 70 70 70
Chainstay Length Metric 445–462 445–462 445–462 445–462 445–462
Fork Length Metric 480 480 480 480 480
Fork Offset Metric 51 51 51 51 51
Wheelbase Metric 1050–1067 1067–1084 1083–1100 1110–1127 1141–1158
Stack Metric 594 615 643 671 690
Reach Metric 350 364 368 385 409
Standover Metric 692 734 781 823 861
Rider Height Metric 150cm–160cm 160cm–175cm 173cm–183cm 180cm–191cm 188cm–UP
BB Center to Center Metric
Stem Length
Crank Length
Handlebar Width
Seatpost Offset Metric 12
Stem Angle
Wheel Size
Seatpost Dropper Length Travel
Handlebar_Rise_Drop
BB Height

Supportive Documents

Support Document links

Additional Features

Fargo Ti Frameset Only

Our legendary Fargo frame, crafted in Titanium, paired with a Salsa Firestarter Carbon fork. Salsa Lip-Lock seat collar included

3/2.5 Seamless Titanium Tubeset

Custom spec’d, triple-butted tubing. Appropriate stiffness and compliance for a fantastic ride quality. Lightweight with superior fatigue life

Firestarter 110 Carbon Deluxe Fork

The most full-featured high modulus carbon bikepacking fork available. Tapered 1-1/8” to 1-1/2” steerer tube. 180mm maximum rotor size. 27.5 x 2.8–3.0” or 29 x 2.2–3.0” tire capable. Four sets of Three-Pack mounts offer incredible load carrying possibilities. Mid-blade mounts for low rider racks. Internal routing for 110 Boost Dynamo hubs. Fender mounts (compatible with 29 x 2.2” tire maximum)

Fargo Geometry

Designed as a drop bar mountain bike, optimized for fit with the Salsa Woodchipper Bar. Capable of handling everything from technical singletrack trails, two-track, gravel, and the occasional paved road. Predictable handling with or without a load. The bike to ride for multiple-surface excursions

Alternator Dropouts V1.5

Split-able version of our renowned Alternator Dropout for ultimate drivetrain versatility

Belt Drive Compatible

Tested and certified for belt drive use

Multiple Wheelsize Versatility

Fargo geometry and spacing can accommodate 27.5+, 29", and, on sizes Small to X-Large, 29+ making for a highly capable bike that’s ready for just about any endeavor

Rear Rack Friendly

Designed for use with the Salsa Alternator Standard Rack

FSA Orbit ITA Headset Included

Frameset utilizes ZS44 semi-integrated headset standard, compatible with tapered or straight 1-1/8” steerer forks

FAQ

Can I run 27.5+ rims and tires on this frameset?

Yes, you can. To maintain appropriate geometry we recommend using 27.5 x 3.0" tires.

Can I run 29+ rims and tires on this frameset?

Yes, on sizes Small through X-Large. 29+ is not possible on size X-Small due to toe overlap.

Can I run flat bars on my Fargo?

Yes, but it is important to keep in mind that the Fargo is designed specifically as a drop bar mountain bike. Switching to a flat bar essentially results in a very short toptube length, compared to how a traditional flat bar mountain bike would be designed.

Can I use a suspension fork on this frame?

Yes, this frame was designed and tested for use with a suspension fork with an axle-to-crown length up to 511mm (typically 100mm of travel). Check the fork manufacturer's specifications to ensure the model and travel combination you intend to use is equal to or less than this length. Using a longer length fork will void the frame warranty and could result in frame failure. Forks with 45mm offset are recommended, but 51mm offset is also acceptable (decreases mechanical trail by 6mm).

How do I take care of the Alternator dropouts?

Periodically, we recommend that you remove the bolts and clean the dirt and grime off the hardware and the frame surfaces. Then, lightly re-grease the threaded parts and re-assemble.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.
