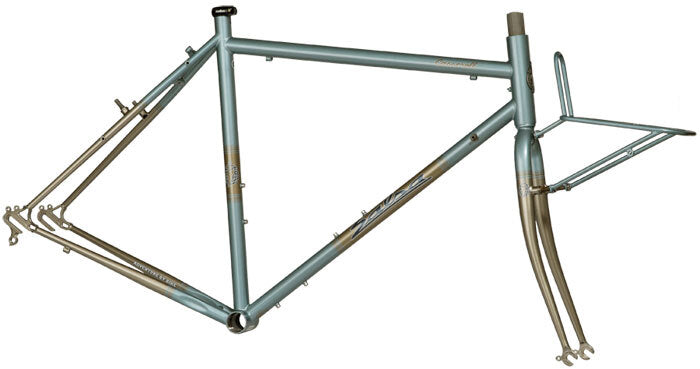

• Salsa Casseroll framset with front rack blue color side view

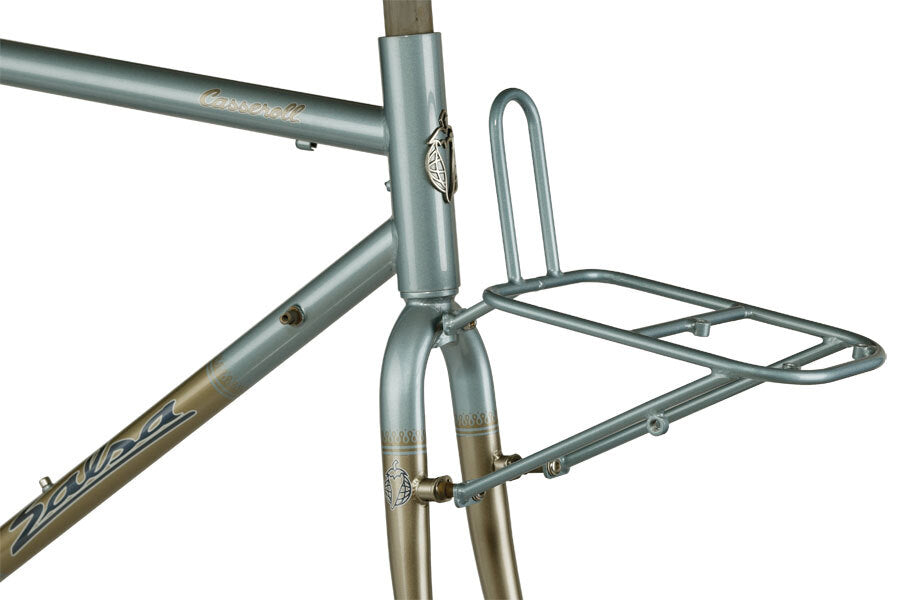

  • Salsa Casseroll framset blue color front rack focus

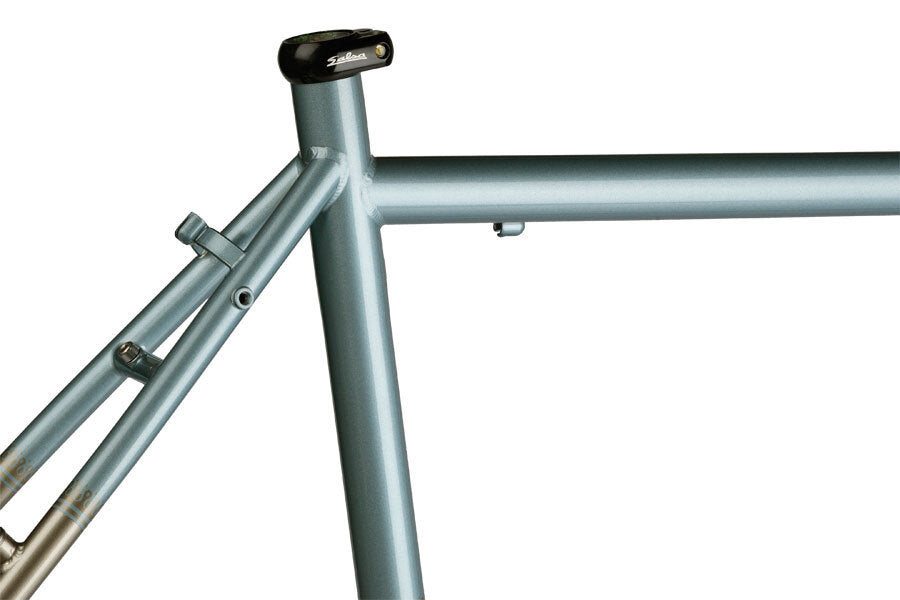

  • Salsa Casseroll framset blue color seat tube area focus

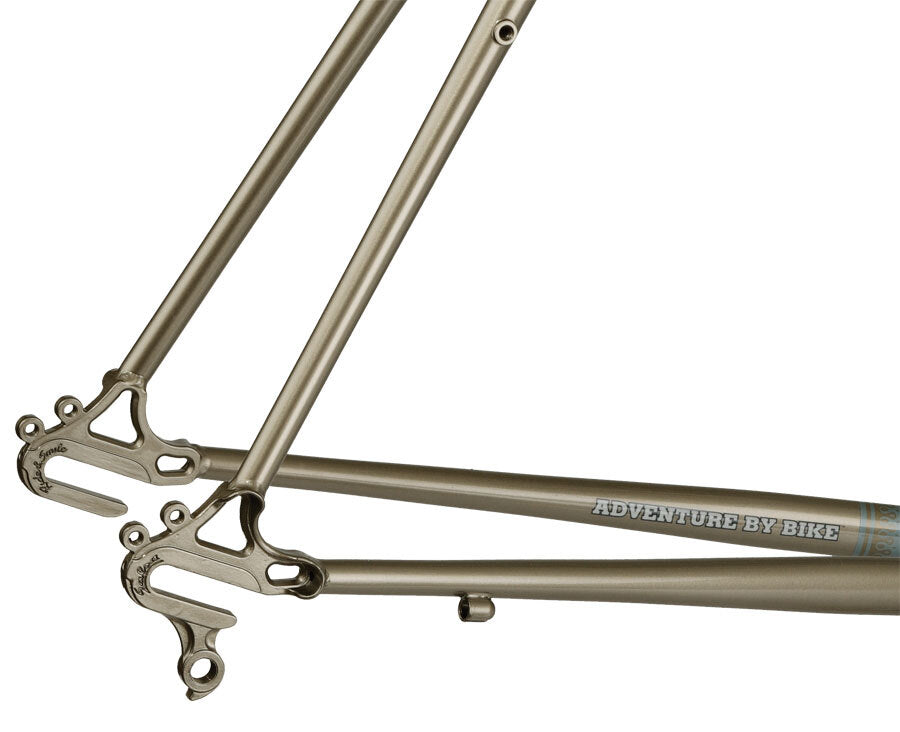

  • Salsa Casseroll framset blue color rear dropout area focus

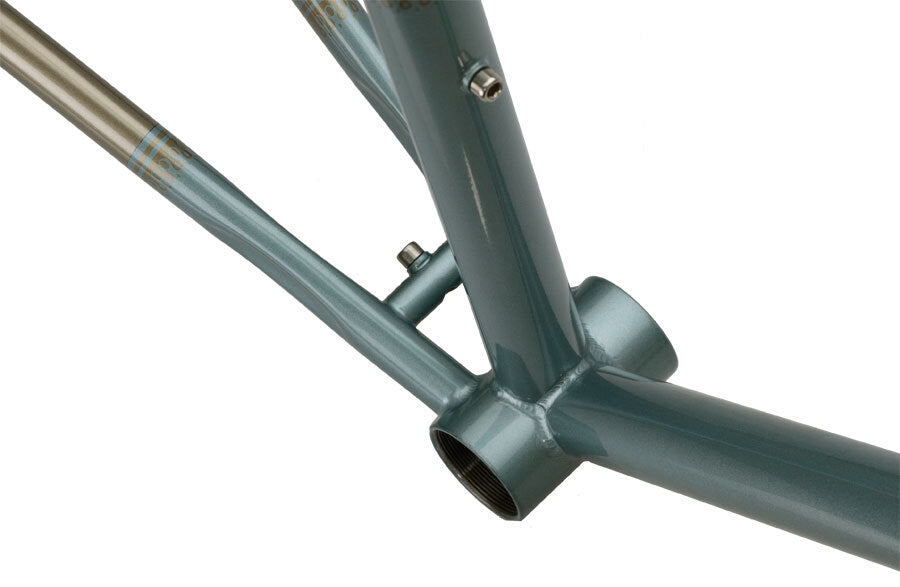

  • Salsa Casseroll framset blue color bottom bracket area focus
1 5

2012 Casseroll Frameset

2012 Casseroll Frameset

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Frame Specs

  • Wheelsize: 700c
  • Tire Clearance: Clearance for 700c x 38mm
  • Fork: Salsa Cassseroll Fork included. 1-1/8" threadless. 300mm steerer tube
  • Headset: 1-1/8"
  • Seatpost: 27.2mm
  • Seat Collar: 30.0mm. Salsa Lip-Lock included
  • Front Derailleur: 28.6mm clamp, bottom-pull
  • Bottom Bracket: 68mm English
  • Crankset: Traditional road double or triple
  • Front Brake: Cantilever
  • Rear Brake: Cantilever
  • Front Spacing: 100 x 9mm QR
  • Rear Spacing: 130 x 10mm QR
  • Bottle Mounts: 2 per frameset
  • Frame Weight: 51cm: 4.19 lb/1901g, 53cm: 4.25 lb/1928g, 54cm: 4.44 lb/2014g, 56cm: TBA, 58cm: 4.81 lb/2182g, 60cm: 5 lb/2268g
  • Fork Weight w/Uncut Steerer: 1.76 lb/800g
  • Color: Vintage Blue

Geometry

Geometry Diagram
51cm 53cm 54cm 56cm 58cm 60cm
Top Tube Effective Metric 510 530 545 560 580 600
Seat Tube Length Metric 480 500 555 570 600 610
Head Tube Length Metric 110 130 150 175 190 205
Head Tube Angle 71.5 72 72 72 73 73
Seat Tube Angle 75 74.5 74 73.5 73.5 73
BB Drop Metric 75 75 75 75 75 75
Chainstay Length Metric 425 425 425 425 425 425
Fork Length Metric 395 395 395 395 395 395
Fork Offset Metric 50 50 50 50 50 50
Wheelbase Metric 39.1 39.5 39.9 40.3 40.5 41
Stack Metric 546.4 567.2 586.3 610 630.3 644.6
Reach Metric 363.6 372.7 376.9 379.3 393.3 402.9
Standover Metric 724.6 742.6 783 803.2 832.4 841.1
Rider Height Metric 152cm - 160cm 157cm - 165cm 165cm - 175cm 173cm - 183cm 180cm - 190cm 188cm - UP
