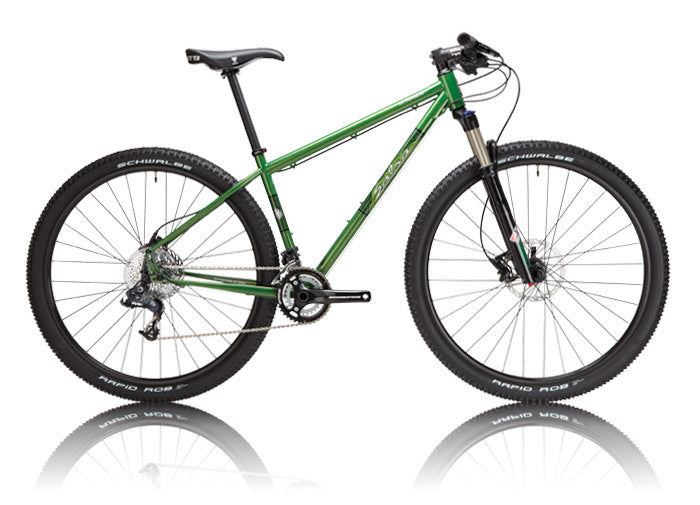

• Salsa El Mariachi bike green color side view

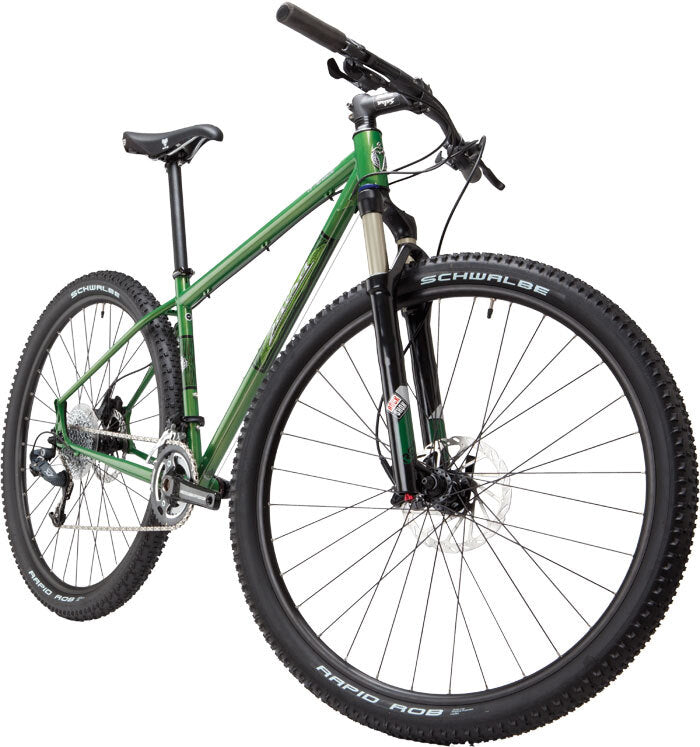

  • Salsa El Mariachi bike green color front three-quarter view

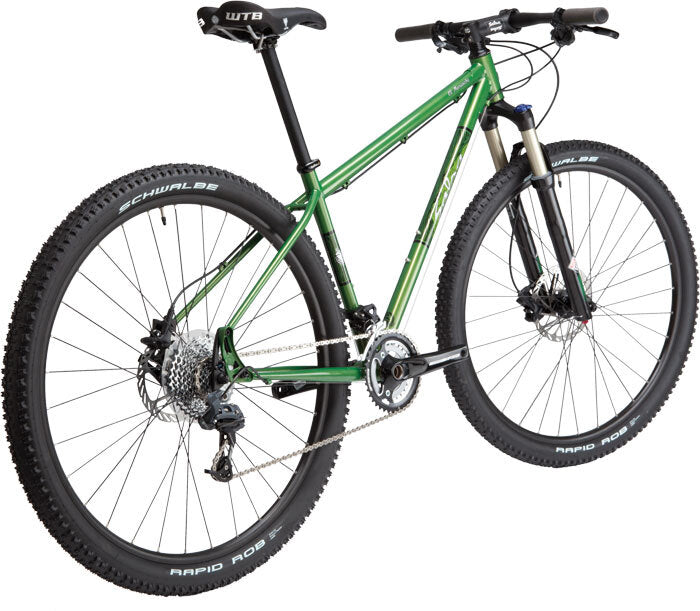

  • Salsa El Mariachi bike green color rear three-quarter view
1 3

2012 El Mariachi 3

2012 El Mariachi 3

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Salsa El Mariachi, Proprietary Kung Fu CroMoly
  • Color: Jungle Fever Green
  • Weight: M = 28.8 lbs (13070 grams)
  • Crankset: FSA Comet, Black, XS, SM = 170mm, MD, LG, XL = 175mm
  • Chainring: FSA 27/39T
  • Bottom Bracket: FSA External Bearing
  • Chain: KMC X10
  • Cassette: SRAM PG-1030, 12-36T
  • Front Derailleur: SRAM X5, 2 x 10, Low Clamp, Dual Pull
  • Rear Derailleur: SRAM X7, 10-Speed, Mid Cage, Gray
  • Fork: RockShox Recon Gold TK 29er, QR, Custom for Salsa
  • Headset: Cane Creek 10-Series, ZS, Black
  • Handlebar: Salsa Pro Moto 3, 11-Degree Flat, 31.8mm, Black
  • Stem: Salsa Pro Moto 3, 31.8mm, Black
  • Stem Sizes: SM = 90mm, MD = 100mm, LG = 110mm, XL = 120mm
  • Grips: Velo Silicone
  • Front Brake: SRAM Elixir 1, 185mm, 6-Bolt
  • Rear Brake: SRAM Elixir 1, 160mm, 6-Bolt
  • Brake Levers: SRAM Elixir 1
  • Tires: Schwalbe Rapid Rob 29 x 2.25" or Continental X-King 29 x 2.2"
  • Front Shifter: SRAM X-5 Trigger, 2 x 10
  • Rear Shifter: SRAM X-5 Trigger, 10-Speed
  • Seatpost: Kalloy SP-369 Black, 27.2 x 410mm
  • Seatclamp: Salsa Lip-Lock, Green
  • Saddle: WTB Silverado
  • Front Hub: Formula, Sealed Bearing, 32H, Black
  • Rear Hub: Formula, Sealed Bearing, 32H, Black
  • Quick Release: Formula
  • Spokes: DT Swiss, Champion SG, Black
  • Nipples: DT Swiss, Brass, Silver
  • Rims: Alex XD Comp 29er, 32H

Frame Specs

  • Wheelsize: 29"
  • Tire Clearance: Clearance for up to 29 x 2.4" tire
  • Fork: Compatible with 80–100mm travel 29er suspension fork
  • Headset - Upper: 1-1/8" zero stack (ZS44/28.6)
  • Headset - Lower: For tapered: 44mm external cup (EC44/40), For straight: zero stack (ZS44/30)
  • Seatpost: 27.2mm
  • Seat Collar: 30.0mm. Salsa Lip-Lock (Pewter color) included
  • Front Derailleur: 28.6mm, low clamp, bottom-pull
  • Bottom Bracket: 73mm English
  • Crankset: Fits any mountain double or triple
  • Rear Brake: 51mm I.S., maximum rotor size 185mm
  • Rear Spacing: 135 x 10mm QR
  • Bottle Mounts: 2 per frame
  • Derailleur Hanger: Replaceable Alternator plates. Driveside geared: FS1312, driveside singlespeed: FS1318, non-driveside: FS1313
  • Cable Routing: Continuous brake, under toptube. Under downtube derailleur
  • Frame Weight: SM: 5.19 lb/2354g, MD: 5.31 lb/2409g, LG: 5.5 lb/2495g, XL: 5.69 lb/2581g
  • Color: Jungle Fever Green

Geometry

Geometry Diagram
X-Small - 100mm Fork Small - 100mm Fork Medium - 100mm Fork Large - 100mm Fork X-Large - 100mm Fork X-Small - 80mm Fork Small - 80mm Fork Medium - 80mm Fork Large - 80mm Fork X-Large - 80mm Fork
Top Tube Effective Metric 565 580 600 620 635 563 578 598 618 633
Seat Tube Length Metric 533.4 431.8 381 355.6 482.6 533.4 431.8 381 355.6 482.6
Head Tube Length Metric 120 100 95 90 110 120 100 95 90 110
Head Tube Angle 71 71 71 71 71 71.8 71.8 71.8 71.7 71.7
Seat Tube Angle 74 73 73 73 73 74.8 73.8 73.8 73.7 73.7
BB Drop Metric 60 60 60 60 60 66 66 66 66 66
Chainstay Length Metric 445 - 462 445 - 462 445 - 462 445 - 462 445 - 462 445 - 462 445 - 462 445 - 462 445 - 462 445 - 462
Fork Length Metric 483 483 483 483 483 468 468 468 468 468
Fork Offset Metric 45 45 45 45 45 45 45 45 45 45
Wheelbase Metric 44.4 - 45.0 43.0 - 43.6 42.2 - 42.8 42.0 - 42.7 43.8 - 44.4 44.2 - 44.9 42.8 - 43.4 42.0 - 42.7 41.8 - 42.5 43.6 - 44.2
Stack Metric 599.4 604.2 608.9 618.3 627.8 594.1 598.8 603.4 612.8 622.1
Reach Metric 393.1 395.3 413.9 431 443.1 401.1 403.3 421.8 438.8 451
Standover Metric 687.7 710.6 748.7 787.2 825.2 678.1 701.1 739.8 778.9 817.4
Rider Height Metric 157cm - 168cm 165cm - 175cm 173cm - 183cm 180cm - 191cm 188cm - UP 157cm - 168cm 165cm - 175cm 173cm - 183cm 180cm - 191cm 188cm - UP

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
