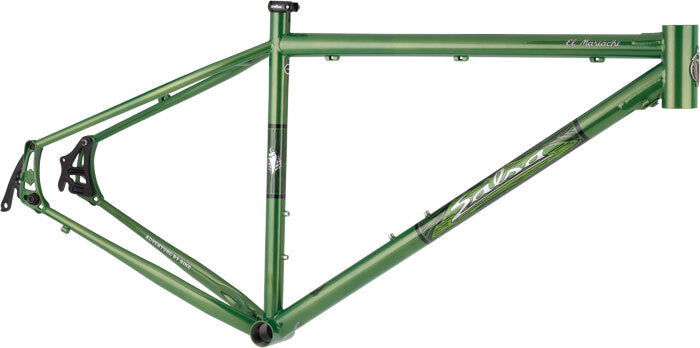

• Salsa El Mariachi Frame green color side view

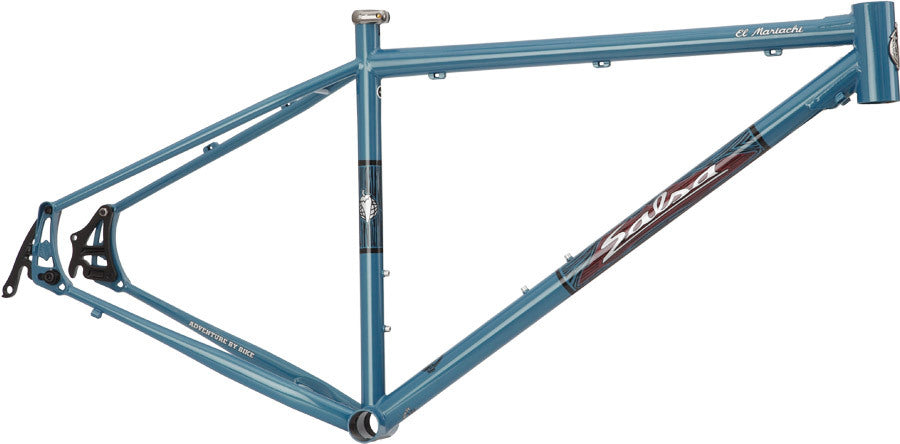

  • Salsa El Mariachi frame blue color side view

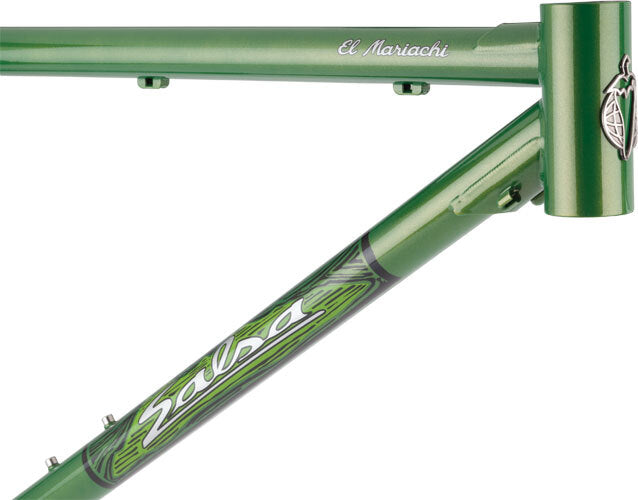

  • Salsa El Mariachi Frame green color head tube area focus

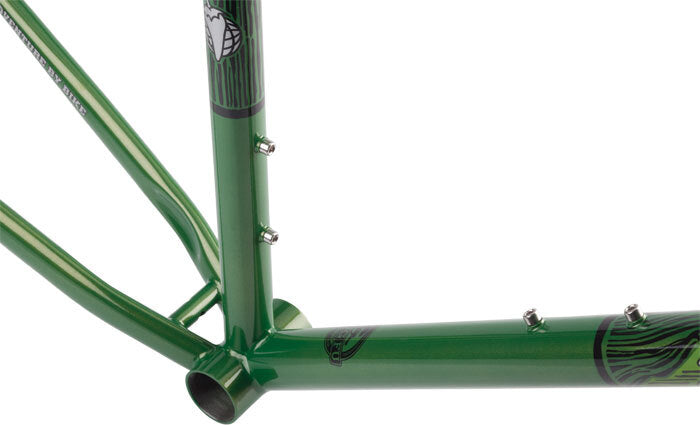

  • Salsa El Mariachi Frame green color bottom bracket area focus

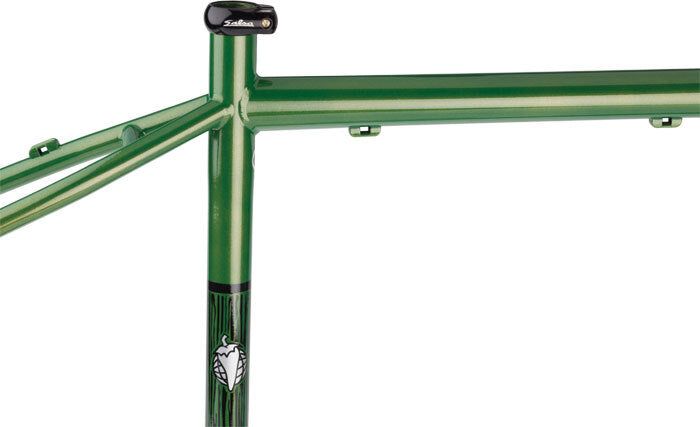

  • Salsa El Mariachi Frame green color top tube and seat tube area focus

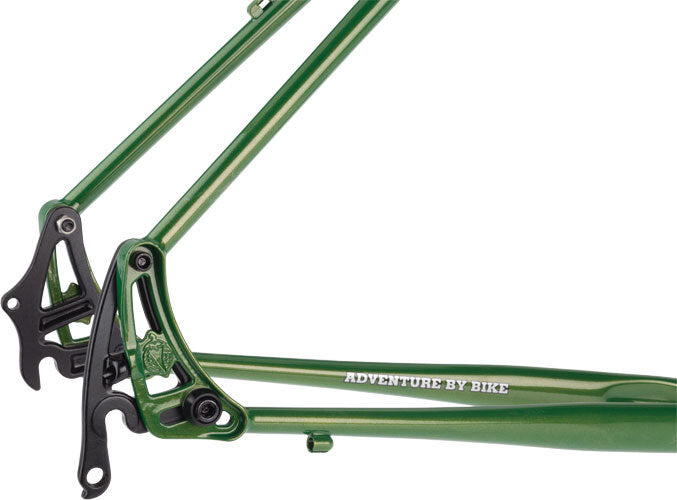

  • Salsa El Mariachi Frame green color rear dropout area focus
1 6

2012 El Mariachi Frame

2012 El Mariachi Frame

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Frame Specs

  • Wheelsize: 29"
  • Tire Clearance: Clearance for up to 29 x 2.4" tire
  • Fork: Compatible with 80-–100mm travel 29er suspension fork
  • Headset - Upper: 1-1/8" zero stack (ZS44/28.6)
  • Headset - Lower: For tapered: 44mm external cup (EC44/40) For straight: zero stack (ZS44/30)
  • Seatpost: 27.2mm
  • Seat Collar: 30.0mm. Salsa Lip-Lock (Pewter color) included
  • Front Derailleur: 28.6mm, low clamp, bottom-pull
  • Bottom Bracket: 73mm English
  • Crankset: Fits any mountain double or triple
  • Rear Brake: 51mm I.S., maximum rotor size 185mm
  • Bottle Mounts: 2 per frame
  • Derailleur Hanger: Replaceable Alternator plates. Driveside geared FS:1312, driveside singlespeed: FS1318, non-driveside: FS1313.
  • Cable Routing: Continuous brake, under toptube. Under downtube derailleur
  • Frame Weight: SM: 5.19 lb/2354g, MD: 5.31 lb/2409g, LG: 5.5 lb/2495g, XL: 5.69 lb/2581g
  • Color: Slate Blue or Jungle Fever Green

Geometry

Geometry Diagram
X-Small - 100mm Fork Small - 100mm Fork Medium - 100mm Fork Large - 100mm Fork X-Large - 100mm Fork X-Small - 80mm Fork Small - 80mm Fork Medium - 80mm Fork Large - 80mm Fork X-Large - 80mm Fork
Top Tube Effective Metric 565 580 600 620 635 563 578 598 618 633
Seat Tube Length Metric 533.4 431.8 381 355.6 482.6 533.4 431.8 381 355.6 482.6
Head Tube Length Metric 120 100 95 90 110 120 100 95 90 110
Head Tube Angle 71 71 71 71 71 71.8 71.8 71.8 71.7 71.7
Seat Tube Angle 74 73 73 73 73 74.8 73.8 73.8 73.7 73.7
BB Drop Metric 60 60 60 60 60 66 66 66 66 66
Chainstay Length Metric 445 - 462 445 - 462 445 - 462 445 - 462 445 - 462 445 - 462 445 - 462 445 - 462 445 - 462 445 - 462
Fork Length Metric 483 483 483 483 483 468 468 468 468 468
Fork Offset Metric 45 45 45 45 45 45 45 45 45 45
Wheelbase Metric 44.4 - 45.0 43.0 - 43.6 42.2 - 42.8 42.0 - 42.7 43.8 - 44.4 44.2 - 44.9 42.8 - 43.4 42.0 - 42.7 41.8 - 42.5 43.6 - 44.2
Stack Metric 599.4 604.2 608.9 618.3 627.8 594.1 598.8 603.4 612.8 622.1
Reach Metric 393.1 395.3 413.9 431 443.1 401.1 403.3 421.8 438.8 451
Standover Metric 687.7 710.6 748.7 787.2 825.2 678.1 701.1 739.8 778.9 817.4
Rider Height Metric 157cm - 168cm 165cm - 175cm 173cm - 183cm 180cm - 191cm 188cm - UP 157cm - 168cm 165cm - 175cm 173cm - 183cm 180cm - 191cm 188cm - UP
