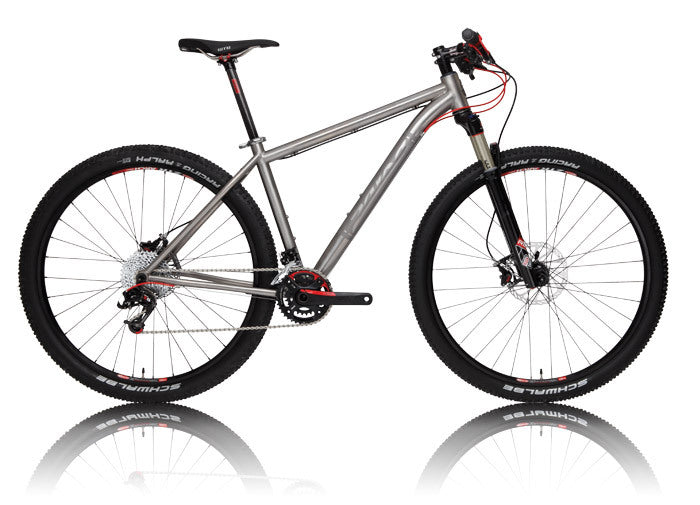

• Salsa El Mariachi Ti bike side view

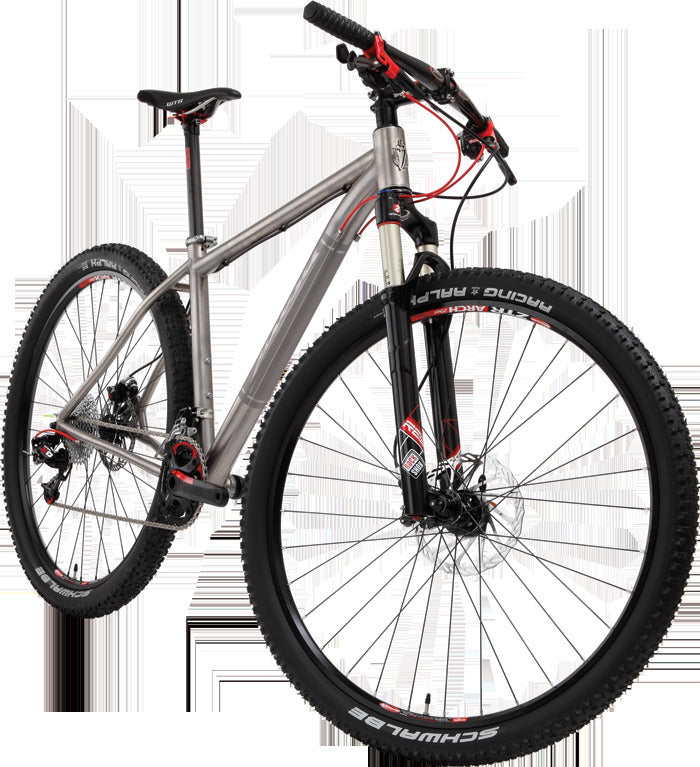

  • Salsa El Mariachi Ti bike front three-quarter view

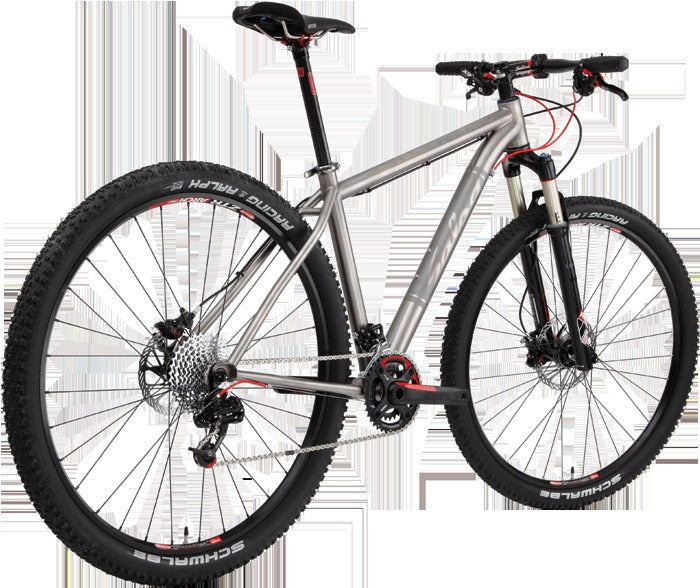

  • Salsa El Mariachi Ti bike rear three-quarter view
1 3

2012 El Mariachi Ti

2012 El Mariachi Ti

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: El Mariachi, 3/2.5 Seamless Titanium
  • Color: Industrial Mill Finish w/ Etched Graphics
  • Weight: S = 24.4 lbs (11050 grams), L = 24.9 lbs (11310 grams)
  • Crankset: SRAM X9 GXP, Black, XS, SM=170mm, MD, LG, XL = 175mm
  • Chainring: SRAM 26/39T
  • Bottom Bracket: SRAM
  • Chain: SRAM PC-1051 10-Speed w/ PowerLock
  • Cassette: SRAM PG-1050, 12-36T
  • Front Derailleur: SRAM X9, 2 x 10, High Clamp, Dual Pull
  • Rear Derailleur: SRAM X0, 10-Speed, Mid Cage
  • Fork: RockShox Reba RLT 29er, 80mm, Tapered, PopLoc Lever, QR
  • Headset: Cane Creek 40-Series, ZS, Black
  • Handlebar: Salsa Pro Moto 1 Carbon, 11-Degree Flat, 31.8mm
  • Stem: Salsa Pro Moto Ti, 31.8mm, Black
  • Stem Sizes: SM = 90mm, MD = 100mm, LG = 110mm, XL = 120mm
  • Grips: Salsa Pepperjacks
  • Front Brake: SRAM Elixir 7, 180mm, 6-Bolt
  • Rear Brake: SRAM Elixir 7, 160mm, 6-Bolt
  • Brake Levers: SRAM Elixir 7
  • Tires: Continental Race King 29 x 2.2", Folding
  • Front Shifter: SRAM X-9 Trigger, 2 x 10
  • Rear Shifter: SRAM X-9 Trigger, 10-Speed
  • Seatpost: Salsa Pro Moto 1 Carbon, 27.2 x 350mm
  • Seatclamp: Salsa Lip-Lock, Pewter
  • Saddle: WTB Silverado
  • Front Hub: Formula, Sealed Bearing, 32H, Black
  • Rear Hub: Formula, Sealed Bearing, 32H, Black
  • Quick Release: Formula
  • Spokes: DT Swiss, Competition, Silver
  • Nipples: DT Swiss, Brass, Silver
  • Rims: Stans No Tubes, Arch 29er, 32H, Black

Frame Specs

  • Wheelsize: 29"
  • Tire Clearance: Clearance for up to 29 x 2.3" (622 x 58mm) tire
  • Fork: Compatible with 80–100mm travel 29er suspension fork
  • Headset - Upper: 1-1/8" zero stack (ZS44/28.6)
  • Headset - Lower: For tapered: 44mm external cup (EC44/40) For straight: zero stack (ZS44/30)
  • Seatpost: 27.2mm
  • Seat Collar: 35.0mm. Salsa Lip-Lock (Pewter color) included
  • Front Derailleur: 34.9mm, low clamp, bottom-pull
  • Bottom Bracket: 73mm English
  • Crankset: Fits any mountain double or triple
  • Rear Brake: 51mm I.S., maximum rotor size 185mm
  • Rear Spacing: 135 x 10mm QR
  • Bottle Mounts: 2 per frame
  • Derailleur Hanger: Part number FS2310
  • Cable Routing: Continuous brake housing, under toptube. Under downtube derailleur
  • Frame Weight: 3.69 lb/1674g (SM), 3.81 lb/1728g (MD), 4.19 lb/1901g (LG), XL TBA
  • Color: Industrial mill finish w/ etched graphics

Geometry

Geometry Diagram
Small - 100mm Fork Medium - 100mm Fork Large - 100mm Fork X-Large - 100mm Fork Small - 80mm Fork Medium - 80mm Fork Large - 80mm Fork X-Large - 80mm Fork
Top Tube Effective Metric 580 600 620 635 577.7 597.6 617.6 632.6
Seat Tube Length Metric 508 457.2 406.4 558.8 508 457.2 406.4 558.8
Head Tube Length Metric 110 100 95 120 110 100 95 120
Head Tube Angle 71 71 71 71 71.7 71.7 71.7 71.7
Seat Tube Angle 73 73 73 73 73.7 73.7 73.7 73.7
BB Drop Metric 60 60 60 60 66 66 66 66
Chainstay Length Metric 450 450 450 450 450 450 450 450
Fork Length Metric 483 483 483 483 468 468 468 468
Fork Offset Metric 45 45 45 45 45 45 45 45
Wheelbase Metric 44 43.2 42.4 44.6 43.8 43 42.2 44.4
Stack Metric 602.2 606.9 616.3 625.8 597.1 601.6 610.9 620.2
Reach Metric 395.9 414.5 431.6 443.7 403.4 422.1 439.3 451.5
Standover Metric 736.1 773.2 811.1 849.6 732.7 769.7 807.4 844.7
Rider Height Metric 165cm - 175cm 173cm - 183cm 180cm - 191cm 188cm - UP 165cm - 175cm 173cm - 183cm 180cm - 191cm 188cm - UP
