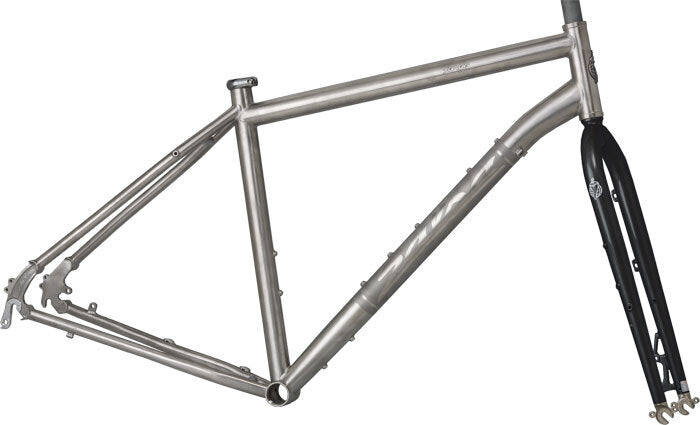

• Salsa Fargo Ti frameset side view

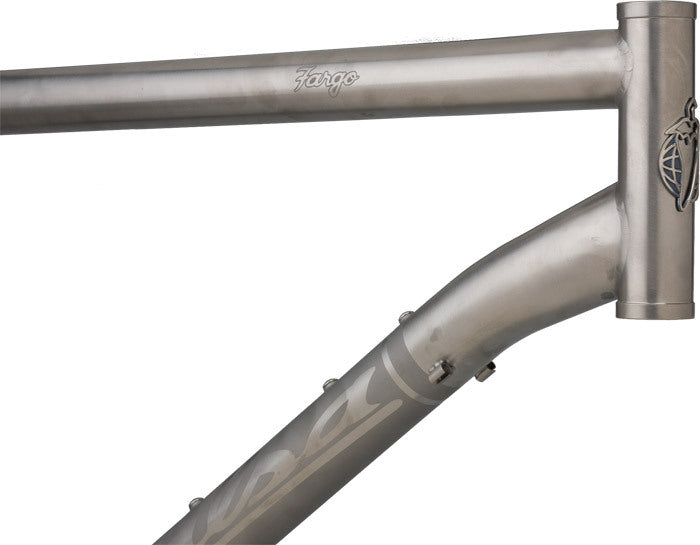

  • Salsa Fargo Ti frameset headtube area focus

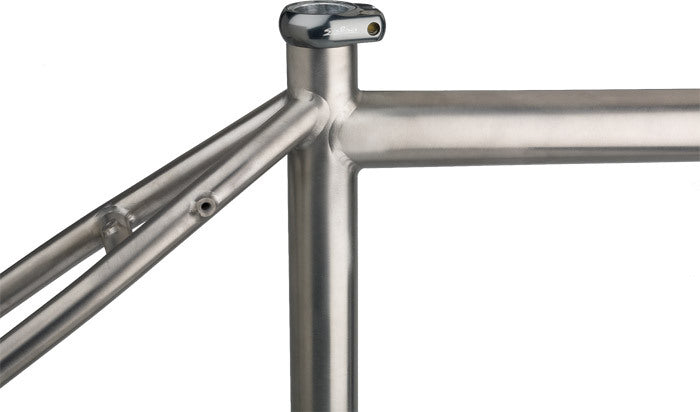

  • Salsa Fargo Ti frameset top tube and seat tube area focus
  • Salsa Fargo Ti frameset bottom bracket area focus

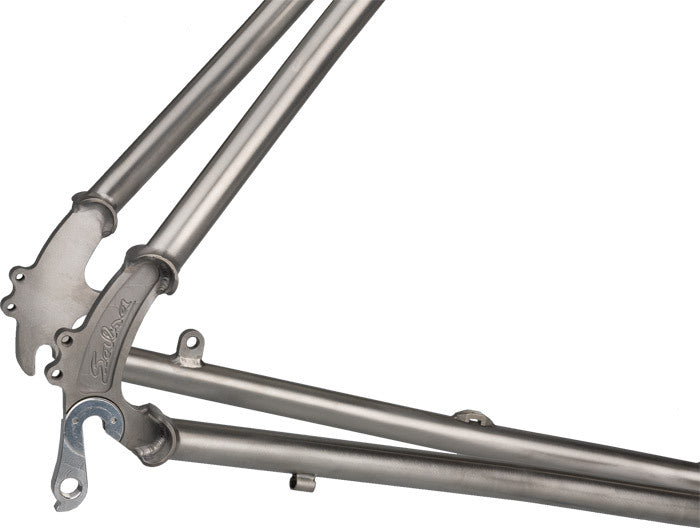

  • Salsa Fargo Ti frameset rear dropout area focus
1 5

2012 Fargo Ti Frameset

2012 Fargo Ti Frameset

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Frame Specs

  • Wheelsize: 29"
  • Tire Clearance: Clearance for up to 29 x 2.3" (622 x 58mm) tire
  • Fork: Salsa Fargo Fork included. 1-1/8" threadless. 300mm steerer tube. Compatible with 80mm travel 29er suspension forks
  • Headset - Upper: 1-1/8"
  • Headset - Lower: 1-1/8"
  • Seatpost: 27.2mm
  • Seat Collar: 35.0mm. Salsa Lip-Lock (Pewter color) included
  • Front Derailleur: 34.9mm, low clamp, bottom-pull
  • Bottom Bracket: 73mm English
  • Crankset: Fits any mountain double or triple
  • Front Brake: 51mm I.S., maximum rotor size 185mm
  • Rear Brake: 51mm I.S., maximum rotor size 185mm
  • Front Spacing: 100 x 9mm QR
  • Rear Spacing: 135 x 10mm QR
  • Bottle Mounts: 5 per frameset (4 per frameset on size Small)
  • Derailleur Hanger: Part number FS2310
  • Cable Routing: Under downtube shifter routing. Top of downtube brake routing. Full-lenth rear brake housing
  • Frame Weight: 3.5 lb/1588g (SM), 3.5 lb/1588g (MD), 3.81 lb/1728g (LG), 3.94 lb/1787g (XL)
  • Fork Weight w/ Uncut Steerer: 1158g with full-length steerer tube
  • Color: Industrial mill finish w/ etched graphics

Geometry

Geometry Diagram
Small Medium Large X-Large
Top Tube Effective Metric 545 565 580 600
Seat Tube Length Metric 406.4 457.2 508 558.8
Head Tube Length Metric 100 125 150 170
Head Tube Angle 70 70.5 71 71
Seat Tube Angle 74 73 73 73
BB Drop Metric 70 70 70 70
Chainstay Length Metric 455 455 455 455
Fork Length Metric 468 468 468 468
Fork Offset Metric 45 45 45 45
Wheelbase Metric 1063.2 1067.7 1078.2 1098.9
Stack Metric 598.5 624.2 649.9 668.8
Reach Metric 373.4 374.2 381.3 395.5
Standover Metric 728.7 774.8 818.2 857.4
Rider Height Metric 160cm - 175cm 173cm - 183cm 180cm - 191cm 188cm - UP
BB Center to Center Metric
Stem Length
Crank Length
Handlebar Width
Seatpost Offset Metric
Stem Angle
Wheel Size
Seatpost Dropper Length Travel
Handlebar_Rise_Drop
BB Height
