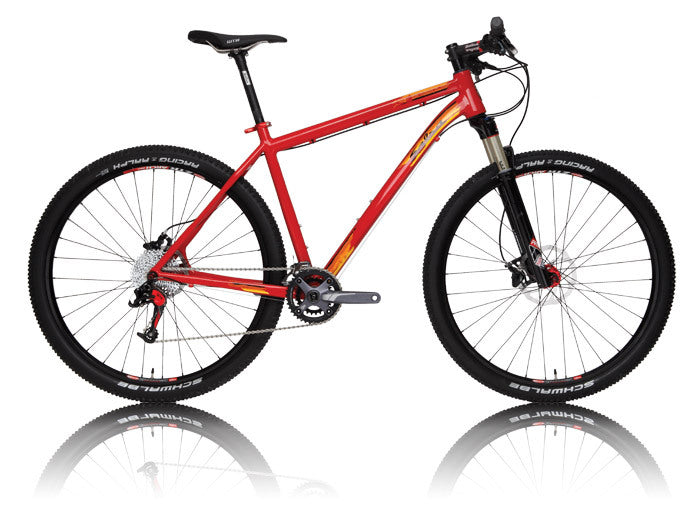

• Salsa Mamasita bike red color side view

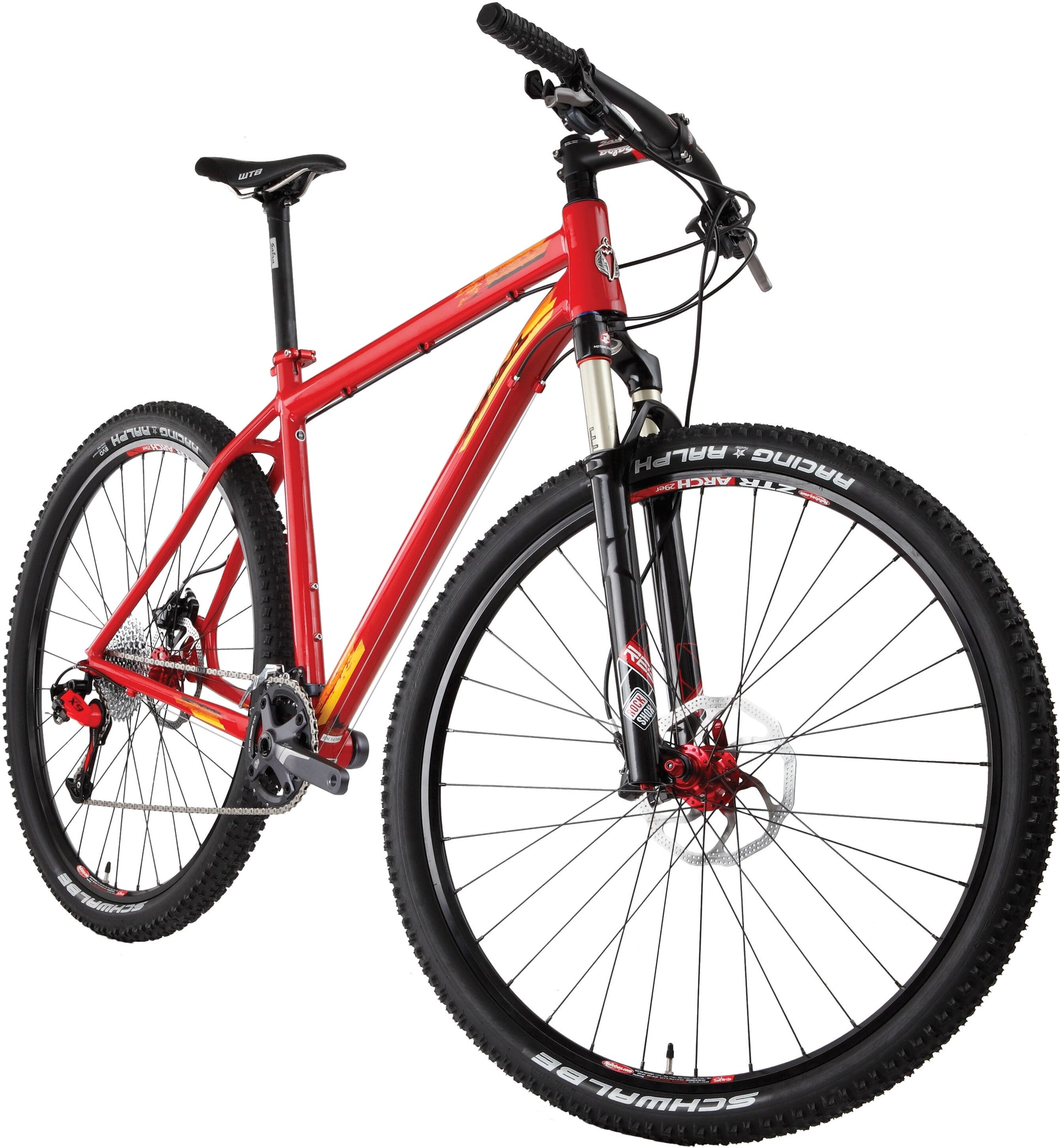

  • Salsa Mamasita bike red color front three-quarter view

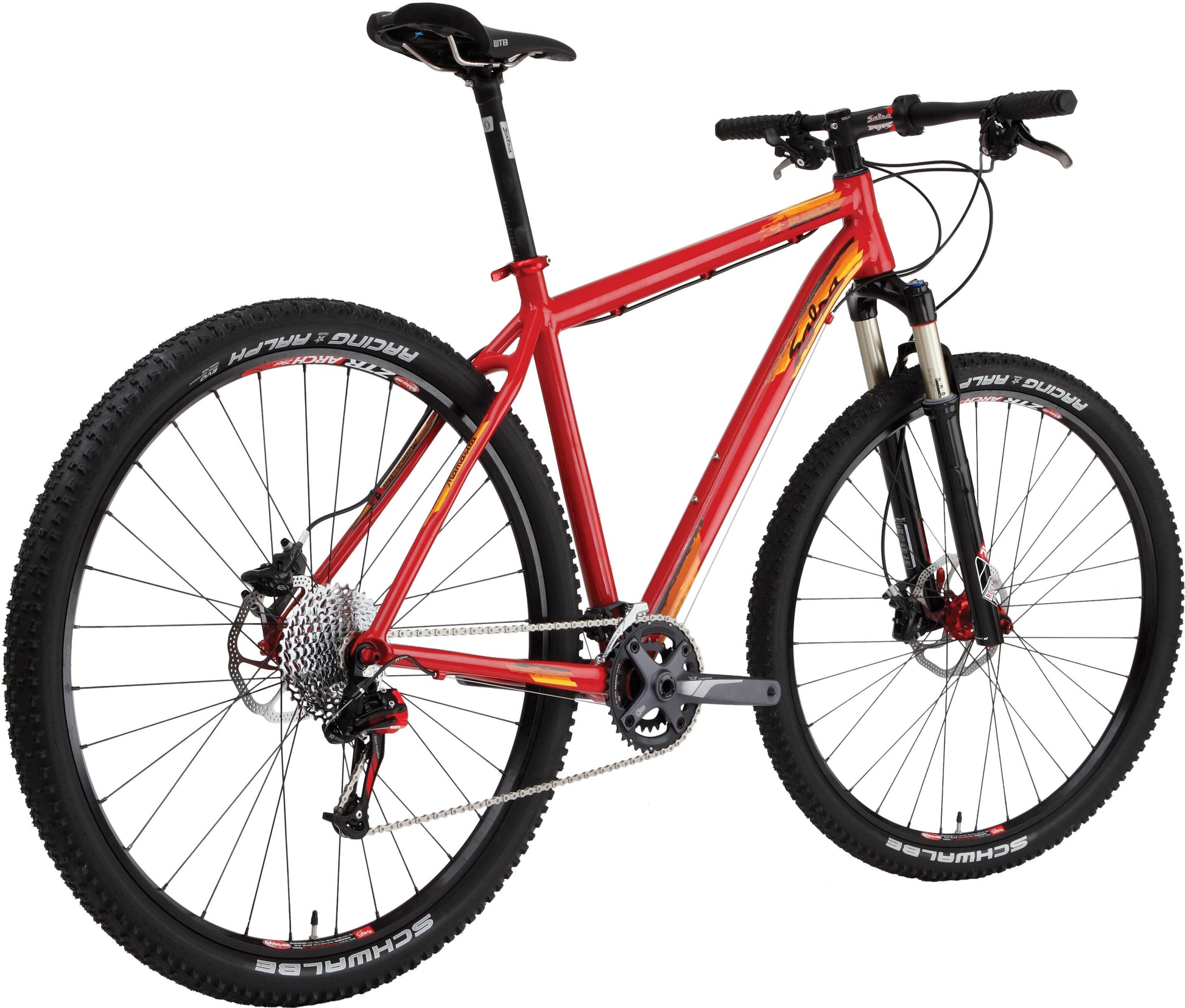

  • Salsa Mamasita bike red color rear three-quarter view
1 3

2012 Mamasita

2012 Mamasita

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Mamasita, EV6 Xtrolite Aluminium Alloy
  • Color: Not-A-Fred Red
  • Weight: TBA
  • Crankset: SRAM X7, 26/39T, PressFit 30
  • Chainring: SRAM 26/39T
  • Bottom Bracket: SRAM PressFit 30
  • Chain: SRAM PC1030
  • Cassette: SRAM PG-1050, 12-36T
  • Front Derailleur: SRAM X7, 2x10, Low Clamp, Dual Pull
  • Rear Derailleur: SRAM X9, 10-Speed, Mid Cage, Red
  • Fork: RockShox Reba RL 29er, Tapered Steerer, Black/Red w/ Remote Included
  • Headset: Cane Creek 40-Series, Tapered ZS, Black
  • Handlebar: Salsa Pro Moto 2, 11-Degree Flat, 31.8mm, Black
  • Stem: Salsa Pro Moto 2, 31.8mm, Black
  • Stem Sizes: Salsa Juegos de Fuegos
  • Grips: SRAM Elixir 5, 180mm, 6-Bolt
  • Front Brake: SRAM Elixir 5, 160mm, 6-Bolt
  • Rear Brake: SRAM Elixir 5
  • Brake Levers: Continental X-King 29 x 2.2", Folding Bead
  • Tires: SRAM X-7 Trigger, 2 x 10
  • Front Shifter: SRAM X-7 Trigger, 10-Speed
  • Rear Shifter: Salsa Pro Moto 2, 31.6mm
  • Seatpost: Salsa Flip-Lock, Black
  • Seatclamp: WTB Silverado w/ Salsa Logo
  • Saddle: Formula, Sealed Cartridge, 32H, Red
  • Front Hub: Formula, Double Sealed Cartridge, 32H, Red
  • Rear Hub: Formula
  • Quick Release: DT Swiss, Competition, Butted 2.0/1.8, Black
  • Spokes: DT Swiss, Alloy, Red
  • Nipples: Stan's Arch 29er, 32H

Frame Specs

  • Wheelsize: 29"
  • Tire Clearance: Clearance for 29 x 2.25" tires
  • Fork: Compatible with 80-100mm travel 29'er suspension forks
  • Headset: 1-1/8" Zero Stack (ZS44/28.6)
  • Headset: For Tapered: 56mm zero stack (ZS56/40) For Straight: 56mm reducing zero stack (ZS56/30)
  • Seatpost: 27.2mm
  • Seat Collar: 32.0mm. Salsa Lip-Lock (Black color) included
  • Front Derailleur: 34.9mm, Low Clamp, Bottom Pull
  • Bottom Bracket: 73mm PressFit 30
  • Crankset: Any PressFit 30 compatible mountain double or triple crankset
  • Rear Brake: 51mm I.S., maximum rotor size 185mm
  • Cable Routing: Continuous brake, under toptube. Under downtube derailleur
  • Rear Spacing: 135 x 10mm QR
  • Derailleur Hanger: Part number FS2310
  • Bottle Mounts: 1 per frame on XS; 2 per frame on S, M, L, XL
  • Frame Weight: XS (3.48 lbs/1578g), S (3.57 lbs/1619g), M (3.7 lbs/1678g), L (3.83 lbs/1737g), XL (3.97 lbs/1800g)
  • Color: Not-A-Fred Red

Geometry

Geometry Diagram
Metric X-Small - 100mm Fork Small - 100mm Fork Medium - 100mm Fork Large X-Large - 100mm Fork X-Small - 80mm Fork Small - 80mm Fork Medium - 80mm Fork Large - 80mm Fork X-Large - 80mm Fork
Top Tube Effective Metric 565 580 600 620 635 563 578 598 618 633
Seat Tube Length Metric 355.6 406.4 457.2 508 558.8 355.6 406.4 457.2 508 558.8
Head Tube Length Metric 110 110 120 130 140 110 110 120 130 140
Head Tube Angle 71 71 71 71 71 71.8 71.8 71.7 71.7 71.7
Seat Tube Angle 74 73.5 73 73 73 74.8 74.3 73.7 73.7 73.7
BB Drop Metric 60 60 60 60 60 66 66 66 66 66
Chainstay Length Metric 450 450 450 450 450 450 450 450 450 450
Fork Length Metric 483 483 483 483 483 468 468 468 468 468
Fork Offset Metric 45 45 45 45 45 45 45 45 45 45
Wheelbase Metric 1071.8 1082 1097.3 1117.6 1132.8 1071.8 1082 1097.3 1117.6 1132.8
Stack Metric 609.8 609.8 619.3 628.7 638.2 604.6 604.5 613.9 623.2 632.6
Reach Metric 390.1 399.4 410.7 427.8 439.9 398.2 407.4 418.7 435.8 447.9
Standover Metric 691.4 729.2 767.9 804.5 841.2 681.5 719.9 759.1 796.2 833.4
Rider Height Metric 157cm - 168cm 165cm - 175cm 173cm - 183cm 180cm - 191cm 188cm - UP 157cm - 168cm 165cm - 175cm 173cm - 183cm 180cm - 191cm 188cm - UP
