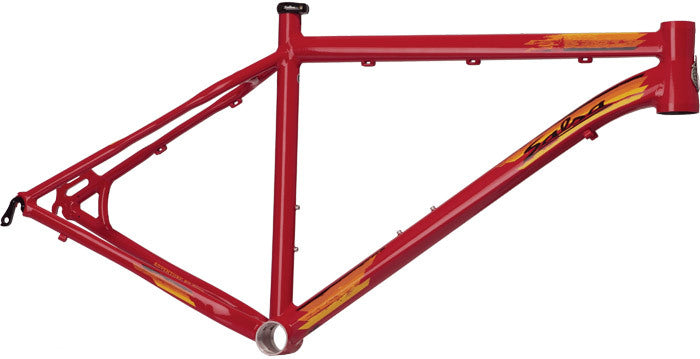

• Salsa Mamasita frame red color side view

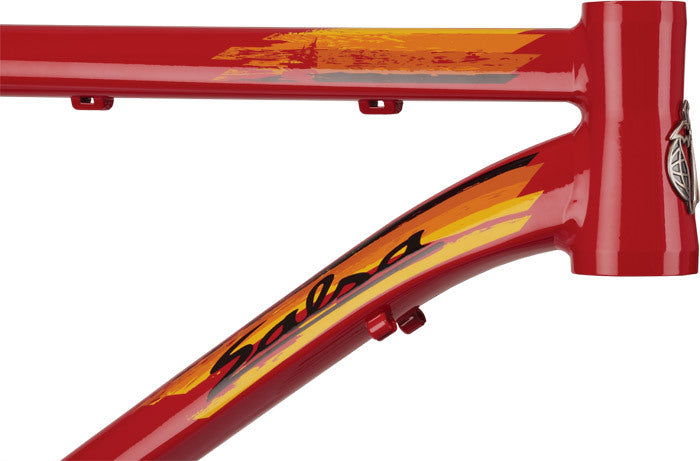

  • Salsa Mamasita frame red color head tube area focus

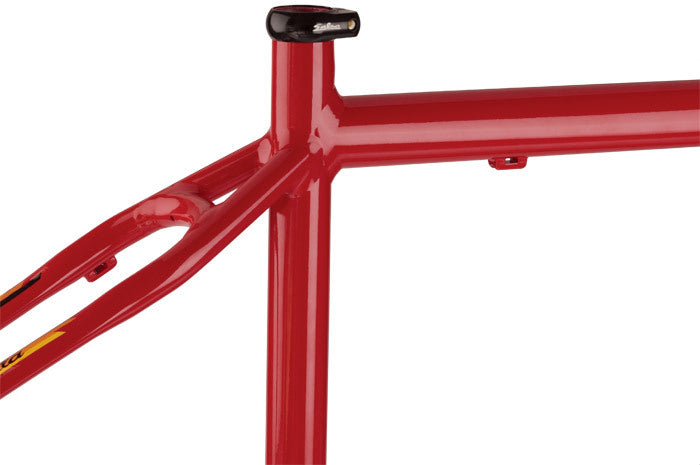

  • Salsa Mamasita frame red color top tube, seat tube, and seat stay area focus

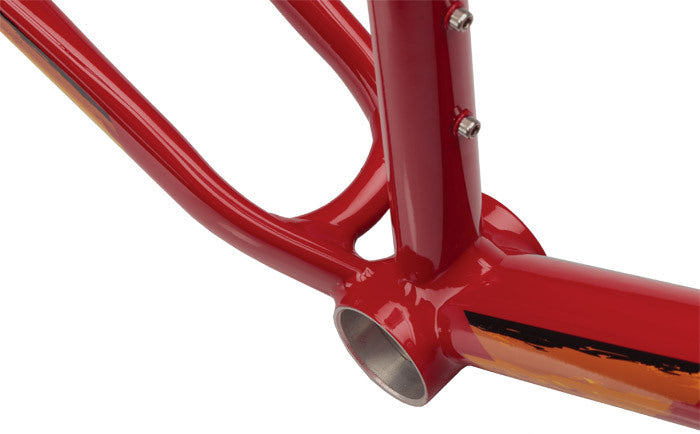

  • Salsa Mamasita frame red color bottom bracket area focus

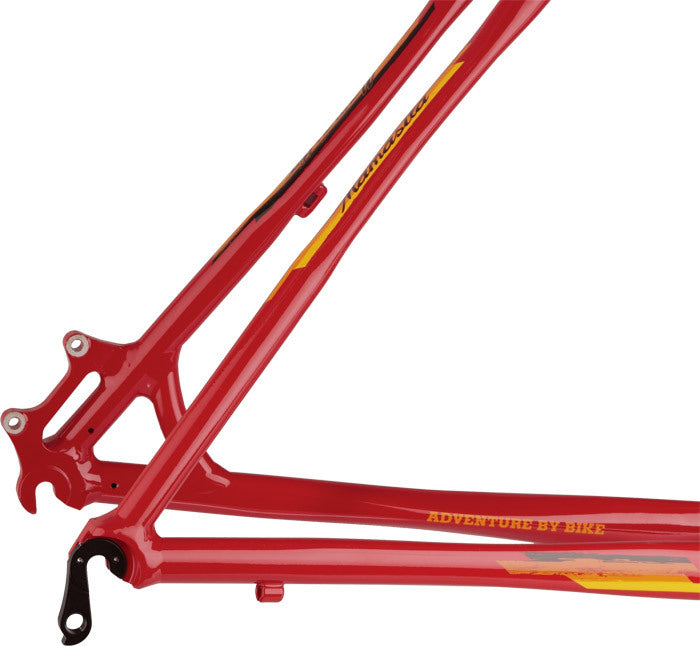

  • Salsa Mamasita frame red color rear dropout area focus
1 5

2012 Mamasita Frame

2012 Mamasita Frame

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Frame Specs

  • Wheelsize: 29"
  • Tire Clearance: Clearance for 29 x 2.25" tires
  • Fork: Compatible with 80-100mm travel 29'er suspension forks
  • Headset: 1-1/8" Zero Stack (ZS44/28.6)
  • Headset: For Tapered: 56mm zero stack (ZS56/40) For Straight: 56mm reducing zero stack (ZS56/30)
  • Seatpost: 27.2mm
  • Seat Collar: 32.0mm. Salsa Lip-Lock (Black color) included
  • Front Derailleur: 34.9mm, Low Clamp, Bottom Pull
  • Bottom Bracket: 73mm PressFit 30
  • Crankset: Any PressFit 30 compatible mountain double or triple crankset
  • Rear Brake: 51mm I.S., maximum rotor size 185mm
  • Cable Routing: Continuous brake, under toptube. Under downtube derailleur
  • Rear Spacing: 135 x 10mm QR
  • Derailleur Hanger: Part number FS2310
  • Bottle Mounts: 1 per frame on XS; 2 per frame on S, M, L, XL
  • Frame Weight: XS (3.48 lbs/1578g), S (3.57 lbs/1619g), M (3.7 lbs/1678g), L (3.83 lbs/1737g), XL (3.97 lbs/1800g)
  • Color: Not-A-Fred Red

Geometry

Geometry Diagram
Metric X-Small - 100mm Fork Small - 100mm Fork Medium - 100mm Fork Large X-Large - 100mm Fork X-Small - 80mm Fork Small - 80mm Fork Medium - 80mm Fork Large - 80mm Fork X-Large - 80mm Fork
Top Tube Effective Metric 565 580 600 620 635 563 578 598 618 633
Seat Tube Length Metric 355.6 406.4 457.2 508 558.8 355.6 406.4 457.2 508 558.8
Head Tube Length Metric 110 110 120 130 140 110 110 120 130 140
Head Tube Angle 71 71 71 71 71 71.8 71.8 71.7 71.7 71.7
Seat Tube Angle 74 73.5 73 73 73 74.8 74.3 73.7 73.7 73.7
BB Drop Metric 60 60 60 60 60 66 66 66 66 66
Chainstay Length Metric 450 450 450 450 450 450 450 450 450 450
Fork Length Metric 483 483 483 483 483 468 468 468 468 468
Fork Offset Metric 45 45 45 45 45 45 45 45 45 45
Wheelbase Metric 1071.8 1082 1097.3 1117.6 1132.8 1071.8 1082 1097.3 1117.6 1132.8
Stack Metric 609.8 609.8 619.3 628.7 638.2 604.6 604.5 613.9 623.2 632.6
Reach Metric 390.1 399.4 410.7 427.8 439.9 398.2 407.4 418.7 435.8 447.9
Standover Metric 691.4 729.2 767.9 804.5 841.2 681.5 719.9 759.1 796.2 833.4
Rider Height Metric 157cm - 168cm 165cm - 175cm 173cm - 183cm 180cm - 191cm 188cm - UP 157cm - 168cm 165cm - 175cm 173cm - 183cm 180cm - 191cm 188cm - UP

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
