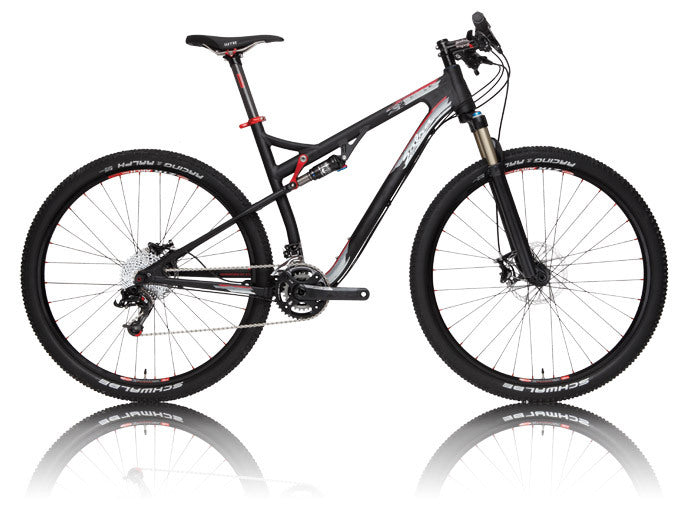

• Salsa Spearfish bike black color side view

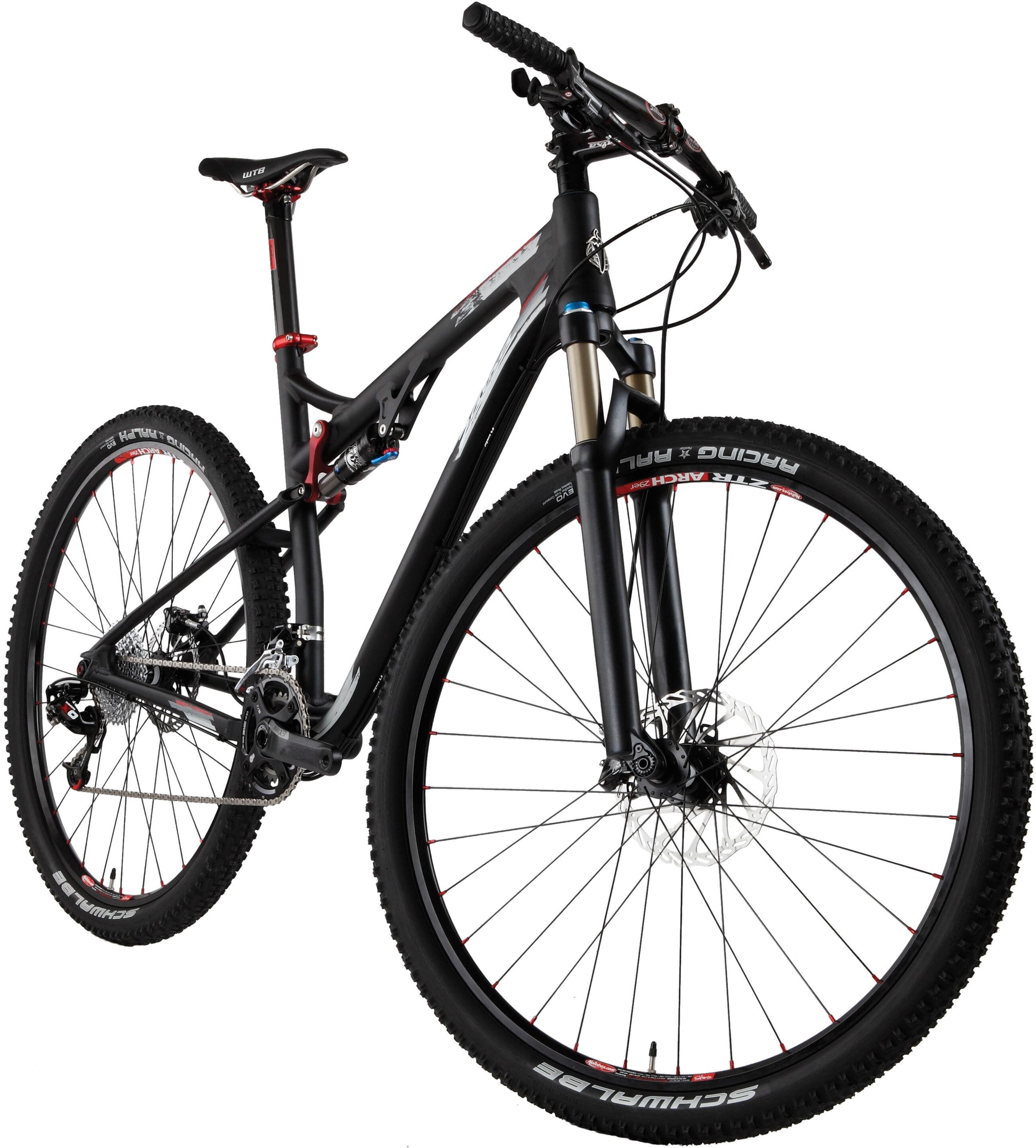

  • Salsa Spearfish bike black color front three-quarter view

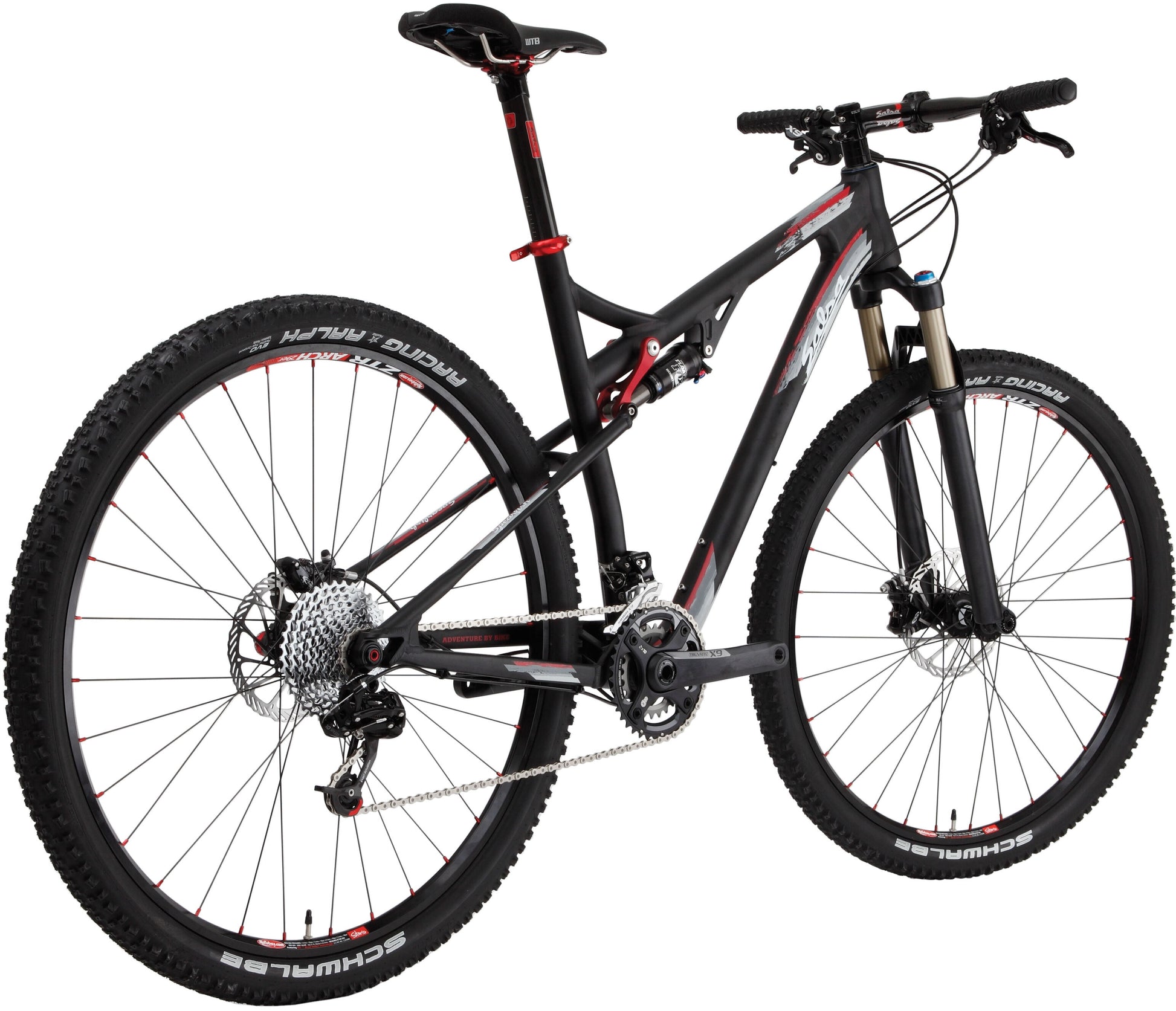

  • Salsa Spearfish bike black color rear three-quarter view
1 3

2012 Spearfish

2012 Spearfish

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Spearfish, EV-6 Aluminum Alloy
  • Shock: Fox Float RP2 Boost Valve, Custom Tuned for Spearfish
  • Color: Speedy Black Anodized
  • Weight: S = 26.2 lbs (11890 grams), M = 26.4 lbs (11970 grams), L = 26.6 lbs (12070 grams), XL = 26.9 lbs (12190 grams)
  • Crankset: SRAM X9, 26/39T, PressFit 30, SM = 170mm, MD, LG, XL = 175mm
  • Chainring: SRAM 26/39T
  • Bottom Bracket: SRAM PressFit 30
  • Chain: KMC X10
  • Cassette: SRAM PG-1070, 12-36T
  • Front Derailleur: SRAM X7, 2x10, High Clamp, Dual Pull
  • Rear Derailleur: SRAM X0, 10-Speed, Mid Cage, Red
  • Fork: Fox F29 RL, Tapered, QR15, 100mm Travel, Custom for Salsa
  • Headset: Cane Creek 40-Series, Tapered ZS, Black
  • Handlebar: Salsa Pro Moto 1 Carbon, 11-Degree Flat, 31.8mm, Black
  • Stem: Salsa Pro Moto 1, 31.8mm, Black
  • Stem Sizes: SM = 90mm, MD= 100mm, LG = 110mm, XL = 120mm
  • Grips: Salsa Juegos de Fuegos
  • Front Brake: SRAM Elixir 7 Carbon, 160mm, 6-Bolt, HS1 Rotors
  • Rear Brake: SRAM Elixir 7 Carbon, 160mm, 6-Bolt, HS1 Rotors
  • Brake Levers: SRAM Elixir 7 w/ Carbon Lever
  • Tires: Continental X-King 29 x 2.2", Folding Bead
  • Front Shifter: SRAM X9 Trigger, 2 x 10
  • Rear Shifter: SRAM X9 Trigger, 10-Speed
  • Seatpost: Salsa Pro Moto 1 Carbon 31.6mm
  • Seatclamp: Salsa Lip-Lock, Black
  • Saddle: WTB Silverado w/ Salsa Logo
  • Front Hub: DT Swiss 350 6-Bolt Disc, 15mm Thru-Axle
  • Rear Hub: DT Swiss 350 6-Bolt Disc, 12 x 142mm Thru-Axle w/ Star Ratchet
  • Quick Release: Front: Fox QR15; Rear: SRAM Maxle 12 x 142mm
  • Spokes: DT Swiss, Competition, Butted 2.0/1.8, Black
  • Nipples: DT Swiss, Aluminum
  • Rims: Stan's Arch 29er, 32H

Frame Specs

  • Wheelsize: 29"
  • Tire Clearance: Clearance for 29 x 2.25" tires
  • Fork: Compatible with 100mm travel 29'er suspension forks
  • Headset - Upper: 1-1/8" Zero Stack (ZS44/28.6)
  • Headset - Lower: For Tapered: 56mm zero stack (ZS56/40) For Straight: 56mm reducing zero stack (ZS56/30)
  • Rear Shock Size: 165 x 38mm (6.5 x 1.5
  • Rear Shock Hardware: 8 x 22.2mm (both ends)
  • Seatpost: 31.6mm
  • Seat Collar: 35.0mm. Salsa Lip-Lock (Black color) included
  • Front Derailleur: 34.9mm, High Clamp, Bottom Pull
  • Bottom Bracket: 73mm PressFit 30
  • Crankset: Any mountain double or triple crankset EXCEPT SRAM XX BB30 Q-156 or SRAM X7 BB30 cranks
  • Rear Brake: 51mm I.S., maximum rotor size 185mm
  • Cable Routing: Full length downtube triple guide routing
  • Rear Spacing: 142 x 12mm Maxle. Maxle included
  • Derailleur Hanger: FS2315
  • Bottle Mounts: 1 per frame
  • Frame Weight: TBA
  • Color: Speedy Black Ano

Geometry

Geometry Diagram
Small Medium Large X-Large
Top Tube Effective Metric 580 600 620 635
Seat Tube Length Metric 457.2 406.4 406.4 508
Head Tube Length Metric 120 110 110 130
Head Tube Angle 71 71 71 71
Seat Tube Angle 73.5 73 73 73
BB Drop Metric 45 45 45 45
Chainstay Length Metric 455 455 455 455
Fork Length Metric 503 503 503 503
Fork Offset Metric 45 45 45 45
Wheelbase Metric 43.7 43.1 42.72 44.5
Stack Metric 613.7 623.2 632.6 642.1
Reach Metric 398.2 409.5 426.6 438.7
Standover Metric 744.2 744.7 750 755
Rider Height Metric 165cm - 175cm 173cm - 183cm 180cm - 191cm 188cm - UP
Stem Length
Crank Length
Handlebar Width
Seatpost Offset Metric
