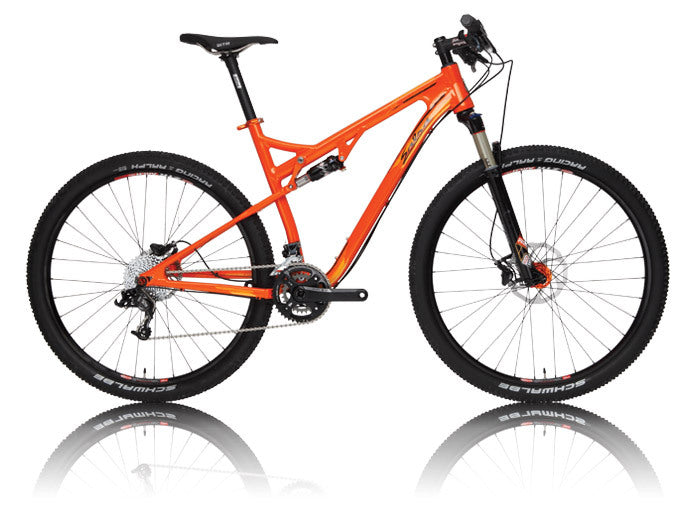

• Salsa Spearfish bike orange color side view

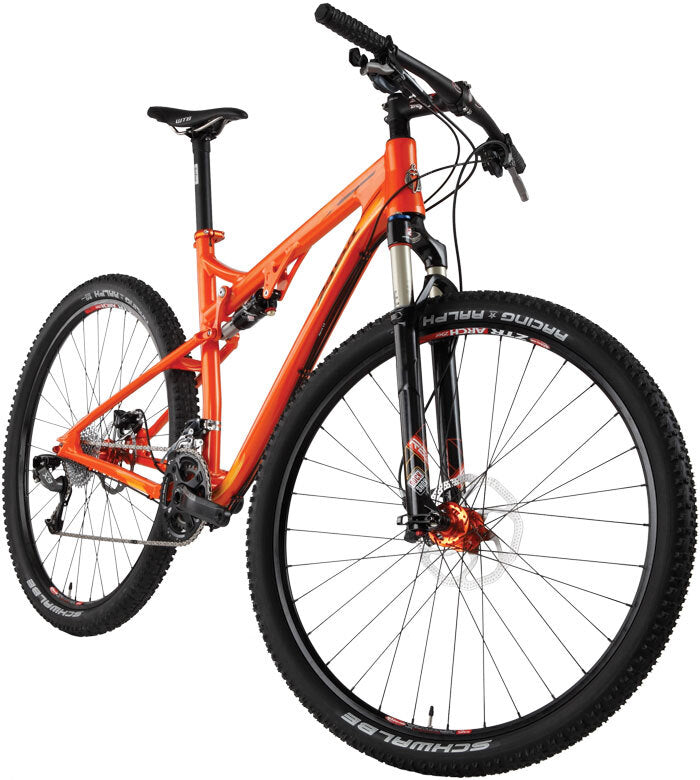

  • Salsa Spearfish bike orange color front three-quarter view

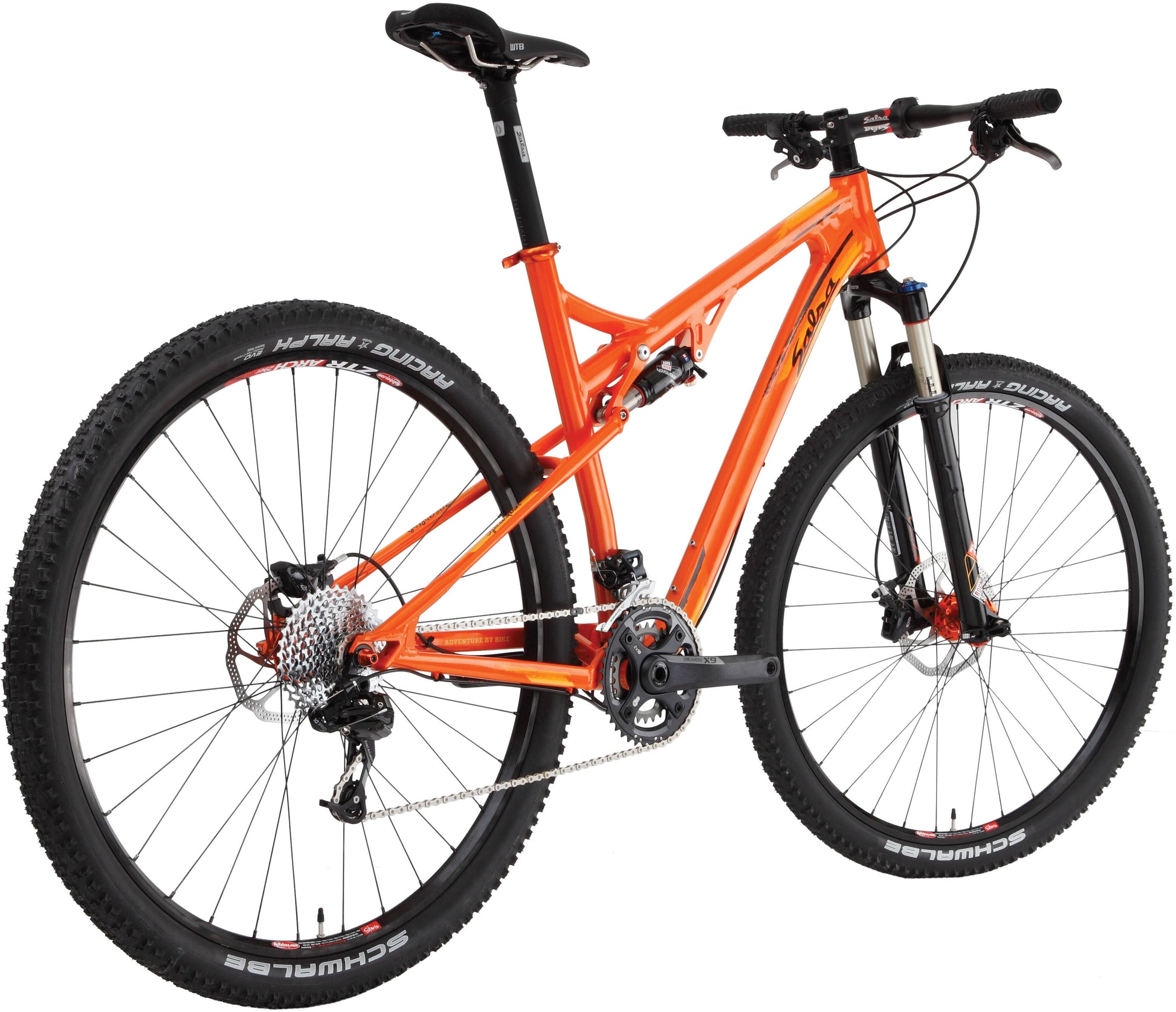

  • Salsa Spearfish bike orange color rear three-quarter view
1 3

2012 Spearfish 2

2012 Spearfish 2

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Spearfish, EV-6 Aluminum Alloy
  • Shock: RockShox Monarch RT Air Shock, Black
  • Color: Super Orange
  • Weight: S = 26.4 lbs (11990 grams), L = 27 lbs (12245 grams), XL = 27 lbs (12250 grams)
  • Crankset: SRAM S1400 PF30 w/ Hollow Arms, SM=170mm, MD, LG, XL = 175mm
  • Chainring: SRAM 26/39T
  • Bottom Bracket: SRAM PressFit 30
  • Chain: KMC X10
  • Cassette: SRAM PG-1030, 12-36T
  • Front Derailleur: SRAM X7, 2x10, High Clamp, Dual Pull
  • Rear Derailleur: SRAM X9, 10-Speed, Mid Cage, Gray
  • Fork: RockShox Reba RL 29er, 15mm Maxle, Tapered Steerer, Black/Orange, Custom for Salsa
  • Headset: Cane Creek 40-Series, Tapered ZS, Black
  • Handlebar: Salsa Pro Moto 2, 11-Degree Flat, 31.8mm, Black
  • Stem: Salsa Pro Moto 2, 31.8mm, Black
  • Stem Sizes: SM = 90mm, MD = 100mm, LG = 110mm, XL = 120mm
  • Grips: Salsa Juegos de Fuegos
  • Front Brake: SRAM Elixir 5, 185mm, 6-Bolt (160mm on size Small)
  • Rear Brake: SRAM Elixir 5, 160mm, 6-Bolt
  • Brake Levers: SRAM Elixir 5
  • Tires: Continental X-King 29 x 2.2", Folding Bead
  • Front Shifter: SRAM X-7 Trigger, 2 x 10
  • Rear Shifter: SRAM X-7 Trigger, 10-Speed
  • Seatpost: Salsa Pro Moto 2, 31.6mm
  • Seatclamp: Salsa Lip-Lock, Orange
  • Front Hub: Formula, 15mm Thru-Axle, Sealed Cartridge, 32H, Orange
  • Rear Hub: Formula, Double Sealed Cartridge, 32H, Orange
  • Quick Release: Front: SRAM 15mm Maxle; Rear: Formula QR
  • Spokes: DT Swiss, Competition, Butted 2.0/1.8, Black
  • Nipples: DT Swiss, ProLock Brass
  • Rims: Stan's Arch 29er, 32H

Frame Specs

  • Wheelsize: 29"
  • Tire Clearance: Clearance for 29 x 2.25" tires
  • Fork: Compatible with 100mm travel 29'er suspension forks
  • Headset - Upper: 1-1/8" Zero Stack (ZS44/28.6)
  • Headset - Lower: For Tapered: 56mm zero stack (ZS56/40) For Straight: 56mm reducing zero stack (ZS56/30)
  • Rear Shock Size: 165 x 38mm (6.5 x 1.5
  • Rear Shock Hardware: 8 x 22.2mm (both ends)
  • Seatpost: 31.6mm
  • Seat Collar: 35.0mm. Salsa Lip-Lock (Black color) included
  • Front Derailleur: 34.9mm, High Clamp, Bottom Pull
  • Bottom Bracket: 73mm PressFit 30
  • Crankset: Any mountain double or triple crankset EXCEPT SRAM XX BB30 Q-156 or SRAM X7 BB30 cranks
  • Rear Brake: 51mm I.S. Fits up to 185mm rotor
  • Cable Routing: Full length downtube triple guide routing
  • Rear Spacing: 135 x 10mm QR
  • Derailleur Hanger: FS2310
  • Bottle Mounts: 1 per frame
  • Frame Weight: TBA
  • Color: Super Orange

Geometry

Geometry Diagram
Small Medium Large X-Large
Top Tube Effective Metric 580 600 620 635
Seat Tube Length Metric 457.2 406.4 406.4 508
Head Tube Length Metric 120 110 110 130
Head Tube Angle 71 71 71 71
Seat Tube Angle 73.5 73 73 73
BB Drop Metric 45 45 45 45
Chainstay Length Metric 455 455 455 455
Fork Length Metric 503 503 503 503
Fork Offset Metric 45 45 45 45
Wheelbase Metric 43.7 43.1 42.72 44.5
Stack Metric 613.7 623.2 632.6 642.1
Reach Metric 398.2 409.5 426.6 438.7
Standover Metric 744.2 744.7 750 755
Rider Height Metric 165cm - 175cm 173cm - 183cm 180cm - 191cm 188cm - UP

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
