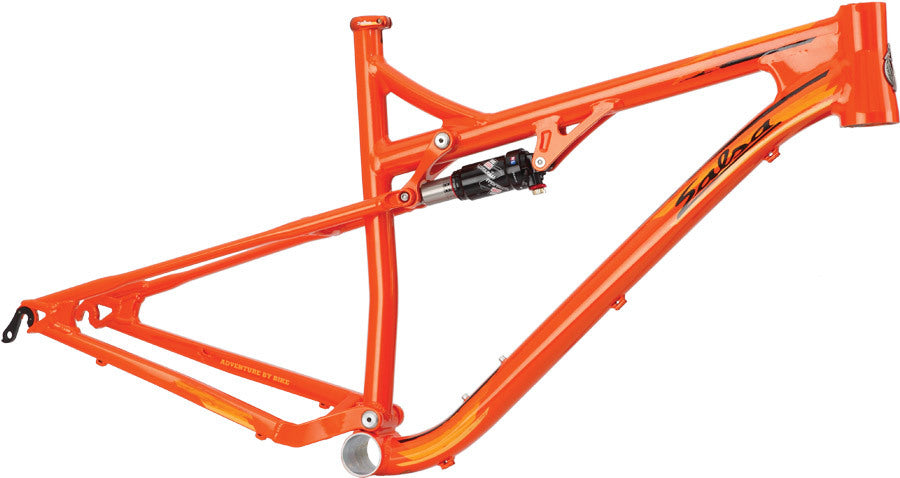

• Salsa Spearfish 2 frame orange color side view

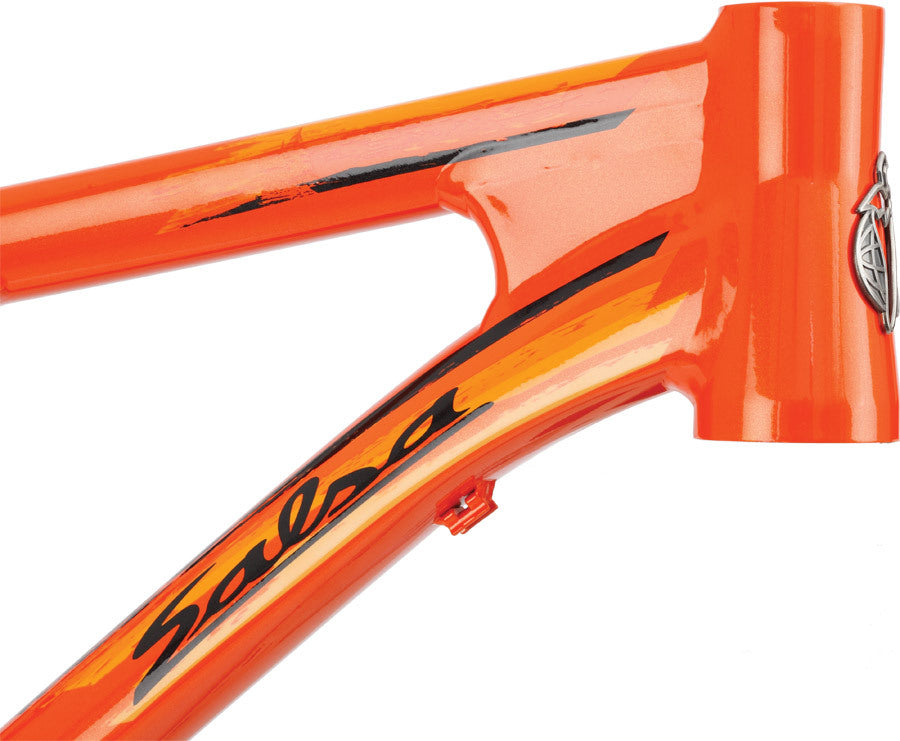

  • Salsa Spearfish 2 frame orange color headtube area focus

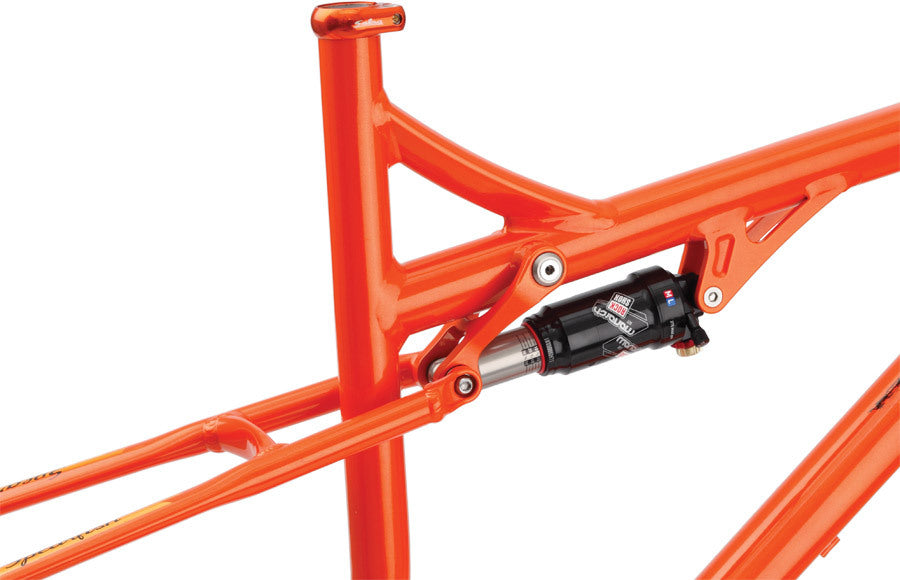

  • Salsa Spearfish 2 frame orange color rear shock and link area focus

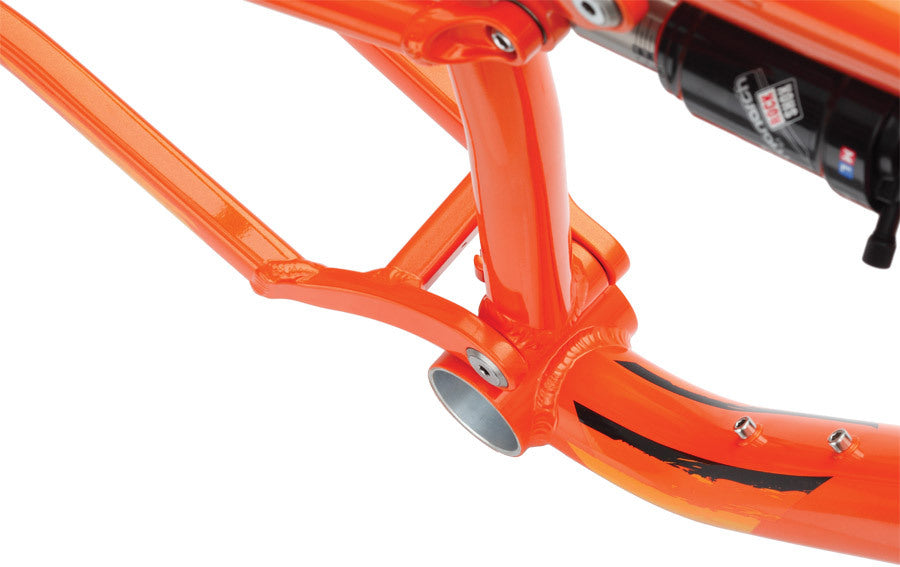

  • Salsa Spearfish 2 frame orange color bottom bracket and main pivot area focus

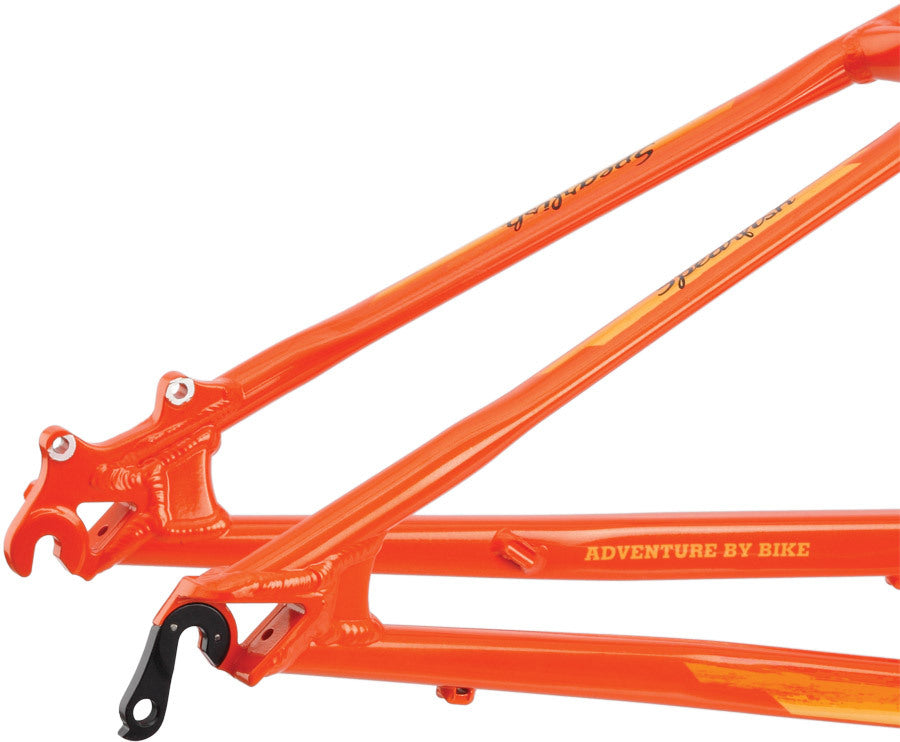

  • Salsa Spearfish 2 frame orange color rear dropout area focus
1 5

2012 Spearfish 2 Frame

2012 Spearfish 2 Frame

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Frame Specs

  • Wheelsize: 29"
  • Tire Clearance: Clearance for 29 x 2.25" tires
  • Fork: Compatible with 100mm travel 29'er suspension forks
  • Headset - Upper: 1-1/8" Zero Stack (ZS44/28.6)
  • Headset - Lower: For Tapered: 56mm zero stack (ZS56/40) For Straight: 56mm reducing zero stack (ZS56/30)
  • Rear Shock Size: 165 x 38mm (6.5 x 1.5
  • Rear Shock Hardware: 8 x 22.2mm (both ends)
  • Seatpost: 31.6mm
  • Seat Collar: 35.0mm. Salsa Flip-Lock included
  • Front Derailleur: 34.9mm, High Clamp, Bottom Pull
  • Bottom Bracket: 73mm PressFit 30
  • Crankset: Any mountain double or triple crankset EXCEPT SRAM XX BB30 Q-156 or SRAM X7 BB30 cranks
  • Rear Brake: 51mm I.S. Fits up to 185mm rotor
  • Cable Routing: Full length downtube triple guide routing
  • Rear Spacing: 135mm x 10mm QR
  • Derailleur Hanger: FS2310
  • Bottle Mounts: 1 per frame
  • Frame Weight: TBA
  • Color: Super Orange or Green Machine

Geometry

Geometry Diagram
Small Medium Large X-Large
Top Tube Effective Metric 580 600 620 635
Seat Tube Length Metric 457.2 406.4 406.4 508
Head Tube Length Metric 120 110 110 130
Head Tube Angle 71 71 71 71
Seat Tube Angle 73.5 73 73 73
BB Drop Metric 45 45 45 45
Chainstay Length Metric 455 455 455 455
Fork Length Metric 503 503 503 503
Fork Offset Metric 45 45 45 45
Wheelbase Metric 43.7 43.1 42.72 44.5
Stack Metric 613.7 623.2 632.6 642.1
Reach Metric 398.2 409.5 426.6 438.7
Standover Metric 744.2 744.7 750 755
Rider Height Metric 165cm - 175cm 173cm - 183cm 180cm - 191cm 188cm - UP
