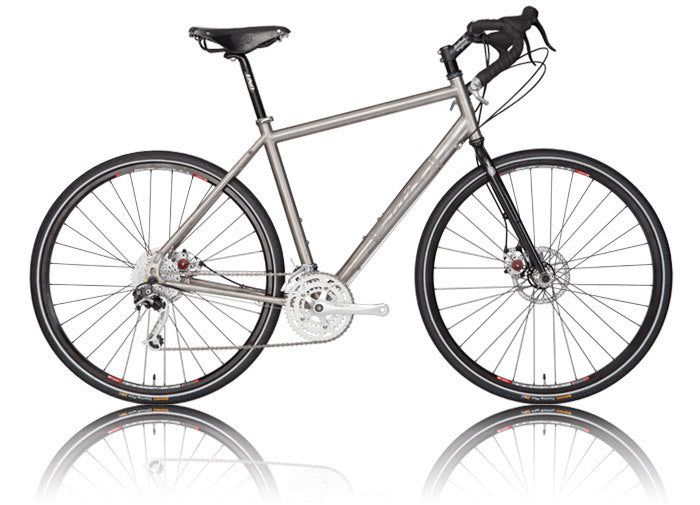

• Salsa Vaya Ti bike side view

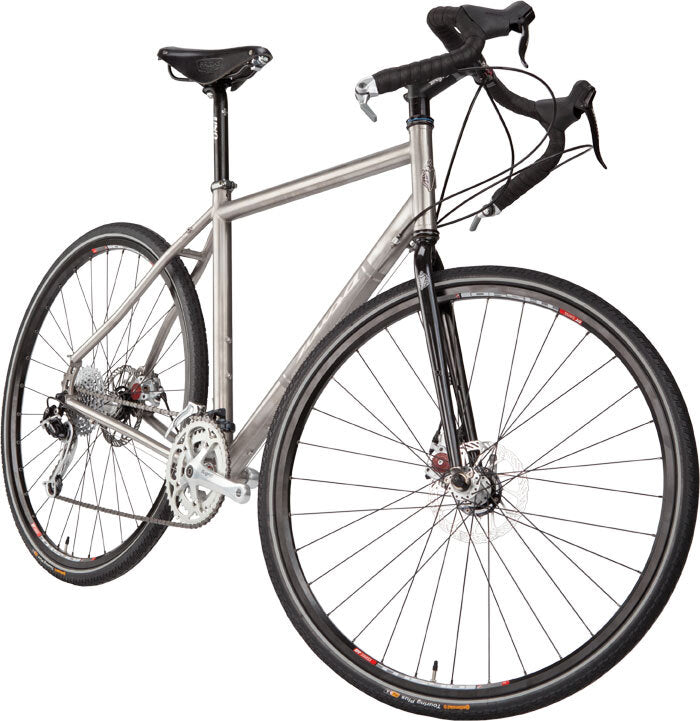

  • Salsa Vaya Ti bike front three-quarter view

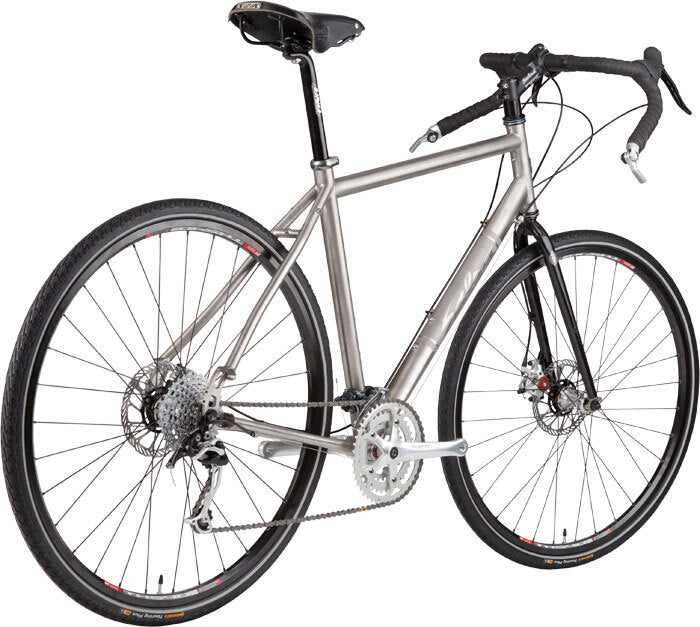

  • Salsa Vaya Ti bike rear three-quarter view
1 3

2012 Vaya Ti

2012 Vaya Ti

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Vaya, 3/2.5 Seamless Titanium
  • Color: Industrial Mill Finish w/ Etched Graphics
  • Weight: TBA
  • Crankset: Sugino XD600 Touring, 50 = 165mm, 52, 54, 55, 56 = 170mm, 57, 58, 60 = 175mm
  • Chainring: Sugino 26-36-46T
  • Bottom Bracket: Shimano Square Taper
  • Chain: Shimano HG-53
  • Cassette: Shimano XT 9-Speed, 11-34T
  • Front Derailleur: Shimano Tiagra Triple
  • Rear Derailleur: Shimano XT 9-Speed
  • Fork: Vaya Fork, CroMoly
  • Headset: Cane Creek 40-Series, TR, Black
  • Handlebar: Salsa Woodchipper, 50, 52, 54, 55, 56 = 42cm, 57, 58, 60 = 46cm
  • Stem: Salsa Pro Moto 2, 5-Degree Rise
  • Stem Sizes: 50, 52, 54 = 80mm, 55, 56 = 90mm 57, 58 = 100mm, 60 = 110mm
  • Grips: Salsa Gel Cork Tape
  • Front Brake: Avid BB7 Road Mechanical, 160mm Rotor
  • Rear Brake: Avid BB7 Road Mechanical, 160mm Rotor
  • Brake Levers: SRAM Alloy
  • Tires: Continental Touring Plus, 700c x 37mm (for 54cm sizes and up) or 26 x 1.75" (for 50 and 52cm sizes)
  • Front Shifter: Shimano Dura-Ace Bar-End
  • Rear Shifter: Shimano Dura-Ace Bar-End, 9-Speed
  • Seatpost: Salsa Shaft
  • Seatclamp: Salsa Lip-Lock, Pewter
  • Saddle: Brooks B-17 Leather, Black
  • Front Hub: Shimano LX Centerlock, 32H, Silver
  • Rear Hub: Shimano LX Centerlock, 32H, Silver
  • Quick Release: Shimano LX
  • Spokes: DT Swiss, Competition, Black
  • Nipples: DT Swiss, ProLock Brass, Black
  • Rims: DT Swiss TK540 w/ Eyelets, 32H, or XC430 w/ Eyelets, 32H (depending on wheel size)

Frame Specs

  • Wheelsize: 26" for 50/52cm, 700c for 54/55/56/57/58/60cm
  • Tire Clearance: Clearance for 26 x 1.9" tires (50/52cm sizes), clearance for 700c x 42mm tires (54cm sizes and up)
  • Fork: Salsa Vaya Fork included
  • Headset - Upper: 1-1/8"
  • Headset - Lower: 1-1/8"
  • Seatpost: 27.2mm
  • Seat Collar: 35.0mm. Salsa Lip-Lock (Pewter color) included
  • Front Derailleur: 34.9mm, low clamp, bottom-pull
  • Bottom Bracket: 68mm English
  • Crankset: Fits any road compact double or triple
  • Front Brake: 51mm I.S., max rotor size 160mm
  • Rear Brake: 51mm I.S., max rotor size 160mm
  • Front Spacing: 100 x 9mm QR
  • Rear Spacing: 135 x 10mm QR
  • Bottle Mounts: 3 per frame
  • Derailleur Hanger: Part number FS2310
  • Cable Routing: Under downtube shifter routing. Top of downtube brake routing, full-lenth rear brake housing
  • Frame Weight: 50cm: 3.44 lb/1560g, 52cm: 3.44 lb/1560g, 54cm: 3.5 lb/1588g, 55cm: 3.69 lb/1674g, 56cm: 3.69 lb/1674g, 57cm: 3.81 lb/1728g, 58cm: 3.94 lb/1787g, 60cm: 3.94 lb/1787g
  • Fork Weight w/ Uncut Steerer: 926g with full-length steerer tube for 26" wheel-size fork; approximately 1010g with full-length steerer tube for 700c wheel-size fork
  • Color: Industrial mill finish w/ etched graphics

Geometry

Geometry Diagram
Metric 50cm 52cm 54cm 55cm 56cm 57cm 58cm 60cm
Top Tube Effective Metric 500 525 540 550 560 570 585 600
Seat Tube Length Metric 450 470 490 520 530 540 550 570
Head Tube Length Metric 120 135 150 165 175 185 200 215
Head Tube Angle 70 70 71 71.5 71.5 71.5 72 72
Seat Tube Angle 74.5 74 73.5 73 73 72.5 72.5 72
BB Drop Metric 50 50 75 75 75 75 75 75
Chainstay Length Metric 440 440 450 450 450 450 450 450
Fork Length Metric 380 380 405 405 405 405 405 405
Fork Offset Metric 50 50 50 50 50 50 45 45
Wheelbase Metric 40 40.9 40.9 40.9 41.3 41.5 41.6 42
Stack Metric 511.9 526 592.9 609.1 618.6 628 646.5 660.7
Reach Metric 358.1 374.2 364.4 363.8 370.9 372 381.2 385.3
Standover Metric 708 725 764.9 790.6 799.9 809.6 822.1 839.7
Rider Height Metric 150cm - 157cm 157cm - 165cm 165cm - 173cm 170cm - 178cm 175cm - 183cm 180cm - 185cm 183cm - 191cm 188cm - UP
