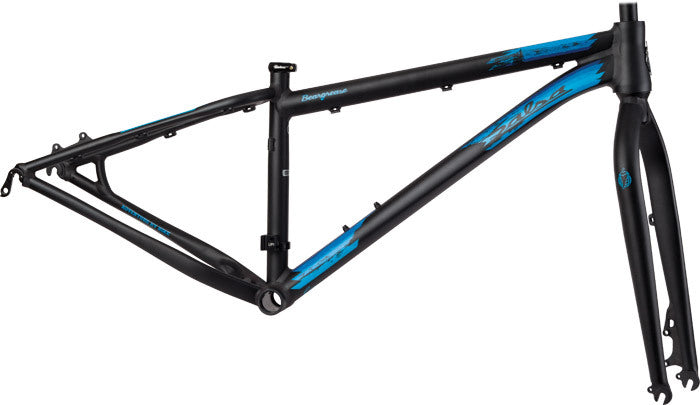

2013 Beargrease Frame

2013 Beargrease Frame

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Frame Specs

  • Wheelsize: 26" fat bike (closer to 29" in diameter in reality)
  • Tire Clearance: Designed for 26 x 4.0" tires on 82mm rims
  • Fork: Salsa Beargrease Fork included
  • Headset-Upper: 1.5" zero stack (ZS44/56)
  • Headset-Lower: For tapered: 56mm zero stack (ZS44/56); for straight: 56mm reducing zero stack (ZS56/30)
  • Seatpost: 27.2mm
  • Seat Collar: 32.0mm. Salsa Lip-Lock included
  • Front Derailleur: Problem Solvers direct-mount clamp included, high direct-mount front derailleur
  • Bottom Bracket: 100mm English
  • Crankset: Mountain doubles/triples compatible with 100mm bottom bracket type
  • Front Brake: 51mm I.S., maximum rotor size 185mm
  • Rear Brake: 51mm I.S., maximum rotor size 185mm
  • Front Spacing: 135 x 10mm QR
  • Rear Spacing: 170 x 10mm QR
  • Bottle Mounts: 2 per frameset (1 on XS & SM)
  • Derailleur Hanger: Part number FS2310
  • Cable Routing: Full housing, all under toptube
  • Frame Weight: 1660g (3.6 lb) Medium
  • Fork Weight w/Uncut Steerer: 720g (1.6 lb)
  • Color: Speedy Black Ano

Geometry

Geometry Diagram
X-Small Small Medium Large X-Large
Top Tube Effective Metric 565 580 605 625 640
Seat Tube Length Metric 533 432 381 381 483
Head Tube Length Metric 160 130 110 100 150
Head Tube Angle 69.5 69.5 69.5 69.5 69.5
Seat Tube Angle 73.5 73.5 73 73 73
BB Drop Metric 63 63 63 63 63
Chainstay Length Metric 455 455 455 455 455
Fork Length Metric 468 468 468 468 468
Fork Offset Metric 45 45 45 45 45
Wheelbase Metric 45.61 44.16 43.35 42.73 45
Stack Metric 583 592.4 611.1 629.9 639.2
Reach Metric 392.3 404.5 418.2 432.4 444.6
Standover Metric 655 704.4 748.1 790 827.2
Rider Height Metric 157 – 168cm 165 173 180 188cm
