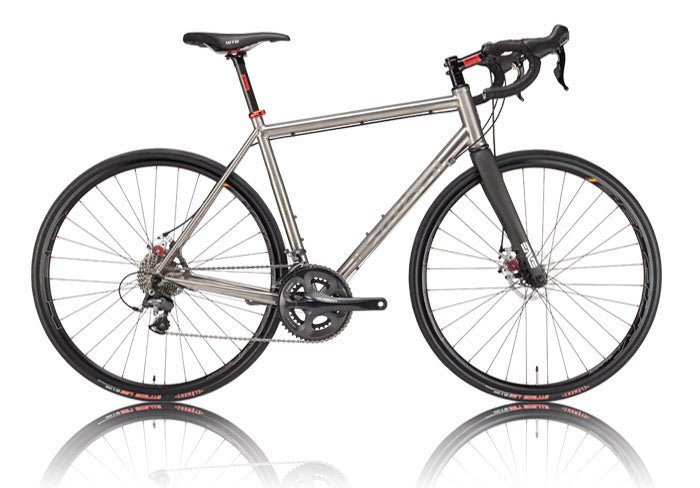

• Salsa Colossal Ti bike side view

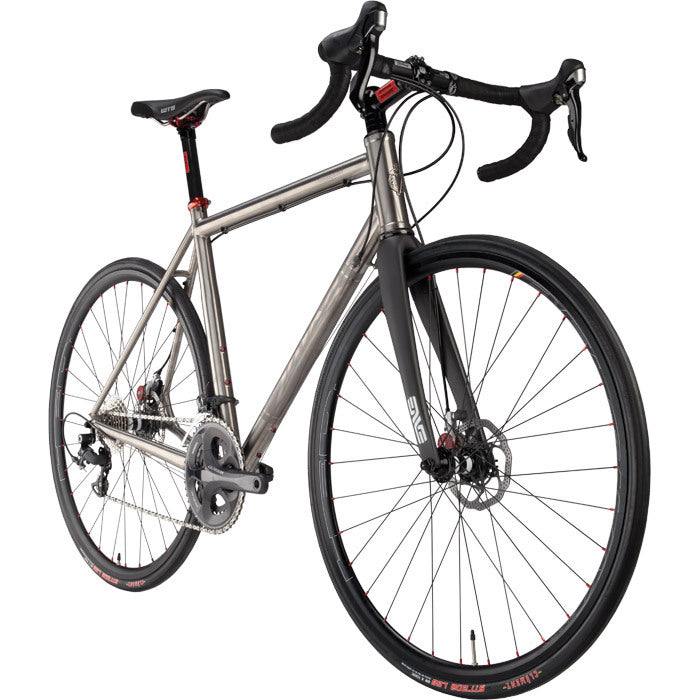

  • Salsa Colossal Ti bike front three-quarter view

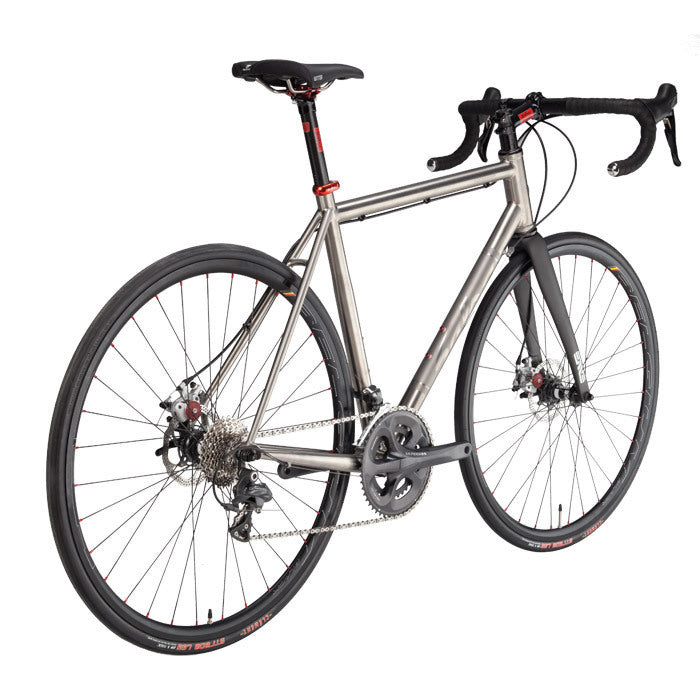

  • Salsa Colossal Ti bike rear three-quarter view

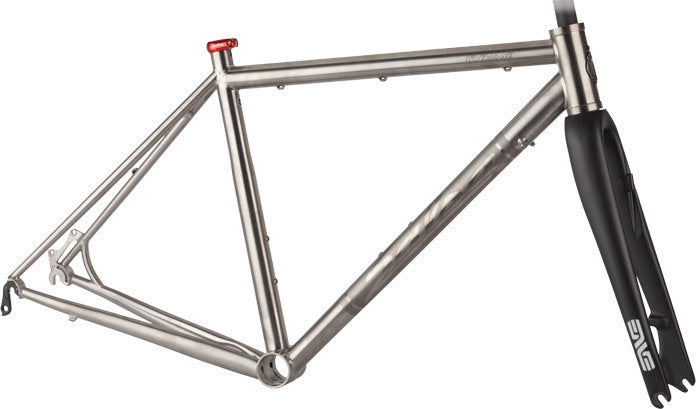

  • Salsa Colossal Ti frameset side view

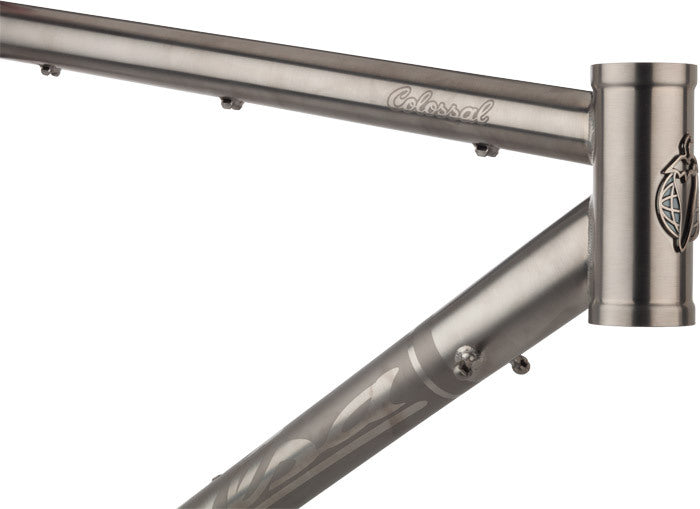

  • Salsa Colossal Ti frameset head tube area focus

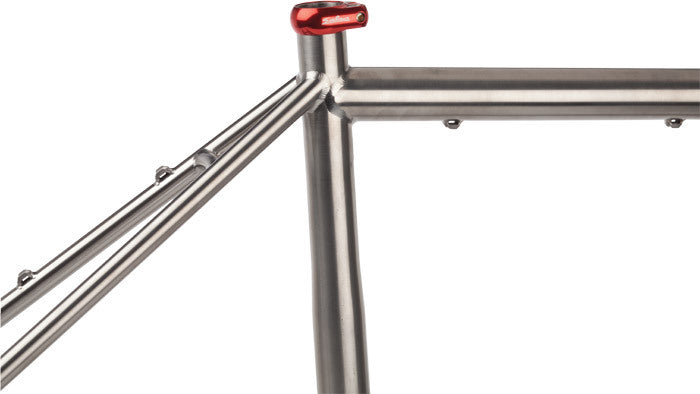

  • Salsa Colossal Ti frameset seat tube area focus

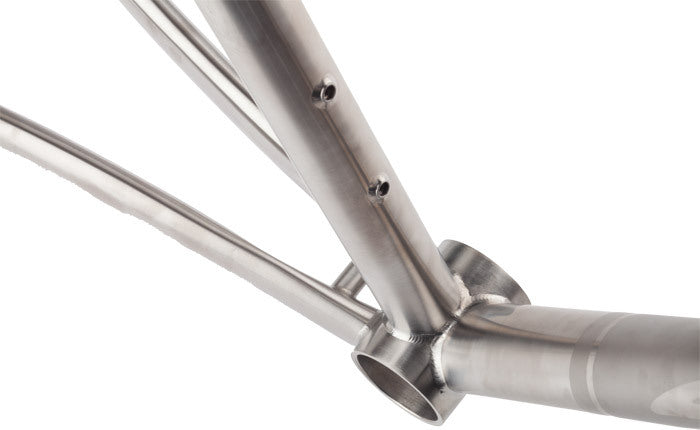

  • Salsa Colossal Ti frameset bottom bracket area focus

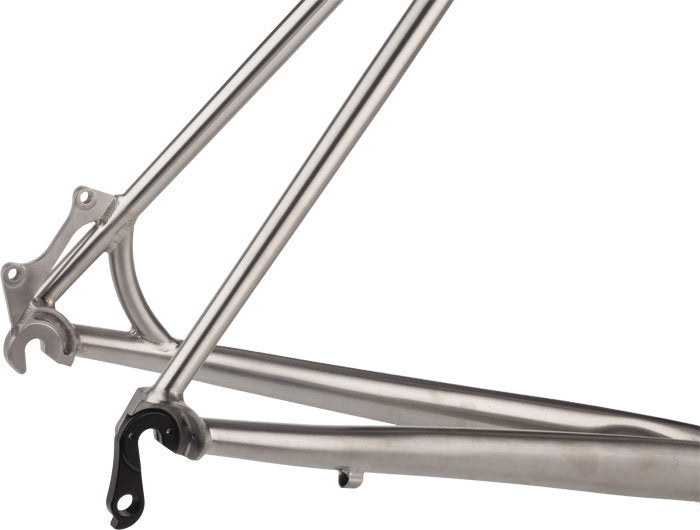

  • Salsa Colossal Ti frameset rear dropout area focus
1 8

2013 Colossal Ti Frame

2013 Colossal Ti Frame

Archived

2013 Colossal Ti Frame

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Frame Specs

  • Wheelsize: 700c
  • Tire clearance: Clearance for up to 700c x 28mm tire
  • Fork: ENVE RD Disc Carbon, tapered
  • Headset-Upper: 1-1/8" zero stack (ZS44/28.6)
  • Headset-Lower: 44mm external cup, tapered (EC44/40)
  • Seatpost: 27.2mm
  • Seat Collar: 32.0mm. Salsa Lip-Lock included
  • Front Derailleur: 34.9mm clamp, bottom-pull
  • Bottom Bracket: PF30, 68mm
  • Crankset: Fits a double crankset, up to a 39t inner, and 54t outer
  • Front Brake: 74mm post-mount standard, minimum rotor size 140mm, maximum rotor size 160mm
  • Rear Brake: 51mm I.S., fits 140mm or 160mm rotors only
  • Front Spacing: 100 x 9mm QR
  • Rear Spacing: 135 x 10mm QR
  • Bottle Mounts: 2 per frame 51/53/55 cm; 3 per frame 56/58/60cm
  • Derailleur Hanger: FS2310
  • Cable Routing: Full brake housing under toptube. Derailleur cables along downtube
  • Frame Weight: 3 lb 12 oz (56cm)
  • Fork Weight w/Uncut Steerer: 438g uncut (0.97 lb)
  • Color: Industrial Mill Finish w/ Etched Graphics

Geometry

Geometry Diagram
51cm 53cm 55cm 56cm 58cm 60cm
Top Tube Effective Metric 518 535 550 565 580 600
Seat Tube Length Metric 450 485 515 530 555 580
Head Tube Length Metric 100 120 140 160 185 210
Head Tube Angle 71.5 72 72.5 72.5 73 73
Seat Tube Angle 75.5 74 73.5 73 72.5 72
BB Drop Metric 70 70 70 70 70 70
Chainstay Length Metric 415 415 415 415 415 415
Fork Length Metric 367 367 367 367 367 367
Fork Offset Metric 43 43 43 43 43 43
Wheelbase Metric 38.88 38.85 39.08 39.47 39.64 40.18
Stack Metric 509.2 529.8 550.6 569.7 595.3 619.2
Reach Metric 386.3 383.1 386.9 390.8 392.3 398.8
Standover Metric 703.2 733.4 759.8 775.6 800.3 824
Rider Height Metric 152 - 160cm 157 - 165cm 165 - 175cm 173 - 183cm 180 - 190cm 188 - Up
