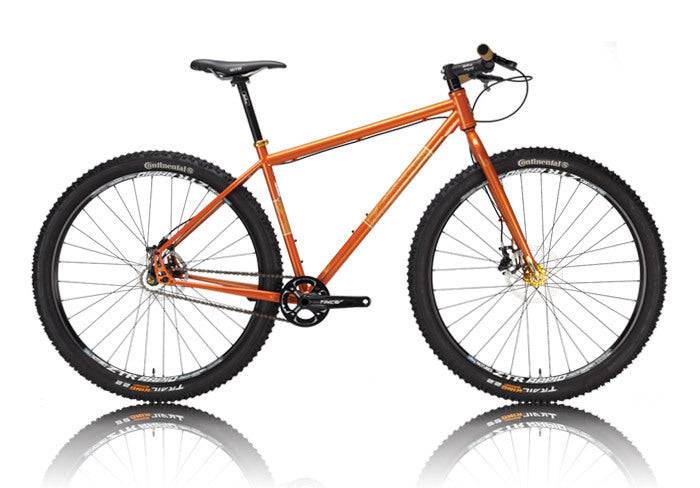

• Salsa El Mariachi Single Speed bike orange color side view

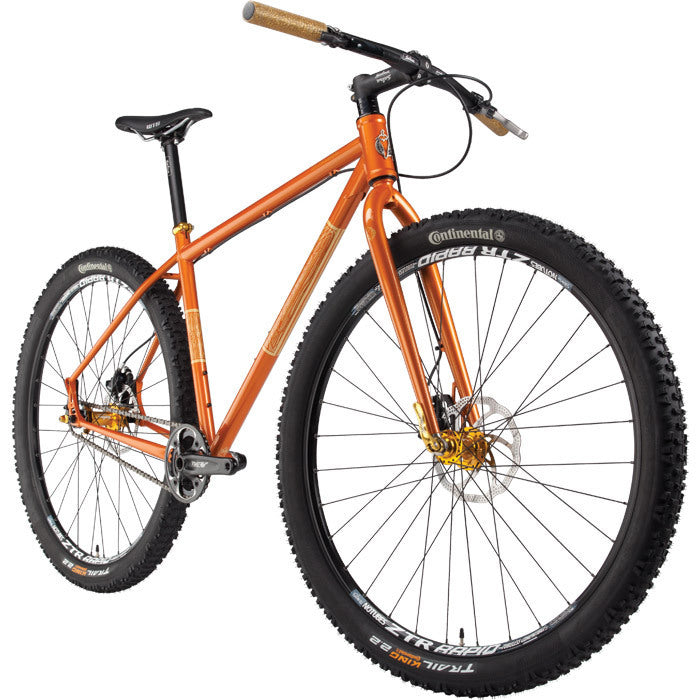

  • Salsa El Mariachi Single Speed bike orange color front three-quarter view

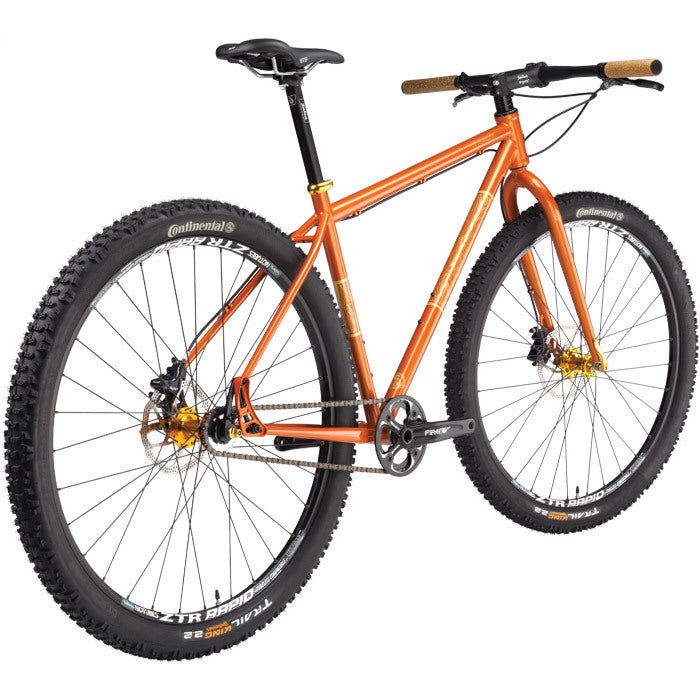

  • Salsa El Mariachi Single Speed bike orange color rear three-quarter view
1 3

2013 El Mariachi SS

2013 El Mariachi SS

Archived

2013 El Mariachi SS

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame : El Mariachi SS CroMoly w/ Alternator Dropout
  • Fork: CroMoto Grande, CroMoly, 1-1/8"
  • Rear Shock: nil
  • Headset: Cane Creek 10 ZS44
  • Stem: Salsa Pro Moto 3
  • Handlebar: Salsa Pro Moto 3, 11-degree
  • Grips: Salsa Backcountry
  • Shifter: nil
  • Front Brake: Avid Elixir 5
  • Rear Brake: Avid Elixir 5
  • Brake Lever: Avid Elixir 5
  • Rotors: 180mm Front/160mm Rear
  • Seatpost: Salsa Pro Moto 3
  • Saddle: WTB Pure V
  • Front Der: nil
  • Rear Der: nil
  • Front Hub: Salsa 3 by Formula, 32H
  • Rear Hub: Salsa 3 SS by Formula, 32H
  • Spokes: DT Swiss Champion
  • Rims: NoTubes ZTR Rapid, 32H
  • Tires: Continental Trail King 29 x 2.2"
  • Cassette: Dimension 16T Cog
  • Chain: KMC Z99 RustBuster
  • Crankset: Truvativ 32T Single

Frame Specs

  • Wheelsize: 29"
  • Tire Clearance: Designed for 29 x 2.4" tire
  • Fork: Compatible with 80–100mm travel 29er suspension fork
  • Headset-Upper: 1-1/8" zero stack (ZS44/28.6)
  • Headset-Lower: For tapered: 44mm external cup (EC44/40) For straight: zero stack (ZS44/30)"
  • Seatpost: 27.2mm
  • Seat Collar: 30.0mm. Salsa Lip-Lock included
  • Bottom Bracket: 73mm BSA, threaded
  • Crankset: Largest tooth count: TBA
  • Front Brake: 51mm I.S., minimum rotor size 160mm, maximum rotor size 185mm
  • Rear Brake: 51mm I.S., minimum rotor size 160mm, maximum rotor size 185mm
  • Front Spacing: 10 x 100mm QR
  • Rear Spacing: Alternator Dropouts, mulitple configurations: - 135 x 10mm QR - 142 x 12mm thru-axle
  • Bottle Mounts: 1 per frame on XS/SM; 2 per frame on MD/LG/XL
  • Derailleur Hanger: Replaceable Alternator plates. Driveside QR geared: FS1312, driveside QR singlespeed: FS1318, non-driveside QR: FS1313, non-driveside Rohloff: FS1331, 12 x 142mm thru-axle: FS1330
  • Cable Routing: Full housing for brake only, under toptube. No derailleur cable stops
  • Frame Weight: SM: 5.19 lb/2354g, MD: 5.31 lb/2409g, LG: 5.5 lb/2495g, XL: 5.69 lb/2581g
  • Fork Weight w/Uncut Steerer: 1080g with uncut steerer tube
  • Color: Golden Child

Geometry

Geometry Diagram
X-Small Small Medium Large X-Large
Top Tube Effective Metric 563 578 598 618 633
Seat Tube Length Metric 533.4 431.8 381 355.6 482.6
Head Tube Length Metric 120 100 95 90 110
Head Tube Angle 71.8 71.8 71.8 71.7 71.7
Seat Tube Angle 74.8 73.8 73.8 73.7 73.7
BB Drop Metric 66 66 66 66 66
Chainstay Length Metric 445 - 462 445 - 462 445 - 462 445 - 462 445 - 462
Fork Length Metric 468 468 468 468 468
Fork Offset Metric 45 45 45 45 45
Wheelbase Metric 44.18 - 44.85 42.77 - 43.44 41.98 - 42.65 41.83 - 42.5 43.57 - 44.24
Stack Metric 594.1 598.8 603.4 612.8 622.1
Reach Metric 401.1 403.3 421.8 438.8 451
Standover Metric 678.1 701.1 739.8 778.9 817.4
Rider Height Metric 157 165 173 180cm 188cm
