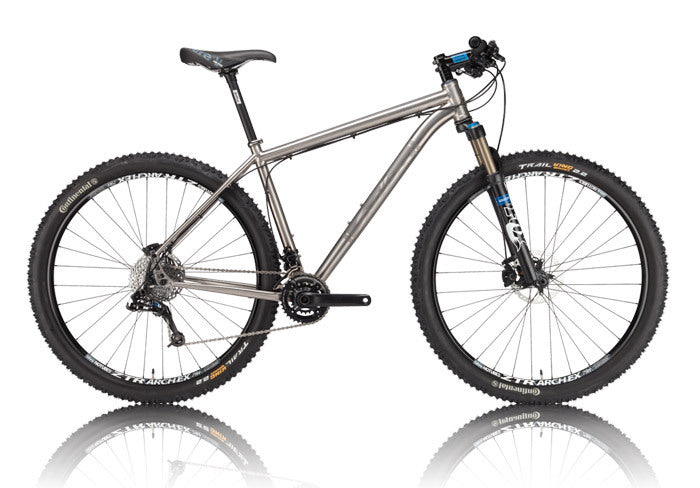

• Salsa El Mariachi Ti bike side view
  • Salsa El Mariachi Ti bike front three-quarter view

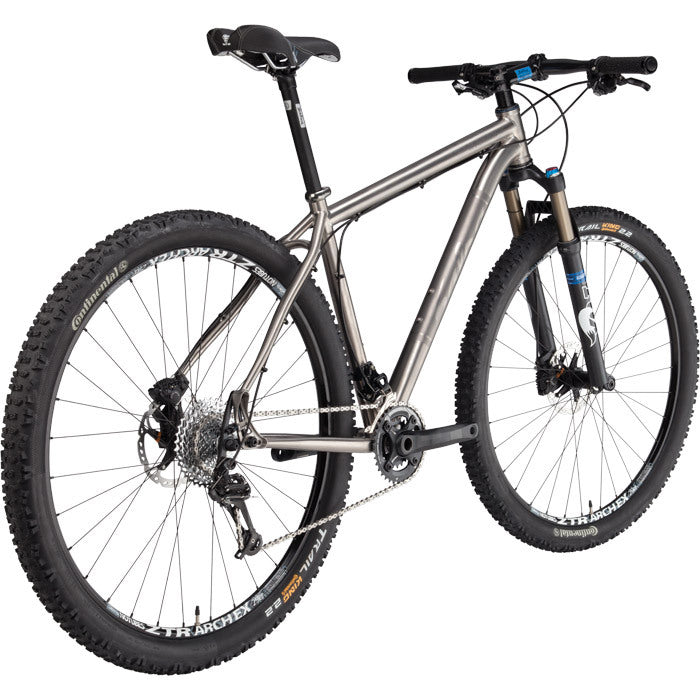

  • Salsa El Mariachi Ti bike rear three-quarter view

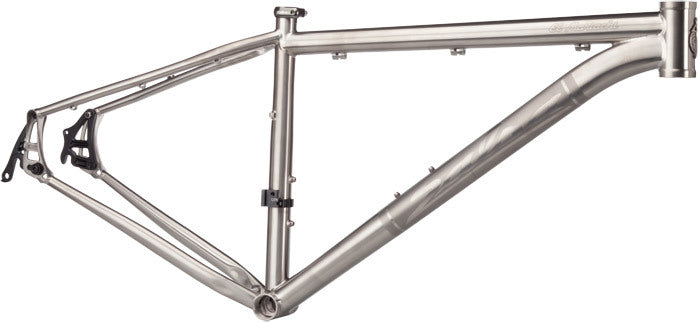

  • Salsa El Mariachi Ti frame side view

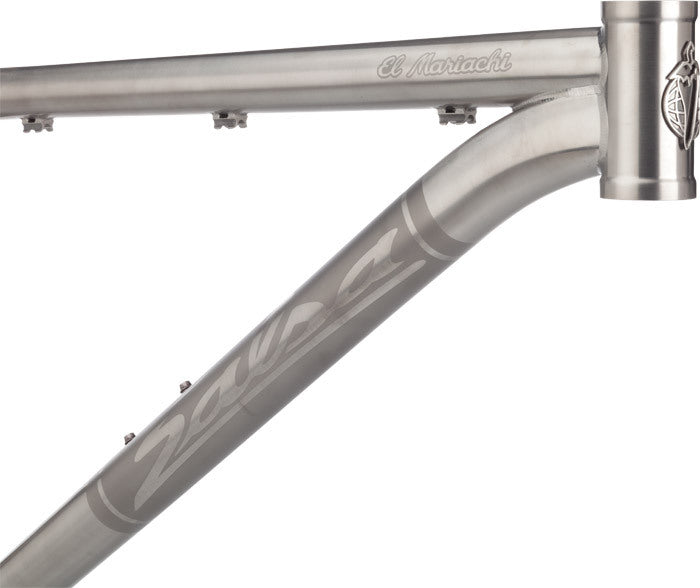

  • Salsa El Mariachi Ti frame head tube area focus

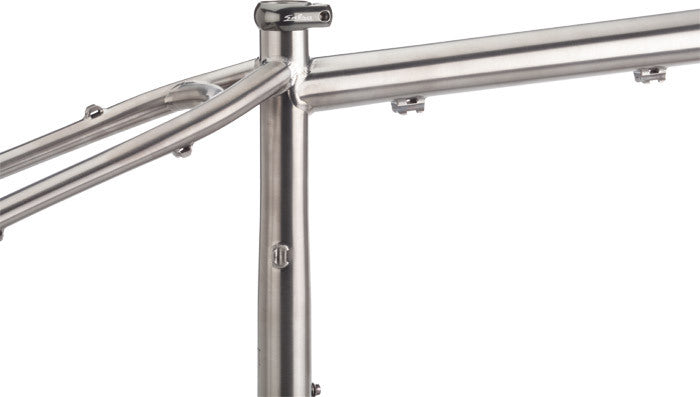

  • Salsa El Mariachi Ti frame top tube and seat tube area focus

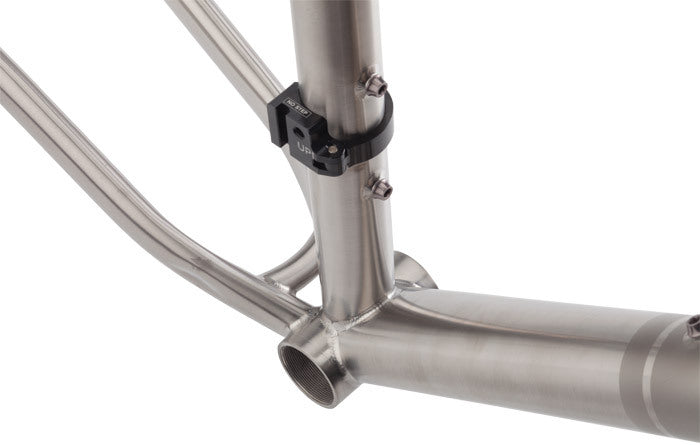

  • Salsa El Mariachi Ti frame bottom bracket area focus
  • Salsa El Mariachi Ti frame rear dropout area focus
1 8

2013 El Mariachi Ti

2013 El Mariachi Ti

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame : El Mariachi Titanium w/ Alternator Dropout
  • Fork: Fox F29 CTD, Tapered, 15mm Thru Axle, 100mm
  • Rear Shock: nil
  • Headset: Cane Creek 40 ZS44/EC44
  • Stem: Salsa Pro Moto 1
  • Handlebar: Salsa Pro Moto 1 Carbon, 11-Degree
  • Grips: Salsa Backcountry Lock-On
  • Shifter: SRAM X.9
  • Front Brake: Shimano XT
  • Rear Brake: Shimano XT
  • Brake Lever: Shimano XT
  • Rotors: 160mm Front/160mm Rear
  • Seatpost: Salsa Pro Moto 1
  • Saddle: WTB Pure V
  • Front Der: SRAM X.7 HDM
  • Rear Der: SRAM X.0
  • Front Hub: Shimano XT, 32H, 15mm Thru Axle
  • Rear Hub: Shimano XT, 32H
  • Spokes: DT Swiss Competition
  • Rims: NoTubes Arch EX
  • Tires: Continental Trail King 29 x 2.2"
  • Cassette: SRAM PG-1070 11-36T
  • Chain: KMC X10
  • Crankset: SRAM S1400 GXP 26/39T

Frame Specs

  • Wheelsize: 29"
  • Tire Clearance: Designed for 29 x 2.4" tire
  • Fork: Compatible with 80–100mm travel 29er suspension fork
  • Headset-Upper: 1-1/8" zero stack (ZS44/28.6)
  • Headset-Lower: For tapered: 44mm external cup (EC44/40) For straight: zero stack (ZS44/30)
  • Seatpost: 27.2mm
  • Seat Collar: 32.0mm. Salsa Lip-Lock included
  • Front Derailleur: Problem Solvers direct-mount clamp included, high direct-mount front derailleur
  • Bottom Bracket: 73mm BSA
  • Crankset: Fits any mountain double or triple
  • Rear Brake: 51mm I.S., minimum rotor size 160mm, maximum rotor size 185mm
  • Rear Spacing: Alternator Dropouts, mulitple configurations: - 135 x 10mm QR - 142 x 12mm thru-axle
  • Bottle Mounts: 1 per frame on XS/SM; 2 per frame on MD/LG/XL
  • Derailleur Hanger: Replaceable Alternator plates. Driveside QR geared: FS1312, driveside QR singlespeed: FS1318, non-driveside QR: FS1313, non-driveside Rohloff: FS1331, 12 x 142mm thru-axle: FS1330
  • Cable Routing: Full housing, under toptube
  • Frame Weight: TBA
  • Color: Industrial Mill Finish w/ Etched Graphics

Geometry

Geometry Diagram
X-Small - 80mm Fork Small - 80mm Fork Medium - 80mm Fork Large - 80mm Fork X-Large - 80mm Fork X-Small - 100mm Fork Small - 100mm Fork Medium - 100mm Fork Large - 100mm Fork X-Large - 100mm Fork
Top Tube Effective Metric 563 578 598 618 633 565 580 600 620 635
Seat Tube Length Metric 533.4 431.8 381 355.6 482.6 533.4 431.8 381 355.6 482.6
Head Tube Length Metric 120 100 100 100 110 120 100 100 100 110
Head Tube Angle 71.8 71.8 71.8 71.7 71.7 71 71 71 71 71
Seat Tube Angle 74.8 73.8 73.8 73.7 73.7 74 73 73 73 73
BB Drop Metric 66 66 66 66 66 60 60 60 60 60
Chainstay Length Metric 440 _ 457 440 _ 457 440 _ 457 440 _ 457 440 _ 457 440 _ 457 440 _ 457 440 _ 457 440 _ 457 440 _ 457
Fork Length Metric 468 468 468 468 468 483 483 483 483 483
Fork Offset Metric 45 45 45 45 45 45 45 45 45 45
Wheelbase Metric 43.96 - 44.67 42.56 - 43.23 41.76 - 42.43 41.61 - 42.27 43.36 - 44.03 44.15 - 44.82 42.75 - 43.42 41.95 - 42.75 41.79 - 42.46 43.55 - 44.22
Stack Metric 402.1 405.7 425.5 442.6 454.7 600.4 600.4 600.4 609.8 619.3
Reach Metric 594.1 594.1 593.9 603.2 612.6 392.8 396.4 416.4 433.6 445.7
Standover Metric 693.1 713.2 748.5 786.5 823.7 696.8 716.9 752.2 790.2 827.4
Rider Height Metric 157 165 173 180cm 188cm 157 165 173 180cm 188cm
