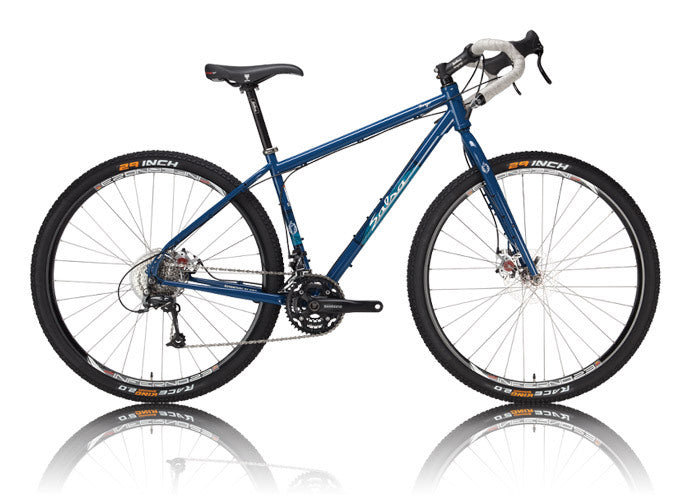

• Salsa Fargo 3 bike side view

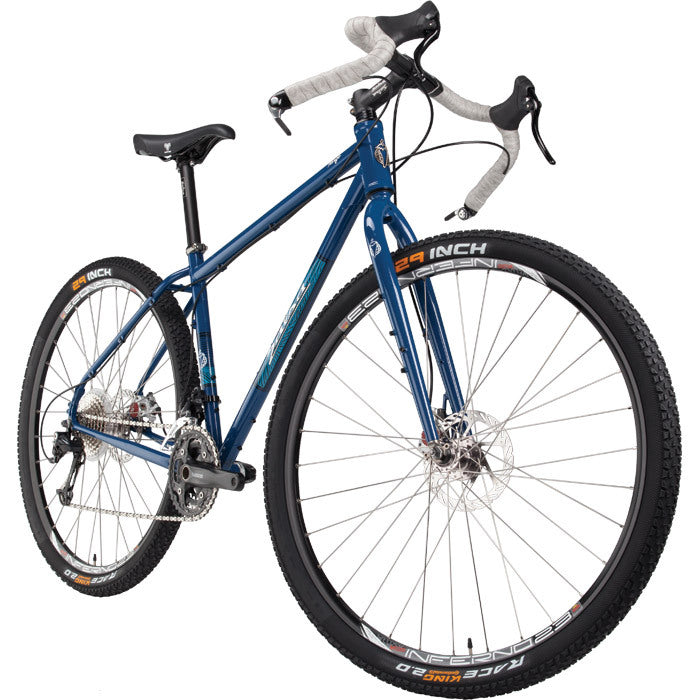

  • Salsa Fargo 3 bike front three-quarter view

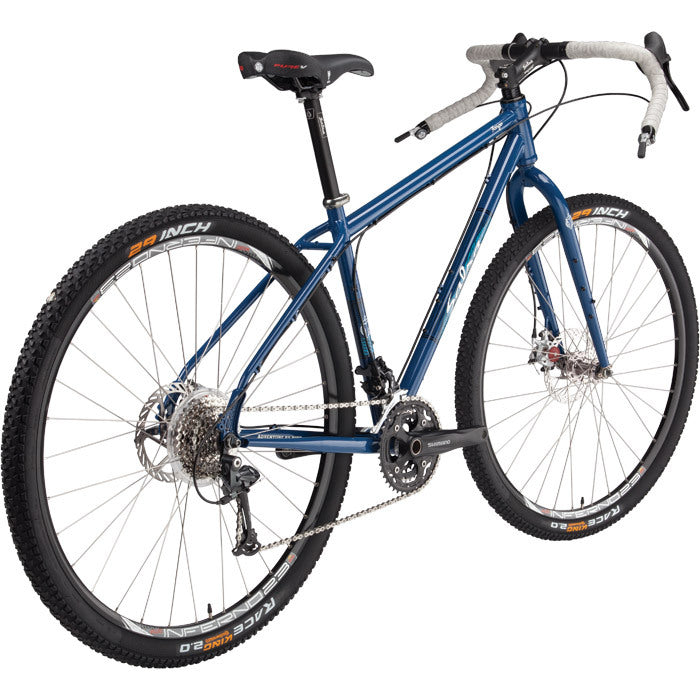

  • Salsa Fargo 3 bike rear three-quarter view
1 3

2013 Fargo 3

2013 Fargo 3

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Fargo 3 CroMoly
  • Fork: Fargo, CroMoly, 1-1/8"
  • Rear Shock: nil
  • Headset: Cane Creek 10 ZS44
  • Stem: Salsa Pro Moto 3 +25
  • Handlebar: Salsa Woodchipper 3
  • Grips: Salsa Gel Tape
  • Shifter: Microshift Bar-End 9-Speed
  • Front Brake: Avid BB7
  • Rear Brake: Avid BB7
  • Brake Lever: Tektro
  • Rotors: 160mm Front/160mm Rear
  • Seatpost: Salsa Pro Moto 3
  • Saddle: WTB Pure V
  • Front Der: Shimano SLX HDM
  • Rear Der: Shimano Deore
  • Front Hub: Salsa 3 by Formula, 32H
  • Rear Hub: Salsa 3 by Formula, 32H
  • Spokes: DT Swiss Champion
  • Rims: Sun Inferno 25mm
  • Tires: Continental Race King 29 x 2.2"
  • Cassette: Shimano 9-Speed 11-36T
  • Chain: KMC X9
  • Crankset: Shimano M552 42/32/24T

Frame Specs

  • Wheelsize: 29"
  • Tire Clearance: Designed for 29 x 2.3" tire
  • Fork: Salsa Fargo Fork included. 1-1/8" threadless. Compatible with 80mm travel 29er suspension forks
  • Headset-Upper: 1-1/8" zero stack (ZS44/28.6)
  • Headset-Lower: For tapered: 44mm external cup (EC44/40) For straight: zero stack (ZS44/30)
  • Seatpost: 27.2mm
  • Seat Collar: 30.0mm. Salsa Lip-Lock included
  • Front Derailleur: Problem Solvers direct-mount clamp included, high direct-mount front derailleur
  • Bottom Bracket: 73mm BSA
  • Crankset: Fits any mountain double or triple
  • Front Brake: 51mm I.S., minimum rotor size 160mm, maximum rotor size 203mm
  • Rear Brake: 51mm I.S., minimum rotor size 140mm, maximum rotor size 203mm
  • Front Spacing: 100 x 9mm QR
  • Rear Spacing: 135 x 10mm QR
  • Bottle Mounts: 5 per frameset (3 on frame, 2 on fork)
  • Derailleur Hanger: FS2310
  • Cable Routing: Full housing, under toptube
  • Frame Weight: TBA
  • Fork Weight w/Uncut Steerer: 1158g (2.6 lb) with full-length steerer tube
  • Color: Deep Blue

Geometry

Geometry Diagram
Small Medium Large X-Large
Top Tube Effective Metric 545 565 580 600
Seat Tube Length Metric 508 457.2 406.4 558.8
Head Tube Length Metric 150 125 100 170
Head Tube Angle 70 70.5 71 71
Seat Tube Angle 74 73 73
BB Drop Metric 70 70 70 70
Chainstay Length Metric 455 455 455 455
Fork Length Metric 468 468 468 468
Fork Offset Metric 45 45 45 45
Wheelbase Metric 42.45 42.04 41.86 43.26
Stack Metric 598.5 624.2 649.9 668.8
Reach Metric 373.4 374.2 381.3 395.5
Standover Metric 723.5 769.6 812.8 851.7
Rider Height Metric 160cm - 175cm 173cm - 183cm 180cm - 191cm 188cm - UP
BB Center to Center Metric
Stem Length
Crank Length
Handlebar Width
Seatpost Offset Metric
Stem Angle
Wheel Size
Seatpost Dropper Length Travel
Handlebar_Rise_Drop
BB Height
