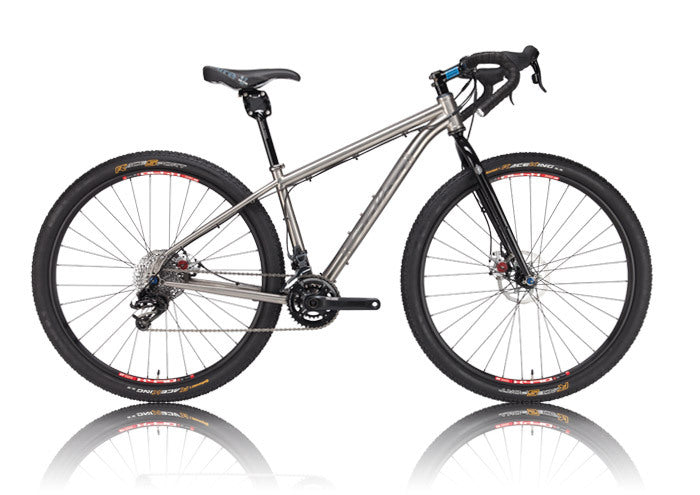

• Salsa Fargo Ti bike side view

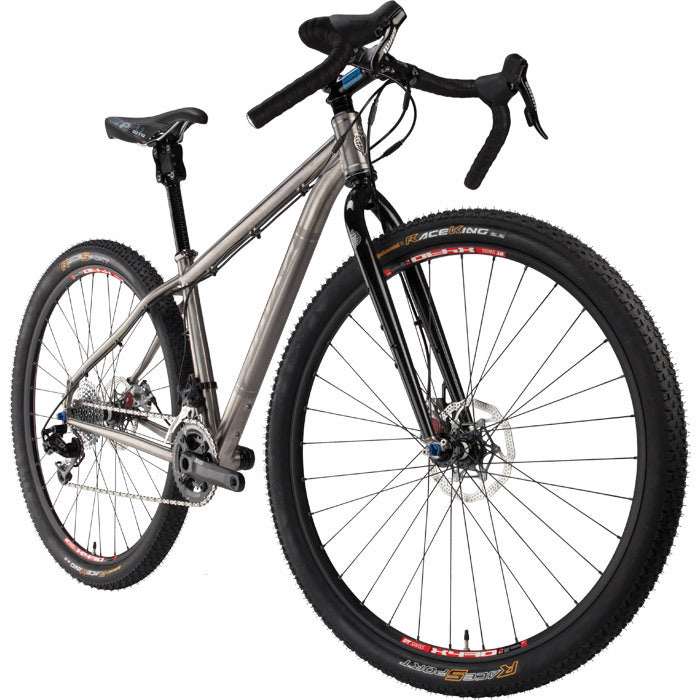

  • Salsa Fargo Ti bike front three-quarter view

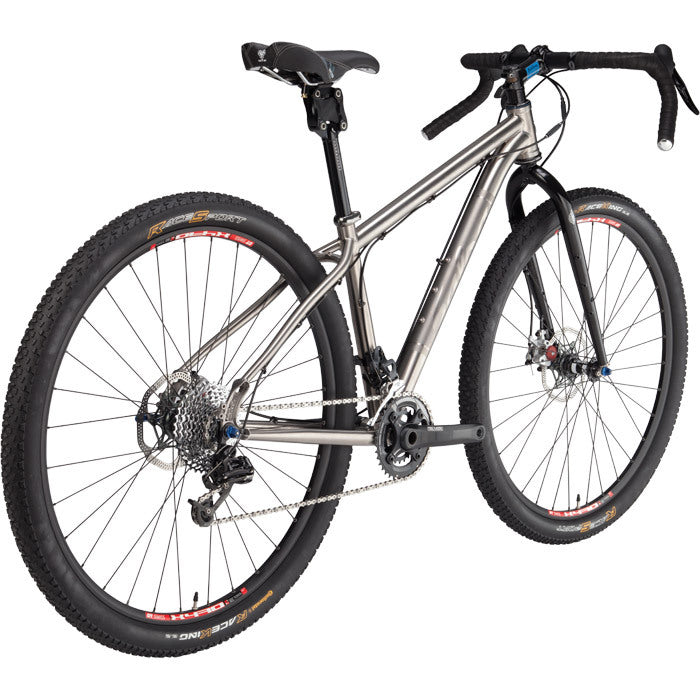

  • Salsa Fargo Ti bike rear three-quarter view

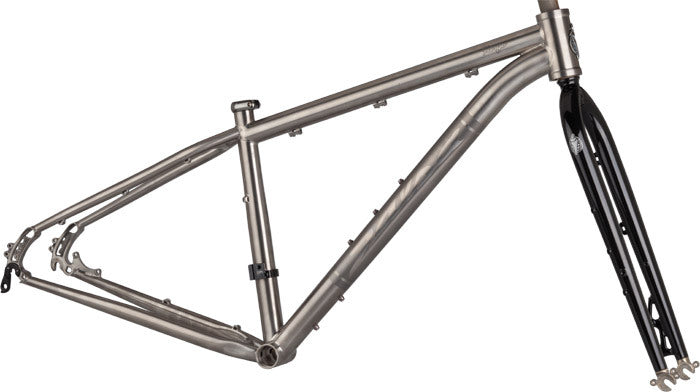

  • Salsa Fargo Ti frameset side view

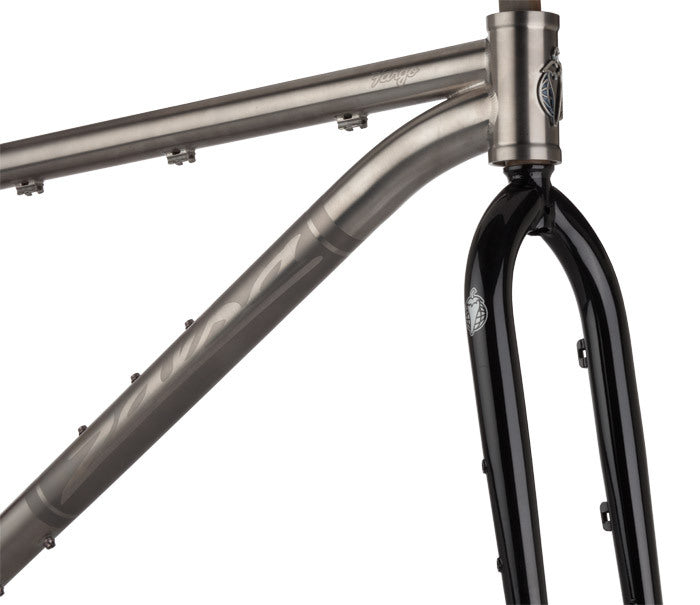

  • Salsa Fargo Ti frameset headtube area focus

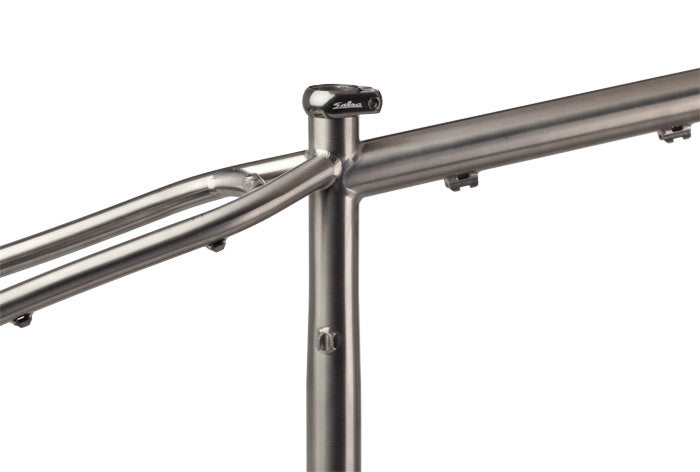

  • Salsa Fargo Ti frameset top and seat tube area focus

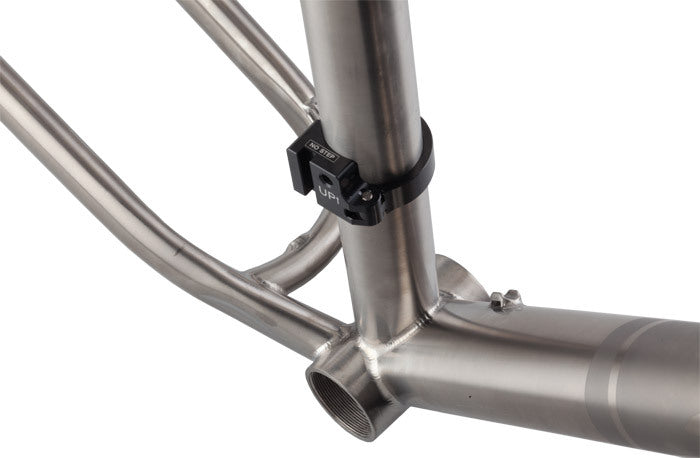

  • Salsa Fargo Ti frameset bottom bracket area focus

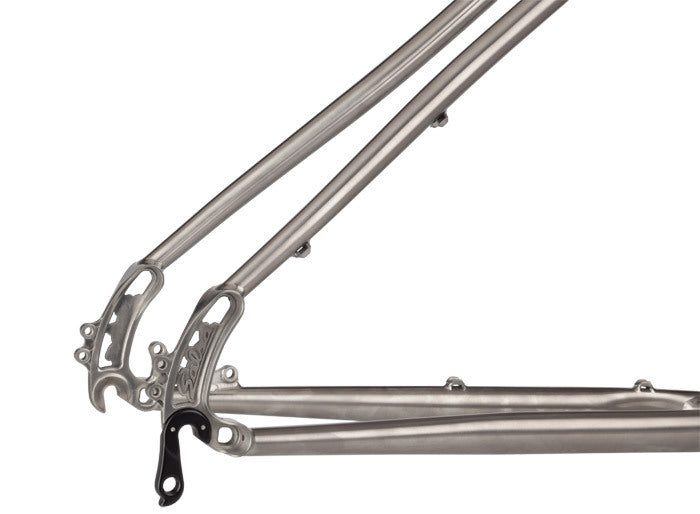

  • Salsa Fargo Ti frameset rear dropout area focus
1 8

2013 Fargo Ti

2013 Fargo Ti

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Fargo Titanium
  • Fork: Fargo, CroMoly, 1-1/8"
  • Rear Shock: nil
  • Headset: Cane Creek 40 ZS44
  • Stem: Salsa ProMoto 2 +25
  • Handlebar: Salsa Woodchipper 2
  • Grips: Salsa Gel Tape
  • Shifter: SRAM Apex 10-Speed
  • Front Brake: Avid BB7
  • Rear Brake: Avid BB7
  • Brake Lever: SRAM Rival
  • Rotors: 160mm Front/160mm Rear
  • Seatpost: Cane Creek Thudbuster ST
  • Saddle: WTB Pure V
  • Front Der: SRAM X.7 HDM
  • Rear Der: SRAM X.0
  • Front Hub: DT Swiss 350, 32H
  • Rear Hub: DT Swiss 350, 32H
  • Spokes: DT Swiss Competition
  • Rims: NoTubes Arch
  • Tires: Continental Race King 29 x 2.2"
  • Cassette: SRAM PG-1070 11-36T
  • Chain: KMC X10
  • Crankset: SRAM S1400 26/39T

Frame Specs

  • Wheelsize: 29"
  • Tire Clearance: Designed for 29 x 2.3" tire
  • Fork: Salsa Fargo Fork included. 1-1/8" threadless. Compatible with 80mm travel 29er suspension forks
  • Headset-Upper: 1-1/8" zero stack (ZS44/28.6)
  • Headset-Lower: For tapered: 44mm external cup (EC44/40) For straight: zero stack (ZS44/30)
  • Seatpost: 27.2mm
  • Seat Collar: 32.0mm. Salsa Lip-Lock Included
  • Front Derailleur: Problem Solvers direct-mount clamp included, high direct-mount front derailleur
  • Bottom Bracket: 73mm BSA
  • Crankset: Fits any mountain double or triple
  • Front Brake: 51mm I.S., minimum rotor size 160mm, maximum rotor size 203mm
  • Rear Brake: 51mm I.S., minimum rotor size 140mm, maximum rotor size 203mm
  • Front Spacing: 100 x 9mm QR
  • Rear Spacing: 135 x 10mm QR
  • Bottle Mounts: 5 per frameset (3 on frame, 2 on fork)
  • Derailleur Hanger: FS2310
  • Cable Routing: Full housing, under toptube
  • Frame Weight: SM: 1640g, MD: 1700g, LG: 1760g
  • Fork Weight w/Uncut Steerer: 1158g (2.6 lb) with full-length steerer tube
  • Color: Industrial mill finish with etched graphics

Geometry

Geometry Diagram
Small Medium Large X-Large
Top Tube Effective Metric 545 565 580 600
Seat Tube Length Metric 406.4 457.2 508 558.8
Head Tube Length Metric 100 125 150 170
Head Tube Angle 70 70.5 71 71
Seat Tube Angle 74 73 73 73
BB Drop Metric 70 70 70 70
Chainstay Length Metric 455 455 455 455
Fork Length Metric 468 468 468 468
Fork Offset Metric 45 45 45 45
Wheelbase Metric 1063.2 1067.7 1078.2 1098.9
Stack Metric 598.5 624.2 649.9 668.8
Reach Metric 373.4 374.2 381.3 395.5
Standover Metric 728.7 774.8 818.2 857.4
Rider Height Metric 160cm - 175cm 173cm - 183cm 180cm - 191cm 188cm - UP
BB Center to Center Metric
Stem Length
Crank Length
Handlebar Width
Seatpost Offset Metric
Stem Angle
Wheel Size
Seatpost Dropper Length Travel
Handlebar_Rise_Drop
BB Height
