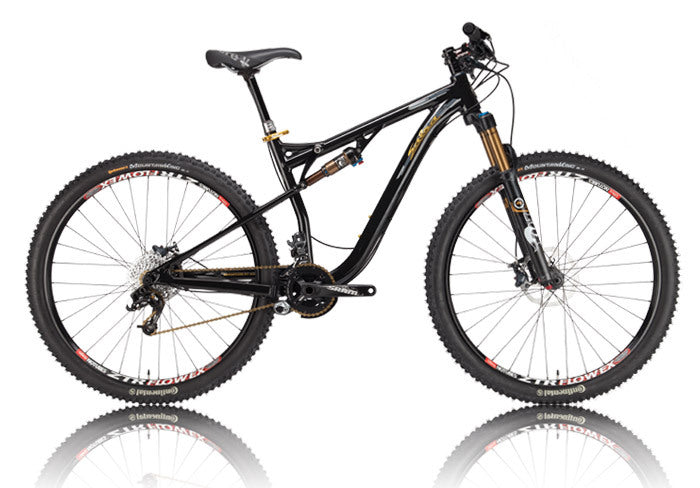

• Salsa Horsthief bike black color side view

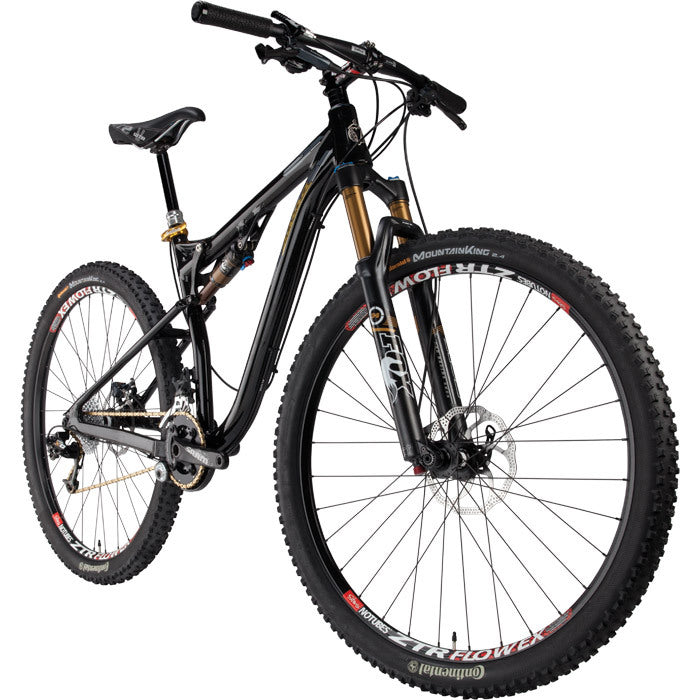

  • Salsa Horsthief bike black color front three-quarter view

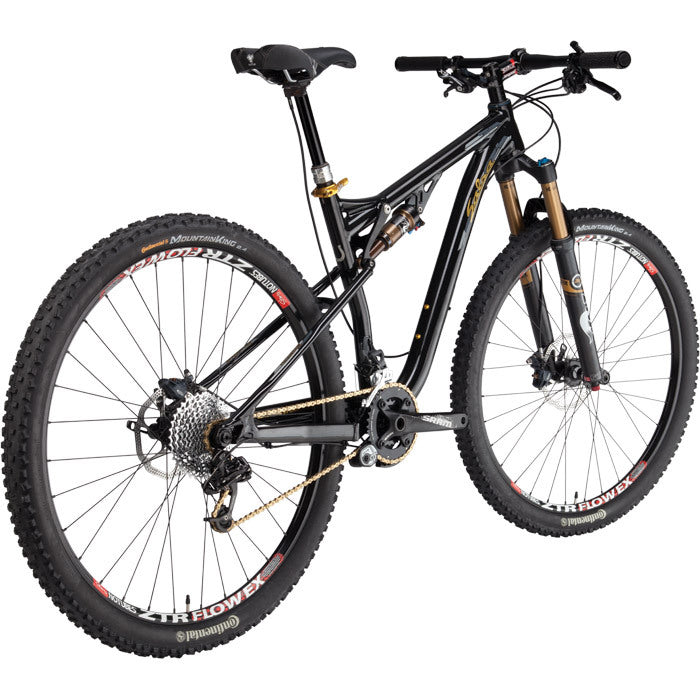

  • Salsa Horsthief bike black color rear three-quarter view

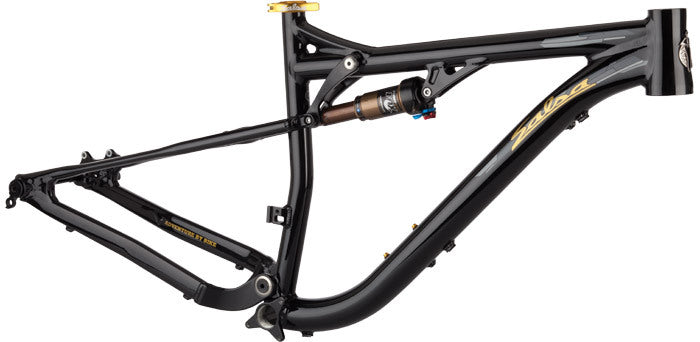

  • Salsa Horsthief frame black color side view

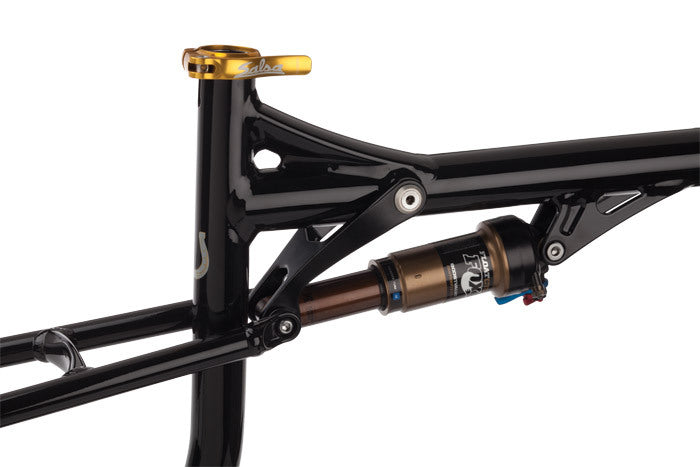

  • Salsa Horsthief bike black color rear shock and linkage focus

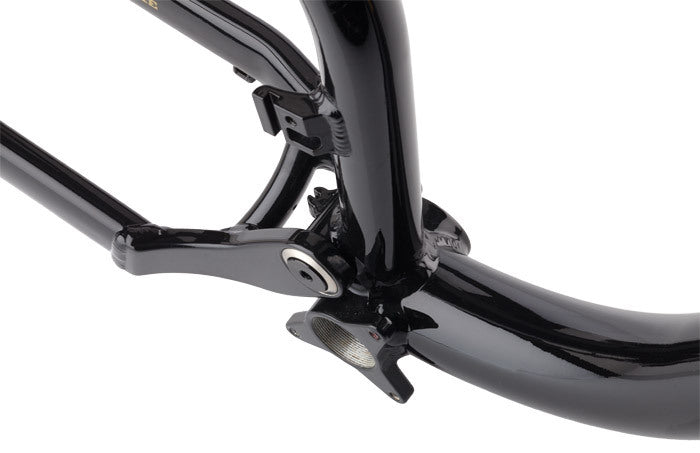

  • Salsa Horsthief bike black color bottom bracket area focus

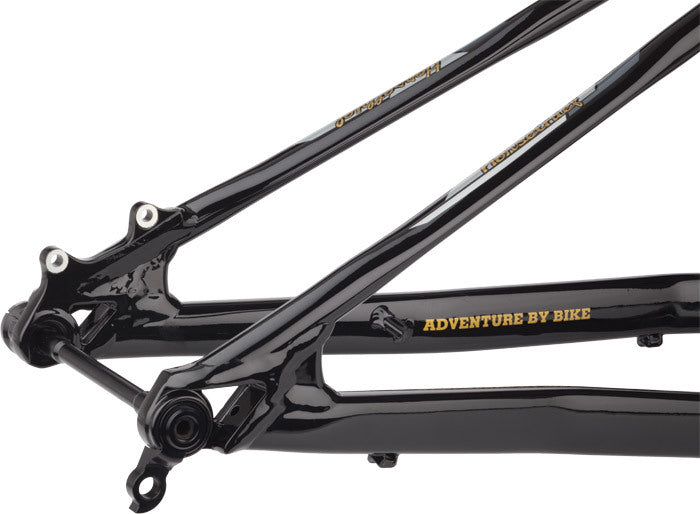

  • Salsa Horsthief bike black color rear dropout area focus
1 7

2013 Horsethief

2013 Horsethief

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Horsethief 1 Aluminum w/ Thru Axle Rear
  • Fork: Fox 34, Tapered, Factory Kashima Coating, 120mm travel
  • Rear Shock: Fox Float CTD Factory Boost Valve Kashima Coating, 7.5x2"
  • Headset: Cane Creek 40 ZS44/56
  • Stem: Salsa Pro Moto 1
  • Handlebar: Salsa Pro Moto 2, 11-Degree
  • Grips: Salsa Backcountry Lock-On
  • Shifter: SRAM X.9 Ball Bearing
  • Front Brake: SRAM Elixir 7
  • Rear Brake: SRAM Elixir 7
  • Brake Lever: SRAM Elixir 7
  • Rotors: 180mm Front/170mm Rear
  • Seatpost: RockShox Reverb
  • Saddle: WTB Pure V
  • Front Der: SRAM X.7 HDM
  • Rear Der: SRAM X.0
  • Front Hub: DT Swiss 350, 32H, 15mm Thru Axle
  • Rear Hub: DT Swiss 350, 32H, 12x142mm Thru Axle
  • Spokes: DT Swiss Competition
  • Rims: NoTubes Flow EX
  • Tires: Continental Mountain King II 29 x 2.4"
  • Cassette: SRAM PG-1070 11-36T
  • Chain: KMC X10
  • Crankset: SRAM S1400 24/36T w/ MRP 2x Guide

Frame Specs

  • Wheelsize: 29"
  • Tire clearance: Clearance for 29 x 2.5" tires
  • Fork: Compatible with 120–140mm travel 29er suspension forks
  • Headset-Upper: 1-1/8" zero stack (ZS44/28.6)
  • Headset-Lower: For tapered: 56mm zero stack (ZS56/40); for straight: 56mm reducing zero stack (ZS56/30)
  • Rear Shock Size: 190 x 50mm (7.5 x 2")
  • Rear Shock Mount Size: 8 x 22.2mm (both ends)
  • Seatpost: 31.6mm
  • Seat Collar: 35.0mm Salsa Flip-Lock included
  • Front Derailleur: High direct-mount
  • Bottom Bracket: 73mm BSA, ISCG-05 compatible
  • Crankset: Any mountain double or triple
  • Rear Brake: 51mm I.S., minimum rotor size 140mm, maximum rotor size 185mm
  • Rear Spacing: 142 x 12mm Maxle. Maxle included
  • Bottle Mounts: 1 per frame
  • Derailleur Hanger: FS2315
  • Cable Routing: Full housing, under downtube. Dropper post housing guides
  • Frame Weight: 6.5 to 7.0 lb depending on frame size, including shock, seat collar, derailleur hanger, and Maxle
  • Color: Black & Gold

Geometry

Geometry Diagram
Measurement Small Medium Large X-Large
Top Tube Effective Metric '593 618 638 650'
Seat Tube Length Metric '508 457.2 406.4 558.8'
Head Tube Length Metric '110 110 110 120'
Head Tube Angle '68.6 68.6 68.6 69.5'
Seat Tube Angle '72.6 72.6 72.6 73.5'
BB Drop Metric '25.7 25.6 25.5 33'
Chainstay Length Metric '460 460 460 460'
Fork Length Metric '545 545 545 525'
Fork Offset Metric '1.8 1.8 1.8 45'
Wheelbase Metric '46.6 45.8 44.9 47'
Stack Metric '622.4 622.7 622.9 625.1'
Reach Metric '397.4 422.6 442.8 464.8'
Standover Metric '788.2 786.6 796.3 797.4'
Rider Height Metric '165cm - 175cm 173cm - 183cm 180cm - 191cm 188cm - UP'
