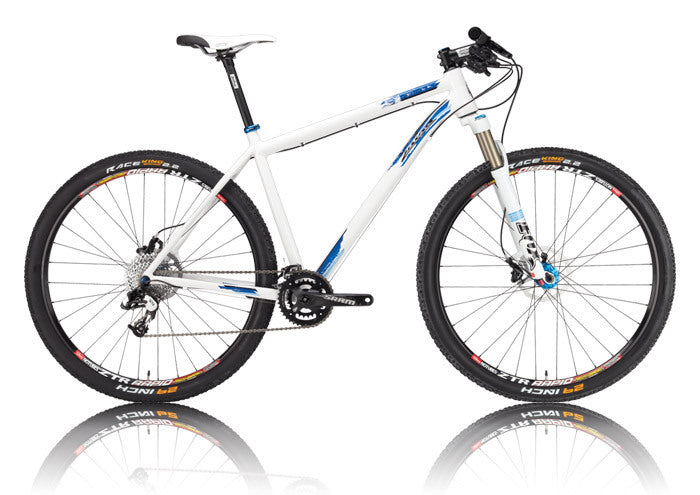

• Salsa Mamasita bike white color side view

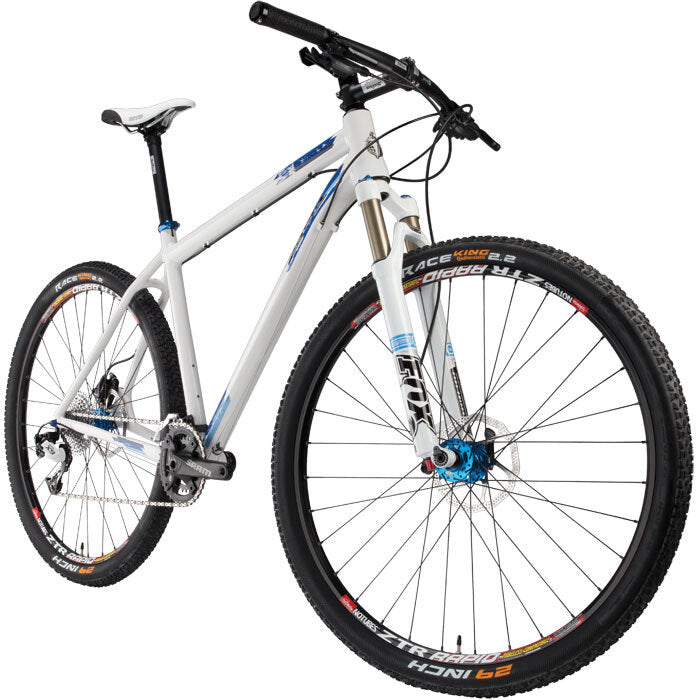

  • Salsa Mamasita bike white color front three-quarter view

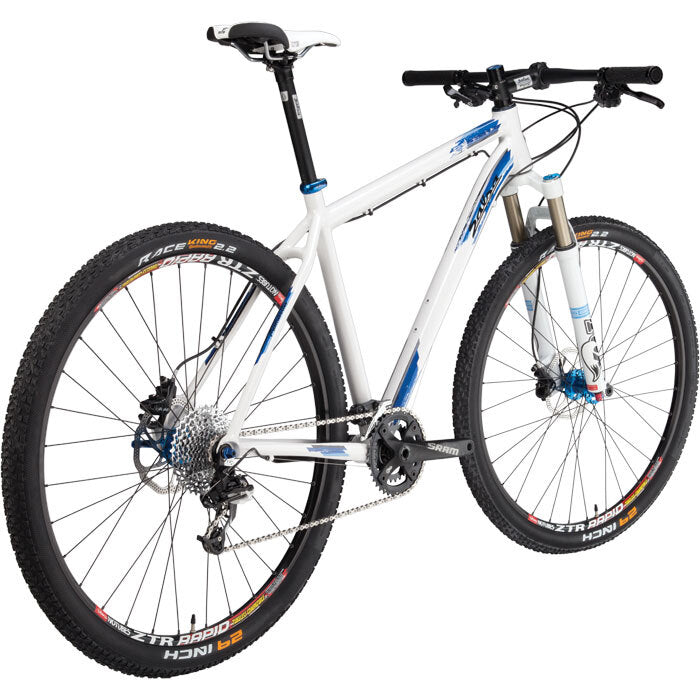

  • Salsa Mamasita bike white color rear three-quarter view

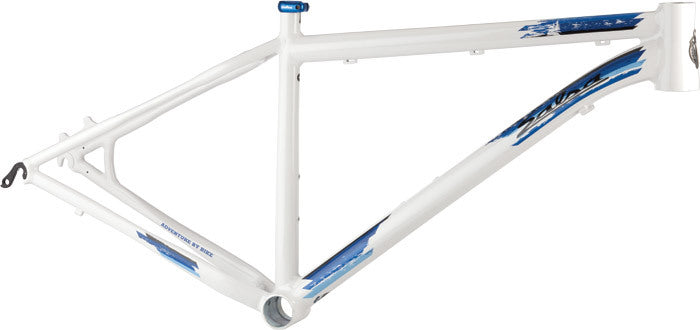

  • Salsa Mamasita frame white color side view

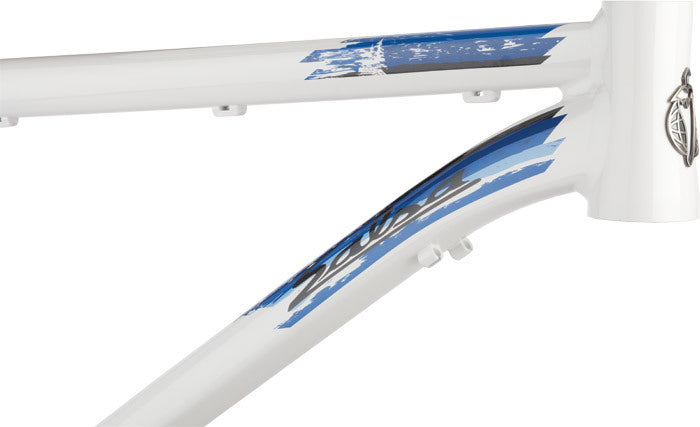

  • Salsa Mamasita frame white color head tube area focus

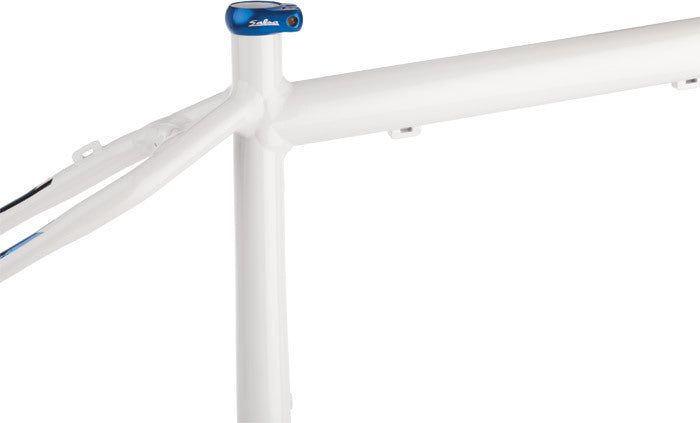

  • Salsa Mamasita frame white color top tube and seat tube area focus

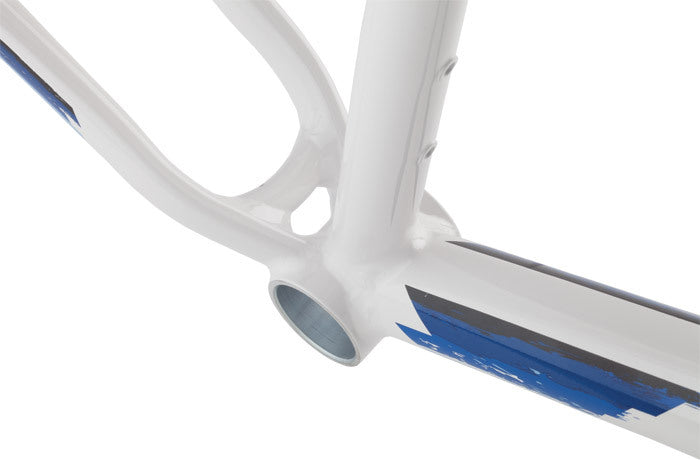

  • Salsa Mamasita frame white color bottom bracket area focus

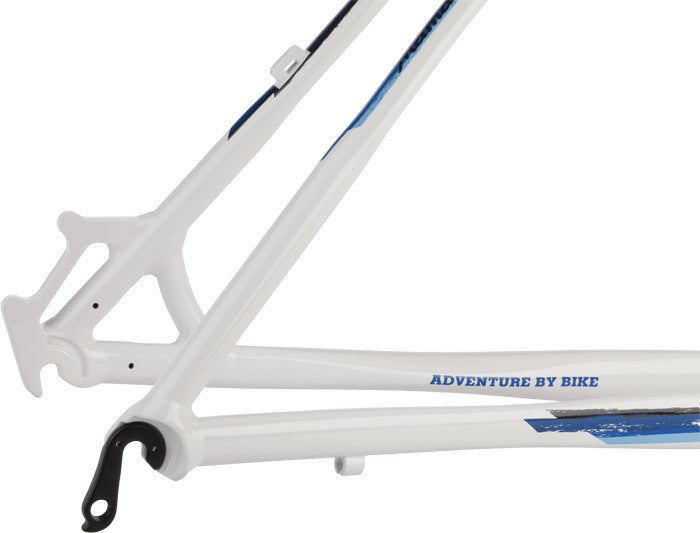

  • Salsa Mamasita frame white color rear dropout area focus
1 8

2013 Mamasita

2013 Mamasita

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Mamasita EV6 Aluminum
  • Fork: Fox F29 RL, Tapered,15mm Thru Axle
  • Rear Shock: nil
  • Headset: Cane Creek 40 ZS44/56
  • Stem: Salsa Pro Moto 2
  • Handlebar: Salsa Pro Moto 2, 11-degree
  • Grips: Salsa Backcountry Lock-On
  • Shifter: SRAM X.7
  • Front Brake: SRAM Elixir 5
  • Rear Brake: SRAM Elixir 5
  • Brake Lever: SRAM Elixir 5
  • Rotors: 170mm Front/160mm Rear
  • Seatpost: Salsa Pro Moto 2
  • Saddle: WTB Silverado
  • Front Der: SRAM X.7
  • Rear Der: SRAM X.9
  • Front Hub: Salsa 2 by Formula, 32H, 15mm Thru Axle
  • Rear Hub: Salsa 2 by Formula, 32H
  • Spokes: DT Swiss Competition
  • Rims: NoTubes ZTR Rapid
  • Tires: Continental Race King 29 x 2.2"
  • Cassette: SRAM PG-1050 11-36T
  • Chain: KMC X10
  • Crankset: SRAM S1000 BB30 26/39T

Frame Specs

  • Wheelsize: 29"
  • Tire Clearance: Designed for 29 x 2.25" tires
  • Fork: Compatible with 80–100mm travel 29er suspension forks
  • Headset-Upper: 1-1/8" zero stack (ZS44/28.6)
  • Headset-Lower: For tapered: 56mm zero stack (ZS56/40); for straight: 56mm reducing zero stack (ZS56/30)
  • Seatpost: 27.2mm
  • Seat Collar: 32.0mm. Salsa Lip-Lock included
  • Front Derailleur: 34.9mm, low clamp, bottom-pull
  • Bottom Bracket: PF30, 73mm
  • Crankset: Any mountain double or triple crankset
  • Rear Brake: 51mm I.S., minimum rotor size 140mm, maximum rotor size 185mm
  • Rear Spacing: 135 x 10mm QR
  • Bottle Mounts: 1 per frame on XS; 2 per frame on SM/MD/LG/XL
  • Derailleur Hanger: FS2310
  • Cable Routing: Full brake housing under toptube. Derailleur cables along downtube
  • Frame Weight: XS: 3.48 lb/1578g, SM: 3.57 lb/1619g, MD: 3.7 lb/1678g, LG: 3.83 lb/1737g, XL: 3.97 lb/1800g
  • Color: Racing White/Blue

Geometry

Geometry Diagram
Metric X-Small - 100mm Fork Small - 100mm Fork Medium - 100mm Fork Large X-Large - 100mm Fork X-Small - 80mm Fork Small - 80mm Fork Medium - 80mm Fork Large - 80mm Fork X-Large - 80mm Fork
Top Tube Effective Metric 565 580 600 620 635 563 578 598 618 633
Seat Tube Length Metric 355.6 406.4 457.2 508 558.8 355.6 406.4 457.2 508 558.8
Head Tube Length Metric 110 110 120 130 140 110 110 120 130 140
Head Tube Angle 71 71 71 71 71 71.8 71.8 71.7 71.7 71.7
Seat Tube Angle 74 73.5 73 73 73 74.8 74.3 73.7 73.7 73.7
BB Drop Metric 60 60 60 60 60 66 66 66 66 66
Chainstay Length Metric 450 450 450 450 450 450 450 450 450 450
Fork Length Metric 483 483 483 483 483 468 468 468 468 468
Fork Offset Metric 45 45 45 45 45 45 45 45 45 45
Wheelbase Metric 1071.8 1082 1097.3 1117.6 1132.8 1071.8 1082 1097.3 1117.6 1132.8
Stack Metric 609.8 609.8 619.3 628.7 638.2 604.6 604.5 613.9 623.2 632.6
Reach Metric 390.1 399.4 410.7 427.8 439.9 398.2 407.4 418.7 435.8 447.9
Standover Metric 691.4 729.2 767.9 804.5 841.2 681.5 719.9 759.1 796.2 833.4
Rider Height Metric 157cm - 168cm 165cm - 175cm 173cm - 183cm 180cm - 191cm 188cm - UP 157cm - 168cm 165cm - 175cm 173cm - 183cm 180cm - 191cm 188cm - UP

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
