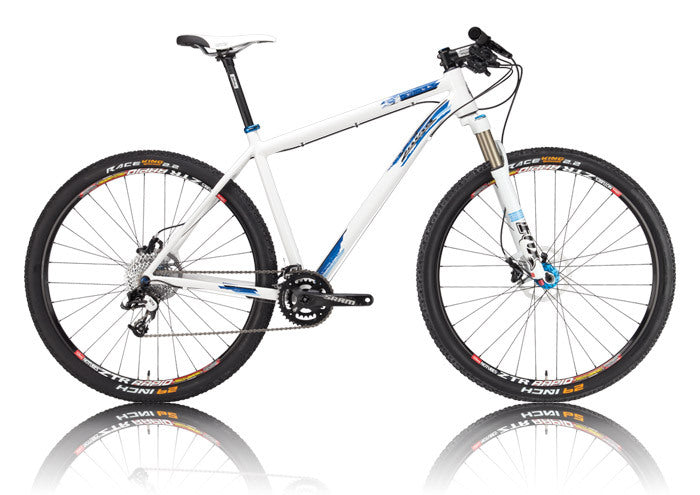

• Salsa Mamasita bike white color side view

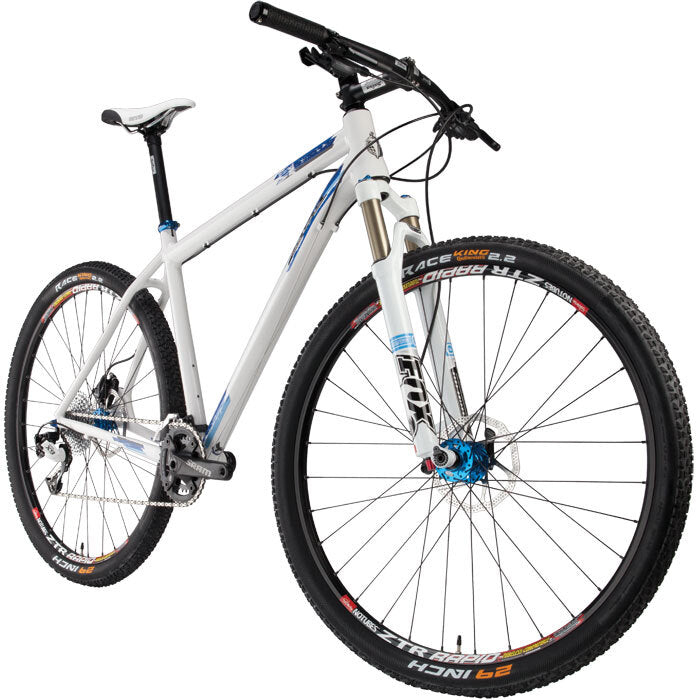

  • Salsa Mamasita bike white color front three-quarter view

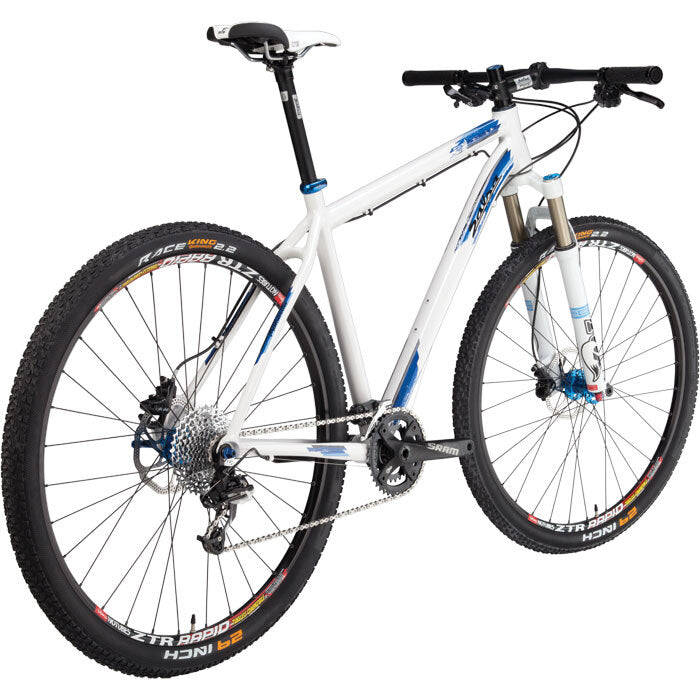

  • Salsa Mamasita bike white color rear three-quarter view

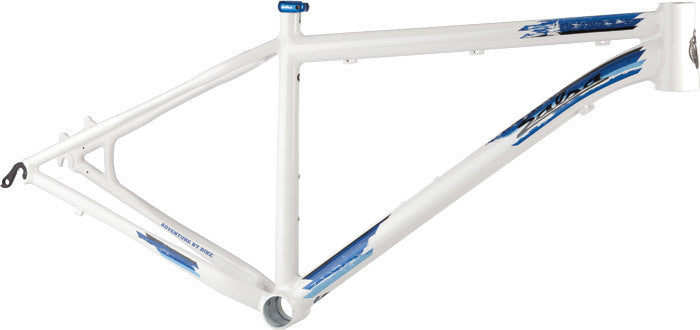

  • Salsa Mamasita frame white color side view

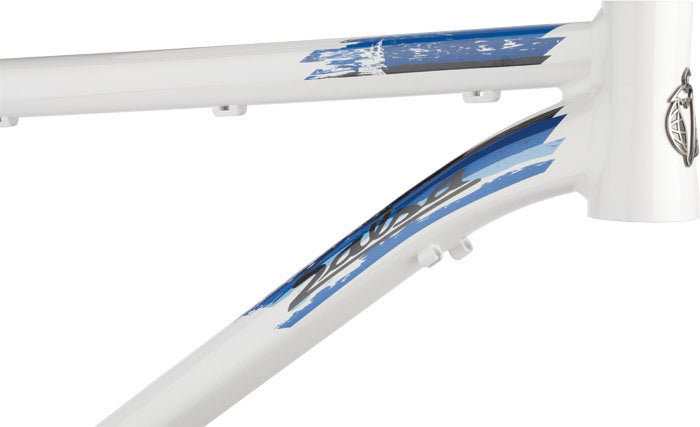

  • Salsa Mamasita frame white color head tube area focus

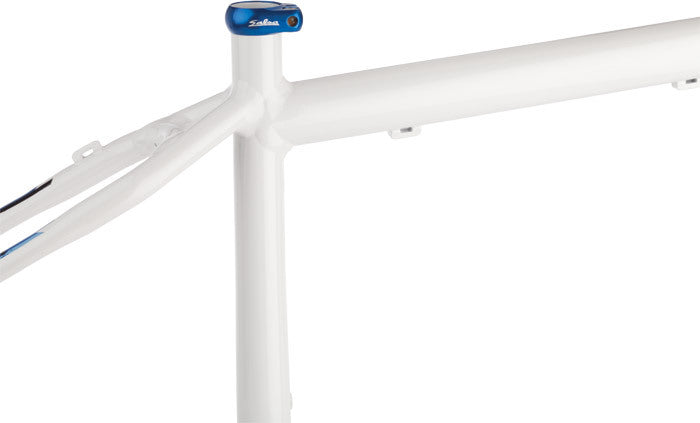

  • Salsa Mamasita frame white color top tube and seat tube area focus

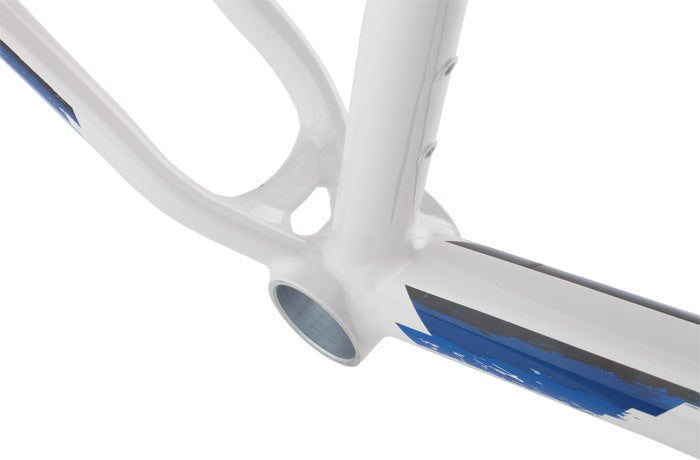

  • Salsa Mamasita frame white color bottom bracket area focus

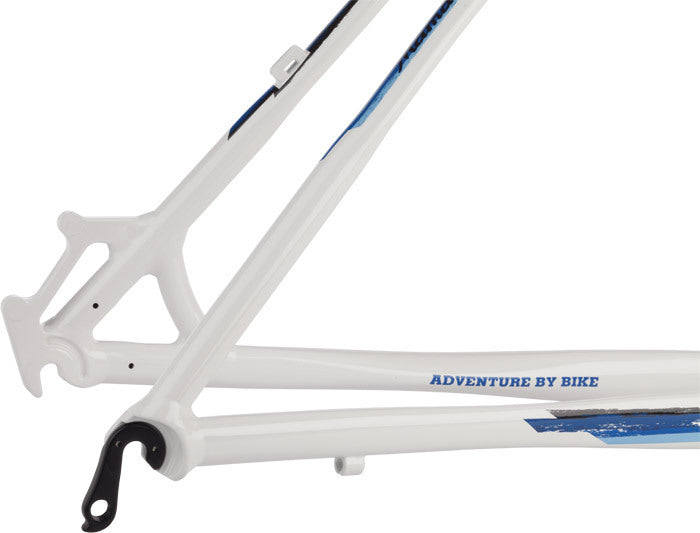

  • Salsa Mamasita frame white color rear dropout area focus
1 8

2013 Mamasita Frame

2013 Mamasita Frame

Archived

2013 Mamasita Frame

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Frame Specs

  • Wheelsize: 29"
  • Tire Clearance: Designed for 29 x 2.25" tires
  • Fork: Compatible with 80–100mm travel 29er suspension forks
  • Headset-Upper: 1-1/8" zero stack (ZS44/28.6)
  • Headset-Lower: For tapered: 56mm zero stack (ZS56/40); for straight: 56mm reducing zero stack (ZS56/30)
  • Seatpost: 27.2mm
  • Seat Collar: 32.0mm. Salsa Lip-Lock included
  • Front Derailleur: 34.9mm, low clamp, bottom-pull
  • Bottom Bracket: PF30, 73mm
  • Crankset: Any mountain double or triple crankset
  • Rear Brake: 51mm I.S., minimum rotor size 140mm, maximum rotor size 185mm
  • Rear Spacing: 135 x 10mm QR
  • Bottle Mounts: 1 per frame on XS; 2 per frame on SM/MD/LG/XL
  • Derailleur Hanger: FS2310
  • Cable Routing: Full brake housing under toptube. Derailleur cables along downtube
  • Frame Weight: XS: 3.48 lb/1578g, SM: 3.57 lb/1619g, MD: 3.7 lb/1678g, LG: 3.83 lb/1737g, XL: 3.97 lb/1800g
  • Color: Racing White/Blue

Geometry

Geometry Diagram
Metric X-Small Small Medium Large X-Large
Top Tube Effective Metric 565 580 600 620 635
Seat Tube Length Metric 355.6 406.4 457.2 508 558.8
Head Tube Length Metric 110 110 120 130 140
Head Tube Angle 71 71 71 71 71
Seat Tube Angle 74 73.5 73 73 73
BB Drop Metric 60 60 60 60 60
Chainstay Length Metric 450 450 450 450 450
Fork Length Metric 483 483 483 483 483
Fork Offset Metric 45 45 45 45 45
Wheelbase Metric 1071.8 1082 1097.3 1117.6 1132.8
Stack Metric 609.8 609.8 619.3 628.7 638.2
Reach Metric 390.1 399.4 410.7 427.8 439.9
Standover Metric 691.4 729.2 767.9 804.5 841.2
Rider Height Metric 157cm - 168cm 165cm - 175cm 173cm - 183cm 180cm - 191cm 188cm - UP
