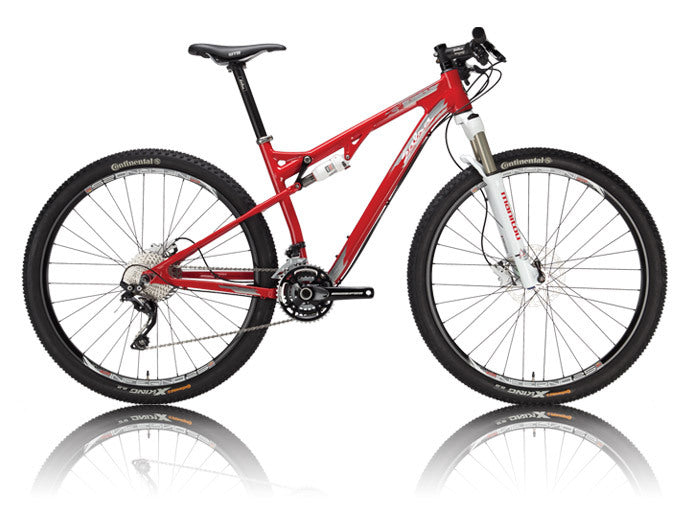

• Salsa Spearfish 3 bike red color side view

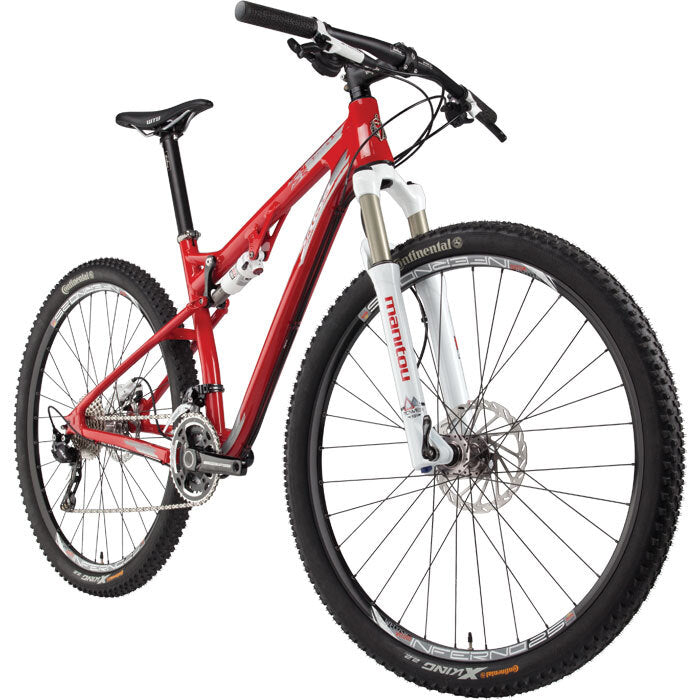

  • Salsa Spearfish 3 bike red color front three-quarter view

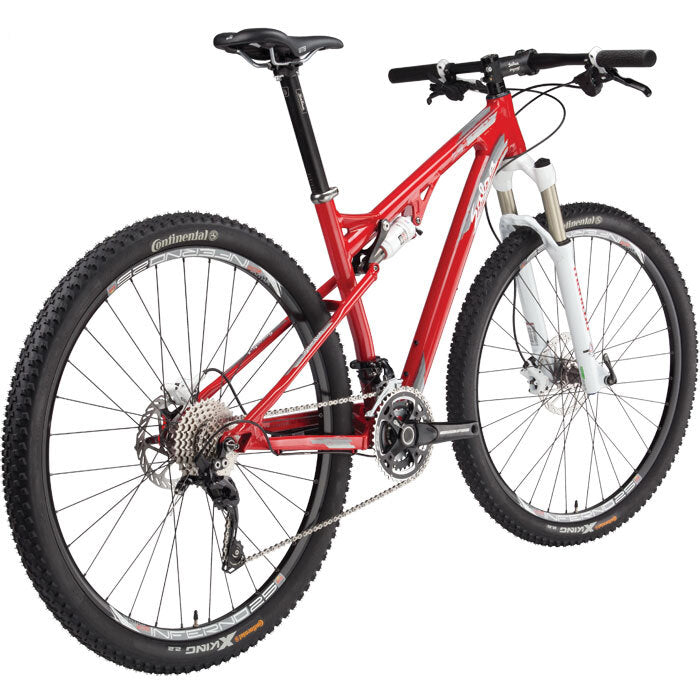

  • Salsa Spearfish 3 bike red color rear three-quarter view
1 3

2013 Spearfish 3

2013 Spearfish 3

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Spearfish 3 Aluminum
  • Fork: Manitou Tower Expert, Tapered 15mm axle, 100mm travel
  • Rear Shock: RockShox Monarch RL or Monarch R, 6.5x1.5"
  • Headset: Cane Creek 10 ZS44/56
  • Stem: Salsa Pro Moto 3
  • Handlebar: Salsa Pro Moto 3, 11-Degree
  • Grips: Salsa Backcountry
  • Shifter: Shimano SLX 3x10
  • Front Brake: Avid Elixir 1
  • Rear Brake: Avid Elixir 1
  • Brake Lever: Avid Elixir 1
  • Rotors: 160mm Front/160mm Rear
  • Seatpost: Salsa Pro Moto 3
  • Saddle: WTB Silverado
  • Front Der: Shimano Deore
  • Rear Der: Shimano SLX
  • Front Hub: Salsa 3 by Formula, 32H
  • Rear Hub: Salsa 3 by Formula, 32H
  • Spokes: DT Swiss Champion
  • Rims: Sun Inferno 25mm
  • Tires: Continental X King 29 x 2.2"
  • Cassette: Shimano Deore 10-Speed 11-36T
  • Chain: KMC X10
  • Crankset: FSA V-Drive PF30 24/32/42T

Frame Specs

  • Wheelsize: 29"
  • Tire Clearance: Designed for 29 x 2.25" tires
  • Fork: Compatible with 100mm travel 29'er suspension forks
  • Headset-Upper: 1-1/8" Zero Stack (ZS44/28.6)
  • Headset-Lower: For Tapered: 56mm zero stack (ZS56/40); For Straight: 56mm reducing zero stack (ZS56/30)
  • Rear Shock Size: 165 x 38mm (6.5 x 1.5")
  • Rear Shock Mount Size: 8 x 22.2mm (both ends)
  • Seatpost: 31.6mm
  • Seat Collar: 35.0mm. Salsa Lip-Lock included
  • Front Derailleur: 34.9mm, High Clamp, Bottom Pull
  • Bottom Bracket: PF30, 73mm
  • Crankset: Any mountain double or triple crankset EXCEPT SRAM XX BB30 Q-156 or SRAM X7 BB30 cranks
  • Rear Brake: 51mm I.S., minimum rotor size 140mm, maximum rotor size 185mm
  • Rear Spacing: 135 x 10mm QR
  • Bottle Mounts: 1 per frame
  • Derailleur Hanger: FS2310
  • Cable Routing: Full housing, under downtube
  • Frame Weight: S (5.19 lbs/2354g), M (5.31 lbs/2409g), L (5.5 lbs/2495g), XL (5.56 lbs/2522g)
  • Color: Rocket Red/White

Geometry

Geometry Diagram
Small Medium Large X-Large
Top Tube Effective Metric 580 600 620 635
Seat Tube Length Metric 457.2 406.4 406.4 508
Head Tube Length Metric 120 110 110 130
Head Tube Angle 71 71 71 71
Seat Tube Angle 73.5 73 73 73
BB Drop Metric 45 45 45 45
Chainstay Length Metric 455 455 455 455
Fork Length Metric 503 503 503 503
Fork Offset Metric 45 45 45 45
Wheelbase Metric 43.7 43.1 42.72 44.5
Stack Metric 613.7 623.2 632.6 642.1
Reach Metric 398.2 409.5 426.6 438.7
Standover Metric 744.2 744.7 750 755
Rider Height Metric 165cm - 175cm 173cm - 183cm 180cm - 191cm 188cm - UP
