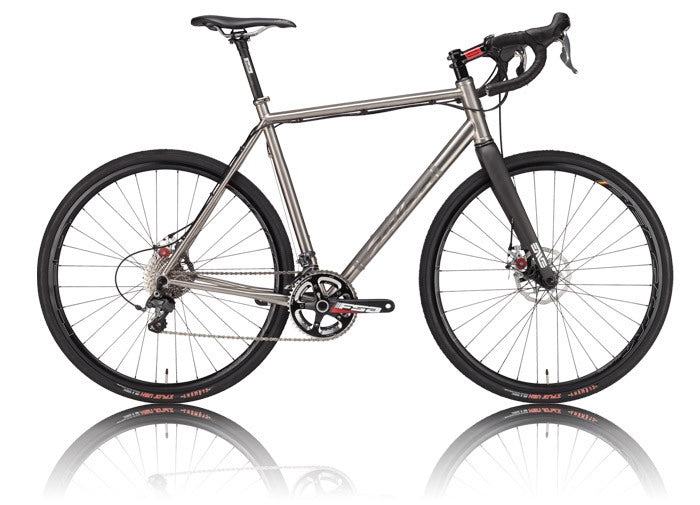

• Salsa Warbird Ti bike side view

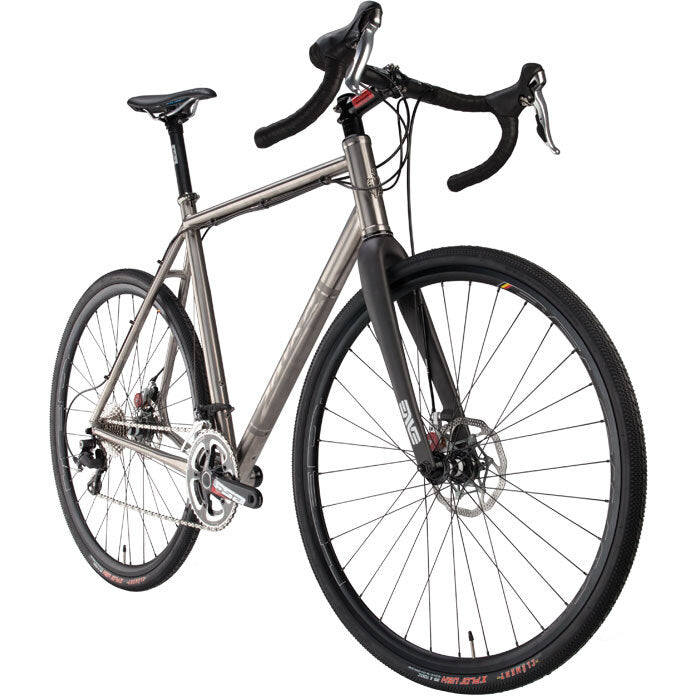

  • Salsa Warbird Ti bike front three-quarter view

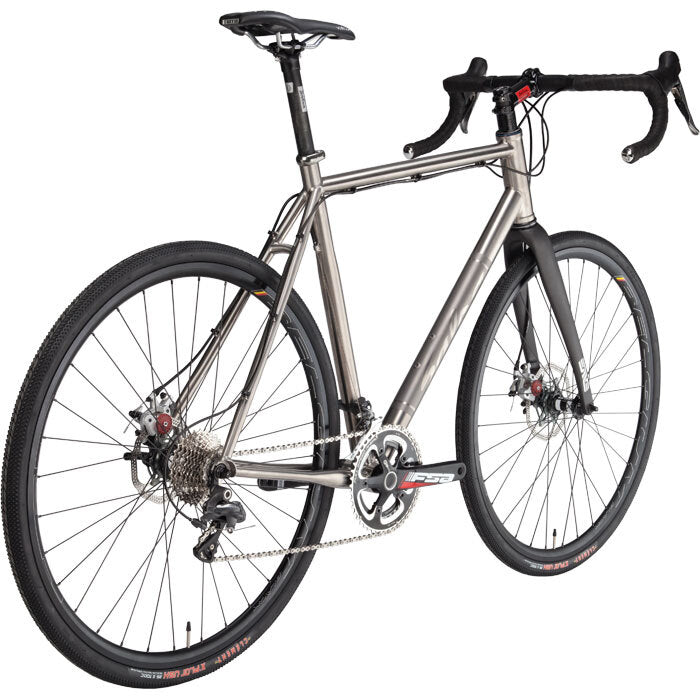

  • Salsa Warbird Ti bike rear three-quarter view

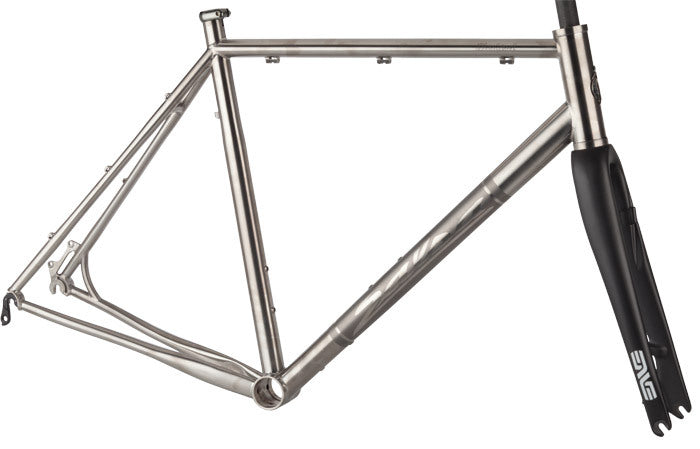

  • Salsa Warbird Ti frameset side view

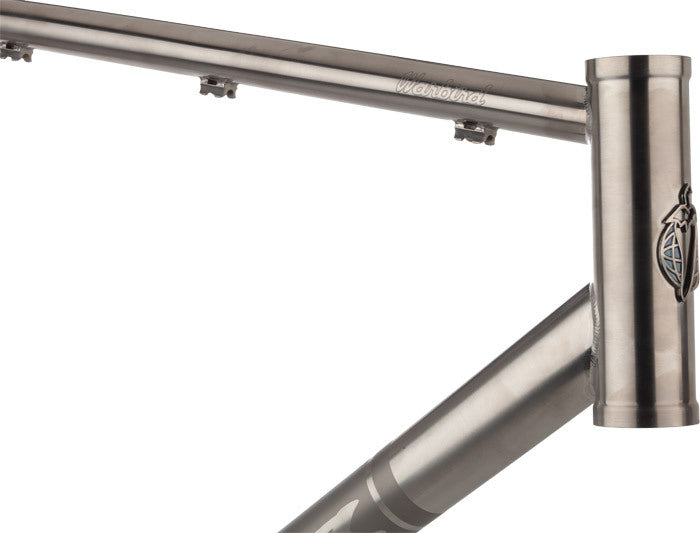

  • Salsa Warbird Ti frameset headtube area focus

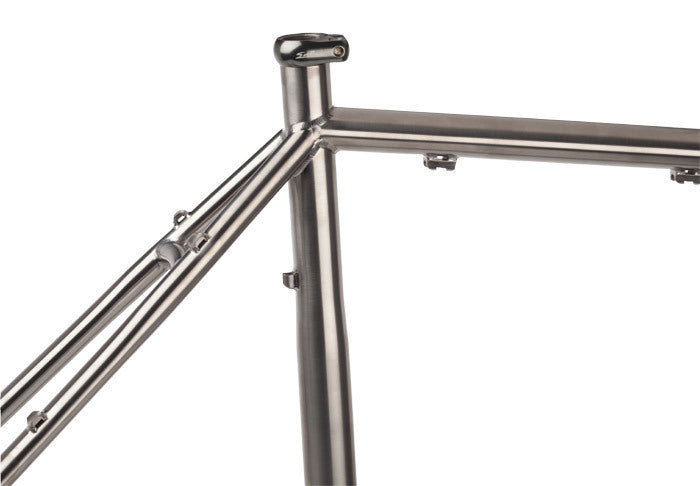

  • Salsa Warbird Ti frameset top tube and seat tube area focus

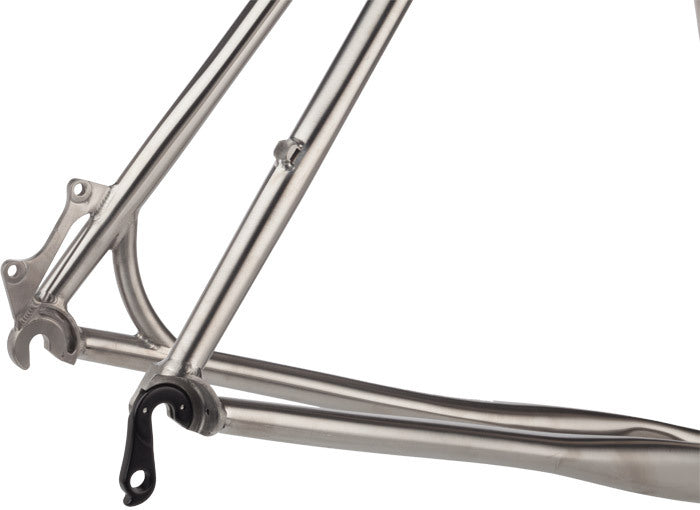

  • Salsa Warbird Ti frameset rear dropout area focus

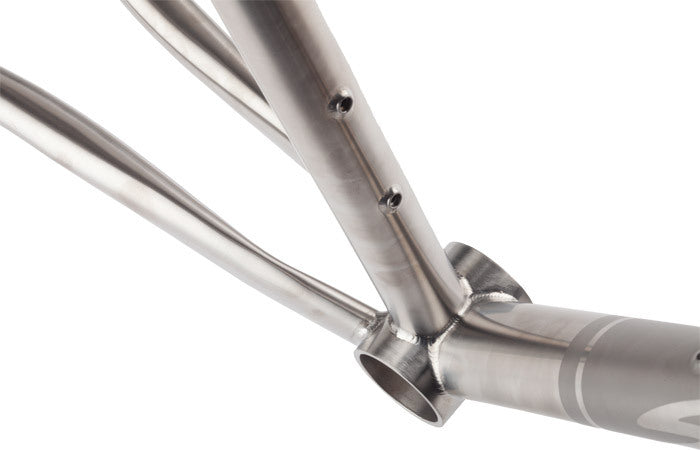

  • Salsa Warbird Ti frameset bottom bracket area focus
1 8

2013 Warbird Ti

2013 Warbird Ti

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Warbird Titanium
  • Fork: ENVE CX Disc, Carbon, Tapered
  • Rear Shock: nil
  • Headset: Cane Creek 40 ZS/EC44
  • Stem: Salsa Pro Moto 1
  • Handlebar: Salsa Cowbell 2
  • Grips: Salsa Gel Tape
  • Shifter: Shimano 105 STI
  • Front Brake: Avid BB7
  • Rear Brake: Avid BB7
  • Brake Lever: Shimano 105 STI
  • Rotors: 160mm Front/140mm Rear
  • Seatpost: Salsa Pro Moto 1
  • Saddle: WTB Valcon
  • Front Der: Shimano CX70
  • Rear Der: Shimano Ultegra
  • Front Hub: DT Swiss 350, 32H
  • Rear Hub: DT Swiss 350, 32H
  • Spokes: DT Swiss Competition
  • Rims: HED Belgium No Brake Track
  • Tires: Clement USH 700c x 35mm
  • Cassette: SRAM PG-1070 11-30T
  • Chain: KMC X10
  • Crankset: FSA Energy PF30 34/46T

Frame Specs

  • Wheelsize: 700c
  • Tire clearance: Designed for 700c x 38mm tire
  • Fork: ENVE CX Disc Carbon, tapered
  • Headset-Upper: 1-1/8" zero stack (ZS44/28.6)
  • Headset-Lower: 44mm external cup (EC44/40)
  • Seatpost: 27.2mm
  • Seat Collar: 32.0mm. Salsa Lip-Lock included
  • Front Derailleur: 34.9mm clamp, top-pull
  • Bottom Bracket: PF30, 68mm
  • Crankset: Fits a double crankset, up to 38t inner, 52t outer
  • Front Brake: 74mm post-mount standard for 160mm rotor
  • Rear Brake: 51mm I.S., minimum rotor size 140mm, maximum rotor size 160mm
  • Front Spacing: 100 x 9mm QR
  • Rear Spacing: 135 x 10mm QR
  • Bottle Mounts: 3 per frame
  • Derailleur Hanger: Part number FS2310
  • Cable Routing: Full housing, under toptube
  • Frame Weight: 55cm: 1680g, 56cm: 1740g, 58cm: 1780g
  • Fork Weight w/Uncut Steerer: 460g (1.0 lb)
  • Color: Industrial Mill Finish w/ Etched Graphics

Geometry

Geometry Diagram
Metric 51cm 53cm 55cm 56cm 58cm 60cm
Top Tube Effective Metric 515 535 550 565 580 600
Seat Tube Length Metric 495 535 560 580 605 635
Head Tube Length Metric 110 130 150 170 195 220
Head Tube Angle 68.75 70 70.5 71.5 72 72
Seat Tube Angle 74.5 73.5 73 73 72.5 72
BB Drop Metric 70 70 70 70 70 70
Chainstay Length Metric 430 430 430 430 430 430
Fork Length Metric 395 395 395 395 395 395
Fork Offset Metric 45 45 45 45 45 45
Wheelbase Metric 40.15 40.13 40.36 40.58 40.74 41.29
Stack Metric 534.1 557.7 578.5 601.4 627.1 650
Reach Metric 366.9 369.8 373.1 381.1 382.3 388.5
Standover Metric 779.3 807.9 824.7 837.7 844.5 871.1
Rider Height Metric 152 157 165 173 180 188cm

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
