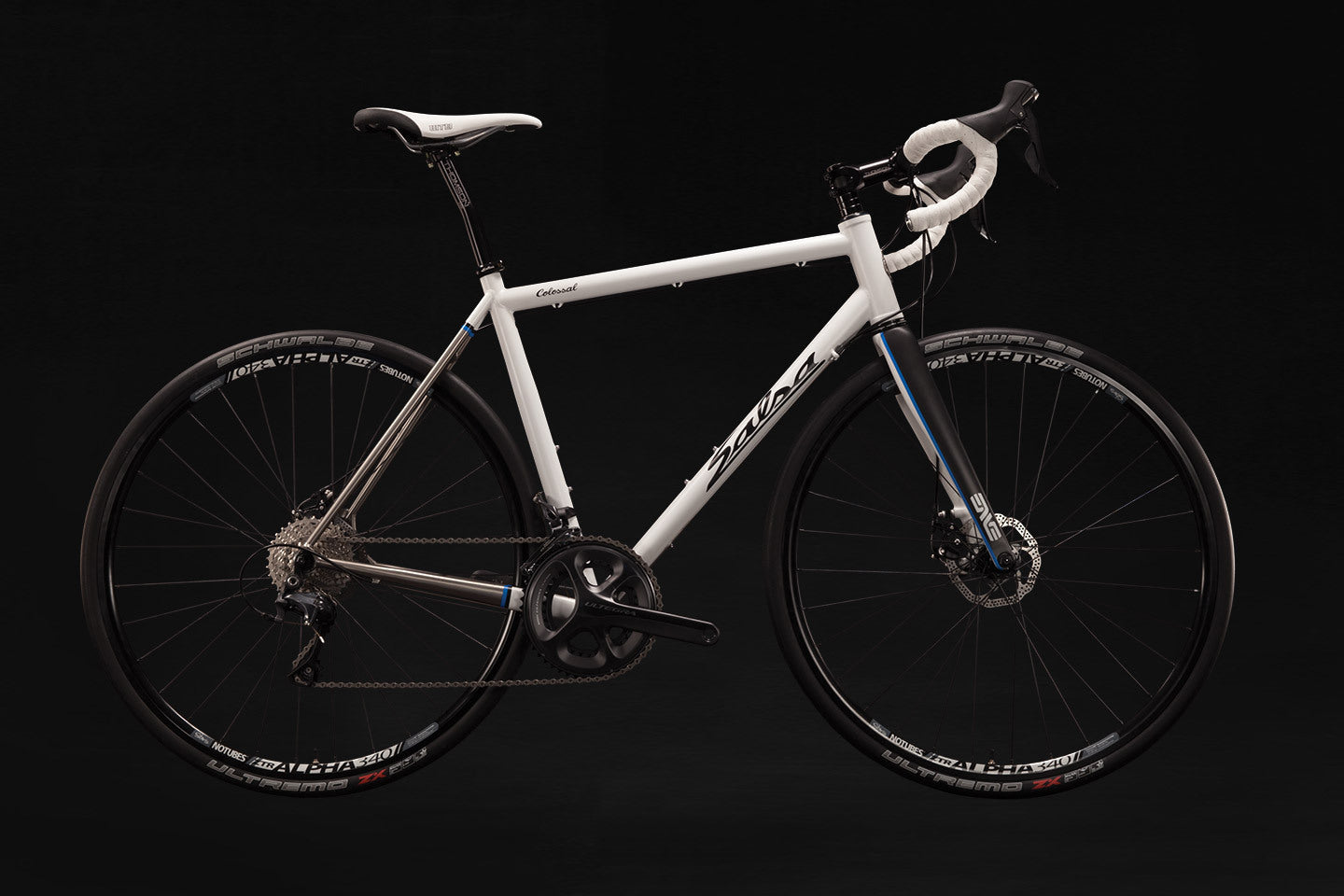

• Salsa Colossal Ti bike white color side view

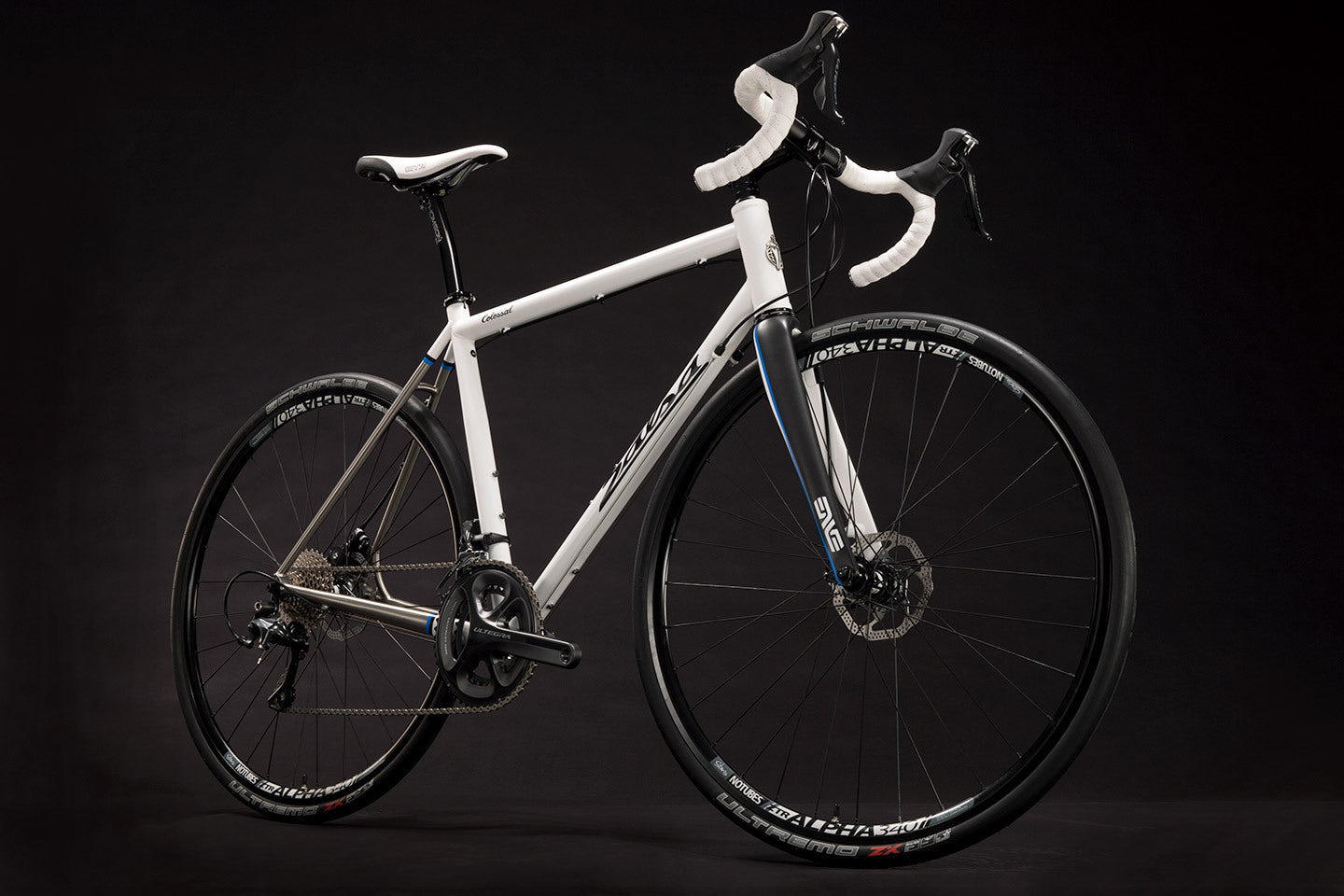

  • Salsa Colossal Ti bike white color front three-quarter view
1 2

2014 Colossal Ti

2014 Colossal Ti

Archived

2014 Colossal Ti

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame : Colossal Titanium
  • Color: Flat White with Brushed Ti
  • Fork: ENVE Road Disc (Custom for Salsa), Carbon, Tapered
  • Headset: Cane Creek 40 ZS/EC44
  • Stem: Thomson Elite
  • Handlebar: Salsa PRM2
  • Grips: Salsa Gel Tape
  • Shifter: Shimano Ultegra 11-Speed
  • Front Brake: Avid BB7SL
  • Rear Brake: Avid BB7SL
  • Brake Lever: Shimano Ultegra
  • Rotors: 140mm Front/140mm Rear
  • Seatpost: Thomson Elite
  • Saddle: WTB
  • Front Der: Shimano Ultegra 11-Speed
  • Rear Der: Shimano Ultegra 11-Speed
  • Front Hub: DT Swiss 350, 32h
  • Rear Hub: DT Swiss 350, 32h, Custom 11-Speed Disc for Salsa
  • Spokes: DT Swiss Competition
  • Rims: NoTubes Alpha 340
  • Tires: Schwalbe Ultremo
  • Cassette: Shimano Ultegra 11, 11-32t
  • Chain: Shimano Ultegra
  • Crankset: Shimano Ultegra BB86 36/52t
  • Complete Bike: 4499
  • Frameset: 2499

Frame Specs

  • Frame: 2014 Colossal Ti
  • Wheelsize: 700c
  • Tire clearance: Clearance for up to 700c x 28mm tire
  • Fork: ENVE RD Disc Carbon, Tapered
  • Headset-Upper: 1-1/8" Zero Stack (ZS44/28.6)
  • Headset-Lower: 44mm External Cup, Tapered (EC44/40)
  • Seatpost: 27.2mm
  • Seat Collar: 32.0mm. Salsa Lip-Lock included
  • Front Derailleur: 34.9mm Clamp, Bottom Pull
  • Bottom Bracket: BB86
  • Crankset: Fits a double crankset, up to a 39T inner, and 54T outer
  • Front Brake: 74mm Post Mount Standard, minimum rotor size 140mm, maximum rotor size 160mm
  • Rear Brake: 51mm I.S., fits 140mm or 160mm rotors only
  • Front Spacing: 100 x 9mm QR
  • Rear Spacing: 135 x 10mm QR
  • Bottle Mounts: 2 per frame 51/53/55 cm; 3 per frame 56/58/60cm
  • Derailleur Hanger: FS2310
  • Cable Routing: Full brake housing under toptube. Derailleur cables along downtube
  • Frame Weight: 51cm 1500g, 53cm 1560g, 55cm 1580g, 56cm 1640g, 58cm 1660g, 60cm 1740g
  • Fork Weight w/Uncut Steerer: 438g uncut
  • Color: Flat White w/ Brushed Ti

Geometry

Geometry Diagram
51cm 53cm 55cm 56cm 58cm 60cm
Top Tube Effective Metric 518 535 550 565 580 600
Seat Tube Length Metric 450 485 515 530 555 580
Head Tube Length Metric 100 120 140 160 185 210
Head Tube Angle 71.5 72 72.5 72.5 73 73
Seat Tube Angle 75.5 74 73.5 73 72.5 72
BB Drop Metric 70 70 70 70 70 70
Chainstay Length Metric 415 415 415 415 415 415
Fork Length Metric 367 367 367 367 367 367
Fork Offset Metric 43 43 43 43 43 43
Wheelbase Metric 987.7 986.8 992.7 1002.6 1007 1020.8
Stack Metric 509.2 529.8 550.6 569.7 595.3 619.2
Reach Metric 386.3 383.1 386.9 390.8 392.3 398.8
Standover Metric 703.2 733.4 759.8 775.6 800.3 824
Rider Height Metric 152cm - 160cm 157cm - 165cm 165cm - 175cm 173cm - 183cm 180cm - 190cm 188cm - UP
BB Center to Center Metric
Stem Length 60 70
Crank Length 170 170
Handlebar Width 40 40
Seatpost Offset Metric 15-25 15-25
  • ENVE RD Disc fork
  • a 700 x 28 tire measuring 690mm in diameter.
  • standover (P) measured vertically to top of toptube from a position 50mm forward of BB center.

Additional Features

Colossal - Discover Geometry

Designed for all-day, paved road performance. Fast, comfortable, stable and efficient. The bike for getting lost on an all-day road ride. Works with you, not against you when you are 45 miles from home

3/2.5 Seamless Titanium Tubeset

Double-butted tubing. Custom-spec'd double-butted tubeset for superior ride quality for the intended use. Shaped stays for vertical compliance and torsional stiffness. Light weight. Superior fatigue life

Double-Butted Titanium Tubing

Removes weight where it isn't needed, while maintaining frame strength

Biaxially Ovalized Downtube

Stiffens bottom bracket for improved power transfer while improving ride quality and steering control

Custom-Butted & Tapered Seat Tube Diameter

Custom-butted, tapered seat tube maximizes stiffness at bottom bracket, while allowing use of a 27.2mm diameter seatpost without shim for improved rider comfort. 27.2mm seatpost size commonly available should the unexpected happen

Disc Brake-Only Design

Confident braking inspires faster speeds in wet or dry conditions

Custom-Designed Rear Dropout

Proven, custom dropout design. Seatstay-mounted disc brake

Replaceable Derailleur Hanger

FS2310

Waterbottle Bosses

Sizes 51/53/55cm accept 2 waterbottle cages. Sizes 56/58/60cm accept 3 waterbottle cages. TIG-welded in for durability

ENVE RD Disc Fork Included

Full carbon fork, tapered steerer tube. 140/160mm disc brake rotor compatible. Integrated front brake cable routing. Matte carbon finish
