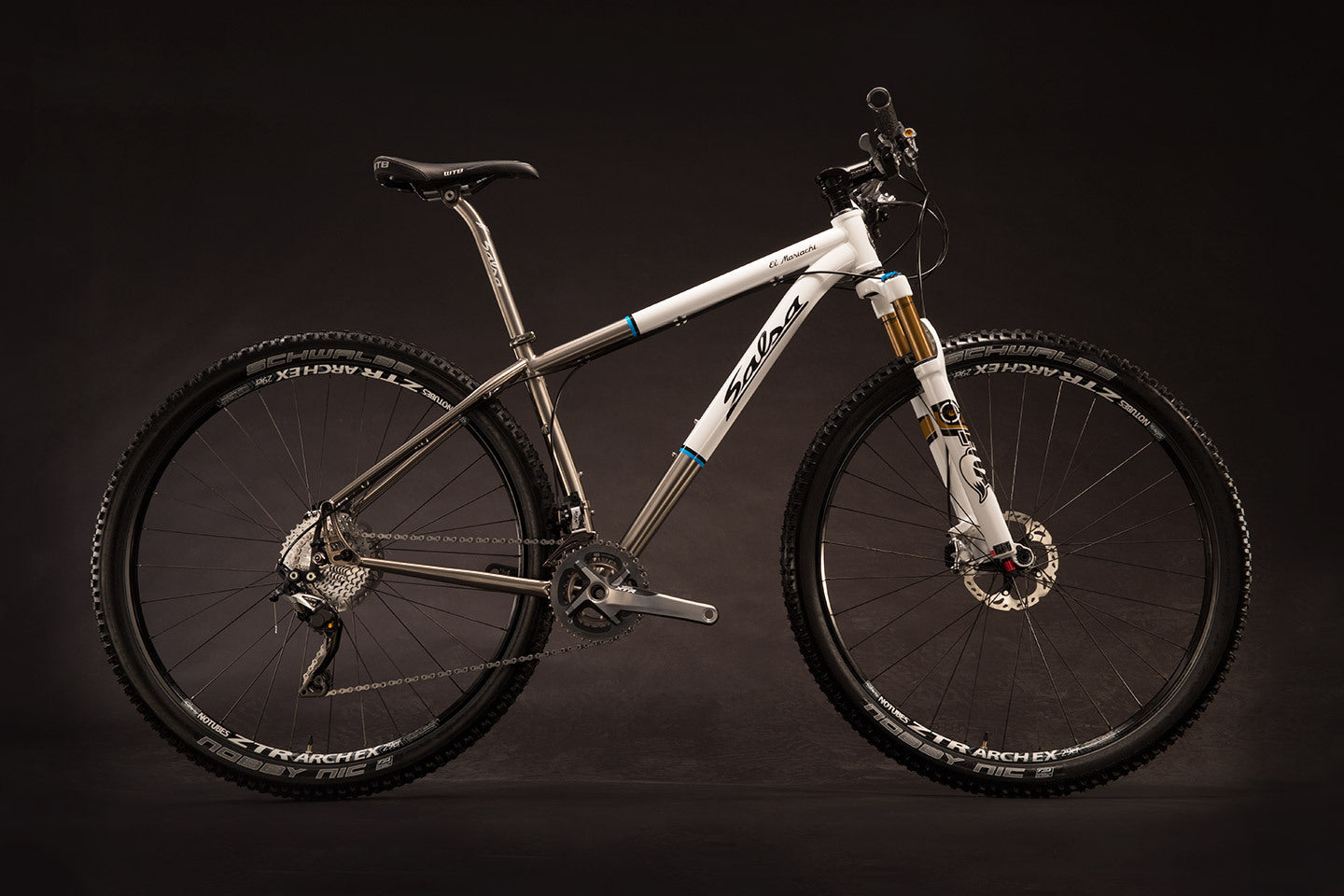

• Salsa El Mariachi Ti XTR bike white and raw titanium color side view

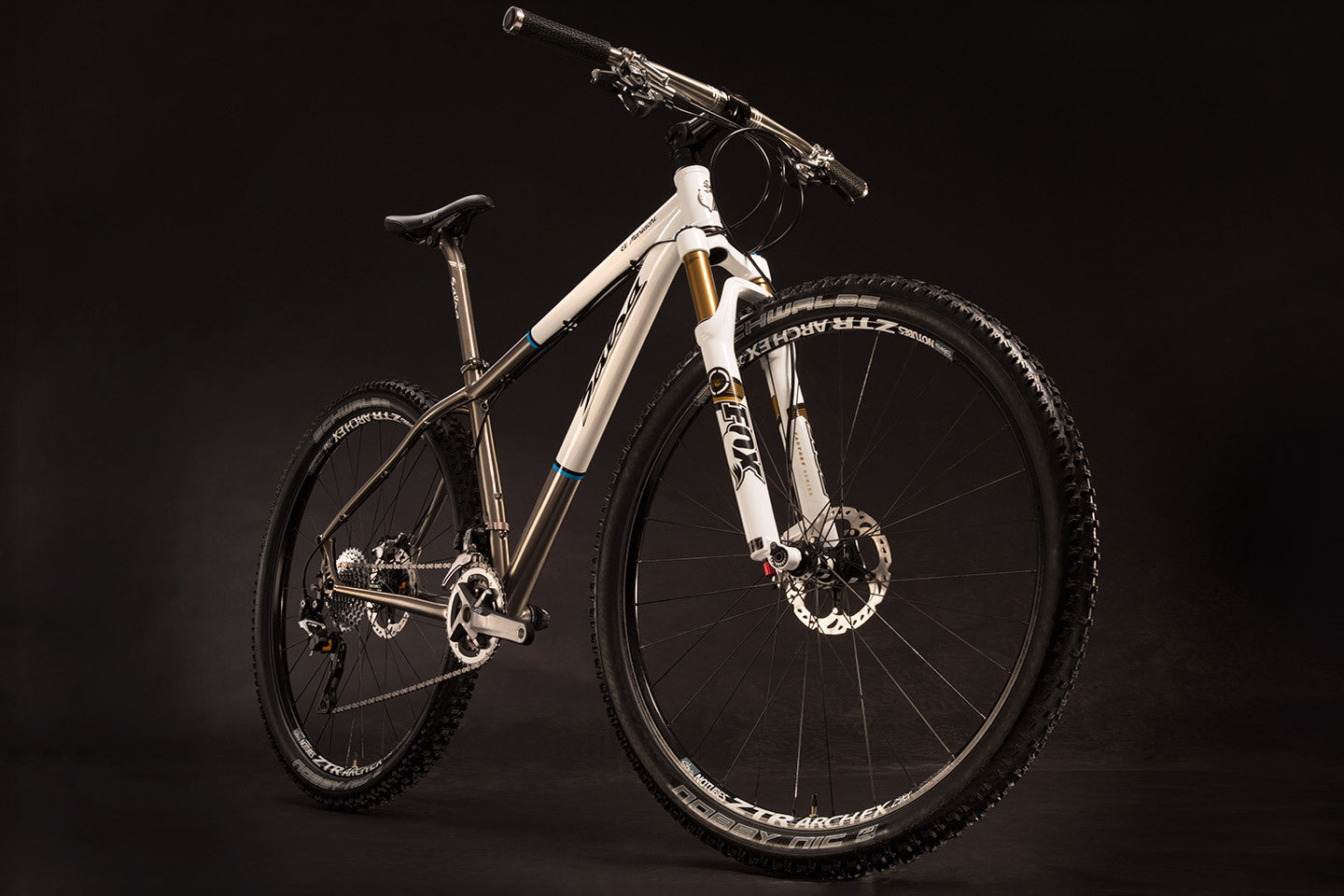

  • Salsa El Mariachi Ti XTR bike white and raw titanium color front three-quarter view
1 2

2014 El Mariachi Ti XTR

2014 El Mariachi Ti XTR

Archived

2014 El Mariachi Ti XTR

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame : El Mariachi Titanium w/Alternator Dropout
  • Color: White with Brushed Ti
  • Fork: Fox F29 Factory FIT w/Kashima 100mm
  • Headset: Cane Creek 40 ZS44/EC44
  • Stem: Thomson Elite
  • Handlebar: Salsa Salt Flat Ti, 11-degree, 700mm
  • Grips: Salsa Backcountry Lock-On
  • Shifter: Shimano XT, 10-Speed
  • Front Brake: Shimano XTR Trail
  • Rear Brake: Shimano XTR Trail
  • Brake Lever: Shimano XTR Trail
  • Rotors: Shimano ICE
  • Seatpost: Salsa Regulator Ti
  • Saddle: WTB
  • Front Der: Shimano XTR
  • Rear Der: Shimano XTR Type 2
  • Front Hub: DT Swiss 350, 32h
  • Rear Hub: DT Swiss 350, 32h
  • Spokes: NoTubes Arch EX
  • Rims: NoTubes Arch EX
  • Tires: Schwalbe Nobby Nic 29 x 2.2"
  • Cassette: Shimano XT, 10-Speed, 11-36t
  • Chain: Shimano XT
  • Crankset: Shimano XTR, 26/38t
  • Complete Bike: 5999
  • Complete Bike Weight: MD 24 lbs 5 oz

Frame Specs

  • Frame: 2014 El Mariachi Ti XTR
  • Wheelsize: 29"
  • Tire clearance: Designed for 29 x 2.4" tire
  • Fork: Designed for use with 100mm travel 29'er suspension fork
  • Headset-Upper: 1-1/8" Zero Stack (ZS44/28.6)
  • Headset-Lower: For Tapered: 44mm External Cup (EC44/40) For Straight: Zero Stack (ZS44/30)
  • Seatpost: 27.2mm
  • Seat Collar: 32.0mm. Salsa Lip-Lock included
  • Front Derailleur: Problem Solvers Direct Mount clamp included, High Direct Mount Front Derailleur
  • Bottom Bracket: 73mm BSA
  • Crankset: Compatible with 1x, 2x, and 3x mountain cranksets; Max chainring sizes 1x (32T), 2x (42/28T), 3x (44/32/22T)
  • Rear Brake: 51mm I.S., minimum rotor size 160mm, maximum rotor size 180mm
  • Rear Spacing: Alternator Dropouts, Mulitple Configurations: 135 x 10mm QR; 142 x 12mm Thru-Axle; 135 x 10mm Rolhoff
  • Bottle Mounts: 1 per frame on XS/S; 2 per frame on M/L/XL
  • Derailleur Hanger: Replaceable Alternator plates. Driveside QR Geared FS1312. Driveside QR Singlespeed FS1318. Non-driveside QR FS1313. Non-driveside Rohloff FS1331. 12 x 142mm Thru-Axle FS1330
  • Cable Routing: Full housing, under toptube
  • Frame Weight: XS 1780g, SM 1820g, MD 1870g, LG 1940g, XL 2000g
  • Color: Flat White w/ Brushed Ti

Geometry

Geometry Diagram
X-Small Small Medium Large X-Large
Top Tube Effective Metric 565 580 600 620 635
Seat Tube Length Metric 355.6 381 431.8 482.6 533.4
Head Tube Length Metric 100 100 100 110 120
Head Tube Angle 71 71 71 71 71
Seat Tube Angle 74 73 73 73 73
BB Drop Metric 60 60 60 60 60
Chainstay Length Metric 430 - 447 430 - 447 430 - 447 430 - 447 430 - 447
Fork Length Metric 483 483 483 483 483
Fork Offset Metric 45 45 45 45 45
Wheelbase Metric 1052.3 - 1069.3 1055.9 - 1072.9 1075.9 - 1092.9 1096.3 - 1113.3 1111.7 - 1128.7
Stack Metric 600.4 600.4 600.4 609.8 619.2
Reach Metric 392.9 396.4 416.5 433.6 445.7
Standover Metric 697.4 717.2 752.4 790.2 828.6
Rider Height Metric 157cm - 168cm 165cm - 175cm 173cm - 183cm 180cm - 191cm 188cm - UP
BB Center to Center Metric
Stem Length 70 80 90 100 110
Crank Length 170 170 175 175 175
Handlebar Width 700 700 750 750 750
Seatpost Offset Metric 16 mm 16 mm 16 mm 16 mm 16 mm
  • an average 100mm fork at 20% sag.
  • a 29 x 2.25" tire measuring 740mm in diameter.
  • standover (P) measured vertically to top of toptube from a position 50mm forward of BB center.

Additional Features

El Mariachi - Explore Geometry

Updated geometry for 2014 with super short chainstays for improved singletrack agility, while remaining stable and balanced. Alternator dropouts provide user-customizable geometry. Day-in, day-out, versatile and reliable performance. Perfect for long singletrack sessions and bikepacking expeditions

3/2.5 Seamless Titanium Tubeset

Custom-spec'd, double-butted tubing. Appropriate stiffness and compliance for a fantastic ride quality. Light weight. Superior fatigue life

Double-Butted Titanium Tubing

Removes weight where it isn't needed, while maintaining frame strength

Front Suspension Compatible

Frame designed for 100mm travel suspension fork or Salsa Firestarter Carbon/Firestarter forks

ZS44 Semi-Integrated Headset Standard

Compatible with tapered or straight 1-1/8" steerer forks

Fully-Formed Downtube

Stiffens bottom bracket for improved power transfer while improving ride quality and steering control

Custom-Butted & Tapered Seat Tube Diameter

Custom-butted, tapered seat tube maximizes stiffness at bottom bracket, while allowing use of a 27.2mm diameter seatpost without shim for improved rider comfort. 27.2mm seatpost size commonly available should the unexpected happen

Super-Short Chainstay Design

430mm chainstays create a quicker, more nimble, agile bike for carving turns and riding tight singletrack

Titanium Investment-Cast Alternator Dropouts

Custom-designed, investment-cast titanium dropouts paired with forged aluminum swing plates for Geared, Singlespeed, Rohloff, or Thru-Axle use. Proven in the NUE Series and in the Tour Divide. Alternator Dropouts Instructions

Rear Wheel Evolution Friendly

Alternator dropouts currently handle Geared and Singlespeed QR, Rohloff, and 12 x 142mm Thru-Axle, allowing you multiple setup options and facilitating rear wheel evolution

Adjustable Ride Characteristics

Using the Alternator dropouts, geared riders can fine-tune the ride characteristics of their bike by adjusting chainstay length and overall wheelbase to be quick and nimble, or longer and more stable

Set-It-And-Forget-It Singlespeed Setup

The Alternator dropouts swinging design and set screws offer quick setup and tensioning. Vertical wheel entry means no re-tensioning or brake adjustments are necessary after a wheel change. Slip-free and creak-free performance

Replaceable/Serviceable Hardware

Alternator swing plates (Geared, Single, Rohloff, and Thru-Axle) are all replaceable, and all the bolt hardware is standard-size metric sock

Versatile Crank/Gearing Options

Accepts 1x, 2x, and 3x mountain cranksets for a wide variety of personal setup options

Waterbottle Bosses

1 per frame on XS and S sizes; 2 per frame for M, L, XL sizes
