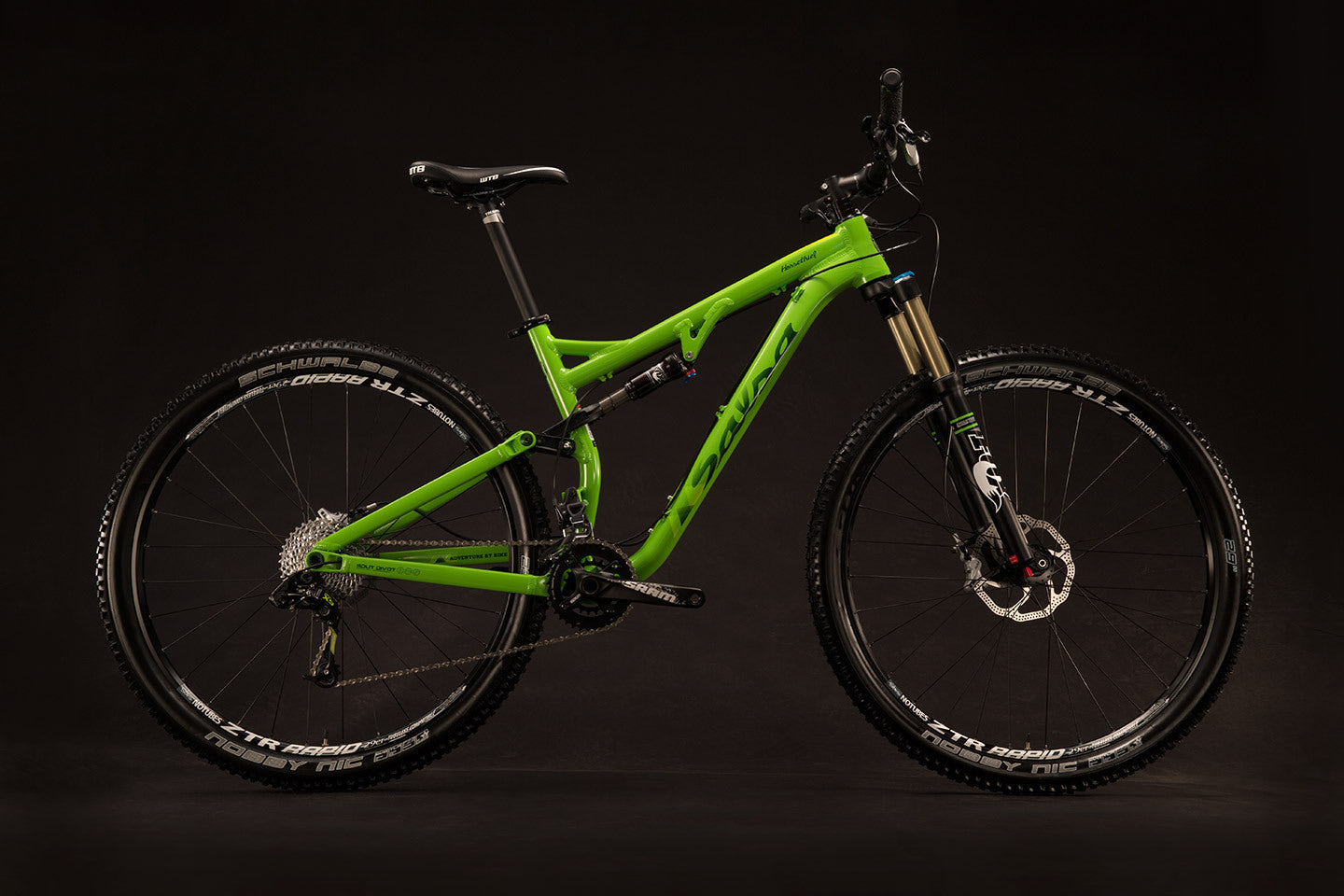

• Salsa Horsethief 2 bike green color side view

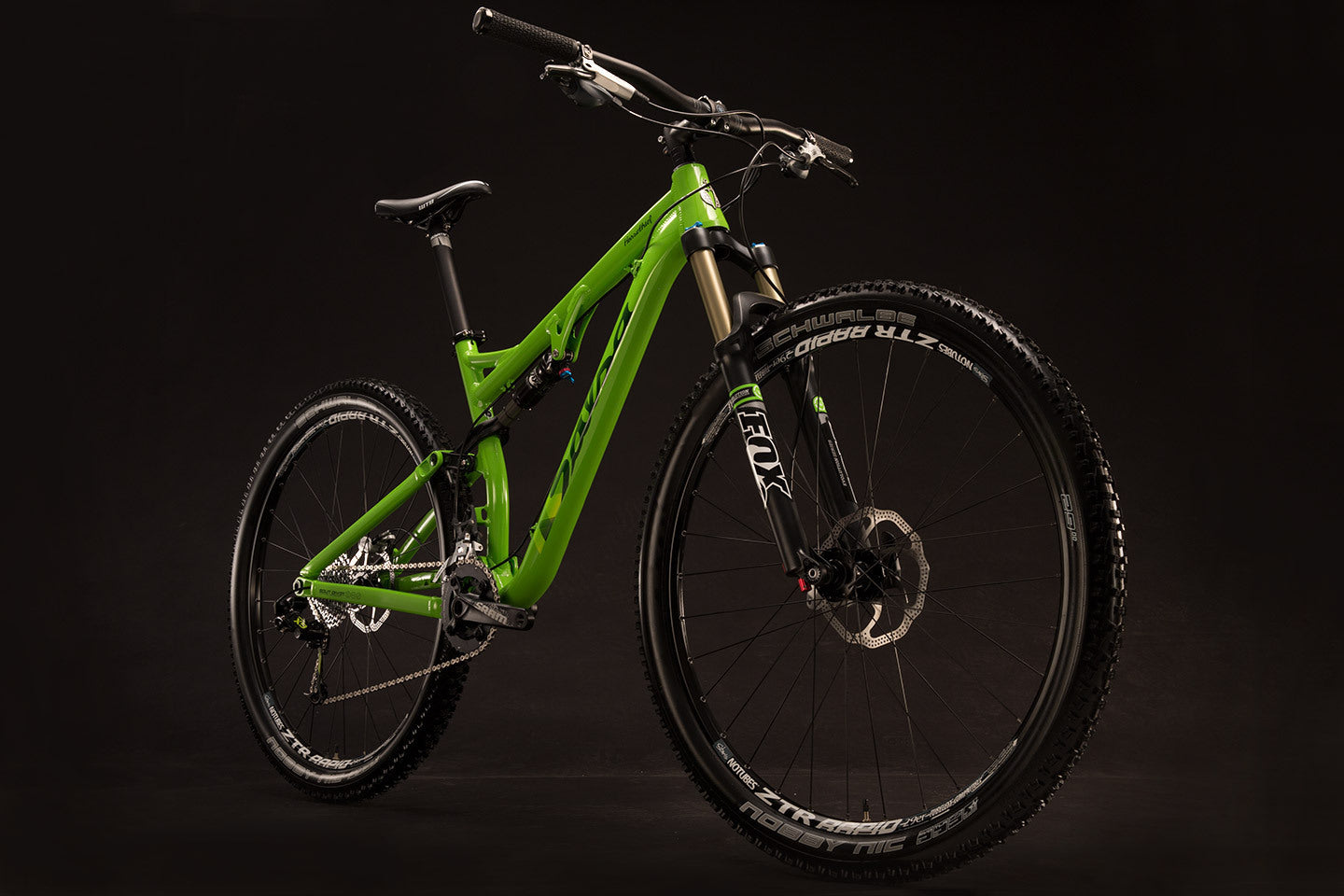

  • Salsa Horsethief 2 bike green color front three-quarter view
1 2

2014 Horsethief 2

2014 Horsethief 2

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Horsethief Alloy
  • Color: Light Tequila Lime
  • Fork: Fox F29 CTD Evolution, 130mm, 51mm Offset
  • Rear Shock: Fox Float CTD Boost Valve Performance
  • Headset: Cane Creek 10 ZS44/56
  • Stem: Salsa Guide Stem
  • Handlebar: Salsa Rustler Riser, 15mm Rise, 750mm
  • Grips: Salsa Backcountry Lock-On
  • Shifter: SRAM X.7
  • Front Brake: Avid Elixir 7 Trail
  • Rear Brake: Avid Elixir 7 Trail
  • Brake Lever: Avid Elixir 7 Trail
  • Rotors: SRAM HS1
  • Seatpost: Truvativ T20
  • Saddle: WTB Volt
  • Front Der: SRAM X.7 HDM
  • Rear Der: SRAM X.9 Type 2
  • Front Hub: SRAM MTH, 15mm Thru-Axle
  • Rear Hub: SRAM MTH, 12mm Axle
  • Spokes: DT Swiss Competition
  • Rims: NoTubes ZTR Rapid
  • Tires: Schwalbe Nobby Nic 29 x 2.35"
  • Cassette: SRAM PG-1030 11-36t
  • Chain: KMC X10
  • Crankset: SRAM S1000 22/36t
  • Complete Bike: 3299
  • Complete Bike Weight: MD 29 lbs 5 oz / LG 29 lbs 1 oz / XL 30 lbs 0 oz

Frame Specs

  • Frame: 2014 Horsethief 2
  • Wheelsize: 29"
  • Travel: 120mm rear; 120-130mm front
  • Tire clearance: Clearance for 29 x 2.35" tires
  • Fork: Designed for 120 - 130mm travel, 51mm offset 29er suspension forks; compatible with 120 - 130mm, 45mm offset 29er suspension forks
  • Headset-Upper: 1-1/8" Zero Stack (ZS44/28.6)
  • Headset-Lower: For Tapered: 56mm zero stack (ZS56/40); For Straight: 56mm reducing zero stack (ZS56/30)
  • Rear Shock Size: 184 x 44.5mm (7.25 x 1.75")
  • Rear Shock Mount Size: Front 8 x 22mm; Rear - none (uses clevis mount)
  • Seatpost: 31.6mm
  • Seat Collar: 35.0mm. Salsa Lip-Lock included
  • Front Derailleur: High Direct Mount; 2x compact; top-pull only
  • Bottom Bracket: 92mm PressFit
  • Crankset: Mountain 1x or 2x compatible; Max chainring sizes 1x (34T), 2x (38/24T)
  • Rear Brake: 51mm I.S., minimum rotor size 140mm, maximum rotor size 180mm
  • Rear Spacing: 142 x 12mm Thru-Axle
  • Bottle Mounts: 1 per frame
  • Derailleur Hanger: FS2322. Split Pivot Dropout Tool Top Cap available for field repairs.
  • Rear Thru-Axle: TBA
  • Cable Routing: Full length housing; 1x, 2x, moto/regular, and dropper/stealth dropper routing compatible
  • Frame Weight: SM 2795g, MD 2900g, LG 3000g XL 3050g
  • Color: Light Tequila Lime

Geometry

Geometry Diagram
Measurement Small Medium Large X-Large
Top Tube Effective Metric 590 610 630 650
Seat Tube Length Metric 407 457 508 559
Head Tube Length Metric 100 110 110 120
Head Tube Angle 68.1 68.1 68.1 68.1
Seat Tube Angle 73.5 73.5 73.5 73.5
BB Drop Metric 36 36 36 36
Chainstay Length Metric 437 437 437 437
Fork Length Metric 530 530 530 530
Fork Offset Metric 51 51 51 51
Wheelbase Metric 1130 1151 1171 1192
Stack Metric 605.9 614.5 614.5 623.8
Reach Metric 410.7 428 448 465.2
Standover Metric 747.9 750.6 792.3 795.6
Rider Height Metric 165cm - 175cm 175cm - 183cm 183cm - 190cm 190cm - UP
Stem Length 70 70 80 90
Crank Length 170 170 175 175
Handlebar Width 750 750 750 750
Seatpost Offset Metric 0 0 0 0

Measurements based on:

  • an unsprung bike (no sag)
  • an average 130mm suspension fork
  • a 29 x 2.25" tire measuring 740m in diameter
  • standover (P) measured vertically from the top of the toptube/brace intersection (50mm forward of BB center for size SM)

Supportive Documents

Support Document links

Additional Features

Horsethief - Devour Geometry

Designed for all-day riding in rugged terrain. Short chainstays, slacker angles, a low stance, and a longer toptube paired with a shorter stem length and wider handlebar, combine with 29in wheels to create an aggressive chassis that floats over rock gardens, motors up and over the roughest ascents and inspires confidence on descents. The bike to take when you want to enjoy conquering difficult terrain

Split Pivot Rear Suspension

The concentric rear axle pivot in conjunction with precise wheel link, brake link, and control link placement, results in several performance gains: Exceptional bump compliance, Maximum traction, Incredible pedaling efficiency, Predictable braking, Improved frame geometry due to the elimination of unwanted suspension movement during acceleration and braking

120mm Rear Wheel Travel

Exceptional bump compliance

120 – 130mm Fork Compatible

Maximum traction

6066-T6 Aluminum Tubeset

Incredible pedaling efficiency

Designed for 51mm Offset Suspension Fork

Predictable braking

Super Short 437mm Chainstays

Improved frame geometry due to the elimination of unwanted suspension movement during acceleration and braking

Control Link & Clevis Combo

120mm of Split Pivot rear travel, combined with 29er wheels and our Devour Geometry, make the Horsethief capable of tackling terrain you might not typically expect a 29er to excel on

Fox Float CTD Boost Valve Rear Shock

Designed for use with Fox Float 32 at 130mm travel or Fox Float 34 at 120mm travel

Boost Valve

Top-shelf, double and triple-butted, heat-treated 6066 Aluminum tubing. Formed and shaped for optimized and appropriate stiffness, strength, and weight for the Horsethief model

CTD Technology

Steering and handling feel (mechanical trail) was designed using a 51mm offset, 120 - 130mm travel suspension fork. This offset allows for a slacker headtube angle and longer front/center, which results in increased cockpit room and a better angle and attack, leading to improved handling (530mm axle-to-crown)

Externally Adjustable Rebound

Provide increased race agility, quicker cornering, easier front-end lofting, increased climbing traction, and improved descending capabilities

Tapered Headtube

CNC-machined Control Link and Clevis; extremely stiff; designed to precisely deliver the desired leverage ratio for the Horsethief model and its intended use and ride quality; provides incredibly supple small bump performance early in travel, offers tons of mid-travel cornering support and pumping the terrain, and a bottomless feel at the end stroke

Forged Two-Piece Bottom Bracket Shell & Fittings

Specific, standard Fox tune (CLXP) to work with Horsethief's Split Pivot suspension system, Adjustable Rebound, CTD Lever, Boost Valve technology

PressFit 92mm Bottom Bracket Shell

Proprietary Fox Racing Shox technology: Position sensitive damping adds efficiency at both ends of stroke
