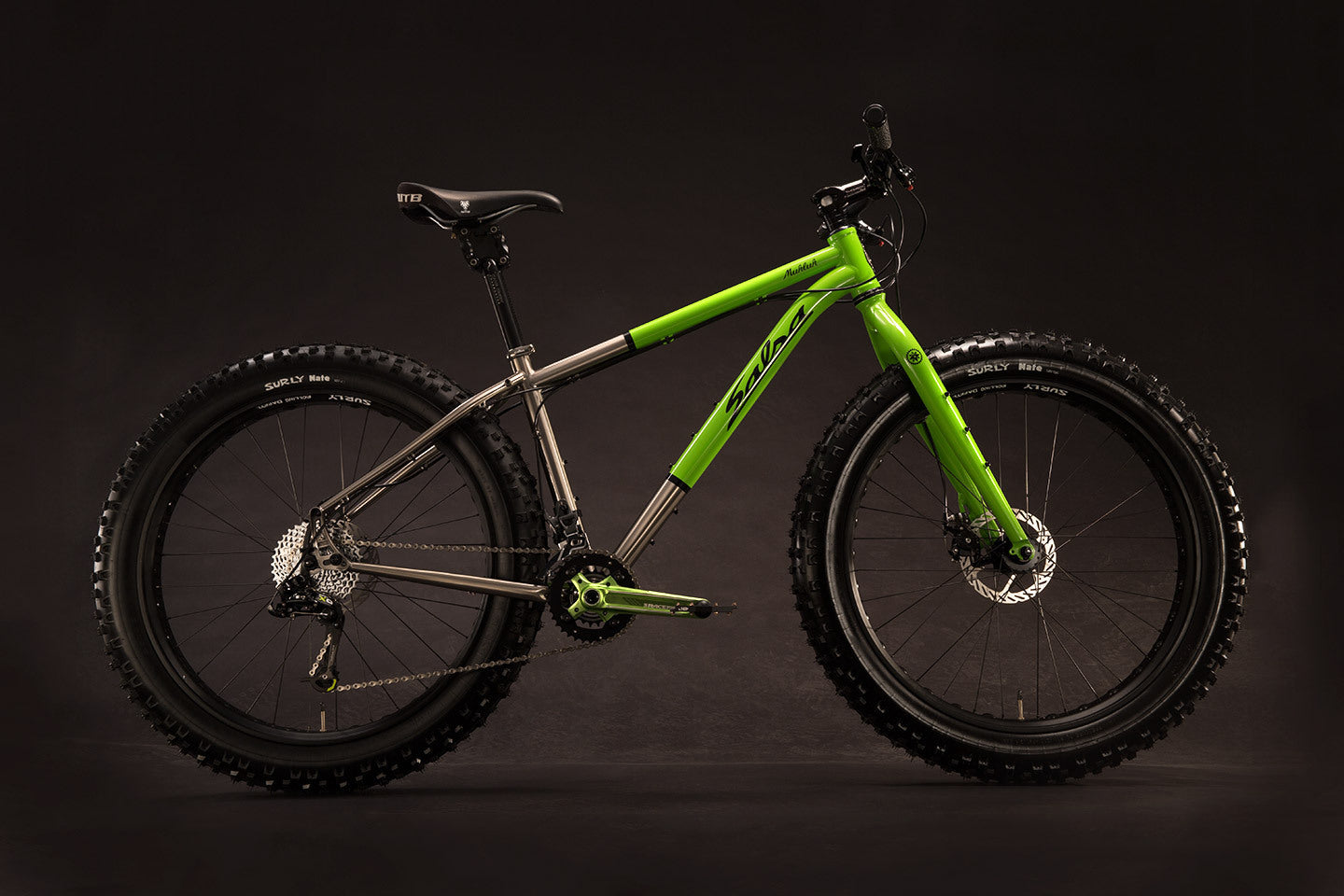

• Salsa Mukluk Ti bike half green color side view

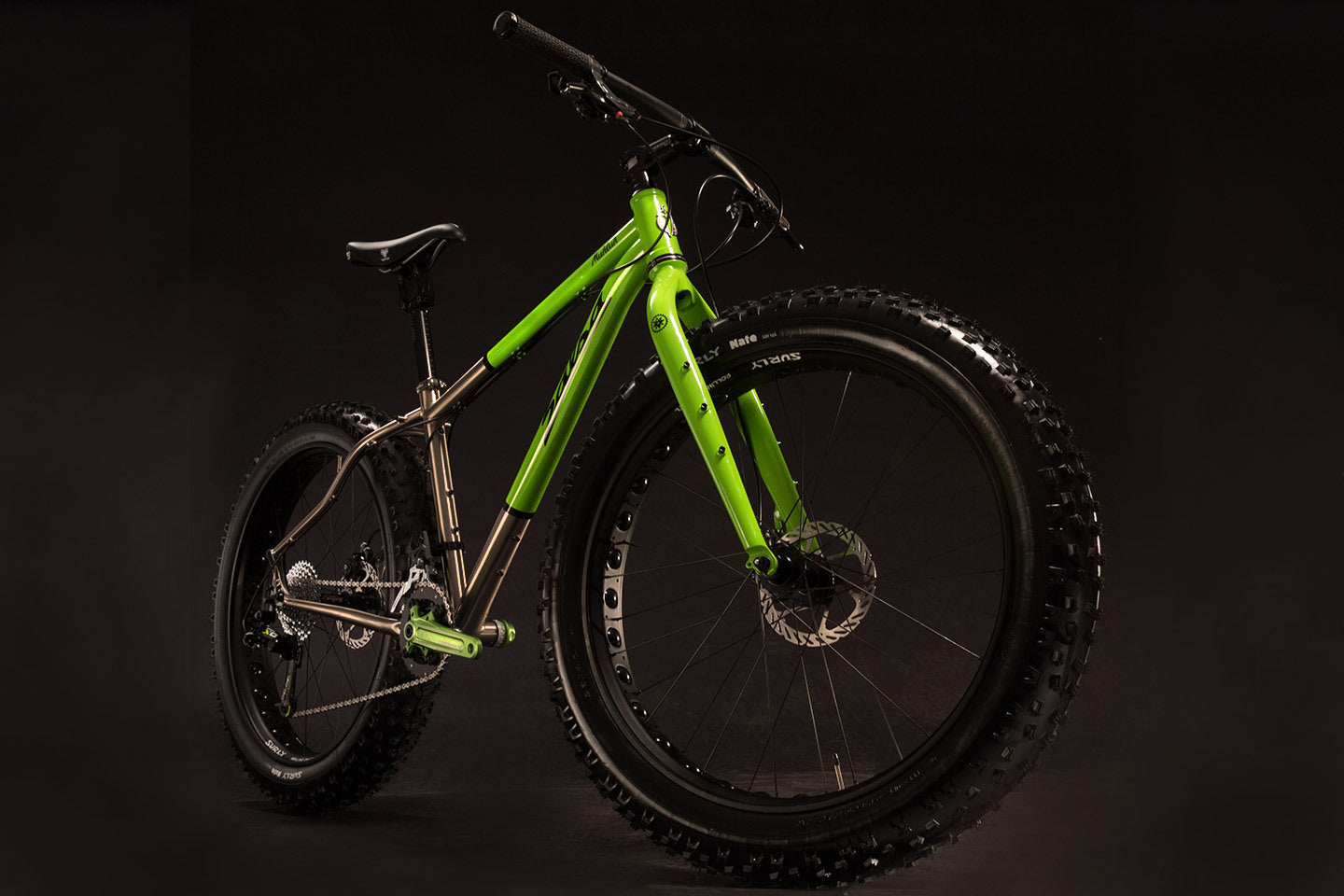

  • Salsa Mukluk Ti bike half green color front three-quarter view

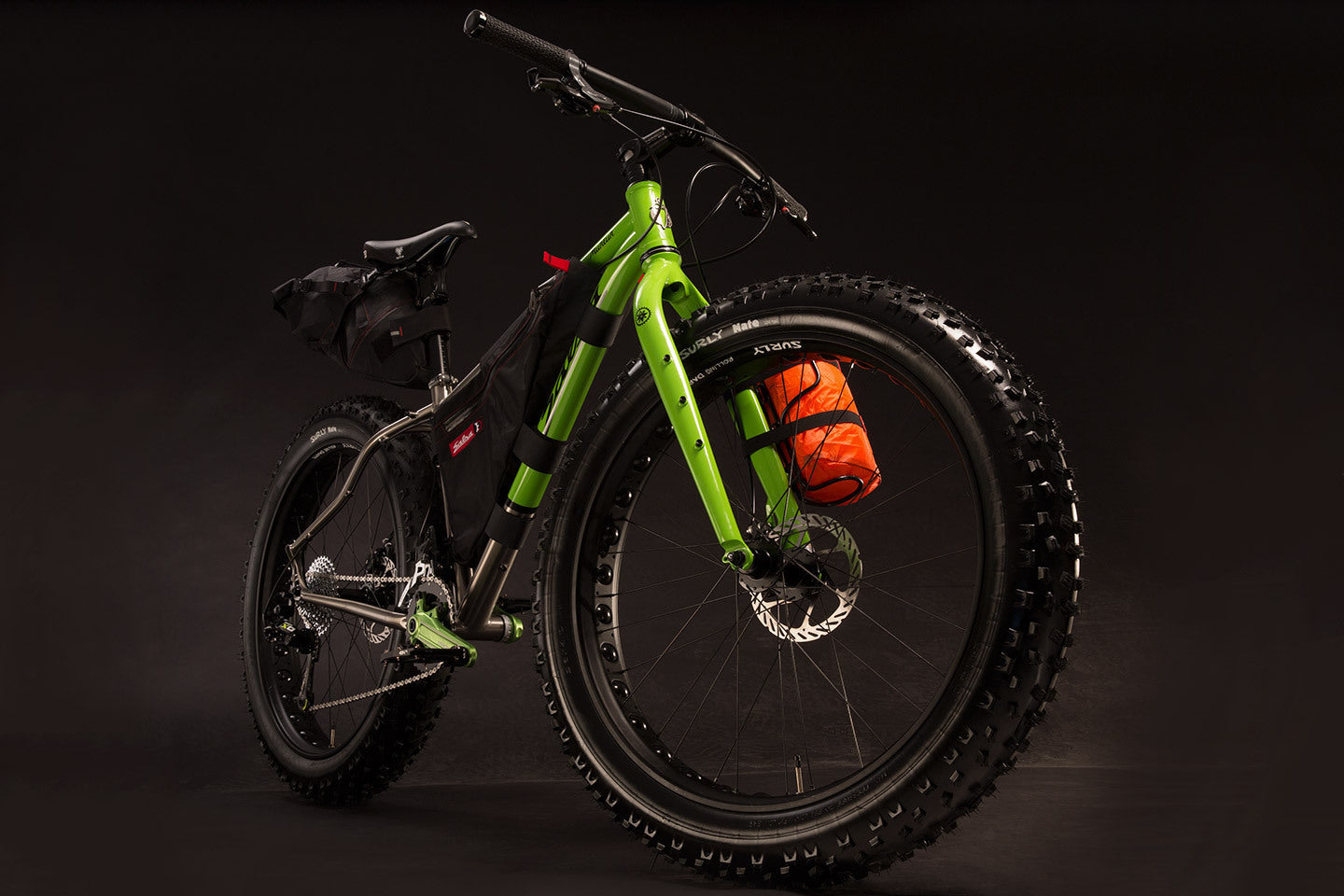

  • Salsa Mukluk Ti bike half green color front three-quarter view shown with bikepacking gear

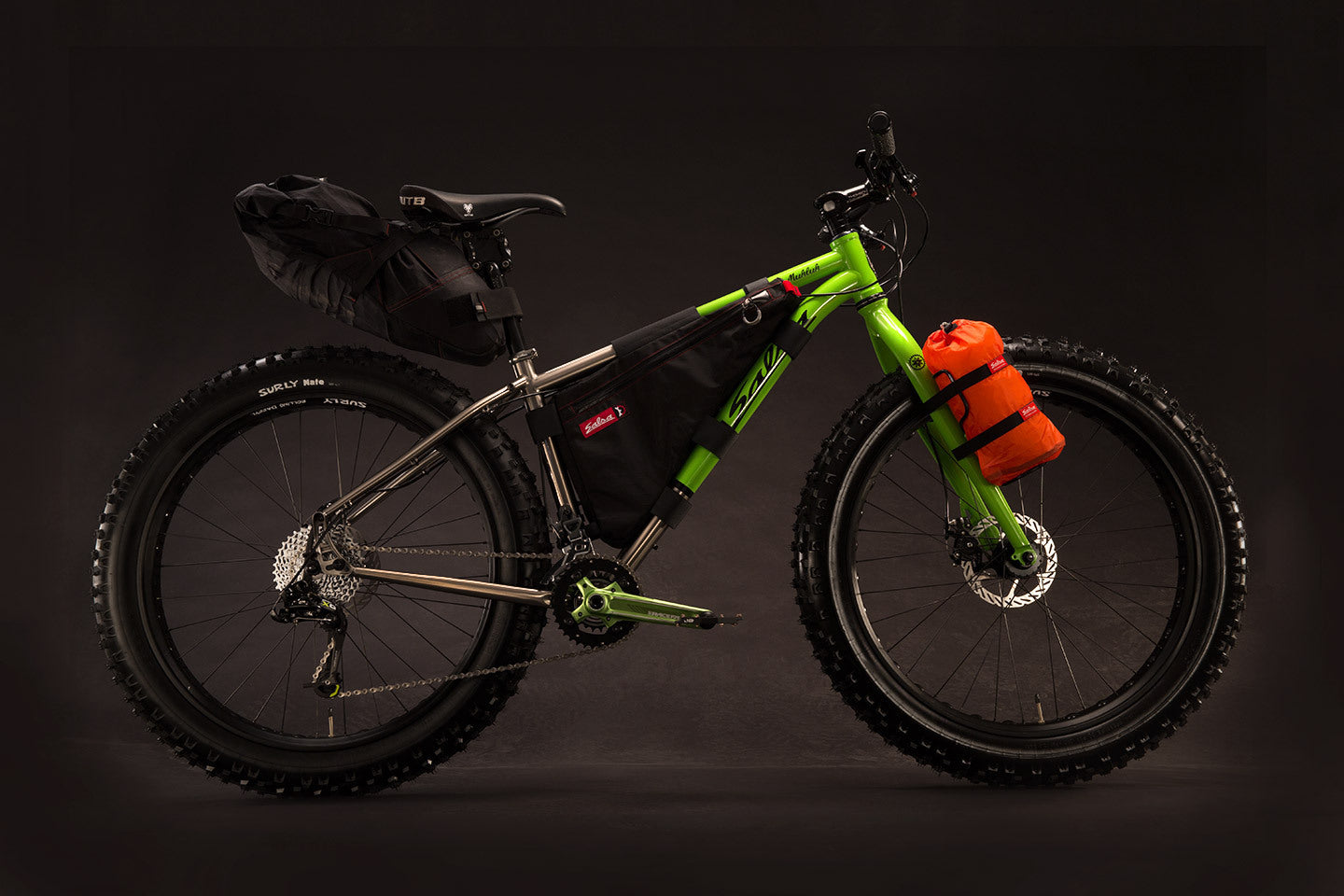

  • Salsa Mukluk Ti bike half green color side view shown with bikepacking gear
1 4

2014 Mukluk Ti

2014 Mukluk Ti

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Mukluk Titanium w/Alternator Dropout
  • Color: Tequila Lime w/Black
  • Fork: Salsa Bearpaw, Tapered - SAFETY NOTICE - Mukluk Aluminum Bearpaw Fork Recall
  • Headset: Cane Creek 40 ZS44
  • Stem: Thomson Elite
  • Handlebar: Salsa Flat, 11°, 700mm
  • Grips: Salsa Backcountry Lock-On
  • Shifter: SRAM X.9 Ball Bearing
  • Front Brake: Avid BB7S
  • Rear Brake: Avid BB7S
  • Brake Lever: Avid SD7
  • Rotors: 160mm Front/160mm Rear
  • Seatpost: Cane Creek Thudbuster
  • Saddle: WTB
  • Front Der: SRAM X.7 HDM
  • Rear Der: SRAM X.0 10-Speed
  • Front Hub: New Salsa Front Hub, 10 x 135mm, 32h
  • Rear Hub: Salsa Mukluk 2, 32h
  • Spokes: DT Swiss Competition
  • Rims: Surly Holy Rolling Darryl
  • Tires: Surly Nate 26 x 3.8", 120tpi, Folding
  • Cassette: SRAM PG-1070 11-36t
  • Chain: KMC X10
  • Crankset: RaceFace Turbine, 100mm Shell, 22/36t
  • Complete Bike: 4399
  • Frameset: 2299

Frame Specs

  • Frame: 2014 Mukluk Ti
  • Wheelsize: 26" fatbike (closer to 29" in diameter in reality)
  • Tire clearance: Designed for 26 x 4.0" tires
  • Fork: Salsa Bearpaw Fork included - SAFETY NOTICE - Mukluk Aluminum Bearpaw Fork Recall
  • Headset-Upper: 1-1/8" Zero Stack (ZS44/28.6)
  • Headset-Lower: For Tapered: 44mm External Cup (EC44/40) For Straight: Zero Stack (ZS44/30)
  • Seatpost: 31.6mm
  • Seat Collar: 35.0mm. Salsa Lip-Lock included
  • Front Derailleur: Problem Solvers Direct Mount clamp included, High Direct Mount Front Derailleur
  • Bottom Bracket: 100mm BSA
  • Crankset: Fatbike 1x or 2x compatible; Max chainrings sizes 1x (32T), 2x (36/24T)
  • Front Brake: 51mm I.S., minimum rotor size 160mm, maximum rotor size 180mm
  • Rear Brake: 51mm I.S., minimum rotor size 160mm, maximum rotor size 180mm
  • Front Spacing: 135 x 9mm QR, front rotor/brake offset
  • Rear Spacing: Alternator Dropouts, Mulitple Configurations: 170 x 10mm QR; 177 x 12mm Thru-Axle
  • Bottle Mounts: 4 per frameset on XS/SM (2 frame, 2 fork), 5 per frameset on M, L, XL (3 frame, 2 fork)
  • Derailleur Hanger: Replaceable Alternator plates. Driveside Geared QR FS1312. Driveside Singlespeed QR FS1318. Non-driveside QR FS1313. 12 x 177mm Thru-Axle Kit FS1330
  • Cable Routing: Full housing, under toptube
  • Frame Weight: XS 1880g, SM 1900g, MD 1980g, LG 2040g, XL 2100g
  • Fork Weight w/Uncut Steerer: 1191g
  • Color: Tequila Lime w/ Brushed Ti

Geometry

Geometry Diagram
X-Small Small Medium Large X-Large
Top Tube Effective Metric 565 580 605 625 640
Seat Tube Length Metric 381 381 431.8 482.6 533.4
Head Tube Length Metric 100 100 110 130 140
Head Tube Angle 68.5 68.5 68.5 68.5 68.5
Seat Tube Angle 73.5 73.5 73 73 73
BB Drop Metric 60 60 60 60 60
Chainstay Length Metric 447 - 464 447 - 464 447 - 464 447 - 464 447 - 464
Fork Length Metric 483 483 483 483 483
Fork Offset Metric 51 51 51 51 51
Wheelbase Metric 1096.7 - 1113.7 1112.1 - 1129.1 1132.3 - 1149.3 1153.9 - 1170.9 1169.7 - 1186.7
Stack Metric 593.3 593.3 602.6 621.2 630.5
Reach Metric 389.2 404.2 420.8 435.1 447.2
Standover Metric 715.7 713.4 753 794.4 832.3
Rider Height Metric 157cm - 168cm 165cm - 175cm 173cm - 183cm 180cm - 191cm 188cm - UP
Stem Length 70 80 90 100 110
Crank Length 170 170 175 175 175
Handlebar Width 700 700 700 700 700
Seatpost Offset Metric 16 mm 16 mm 16 mm 16 mm 16 mm

Measurements based on:

  • a Salsa Bearpaw fork which is equivalent to an average 100mm 29er fork at 20% sag.
  • a 26 x 4.0" tire measuring 742mm in diameter~standover (P) measured vertically to top of toptube from a position 50mm forward of BB center

Additional Features

Mukluk - Explore Geometry

Designed as a fatbike to provide extreme tire floatation in soft conditions like snow and sand. Geometry maximizes standover clearance facilitating dabbing, restarts, dismounts and re-mounts. Geometry optimized for slow speed handling and more easily controllable front end. It rides where other bikes can't

3/2.5 Seamless Titanium Tubeset

Custom-spec'd, double-butted tubing. Appropriate stiffness and compliance for a fantastic ride quality. Light weight. Superior fatigue life

Double-Butted Titanium Tubing

Removes weight where it isn't needed, while maintaining frame strength

170mm Rear Spacing

Results in a stronger, symmetrical rear wheel while maintaining proper chainline with 100mm bottom bracket

177mm x 12mm Thru-Axle Alternator Plate Options

Allows use of thru-axle for improved rear end stiffness and precise handling

ZS44 Semi-Integrated Headset Standard

Compatible with tapered or straight 1-1/8" steerer forks

Fully Formed Downtube

Stiffens bottom bracket for improved power transfer while improving ride quality and steering control

Dropper Seatpost-Friendly

35.0mm seat tube allows use of 31.6mm dropper seatpost for getting rad, riding on rough terrain, and facilitating starting and stopping if difficult conditions

Shaped Chainstays and Seatstays

Provide maximum heel clearance in winter boots

Titanium Investment-Cast Alternator Dropouts

Custom-designed, investment-cast titanium dropouts paired with forged aluminum swing plates for Geared, Singlespeed, or Thru-Axle use. Proven in the NUE Series and in the Tour Divide. Alternator Dropouts Instructions

Rear Wheel Evolution Friendly

Alternator dropouts currently handle Geared and Singlespeed QR, and 12 x 177mm Thru-Axle, allowing you multiple setup options and facilitating rear wheel evolution

Adjustable Ride Characteristics

Using the Alternator dropouts, geared riders can fine-tune the ride characteristics of their bike by adjusting chainstay length and overall wheelbase to be quick and nimble, or longer and more stable

Set-It-And-Forget-It Singlespeed Setup

The Alternator dropouts swinging design and set screws offer quick setup and tensioning. Vertical wheel entry means no re-tensioning or brake adjustments are necessary after a wheel change. Slip-free and creak-free performance

Replaceable/Serviceable Hardware

Alternator swing plates (Geared, Single, and Thru-Axle) are all replaceable, and all the bolt hardware is standard-size metric socket head cap screws (also available in a replacement kit)

Full Length Cable Routing

Improved performance in poor conditions
