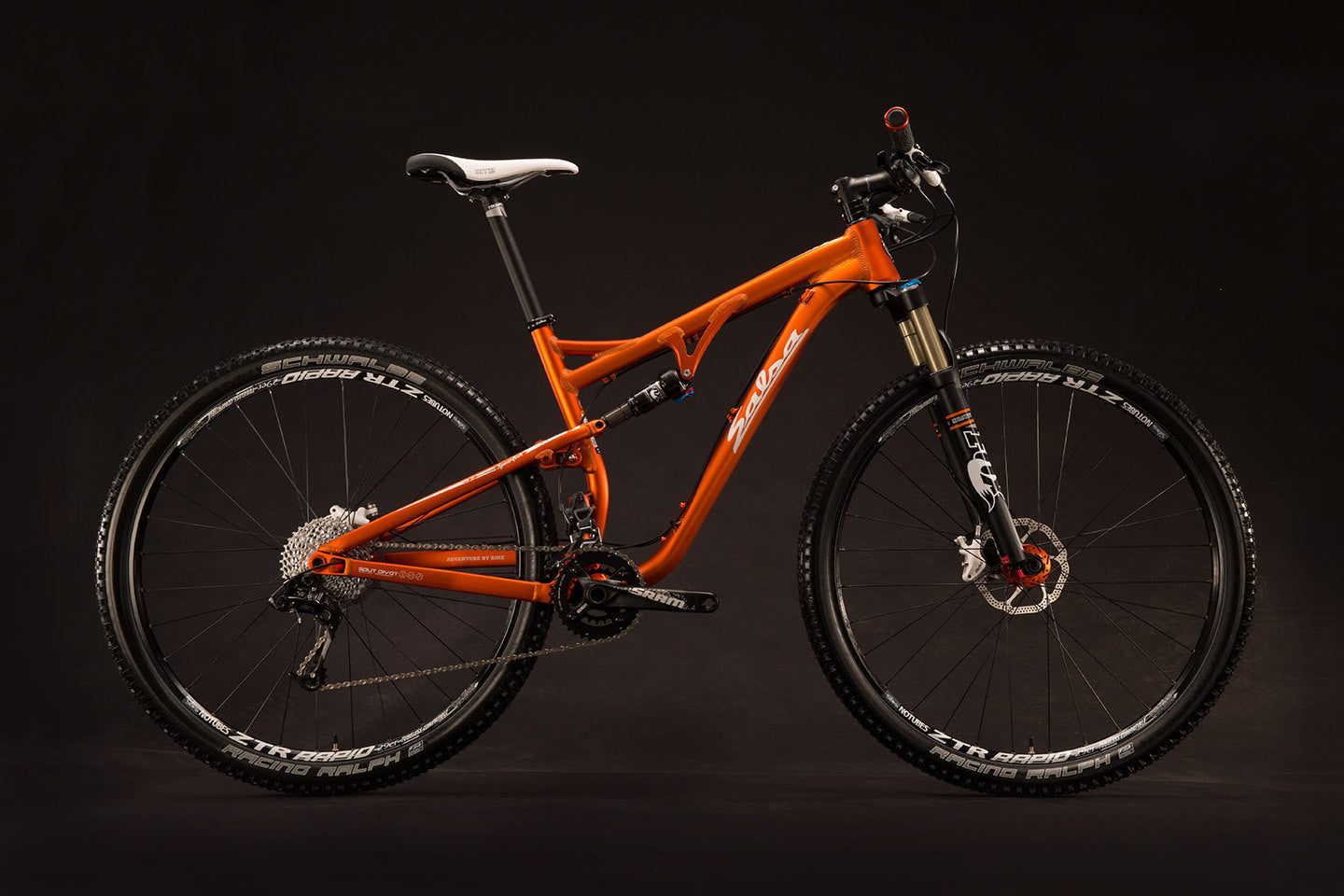

• Salsa Spearfish 2 bike orange color side view

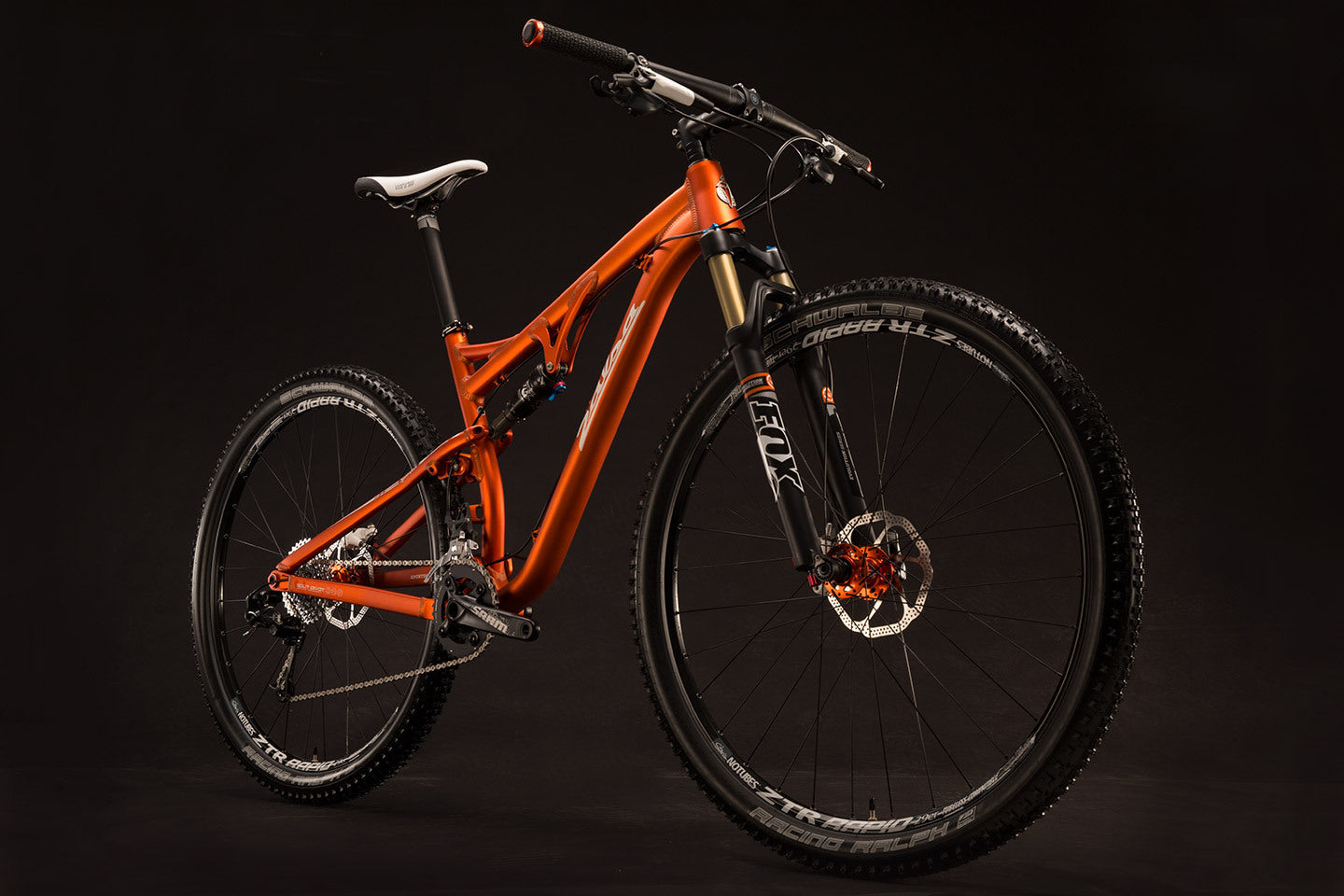

  • Salsa Spearfish 2 bike orange color front three-quarter view
1 2

2014 Spearfish 2

2014 Spearfish 2

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Spearfish Alloy
  • Color: Anodized Orange
  • Fork: Fox F29 Evolution, CTD , 100mm, 51mm Offset
  • Rear Shock: Fox Float CTD Boost Valve Performance, 6.5 x 1.5"
  • Headset: Cane Creek 10 ZS44/56
  • Stem: Salsa Guide Stem
  • Handlebar: Salsa Salt Flat 2, 11°, 700mm
  • Grips: Salsa Backcountry Lock-On
  • Shifter: SRAM X.7
  • Front Brake: Avid Elixir 5
  • Rear Brake: Avid Elixir 5
  • Brake Lever: Avid Elixir 5
  • Rotors: Avid
  • Seatpost: Truvativ T20
  • Saddle: WTB Silverado
  • Front Der: SRAM X.7
  • Rear Der: SRAM X.9 Type 2
  • Front Hub: Salsa 2 by Formula, 32h, 15mm Thru Axle
  • Rear Hub: Salsa 2 by Formula, 32h
  • Spokes: DT Swiss Competition
  • Rims: No Tubes ZTR Rapid
  • Tires: Schwalbe Racing Ralph 29 x 2.25"
  • Cassette: SRAM PG-1050 11-36t
  • Chain: KMC X10
  • Crankset: SRAM S1000 24/36t
  • Complete Bike: 3299
  • Complete Bike Weight: LG 28 lbs 3 oz / XL 28 lbs 5 oz

Frame Specs

  • Frame: 2014 Spearfish 2
  • Wheelsize: 29"
  • Travel: 100mm front; 80mm rear
  • Tire Clearance: Designed for 29 x 2.25" tires
  • Fork: Designed for 100mm travel, 51mm offset 29er suspension forks; compatible with 100mm, 45mm offset 29er suspension forks
  • Headset-Upper: 1-1/8" Zero Stack (ZS44/28.6)
  • Headset-Lower: For Tapered: 56mm zero stack (ZS56/40); For Straight: 56mm reducing zero stack (ZS56/30)
  • Rear Shock Size: 165 x 38mm (6.5 x 1.5")
  • Rear Shock Mount Size: 8 x 22mm front; 8 x 38mm rear
  • Seatpost: 31.6mm
  • Seat Collar: 35.0mm. Salsa Lip-Lock included
  • Front Derailleur: High Direct Mount; 2x compact; top-pull only
  • Bottom Bracket: 92mm PressFit
  • Crankset: Mountain 1x or 2x compatible; Max chainring sizes 1x (34T), 2x (38/24T)
  • Rear Brake: 51mm I.S., minimum rotor size 140mm, maximum rotor size 180mm
  • Rear Spacing: 142 x 12mm Thru-Axle
  • Bottle Mounts: 1 per frame
  • Derailleur Hanger: FS2322. Split Pivot Dropout Tool Top Capavailable for field repairs.
  • Rear Thru-Axle: TBA
  • Cable Routing: Full length housing; 1x, 2x, and dropper compatible
  • Frame Weight: XS 2585g, SM 2575g, MD 2655g, LG 2740g, XL 2765g
  • Color: Anodized Orange

Geometry

Geometry Diagram
X-Small Small Medium Large X-Large
Top Tube Effective Metric 565 580 600 620 640
Seat Tube Length Metric 407 407 457 508 534
Head Tube Length Metric 100 100 110 120 120
Head Tube Angle 69.3 69.3 69.3 69.3 69.3
Seat Tube Angle 73.5 73.5 73.5 73.5 73.5
BB Drop Metric 45 45 45 45 45
Chainstay Length Metric 437 437 437 437 437
Fork Length Metric 506 506 506 506 506
Fork Offset Metric 51 51 51 51 51
Wheelbase Metric 1086.4 1101.4 1121.4 1142.2 1162.9
Stack Metric 597.4 597.4 606.8 616.8 616.8
Reach Metric 388.1 403 420.3 437.6 457.5
Standover Metric 714.9 720.4 746.4 775.2 782.2
Rider Height Metric 157 - 168cm 168 - 175cm 175 - 183cm 183 - 190cm 190cm - UP
Stem Length 70 80 90 100 110
Crank Length 170 170 175 175 175
Handlebar Width 700 700 750 750 750
Seatpost Offset Metric 0 0 0 0 0
  • an unsprung bike (no sag)
  • an average 100mm suspension fork
  • a 29 x 2.25" tire measuring 740mm in diameter
  • standover (P) measured vertically from the top of the toptube/brace intersection

Supportive Documents

Support Document links

Additional Features

Spearfish - Endurance Geometry

Designed for all-day XC riding or racing. Aimed at efficient power transfer and rear suspension performance. Improved race agility, while remaining stable and balanced. The bike to ride for ultra-endurance riding and racing on singletrack

Split Pivot Rear Suspension

The concentric rear axle pivot in conjunction with precise wheel link, brake link, and control link placement, results in several performance gains: Exceptional bump compliance, Maximum traction, Incredible pedaling efficiency, Predictable braking, Improved frame geometry due to the elimination of unwanted suspension movement during acceleration and braking

80mm Rear Wheel Travel

80mm of Split Pivot rear travel, combined with 29er wheels and our Endurance Geometry, make the Spearfish go further and faster

6066-T6 Aluminum Tubeset

Top-shelf, double and triple-butted, heat-treated 6066 Aluminum tubing. Formed and shaped for optimized and appropriate stiffness, strength, and weight for the Spearfish model

Designed for 51mm Offset Suspension Fork

Steering and handling feel (mechanical trail) was designed using a 51mm offset, 100mm travel suspension fork. This offset allows for a slacker headtube angle and longer front/center, which results in increased cockpit room and a better angle of attack, leading to improved handling

Super Short 437mm Chainstays

Provide increased race agility, quicker cornering, easier front-end lofting, increased climbing traction, and improved descending capabilities

Ultra-Short Control Link

45mm forged and CNC-machined Control Link; extremely stiff; designed to precisely deliver the desired leverage ratio for the Spearfish, resulting in a uniquely efficient design. Incredibly supple small bump performance early in travel, gives way to a firmer feel in the mid-stroke and end-stroke, which aids in cornering support and bursts of acceleration. The end result of the Spearfish experience being efficiency

Fox Float CTD Boost Valve Rear Shock

Specific, standard Fox tune to work with Spearfish's Split Pivot suspension system, Adjustable Rebound, CTD Lever, Boost Valve technology

Boost Valve

Proprietary Fox Racing Shox technology: Position sensitive damping adds efficiency at both ends of stroke

CTD Technology

Three-position CTD lever for Climb, Trail, Descend settings allows on-the-fly optimum rear suspension performance

Externally Adjustable Rebound

Allows quick adjustment of rebound settings

Tapered Headtube

Allows use of tapered forks or standard 1-1/8" forks. Combining the tapered headtube with the large downtube greatly increases the front-end stiffness and strength of the frame without adding significant weight

Forged Two-Piece Bottom Bracket Shell & Fittings

Combined with Split Pivot’s 12 x 142mm rear thru-axle results in increased rear end stiffness (21% over 2013 Spearfish model) for improved rear wheel tracking, while creating clearance for 2x front derailleurs and up-to-2.35” tires

PressFit 92mm Bottom Bracket Shell

Compatible with all 1x and 2x mountain cranks, with both GXP and 24mm spindles

12 x 142mm Rear Spacing

Features hub-catches and a tool-free axle for simple and quick wheel removal/installation. Split Pivot-specific RockShox Maxle included, but compatible with a standard 12 x 150mm Maxle
