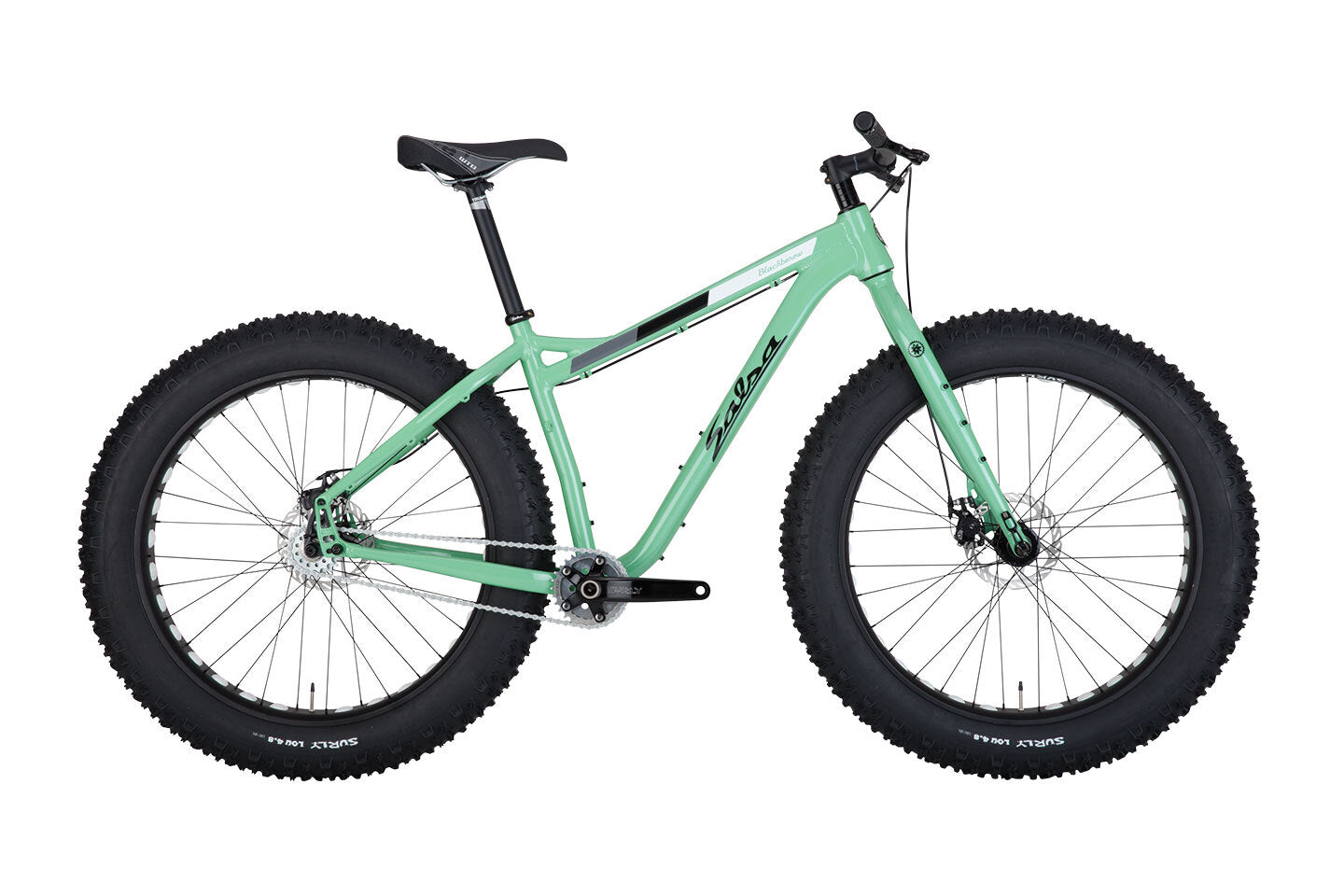

• Salsa Blackborow DS Fat Bike side view

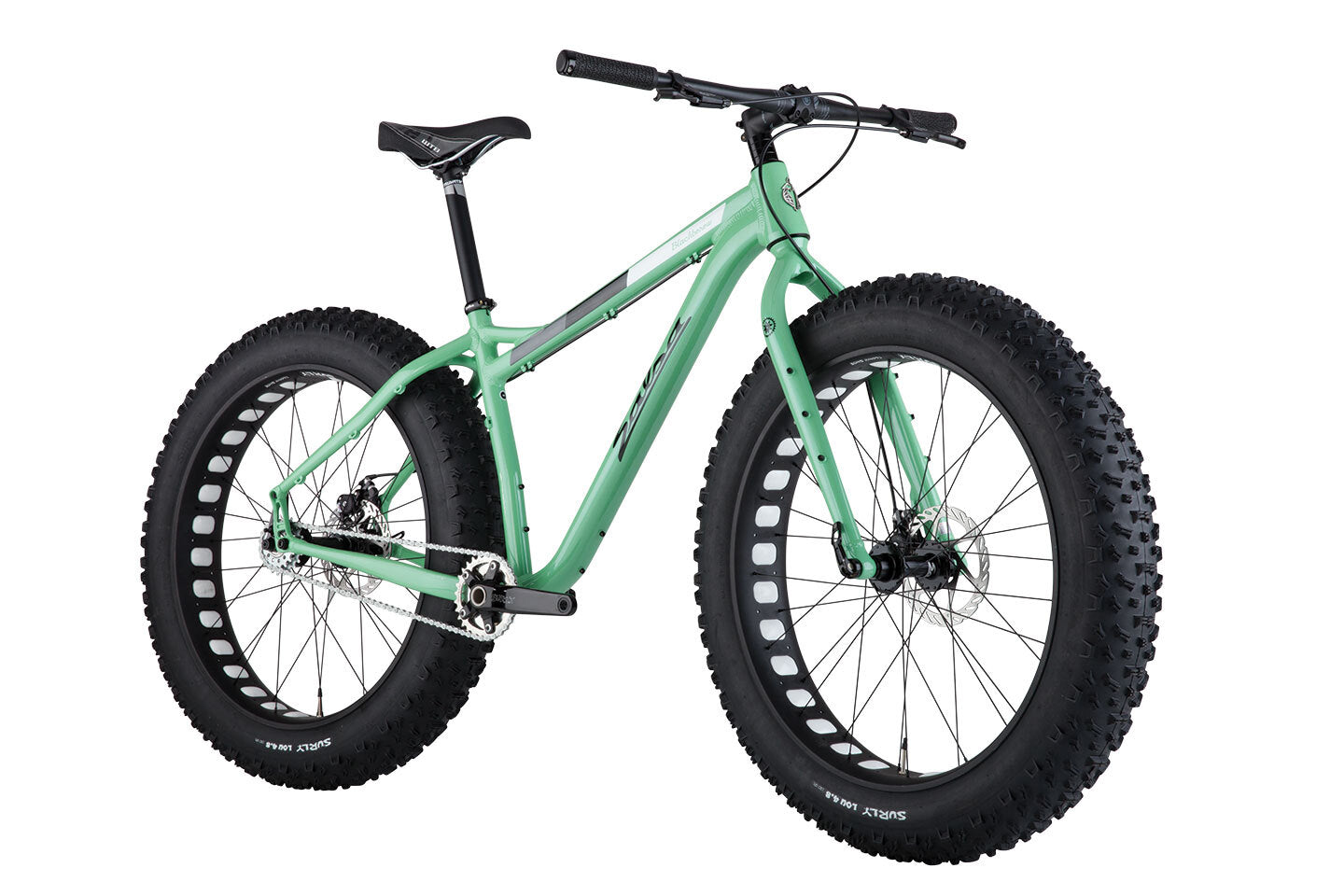

  • Salsa Blackborow DS Fat Bike three-quarter view
1 2

2015 Blackborow DS

2015 Blackborow DS

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Blackborow, AL6066
  • Color: Forest Service Green
  • Fork: Salsa Bearpaw, 15 x 150mm
  • Rear Shock: n/a
  • Front Der: n/a
  • Rear Der: n/a
  • Cassette: Stainless 18/22t cogs, alloy spacer kit
  • Chain: KMC Z99 Rustbuster
  • Crankset: Surly OD, 26/30t Stainless for dingle
  • Headset: Cane Creek 10 ZS44/56
  • Stem: Salsa Guide
  • Handlebar: Salsa Salt Flat 2, 750mm
  • Grips: Salsa Backcountry Lock-On
  • Shifter: nil
  • Front Brake: SRAM BB7S mtn w/ stainless hardware
  • Rear Brake: SRAM BB7S mtn w/ stainless hardware
  • Brake Lever: SRAM FR5
  • Rotors: SRAM G2, 160mm front/rear
  • Seatpost: Truvativ T20
  • Saddle: WTB Pure V Comp
  • Front Hub: Salsa Fat Conversion, 15 x 150mm
  • Rear Hub: Salsa Fat Conversion, 12 x 197mm
  • Spokes: Stainless, butted
  • Rims: Surly Clown Shoe w/ holes
  • Tires: Surly Lou 26 x 4.8", 120tpi, folding, front and rear
  • Complete Bike: $2,299
  • Complete Bike Weight: 31 lb 9 oz for size Medium

Frame Specs

  • Frame: 2015 Blackborow Aluminum
  • Wheelsize: 26" fatbike (closer to 29" in diameter in reality)
  • Tire Clearance: Designed for 26 x 5.0" tires
  • Fork: Salsa Bearpaw 150 Fork included
  • Headset-Upper: 1-1/8" Zero Stack (ZS44/28.6)
  • Headset-Lower: For Tapered: ZS56/40
  • Seatpost: 31.6mm
  • Seat Collar: 35.0mm. Salsa Lip-Lock included
  • Front Derailleur: Problem Solvers Direct Mount clamp included, High Direct Mount Front Derailleur
  • Bottom Bracket: PressFit 41 (132mm offset width)
  • Crankset: Fatbike 1x or 2x compatible; Max chainring sizes 1x (34T), 2x (36/24T)
  • Front Brake: 51mm I.S., minimum rotor size 160mm, maximum rotor size 180mm
  • Rear Brake: 51mm I.S., minimum rotor size 160mm, maximum rotor size 180mm
  • Front Spacing: 150x15mm TA, front rotor/brake offset
  • Rear Spacing: Alternator Dropouts - Rear Thru-Axle 12 x 197mm or 190mm x 10mm QR
  • Bottle Mounts: 5 per frameset (3 frame, 2 fork) for M - XL, 4 per frameset for S & XS (2 frame, 2 fork)
  • Derailleur Hanger: Replaceable Alternator plates. Driveside Geared TP=1.5 FS1374, Driveside SS TP=1.5 FS1376
  • Cable Routing: Full housing, under toptube
  • Frame Weight: TBD
  • Fork Weight w/Uncut Steerer: TBD
  • Color: Forest Service Green

Geometry

Geometry Diagram
X-Small Small Medium Large X-Large
Top Tube Effective Metric 565 580 605 625 640
Seat Tube Length Metric 406 406 457 508 559
Head Tube Length Metric 100 100 110 120 130
Head Tube Angle 69.5 69.5 69.5 69.5 69.5
Seat Tube Angle 73 73 73 73 73
BB Drop Metric 63 63 63 63 63
Chainstay Length Metric 440 - 457 440 - 457 440 - 457 440 - 457 440 - 457
Fork Length Metric 483 483 483 483 483
Fork Offset Metric 51 51 51 51 51
Wheelbase Metric 1071.8 - 1088.8 1086.8 - 1103.8 1112.4 - 1129.4 1133.0 - 1150.0 1148.7 - 1165.7
Stack Metric 595 595 604.4 613.8 623.1
Reach Metric 383.1 398.1 420.2 437.4 449.5
Standover Metric 686.7 686.7 724.2 764.2 780.6
Rider Height Metric 5'2" - 5'6" 5'5" - 5'9" 5'8" - 6'0" 5'11" - 6-3" 6'2" - UP
BB Center to Center Metric
Stem Length 60 70 80 90 100
Crank Length 170 170 175 175 175
Handlebar Width 750 750 750 750 750
Seatpost Offset Metric 0 0 0 0 0
  • a Salsa Bearpaw fork which is equivalent to RockShox Bluto 100mm at 25% sag.
  • a 26 x 4.8" tire measuring 760mm in diameter.
  • standover (P) measured vertically from the top of the toptube/brace intersection

Additional Features

Blackborow Geometry

Blackborow’s geometry is maximized for riding on tough, unpredictable surfaces and features incredible standover clearance. Designed specifically around massive 5”-width tires on 100mm rims, Blackborow provides extreme floatation in soft conditions like snow and sand, and also offers incredible traction and stability on any surface. Blackborow also features Alternator dropouts, which increase the bike’s versatility and setup options, and allows for an adjustable wheelbase

6066-T6 Aluminum Tubeset

Top-shelf, double and triple-butted, heat-treated 6066 Aluminum tubing. Formed and shaped for optimized and appropriate stiffness, strength, and weight. Also offers excellent corrosion resistance

Dropped Toptube Layout

Seat tube lengths are increased one inch per size to facilitate a dropped toptube placement at the seat tube with a jump brace. Combined with a slightly higher bottom bracket (than Mukluk and Beargrease) this creates a bike with improved ground clearance and reduced pedal strikes when riding off-trail. This layout also results in extremely low standover heights

Versatile Fork Compatibility

Designed around Salsa’s 51mm-offset Bearpaw and Makwa fork models. Blackborow is also fully compatible with RockShox Bluto suspension fork set at 100mm travel. This versatility covers everything from singletrack riding to multi-day snow races and beach expeditions

197 X 12mm Thru-Axle Rear Spacing

Equivalent to 190mm rear quick-release spacing, the 197 x 12 thru-axle design adds convenient hub catches that make wheel removal/installation easier & tool free; creates an appropriately secure and stiff wheel connection to the frame at this extreme hub width

Stainless Steel Dinglespeed Setup

Double singlespeed setup with matching teeth count (26 x 22t & 30 x 18t) for quick gear change. One gear for spinning to town, one gear for taking on singletrack. Stainless chainrings, bolts, cogs, and KMC RustBuster chain for longer component life in nasty conditions

Alternator Dropouts

Allows wheelbase changes and chain tensioning. No disc brake adjustment needed when setting wheel position. Vertical dropout for easy wheel installation/removal. Proven in the NUE Series and in the Tour Divide. Alternator Dropouts Instructions

Set-It-And-Forget-It Singlespeed Setup

The Alternator dropouts swinging design and set screws offer quick setup and tensioning. Vertical wheel entry means no re-tensioning or brake adjustments are necessary after a wheel change. Slip-free and creak-free performance

Replaceable/Serviceable Hardware

Alternator swing plates are all replaceable, and all the bolt hardware is standard-size metric socket head cap screws (also available in a replacement kit)

Shaped Chainstays & Seatstays

Provide maximum heel clearance in winter boots

PressFit 41 132mm Offset Bottom Bracket

Designed specifically for the Surly OD Moonlander crankset, which is the only production

Direct Mount Front Derailleur Adaptor

76mm chainline crankset to feature widest bearing placement, thereby increasing bottom bracket durability, optimized spindle strength, and bearing life

31.6mm Seatpost

Problem Solvers Direct Mount Adaptor adds flexibility to drivetrain setup and clean 1x builds

Full Length Cable Routing

Allows use of a dropper seatposts for getting rad, negotiating tough terrain, and facilitating dabbing, starting, and stopping in difficult conditions

Rear Rack Friendly

Improved performance in poor conditions
