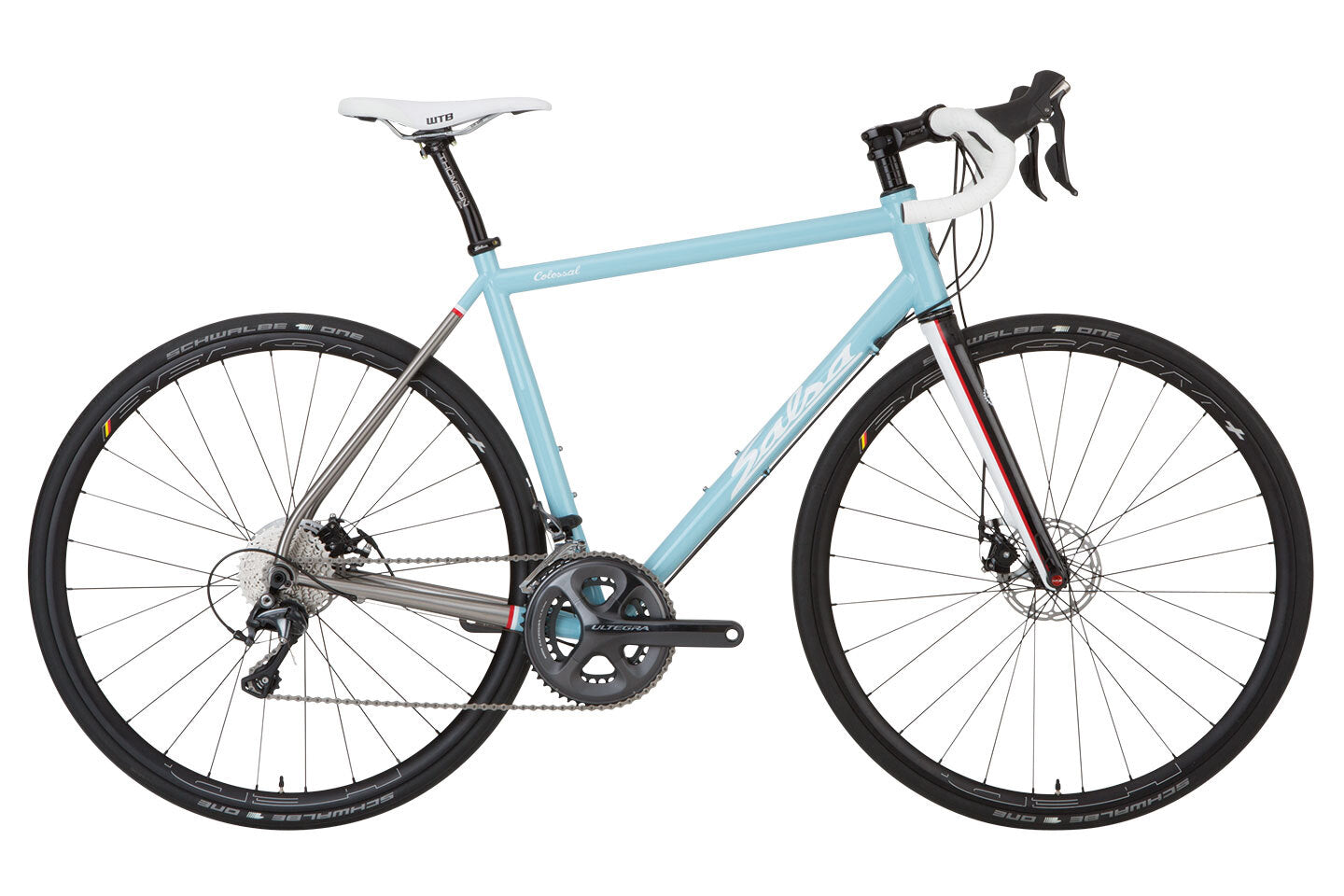

• Salsa Colossal Ti bike light blue color side view

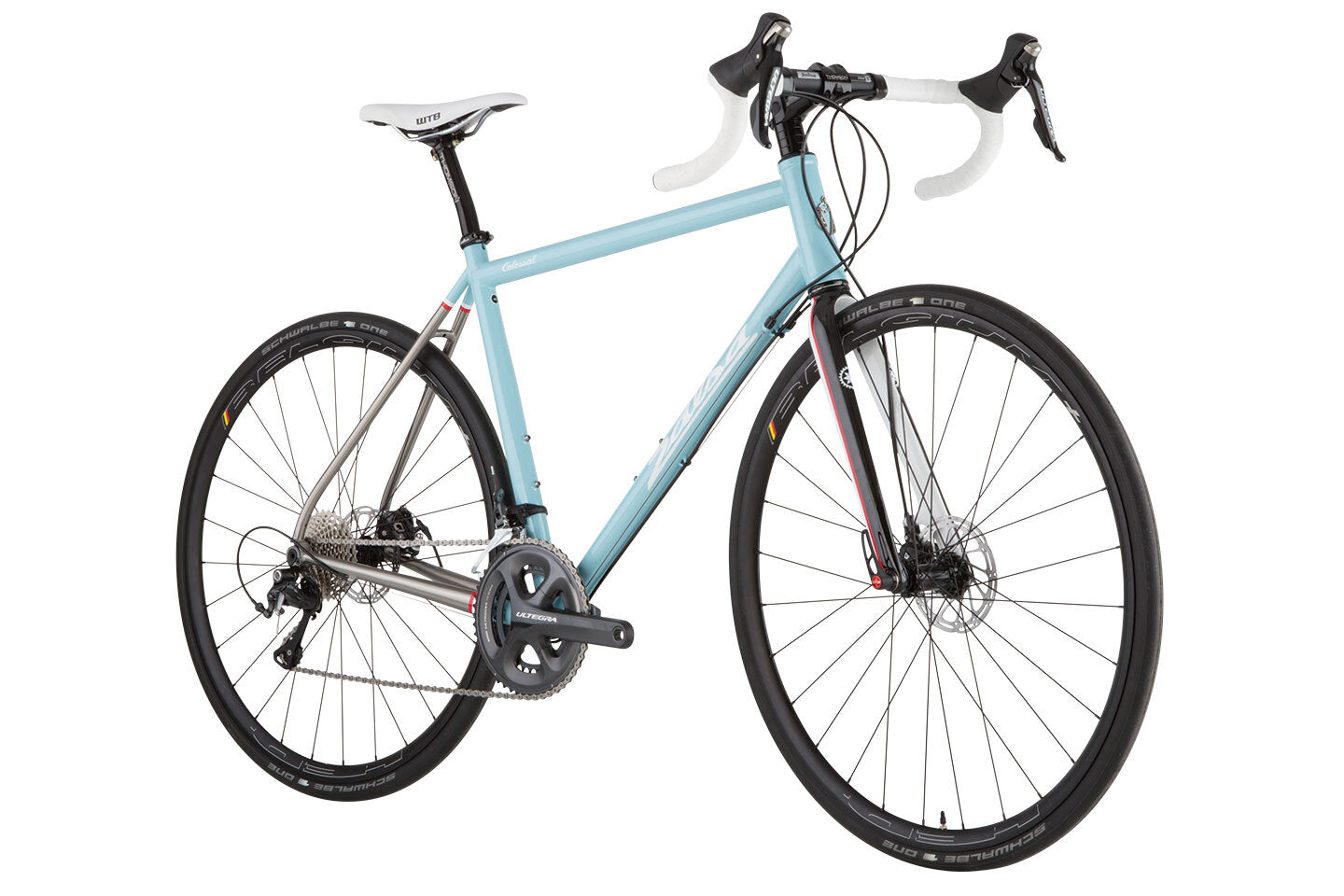

  • Salsa Colossal Ti bike light blue color front three-quarter view
1 2

2015 Colossal Ti

2015 Colossal Ti

Archived

2015 Colossal Ti

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Colossal Titanium, triple-butted seamless 3/2.5 Ti
  • Color: Titanium w/ Baby Blue
  • Fork: Salsa Colossal Carbon fork
  • Rear Shock: nil
  • Front Der: Shimano Ultegra 6800, 11-speed
  • Rear Der: Shimano Ultegra 6800, 11-speed GS
  • Cassette: Shimano Ultegra 6800, 11-speed, 11-32t
  • Chain: Shimano Ultegra 6800, 11-speed
  • Crankset: Shimano Ultegra 6800, 11-speed, 34-50t
  • Headset: Cane Creek 40 ZS44/EC44
  • Stem: Thomson X4
  • Handlebar: Salsa Pro Road 2, medium drop, size specific
  • Grips: Salsa Gel Cork tape
  • Shifter: Shimano Ultegra 6800, 11-speed
  • Front Brake: SRAM BB7S w/ stainless hardware
  • Rear Brake: SRAM BB7S w/ stainless hardware
  • Brake Lever: Shimano Ultegra 6800, integrated
  • Rotors: SRAM CLX, 140mm front/rear
  • Seatpost: Thomson Elite
  • Saddle: WTB Silverado Race
  • Front Hub: Salsa, straight pull 15 x 100mm
  • Rear Hub: Salsa, straight pull, 11-speed, 12 x 142mm
  • Spokes: DT Swiss Competition
  • Rims: Hed Belgium Plus
  • Tires: Schwalbe Ultremo ZX V Guard 700c x 28mm
  • Complete Bike: $4,499
  • Frame : $2,499
  • Complete Bike Weight: 20 lb 2 oz for size 58cm

Frame Specs

  • Frame: 2015 Colossal Titanium
  • Wheelsize: 700c
  • Tire clearance: Clearance for up to 700c x 30mm tire (700c x 28mm with fenders)
  • Fork: Salsa Colossal Carbon, 1-1/8 – 1-1/4” Tapered, 15 x 100 Thru-Axle
  • Headset-Upper: 1-1/8" Zero Stack (ZS44/28.6)
  • Headset-Lower: 44mm External Cup, Tapered (EC44/33)
  • Seatpost: 27.2mm
  • Seat Collar: 32.0mm. Salsa Lip-Lock included
  • Front Derailleur: 34.9mm Clamp, Bottom Pull
  • Bottom Bracket: BB86
  • Crankset: Fits a double crankset, up to a 39T inner, and 54T outer
  • Front Brake: 74mm Post Mount Standard, minimum rotor size 140mm, maximum rotor size 160mm
  • Rear Brake: 51mm I.S., fits 140mm or 160mm rotors only
  • Front Spacing: 15 x 100 Thru-Axle
  • Rear Spacing: 12 x 142mm Thru-Axle
  • Bottle Mounts: 2 per frame
  • Derailleur Hanger: TBA
  • Cable Routing: Full brake housing and derailleur cables under downtube
  • Frame Weight: TBA
  • Fork Weight w/Uncut Steerer: TBA
  • Color: Baby Blue w/ Brushed Ti

Geometry

Geometry Diagram
51cm 53cm 55cm 56cm 58cm 60cm
Top Tube Effective Metric 518 535 550 565 580 600
Seat Tube Length Metric 450 485 515 530 555 580
Head Tube Length Metric 100 120 140 160 185 210
Head Tube Angle 71.5 72 72.5 72.5 73 73
Seat Tube Angle 75.5 74 73.5 73 72.5 72
BB Drop Metric 70 70 70 70 70 70
Chainstay Length Metric 415 415 415 415 415 415
Fork Length Metric 367 367 367 367 367 367
Fork Offset Metric 43 43 43 43 43 43
Wheelbase Metric 987.7 986.8 992.7 1002.6 1007 1020.8
Stack Metric 509.2 529.8 550.6 569.7 595.3 619.2
Reach Metric 386.3 383.1 386.9 390.8 392.3 398.8
Standover Metric 703.2 733.4 759.8 775.6 800.3 824
Rider Height Metric 152cm - 160cm 157cm - 165cm 165cm - 175cm 173cm - 183cm 180cm - 190cm 188cm - UP
BB Center to Center Metric
Stem Length 60 70 80 80 90 100
Crank Length 170 170 170 175 175 175
Handlebar Width 40cm 40cm 42cm 42cm 44cm 46cm
Seatpost Offset Metric 25 25 25 25 25 25
  • a 700c x 28mm tire measuring 690mm in diameter.
  • standover (P) measured vertically to top of toptube from a position 50mm forward of BB center.

Additional Features

Colossal Geometry

Designed for all-day, mixed surface road performance. Fast, comfortable, stable and efficient. The bike for taking on a multi-day road bikepacking trip or getting lost on an all-day road ride. Works with you, not against you when you are 45 miles from home

3/2.5 Seamless Titanium Tubeset

Triple-butted tubing. Custom-spec'd triple-butted tubeset for superior ride quality for the intended use. Shaped stays for vertical compliance and torsional stiffness. Light weight. Superior fatigue life

Triple-Butted Titanium Tubing

Removes weight where it isn't needed, while maintaining frame strength

Biaxially Ovalized Downtube

Stiffens bottom bracket for improved power transfer while improving ride quality and steering control

Custom-Butted & Tapered Seat Tube Diameter

Custom-butted, tapered seat tube maximizes stiffness at bottom bracket, while allowing use of a 27.2mm diameter seatpost without shim for improved rider comfort. 27.2mm seatpost size commonly available should the unexpected happen

Disc Brake-Only Design

Confident braking inspires faster speeds in wet or dry conditions

Custom-Designed Thru-Axle Rear Dropout

12 x 142mm thru-axle dropout tightens up the rear triangle for solid handling, increased drivetrain stiffness, and secure wheel attachment. Also incorporates hidden fender mounts

Replaceable Derailleur Hanger

TBA

Waterbottle Bosses

All frame sizes fit 2 waterbottle cages. TIG-welded in for durability

Colossal Carbon Fork Included

Full carbon fork, tapered 1-1/8 to 1-1/4” steerer tube. 15 x 100mm thru-axle. Post-mount style brake mount. 140/160mm disc brake rotor compatible. Hidden fender mount design

Salsa Custom Butted Tubing

Optimized ride quality for our Colossal Ti and Colossal 2 steel frame

1-1/8 To 1-1/4” Tapered Steerer

Provides the best balance between vertical compliance and lateral stiffness for mixed surface road riding. Utilizes existing headset standard with widely available parts offerings

15 x 100mm Thru-Axle

Unifies fork/wheel connection resulting in superior tracking while cornering (15 x 125mm length, thread pitch 1.5, thread depth 12mm)

Hidden Fender Mounts In Frame & Fork

Frame and fork utilize hidden fender mounts. Aluminum fender mount studs thread into frame and tighten in place with lightweight nut to provide a clean aesthetic whether using fenders or not

700c x 30mm Tire Clearance/700c x 28mm With Fenders

Fits larger road tires for improved mixed surface performance

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
