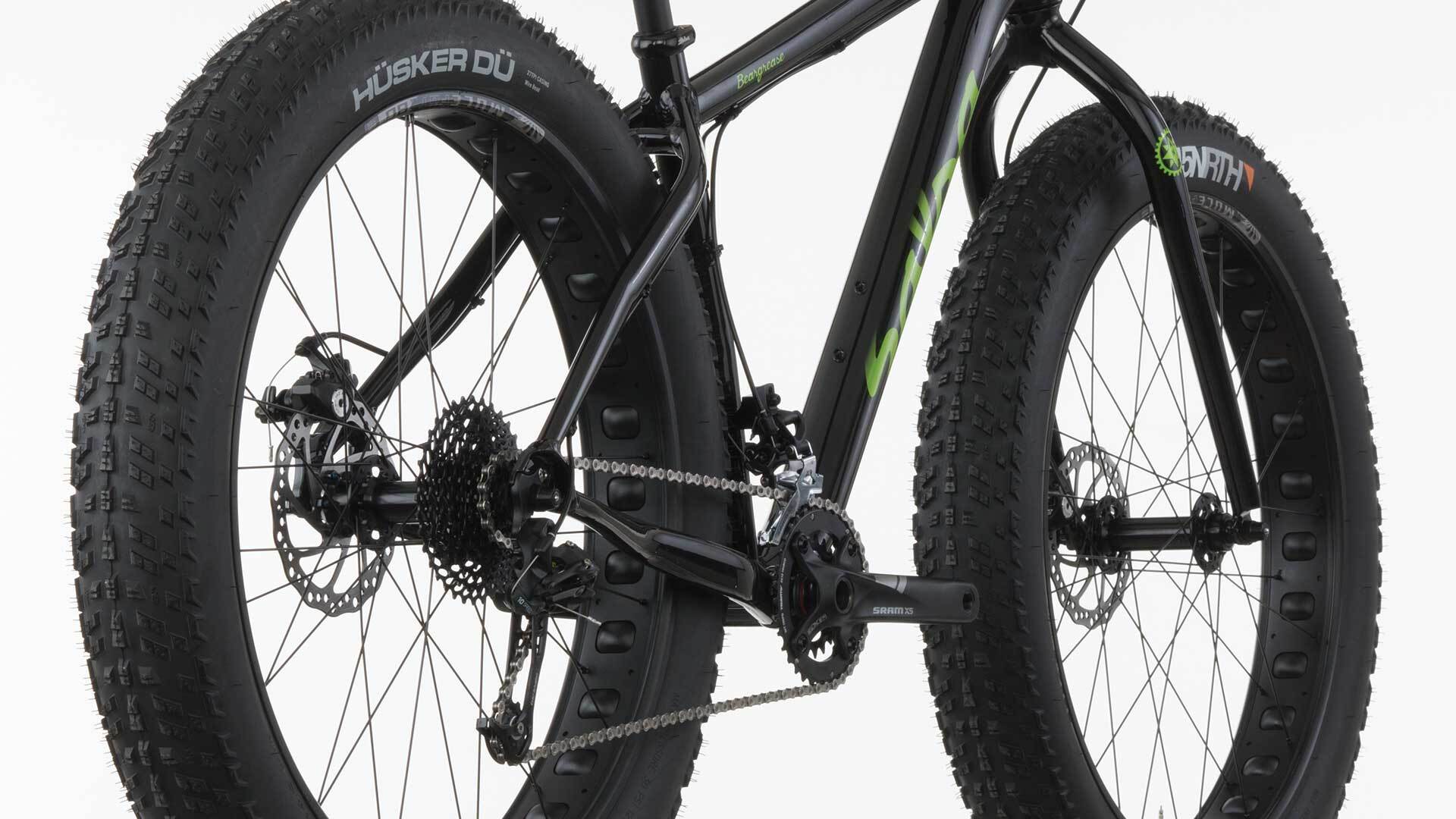

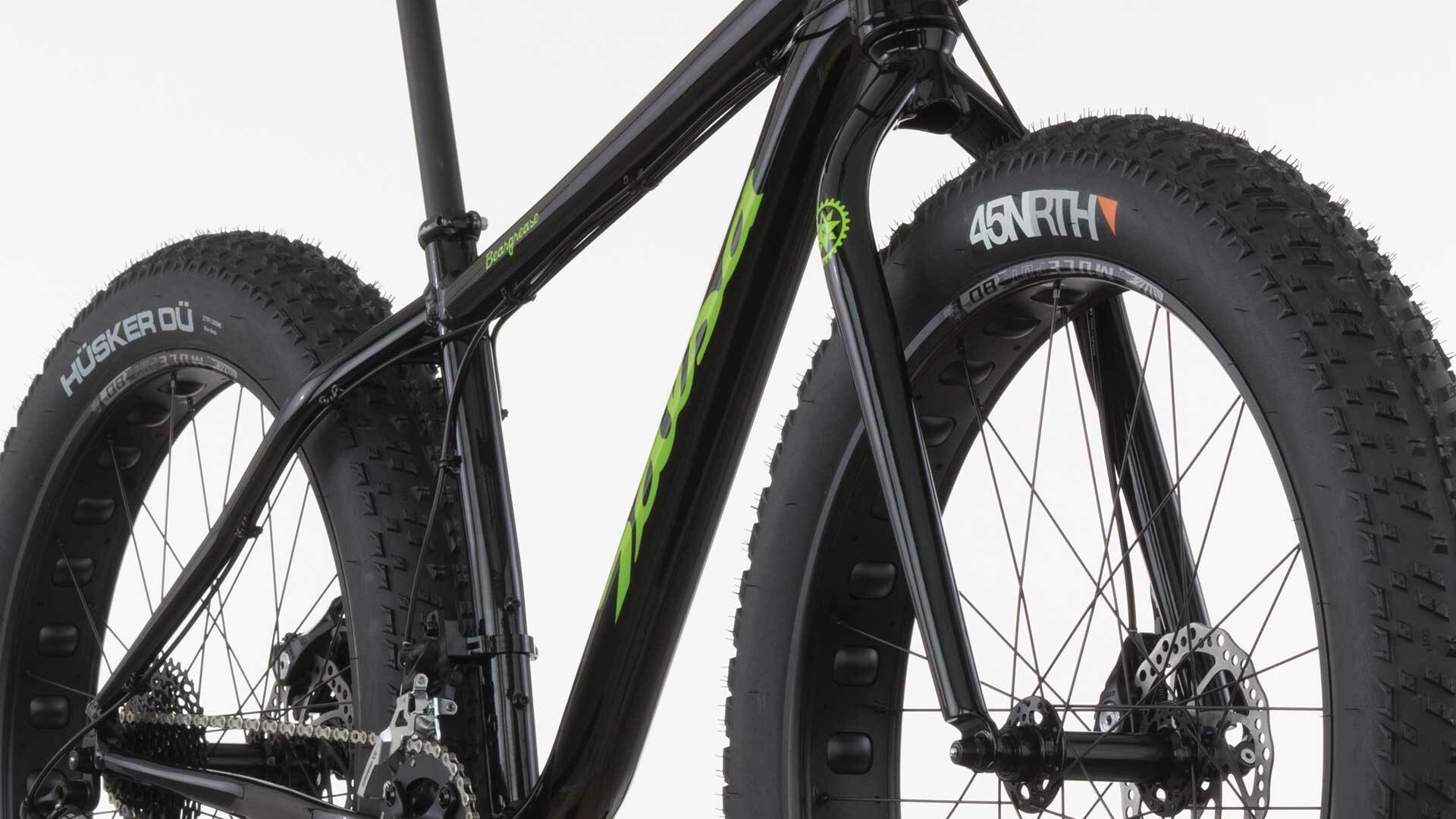

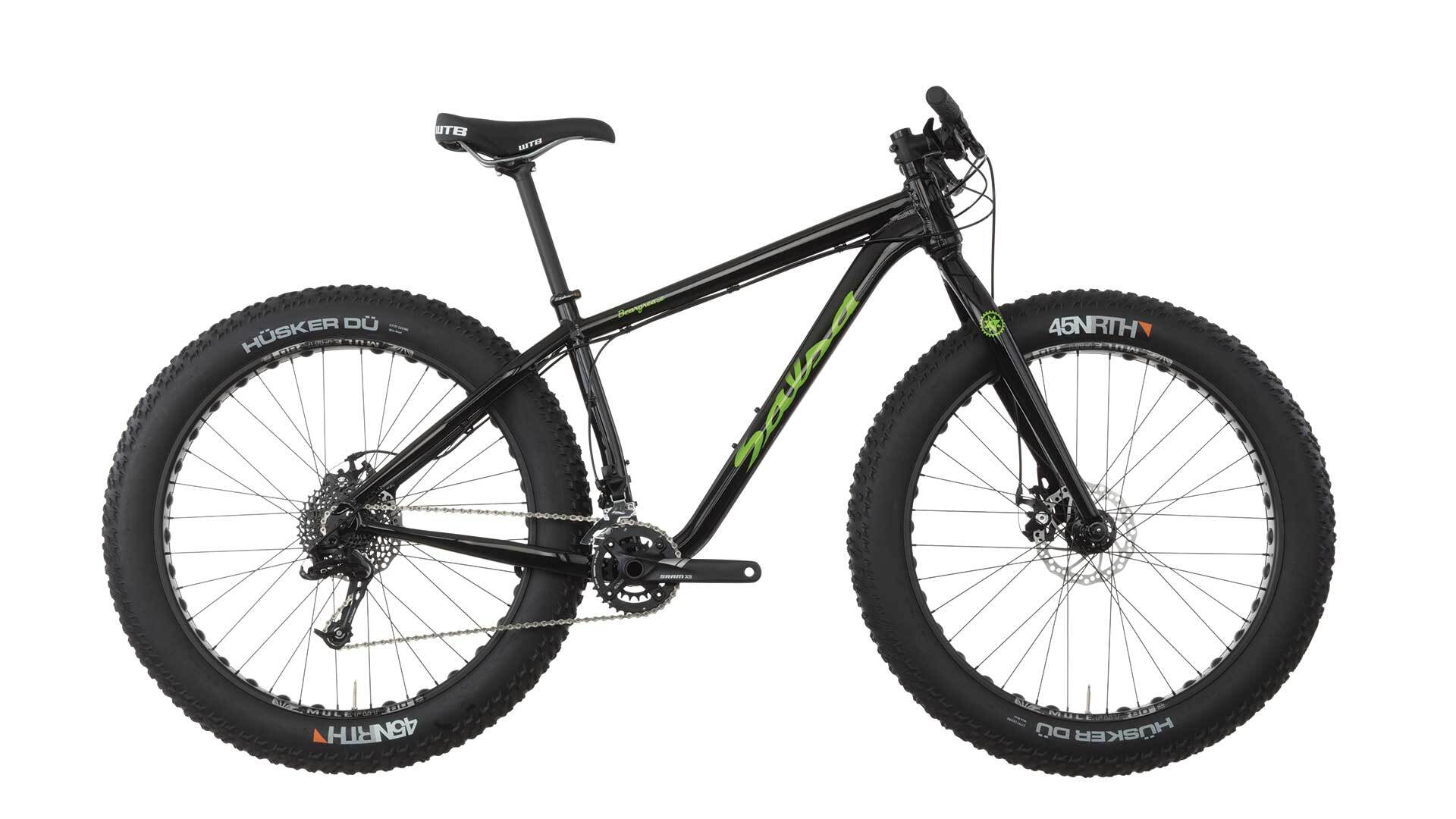

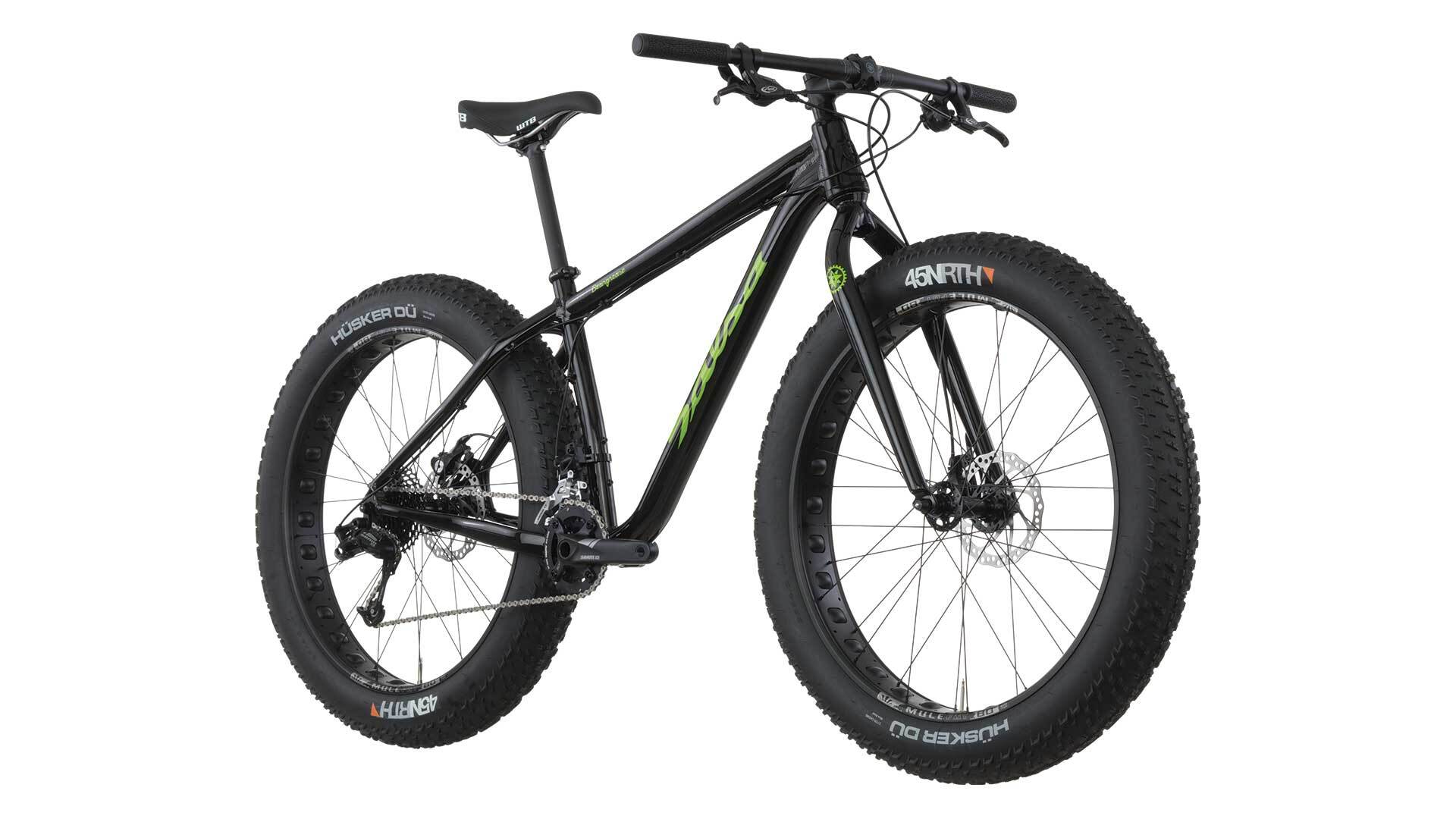

2016 Beargrease X5

Top-shelf, double and triple-butted, heat-treated AL-6066-T6 tubing is used throughout the frame. This 6000-series aluminum has better strength and fatigue characteristics than 6061 and 7000-series aluminums, allowing for a stronger and lighter overall frame. Additionally, the tubing is strategically shaped and formed for additional stiffness and strength optimization in key stress areas

Designed around Salsa’s 51mm offset Makwa and Bearpaw fat bike forks, this frame is also fully compatible with 100mm travel fat bike-specific suspension forks

Beargrease Aluminum is designed for use with 26 x 4" fatbike wheels on rims up to 100mm wide. The frame is also compatible with the following wheel and tire combinations: 26 x 4.5" on up to 100mm rim (1x only), 26 x 4.6–4.8" on up to 80mm rim (1x only), 29 x 2.25–3" (including 29+), 27.5 x 3.0–3.25" (aka 27.5+), NOT COMPATIBLE WITH TIRES LARGER THAN 26 x 4.6"

The geometry used across our entire fat bike line has remained basically unchanged since developing the Beargrease Carbon back in 2012. We’ve adapted it to all of our fat bike models because it works extremely well in all conditions and use cases, whether it be riding groomed singletrack at your local trail, exploring a deserted beach, or embarking across the wild frozen expanses of Alaska in the ITI race. At its core, we use the shortest chainstay possible in conjunction with a headtube angle and fork offset that place the rider’s center of gravity further over the rear wheel. This location and combination of front and rear center is key to getting a fat bike that is stable, steers well in loose conditions, and still also feels nimble and agile despite the massive wheels and tires. A low bottom bracket height is also key, to keep the rider’s center of gravity low, and to make dabbing and dismounting easier

This frame is compatible with both 1x and 2x drivetrain setups. A removable direct-mount front derailleur bracket allows for clean 1x build

Full-length housing improves shifting performance in poor conditions and increases use time between maintenance intervals

All frame sizes accept 2 bottle cages

Results in a strong rear wheel and frame; maintains proper chainline with crankset

Compatible with all 1x and 2x fat bike-specific cranks in both GXP and 24mm spindle types, that matches up to 170/177mm rear spacing

The fork included with this frame is compatible with the following wheel and tire combinations: 26 x 3.8–4.8" on up to a 100mm rim, 29 x 2.25–3" (including 29+), 27.5 x 3.0–3.25" (27.5+)

Extra sold separately

The modern standard for mountain bikes increases front-end frame and fork stiffness without adding significant weight

The Makwa Aluminum fork features 150mm spacing with a QR, and can accommodate 5" tires mounted to 100mm-wide rims

Beargrease Carbon is designed for use with 26 x 4" fat bike wheels on rims up to 100mm wide. The frame is also compatible with the following wheel and tire combinations: 26 x 4.33" on up to a 100mm rim (1x drivetrain only), 26 x 4.34–4.7" on up to 82mm rim (1x drivetrain only), 29 x 2.25–3" (including 29+), 27.5 x 3.0–3.25" (aka 27.5+)
