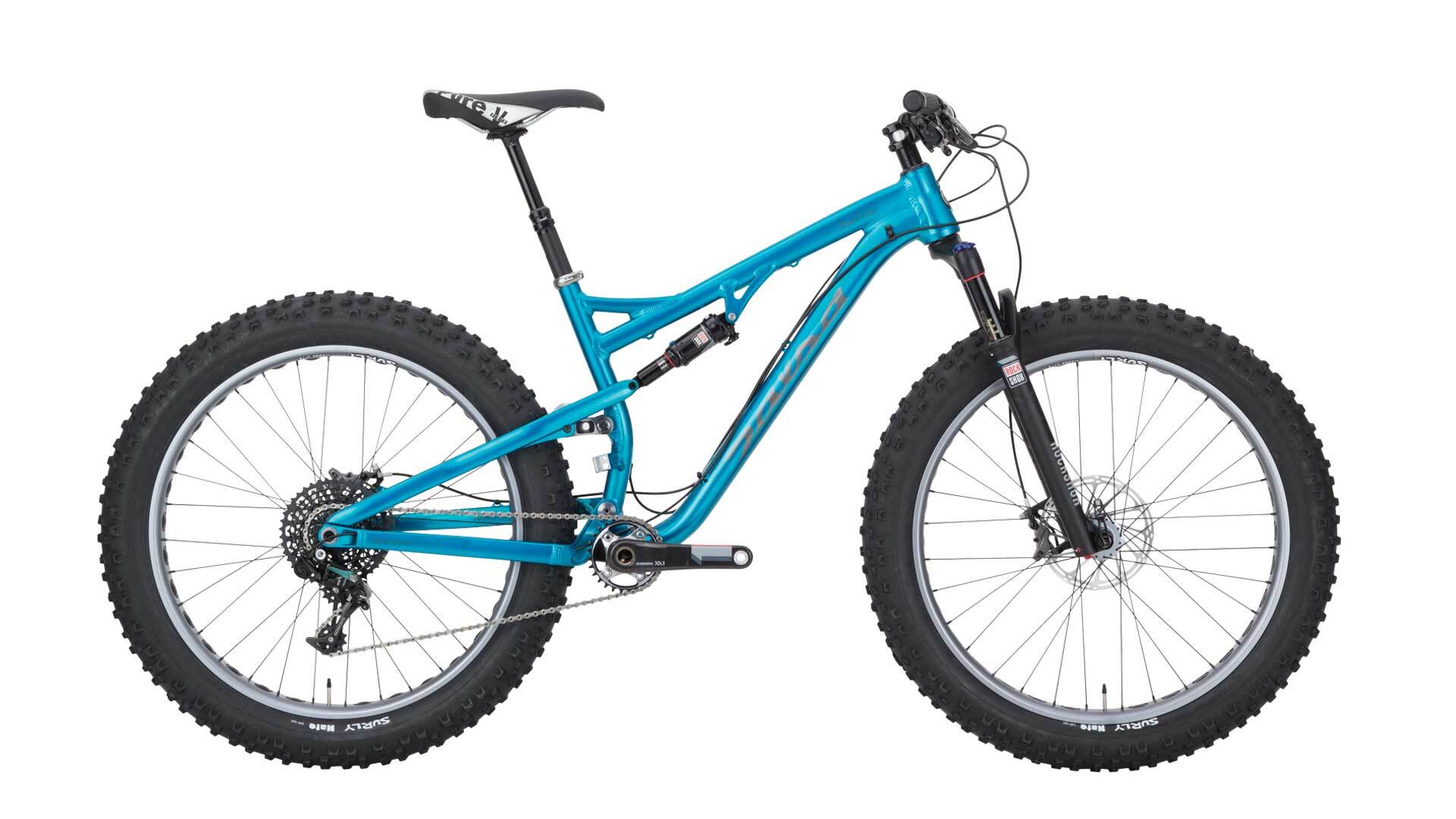

• Salsa Bucksaw X01 bike blue color side view

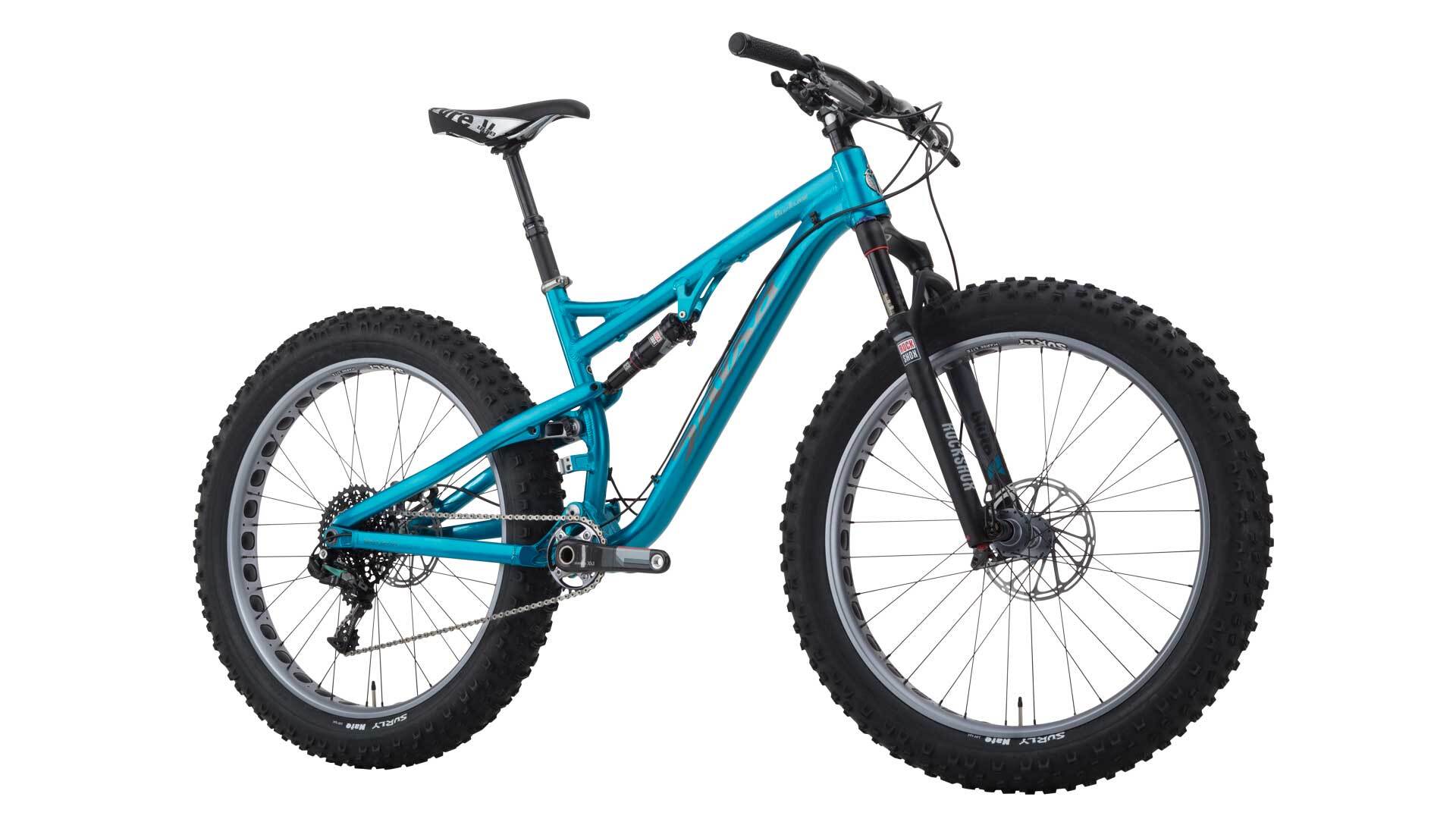

  • Salsa Bucksaw X01 bike blue color front three-quarter view

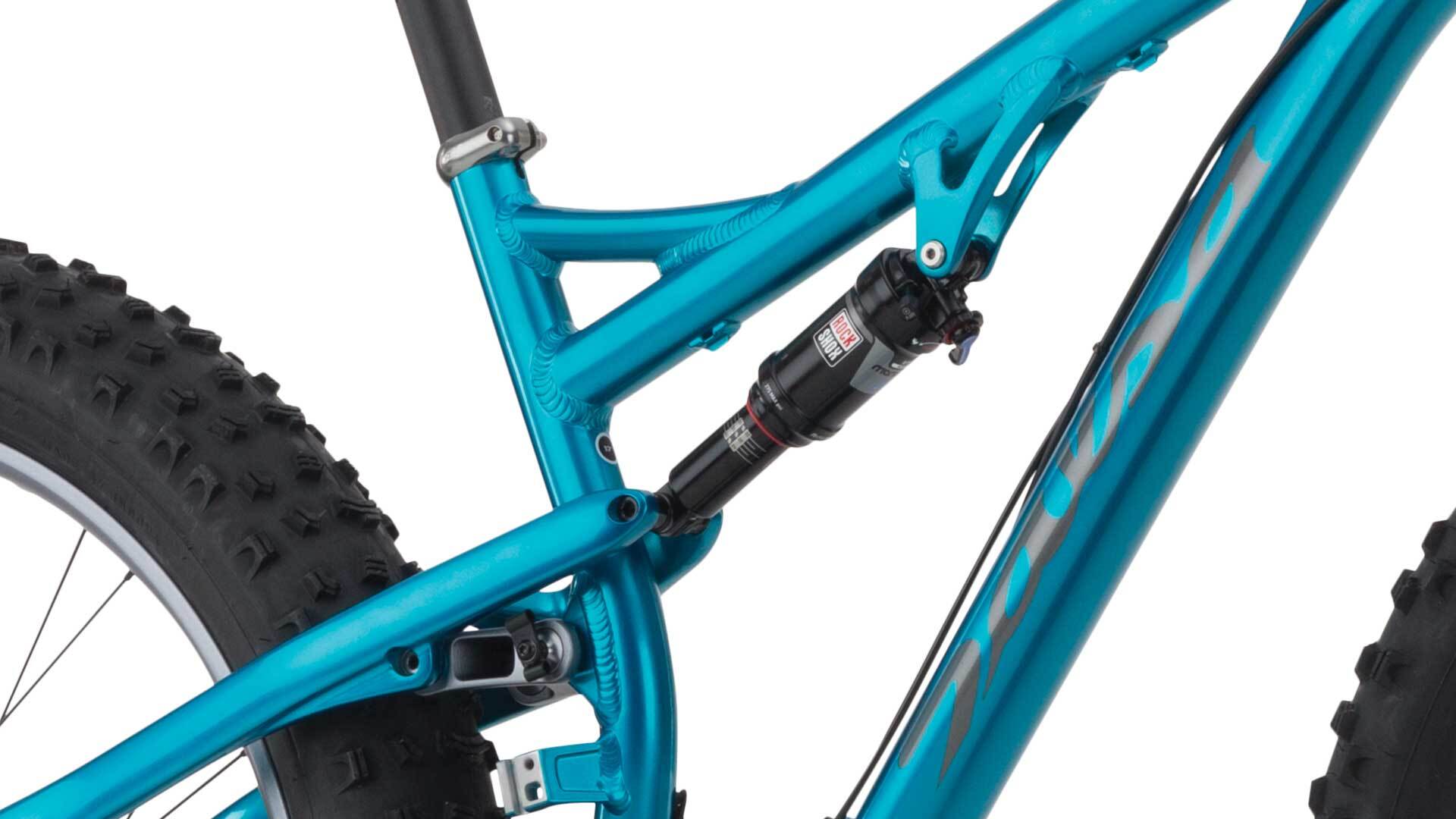

  • Salsa Bucksaw X01 bike blue color rear shock area focus
1 3

2016 Bucksaw X01

2016 Bucksaw X01

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Bucksaw w/ Split Pivot, AL-6066 w/ carbon seatstay
  • Color: Transparent Blue
  • Fork: RockShox Bluto, RL
  • Rear Shock: RockShox Monarch RT3
  • Front Der: nil
  • Rear Der: SRAM X01
  • Cassette: SRAM 1180, 10-42t
  • Chain: KMC X11
  • Crankset: SRAM X1, 30t
  • Headset: Cane Creek 10
  • Stem: Thomson X4
  • Handlebar: Salsa Rustler 1 Carbon, 750 x 31.8mm
  • Grips: Salsa Backcountry Lock-On
  • Shifters: SRAM X01
  • Front Brake: SRAM Guide RS
  • Rear Brake: SRAM Guide RS
  • Rotors: SRAM Centerline, 180mm front/rear
  • Seatpost: RockShox Reverb Stealth
  • Saddle: WTB Pure V Race
  • Front Hub: Salsa Fat, 15 x 150mm
  • Rear Hub: Salsa Fat Conversion 12 x 177mm, XD
  • Spokes: DT Swiss Competition, black
  • Rims: Surly Marge Lite w/ holes
  • Tires: Surly Nate 26 x 3.8", 120 tpi, folding
  • Complete Bike Weight: 32 lb 6 oz for size Medium

Frame Specs

  • Wheelsize: 26" fat bike
  • Travel: 100mm front and rear
  • Tire Clearance: Up to 26 x 4.0" tires on 82mm rims
  • Fork: Designed for 100mm, 50 offset RockShox Bluto suspension fat bike fork. 511mm max axle-to-crown
  • Headset-Upper: ZS44/28.6
  • Headset-Lower: ZS56/40
  • Rear Shock Size: 184 x 44.5mm (7.25 x 1.75")
  • Rear Shock Mount Size: Front: 8 x 22mm; rear: 8 x 38mm
  • Seatpost: 31.6mm
  • Seat Collar: 35.0mm alu/36.4mm carbon; Salsa Lip-Lock included
  • Front Derailleur: High direct-mount; 2x compact; top-pull only
  • Bottom Bracket: PressFit 41 x 121mm
  • Crankset: Fatbike 1x or 2x compatible; max chainring sizes 1x (34t), 2x (36/24t)
  • Rear Brake: 51mm I.S., minimum rotor size 140mm, maximum rotor size 180mm
  • Rear Spacing: 177 x 12mm thru-axle
  • Bottle Mounts: 1 per frame
  • Derailleur Hanger: FS2322. Split Pivot Dropout Tool Top Cap available for field repairs
  • Rear Thru-Axle: 12 x 217L, TP = 1.75 TL = 20
  • Cable Routing: Full-length housing; 1x, 2x, moto/regular, and dropper/stealth dropper routing compatible

Geometry

Geometry Diagram
Small Medium Large X-Large
Top Tube Effective Metric 590 610 630 650
Seat Tube Length Metric 387 432 483 533
Head Tube Length Metric 100 110 110 120
Head Tube Angle 67.7 67.7 67.7 67.7
Seat Tube Angle 73.5 73.5 73.5 73.5
BB Drop Metric 26.2 26.2 26.2 26.2
Chainstay Length Metric 444 444 444 444
Fork Length Metric 511 511 511 511
Fork Offset Metric 50 50 50 50
Wheelbase Metric 1142.7 1163.8 1183.8 1204.8
Stack Metric 575.9 585.2 585.2 594.4
Reach Metric 419.4 436.7 456.7 473.9
Standover Metric 727.8 728.3 732.3 756.4
Rider Height Metric 165 - 175cm 175 - 183cm 183 - 190cm 190cm - UP
BB Center to Center Metric
Stem Length 60 70 70 80
Crank Length 170 170 175 175
Handlebar Width 750 750 750 750
Seatpost Offset Metric 0 0 0 0
  • an unsprung bike (no sag)
  • a 100mm RockShox Bluto suspension fork
  • a 26 x 3.8" tire measuring 742mm in diameter
  • standover (P) measured vertically from the top of the toptube/brace intersection

Supportive Documents

Support Document links

Additional Features

Split Pivot® Rear Suspension

The concentric rear axle pivot in conjunction with precise wheel link, brake link, and control link placement, results in several performance gains: Exceptional bump compliance, Maximum traction, Incredible pedaling efficiency, Predictable braking, Improved frame geometry due to the elimination of unwanted suspension movement during acceleration and braking

Fat Bike-Specific Suspension Travel

100mm of Split Pivot® rear wheel travel that is tuned to work in tandem with high-volume, low-pressure 26 x 4.0" fat bike tires. The result is ground-clawing traction-monster that redefines what line choice is, both up and down the hill. The frame is designed and balanced for a 100mm travel, 50mm offset RockShox Bluto suspension fat bike fork

Multiple Wheel & Tire Options

Bucksaw is designed around 26 x 4.0" tires mounted on 65–82mm rims and inflated to 8–12 psi depending on rider weight and terrain. Bucksaw is also compatible with other wheel setups that roll out to a 735–740mm overall diameter. This includes 27.5 x 3.0–3.25" (27.5+) and 29 x 2.3–2.5", as long as the wheels and tires are laced to 177/150mm hubs to match the frame and fork, respectively

Bucksaw Geometry

4" high-volume tires and full suspension combine to create a bike that wants to climb up lines most other bikes can’t, and when pointed downhill, the gyroscopic stability and traction of all that rubber begs to let off the leash. As a result, the geometry has been tailored to match: slack and low, the Bucksaw is closer in angles and feel to our Horsethief than it is to a Mukluk or Beargrease. The Bucksaw is designed to handle best when you are getting after it, using the advantages of fat tires and suspension to their full monster-truck capacity

Aluminum 6066-T6 Tubeset

Top-shelf, double and triple-butted, heat-treated AL-6066 tubing is used throughout the front triangle and chainstays. This 6000-series aluminum has better strength and fatigue characteristics than 6061- and 7000-series aluminums, allowing for a stronger and lighter overall frame. Additionally, the tubing is strategically shaped and formed for additional stiffness and strength optimization in key stress areas

High-Modulus Carbon Fiber Seatstays

Offers increased rear-end stiffness and reduced weight over aluminum stays

Full-Size Bottle Compatible

Front triangle is capable of fitting a full-size (28 oz) water bottle

PressFit 41 x 121mm Bottom Bracket w/ ISCG05 Tabs

Compatible with all 1x and 2x fat bike cranks with

Replaceable Derailleur Hanger

65mm chainlines, both GXP and 24mm spindle types. ISCG05 tabs for chainguide mounting to increase chain security

Replaceable Sealed Cartridge Bearings

Extra sold separately, Salsa Split Pivot® Top Cap Dropout Tool included with frame for field changes without the need to carry a 22mm cone wrench

Tapered Headtube

17287-2RS (qty 4), 6801-2RS (qty 4)

The modern standard for mountain bikes increases front-end frame and fork stiffness without adding significant weight
