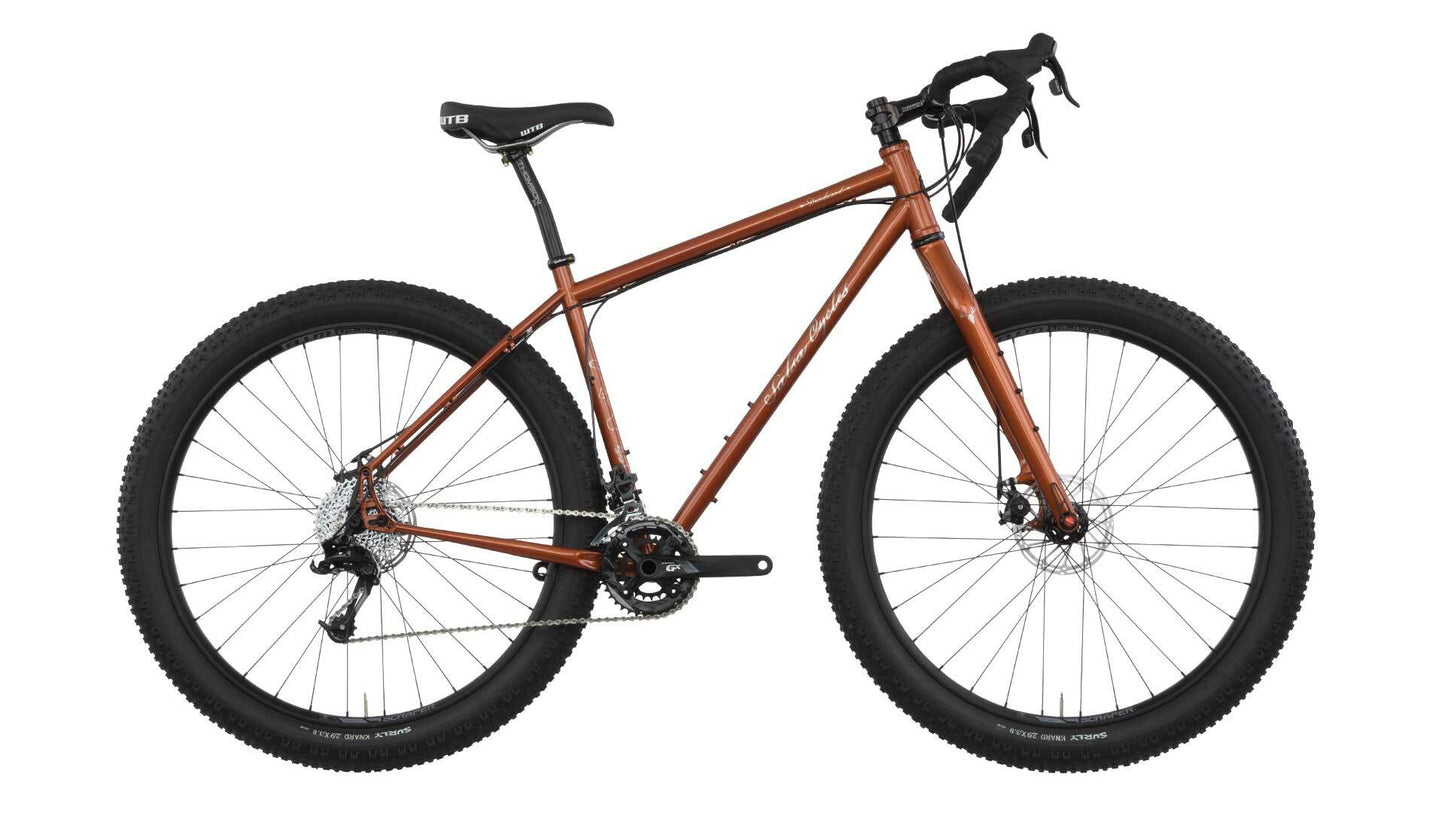

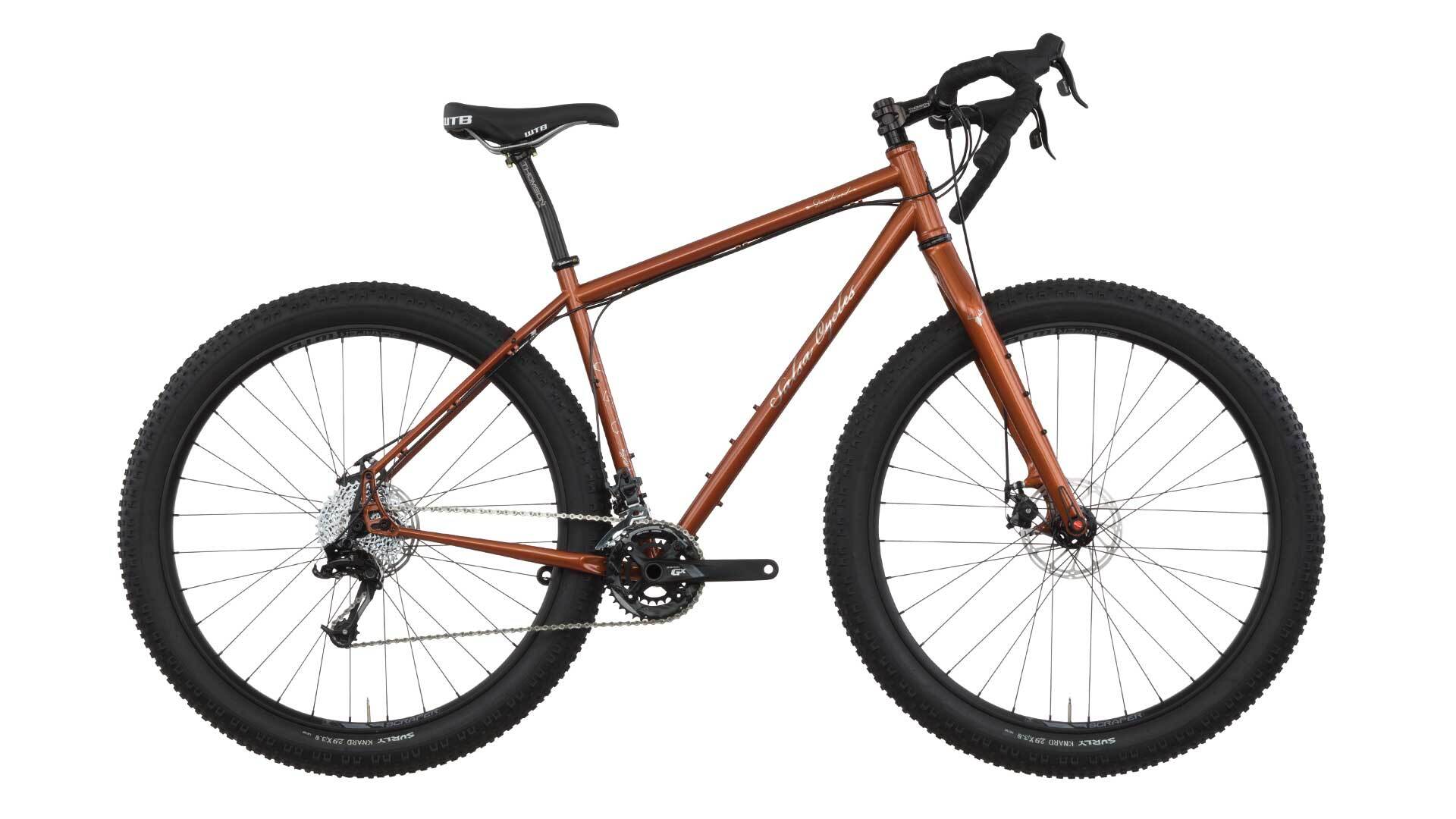

• Salsa Deadwood steel 29-plus bike copper color side view

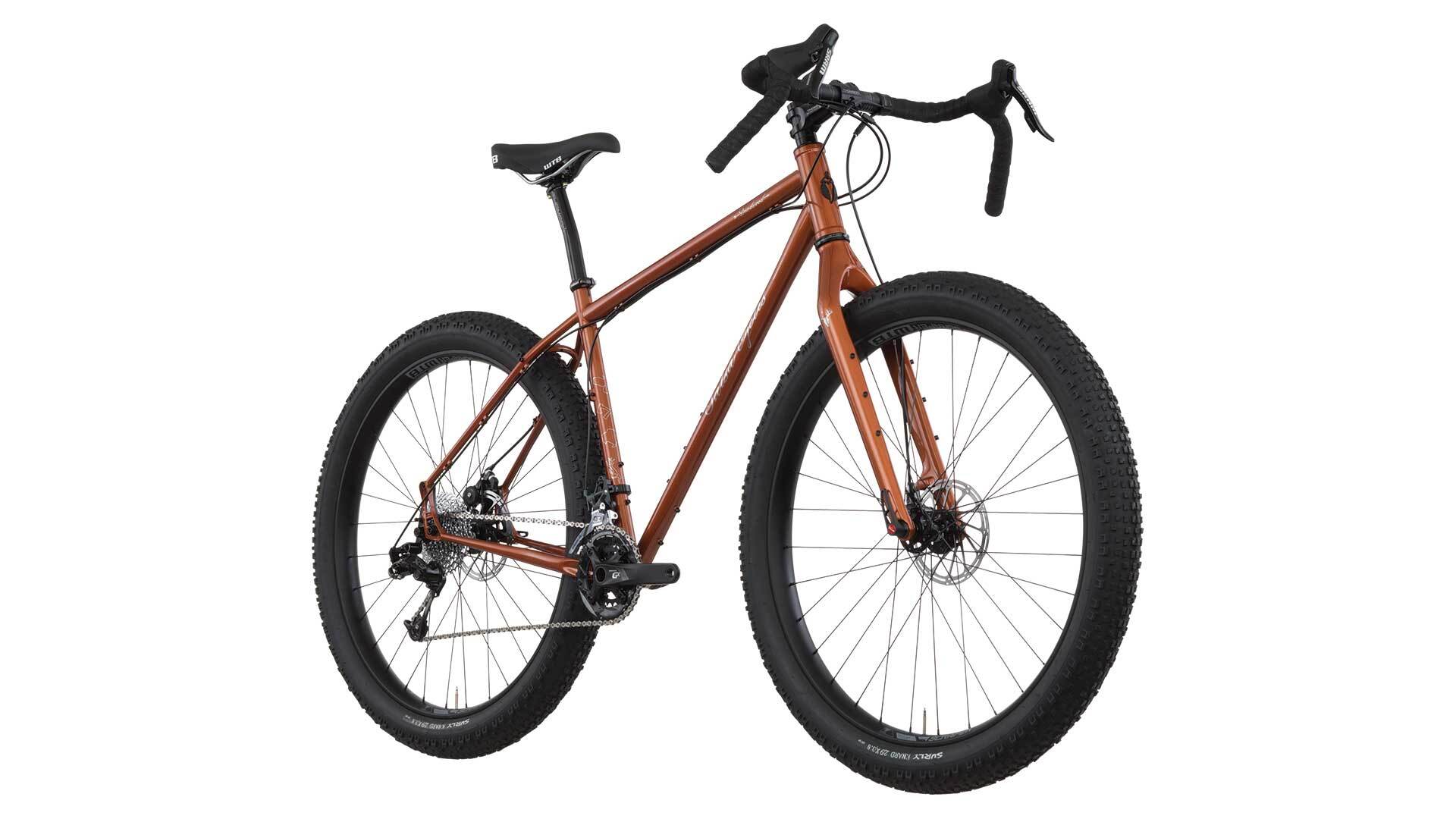

  • Salsa Deadwood steel 29-plus bike copper color front three-quarter view

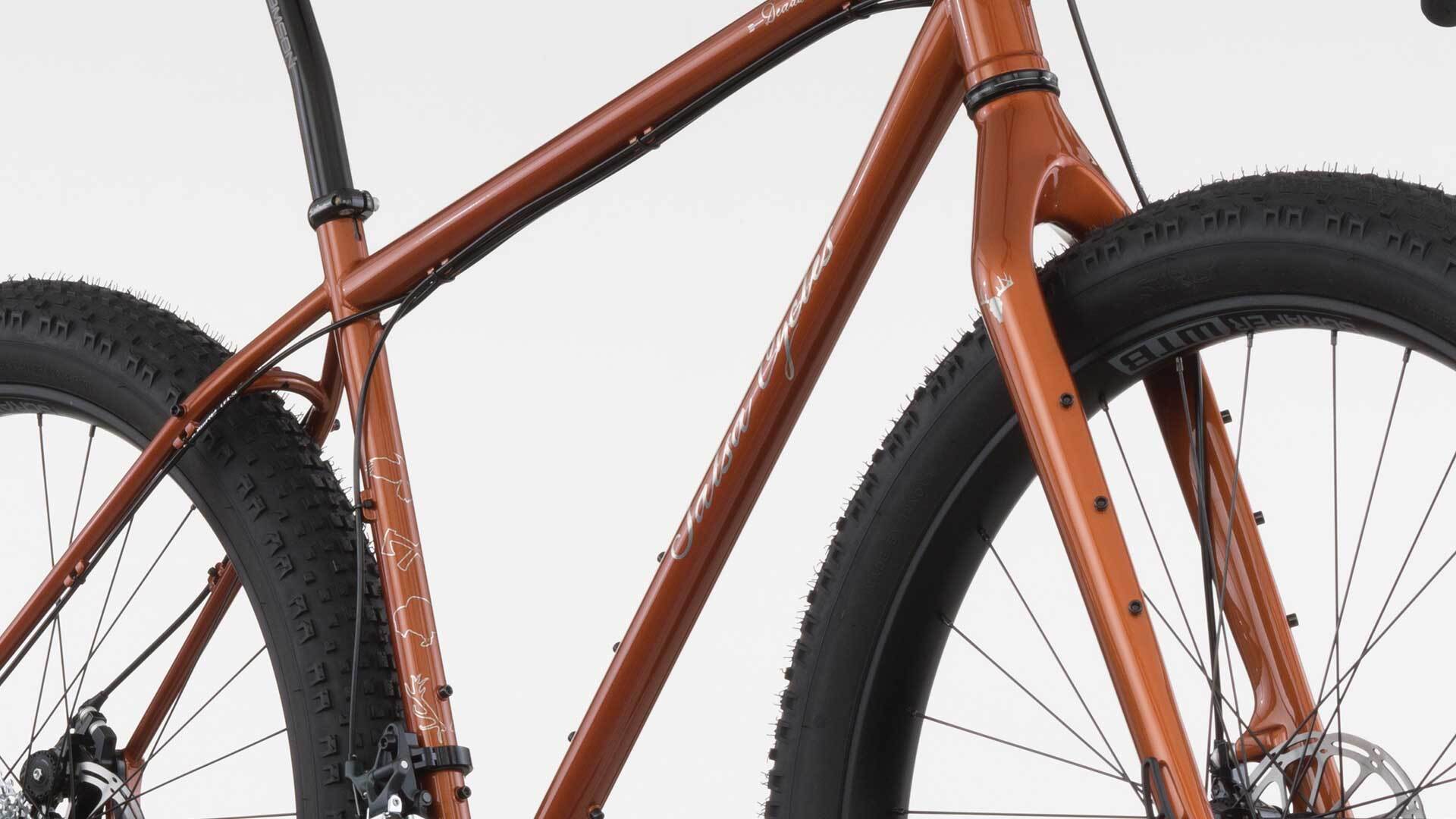

  • Salsa Deadwood steel 29-plus bike copper color front three-quarter view fork focus

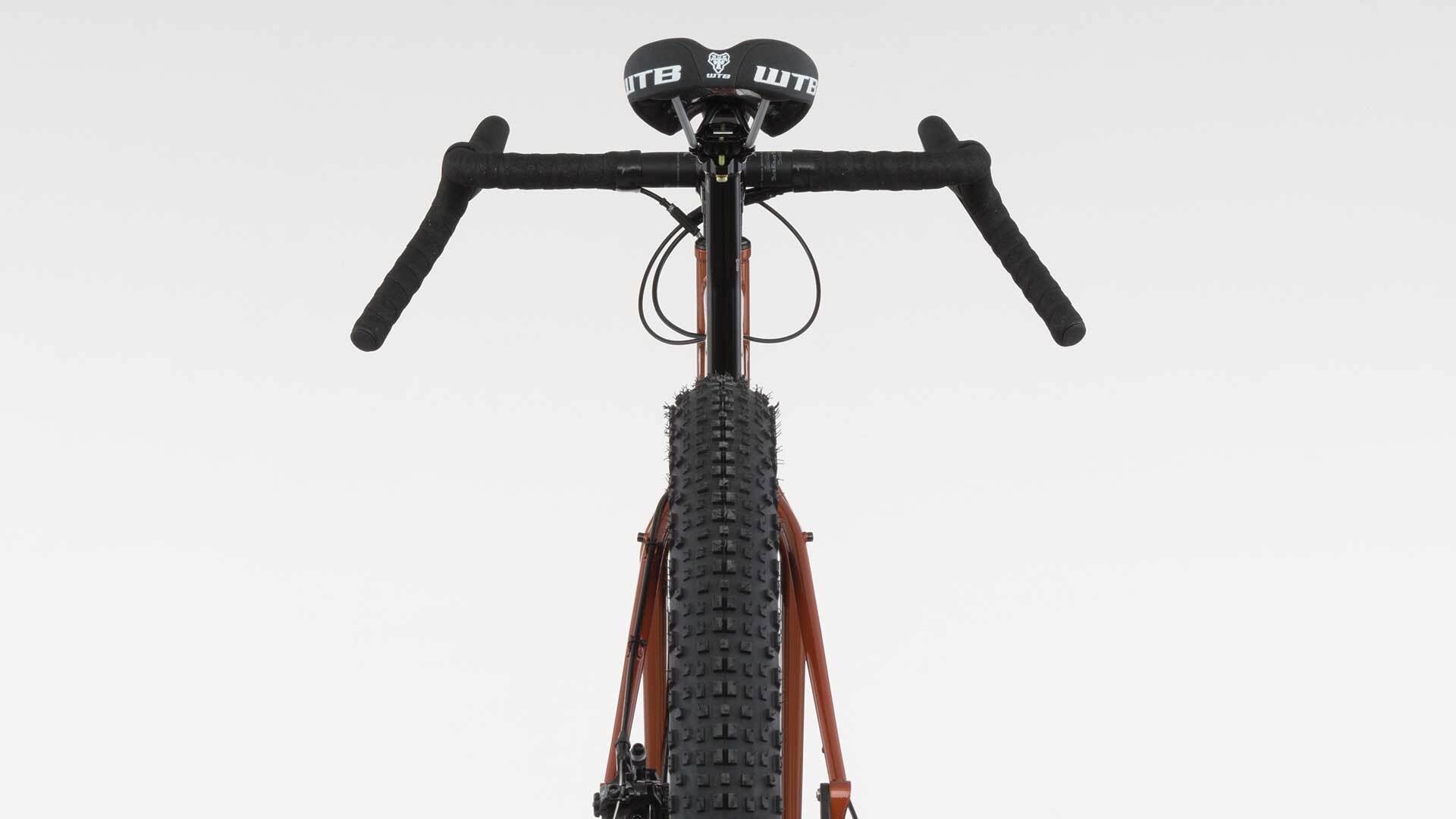

  • Salsa Deadwood steel 29-plus bike copper color rear view

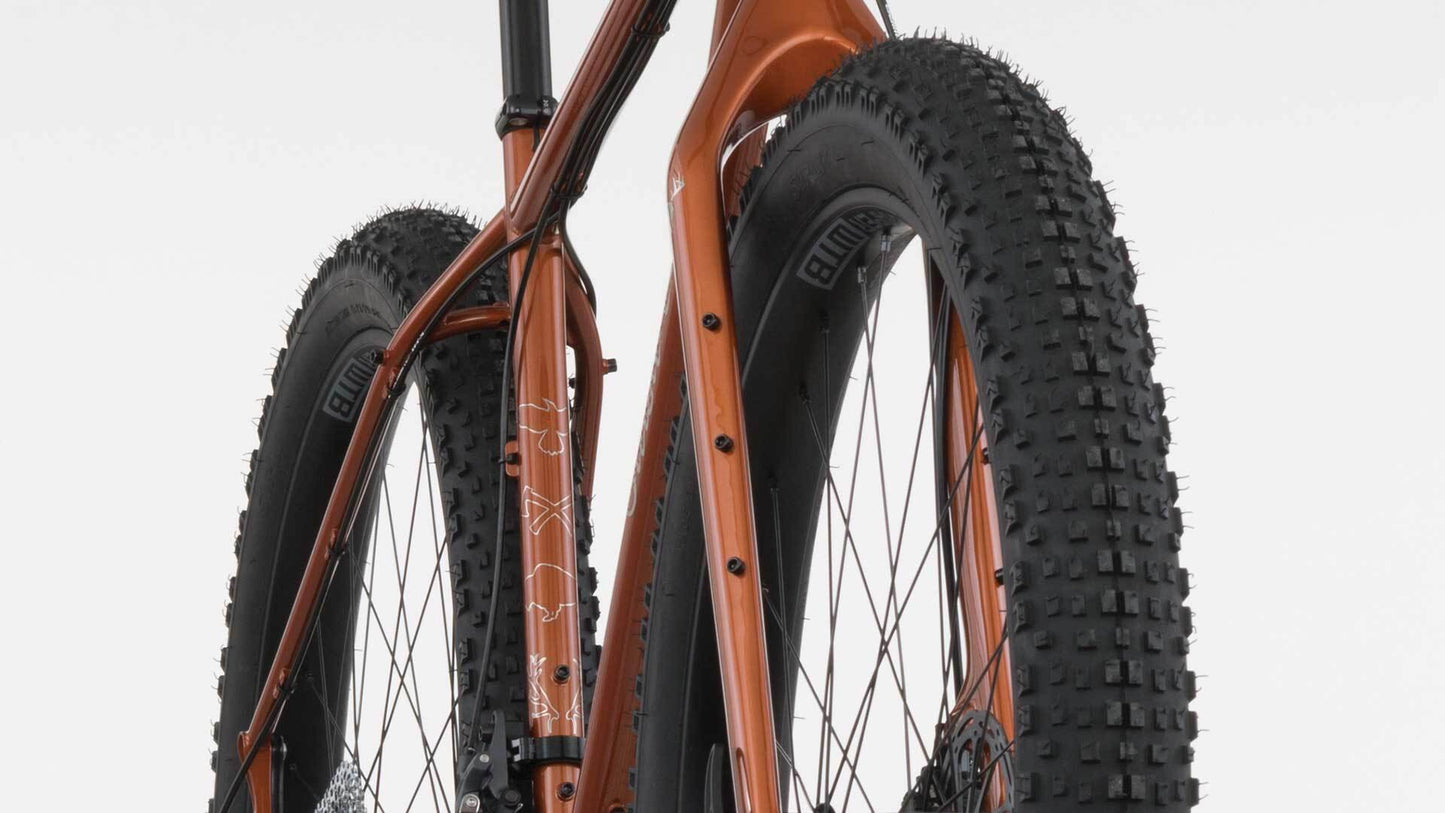

  • Salsa Deadwood steel 29-plus bike copper color front three-quarter view tire focus
1 5

2016 Deadwood X9

2016 Deadwood X9

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Deadwood Cobra Kai 4130 CroMoly
  • Color: Copper
  • Fork: Salsa Firestarter Carbon, 100mm, thru-axle
  • Rear Shock: SRAM X7 HDM
  • Front Der: SRAM X9 Type 2, long cage
  • Rear Der: SRAM 1030, 11-36t
  • Cassette: KMC X10
  • Chain: SRAM s1400, 38/24t , BOOST
  • Crankset: Cane Creek 10 ZS44/28.6 | EC44/40
  • Headset: Thomson X4
  • Stem: Salsa Woodchipper 2
  • Handlebar: Salsa Gel Bar Tape
  • Grips: SRAM Apex
  • Shifters: SRAM BB7
  • Front Brake: SRAM BB7
  • Rear Brake: SRAM Centerline 160mm front/rear
  • Rotors: Thomson Elite, 20mm setback
  • Seatpost: WTB Pure V Comp
  • Saddle: Salsa, 15 x 100mm
  • Front Hub: Salsa 12 x 148mm BOOST
  • Rear Hub: DT Swiss Competition, butted, black
  • Spokes: WTB Scraper i45, 29+, tubeless
  • Rims: Surly Knard, 29 x 3.0", 120tpi
  • Tires: 29 lb 5 oz

Frame Specs

  • Design Wheel/Tire Size: 29 x 2.8–3.0" max
  • Rigid fork Length: 483–486mm
  • Suspension Fork Length (Travel): 501–511mm (100mm)
  • Fork Offset: 45–51mm
  • Headset-Upper: ZS44
  • Headset-Lower: EC44
  • Seatpost: 27.2mm
  • Seat Collar: 30.0mm
  • Front Derailleur Type: Compact 2x, top-pull only
  • Front Derailleur Mount: High direct-mount (29mm offset) via Ø28.6mm clamp Problem Solvers Bracket (FS1328)
  • Bottom Bracket: 73mm BSA, threaded
  • Crankset: 2x: SRAM 39/26t max BOOST version 1x: 34t BOOST version
  • Rear Brake (Rotor): 51mm standard (160–180mm)
  • Rear Spacing: 148 x 12mm thru-axle
  • Rear Axle Size: 12 x 180L, TP = 1.75mm, TL = 20mm
  • Derailleur Hanger: QR = FS1312; TA = FS1373; L Rohloff QR= FS1371
  • Bottle Mounts: 3

Geometry

Geometry Diagram
Small Medium Large X-Large
Top Tube Effective Metric 545 565 580 600
Seat Tube Length Metric 457.2 457.2 508 558.8
Head Tube Length Metric 100 125 150 170
Head Tube Angle 69 69.5 70 70
Seat Tube Angle 74 73 73 73
BB Drop Metric 70 70 70 70
Chainstay Length Metric 455 - 472 455 - 472 455 - 472 455 - 472
Fork Length Metric 483 483 483 483
Fork Offset Metric 45 45 45 45
Wheelbase Metric 1075 - 1092 1079.7 - 1096.7 1090.4 - 1107.4 1111.5 - 1128.5
Stack Metric 608.3 633.9 659.7 678.5
Reach Metric 370.6 371.2 378.3 392.6
Standover Metric 741.7 787 829 867.2
Rider Height Metric 160cm - 175cm 173cm - 183cm 180cm - 191cm 188cm - UP
BB Center to Center Metric
Stem Length 70 80 90 100
Crank Length 170 175 175 175
Handlebar Width 44 44 46 46
Seatpost Offset Metric 16 16 16 16
  • A suspension fork which is equivalent to an average 100mm fork at 20% sag
  • A 29 x 3" tire measuring 773mm in diameter
  • Standover (P) measured vertically to top of toptube from a position 50mm forward of BB center

Supportive Documents

Support Document links

Additional Features

29+ Wheel Size

The 29+ wheel size provides amazing roll-over capabilities because of its massive diameter. The ability to explore, go where you want to go, off-road ramble is brought to an all-new high. Get them up to speed and get moving!

Cobra Kai CroMoly Tubeset

Our next-generation, Salsa-designed, externally and internally butted 4130 tubeset, engineered from the ground up, provides a strong frame at an impressively low weight. Specifically designed for and found on select Salsa frames

Boost Technology

148 x 12mm rear spacing paired with a standard width bottom bracket results in the most tire clearance possible with the narrowest crank Q-factor, and also results in a stiffer and stronger rear wheel

Firestarter Carbon Fork

Full carbon fork with a tapered 1-1/8 to 1-1/2" steerer tube for confidence-inspired tracking through the tough stuff. Massive tire clearance, up to 29 x 3" tires. 15 x 100mm thru-axle and Salsa-designed carbon layup for frame-matching compliance. 74mm post-mount style brake mount. 160 to 200mm disc brake rotor compatible

Alternator Dropout Versatility

The Alternator dropout delivers incredible drivetrain versatility. Run singlespeed or geared, QR or thru-axle, freehub or Rohloff. Set the Alternator dropouts all the way forward for a shorter wheelbase that results in quick and nimble handling, or set back for more stability—the power is yours. See our Alternator Page for more info

Rear Rack Friendly

Designed for use with the Salsa Alternator Standard Rack
