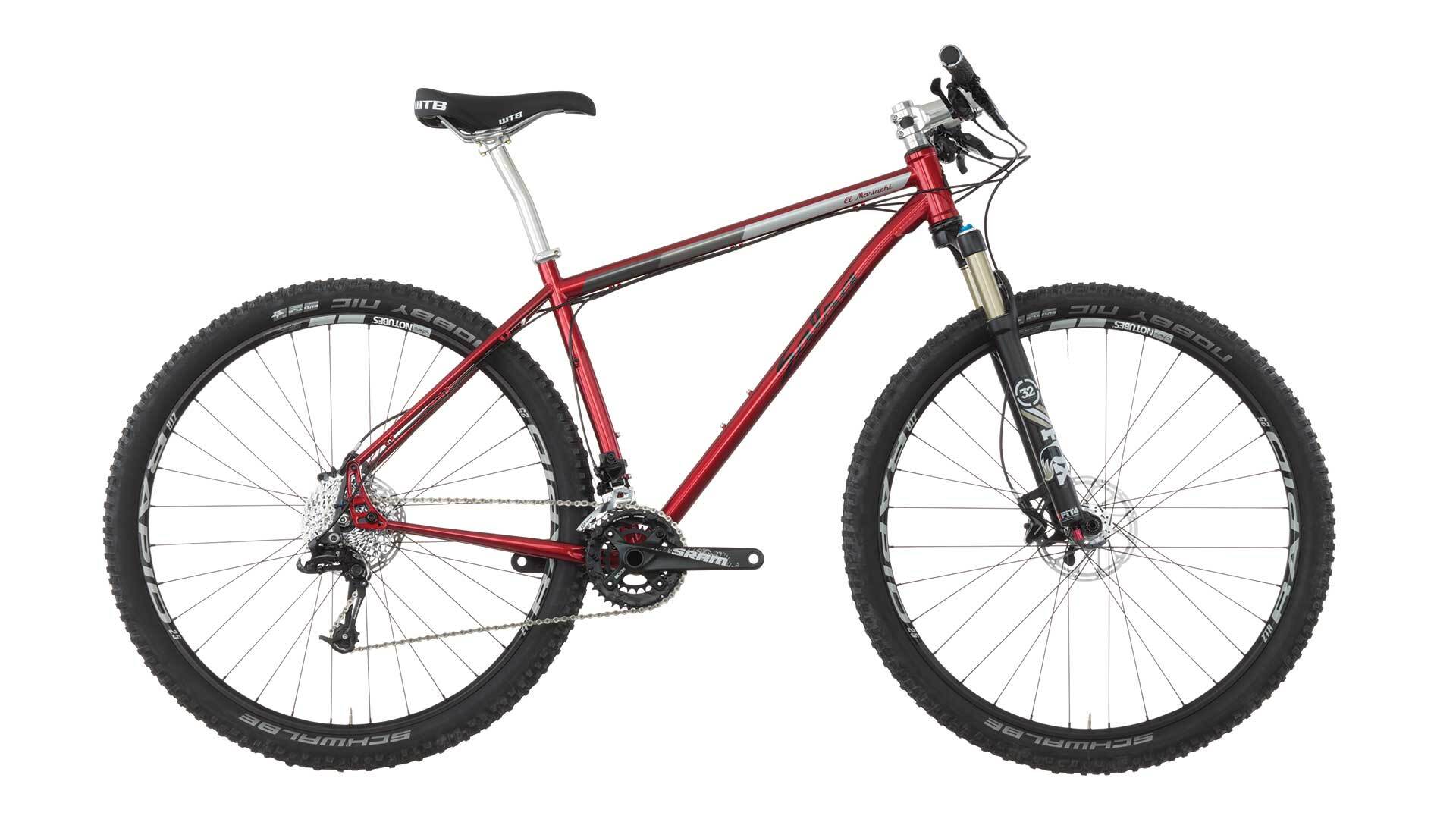

• Salsa El Mariachi GX bike red color side view

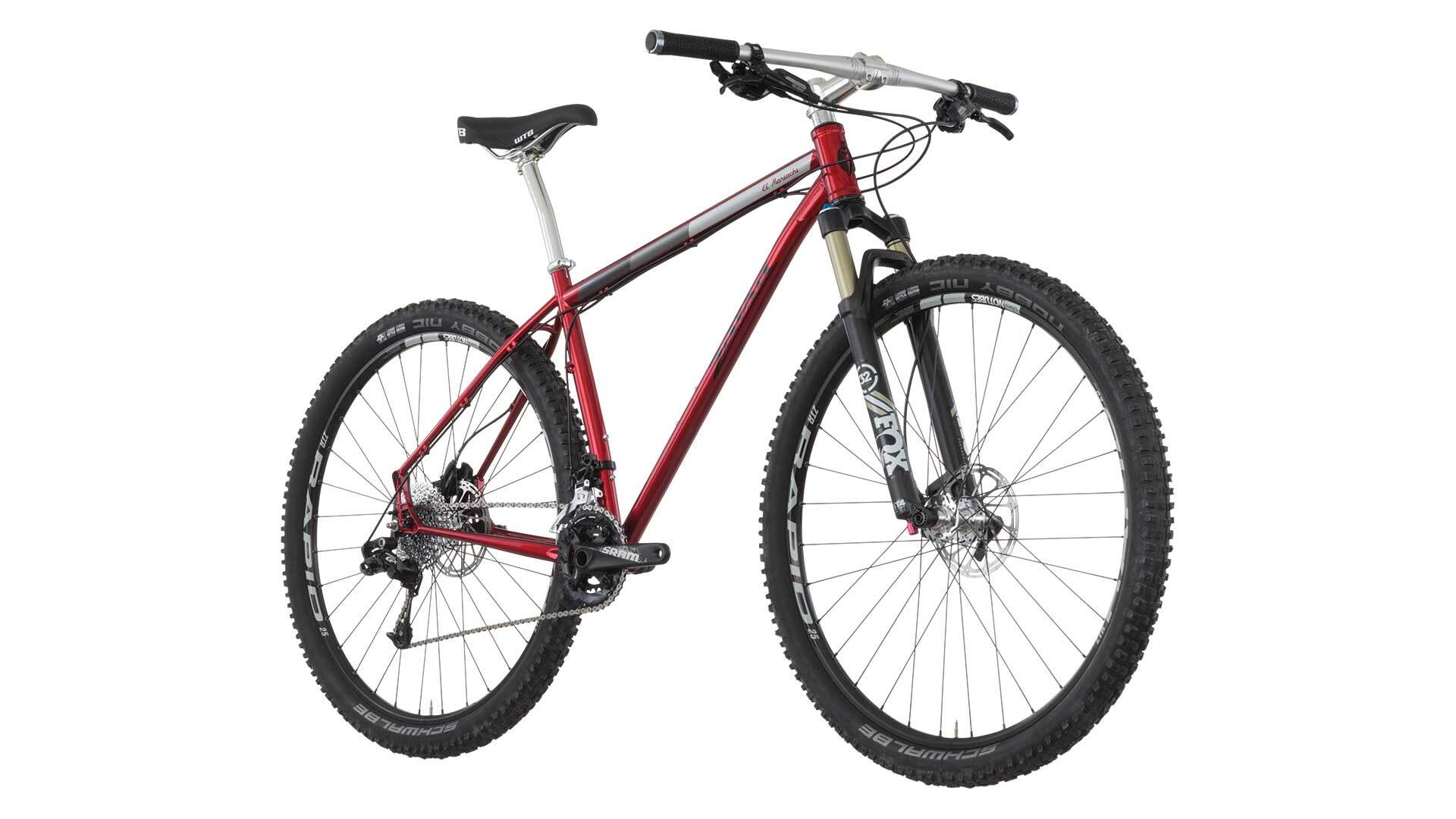

  • Salsa El Mariachi GX bike red color front three-quarter view

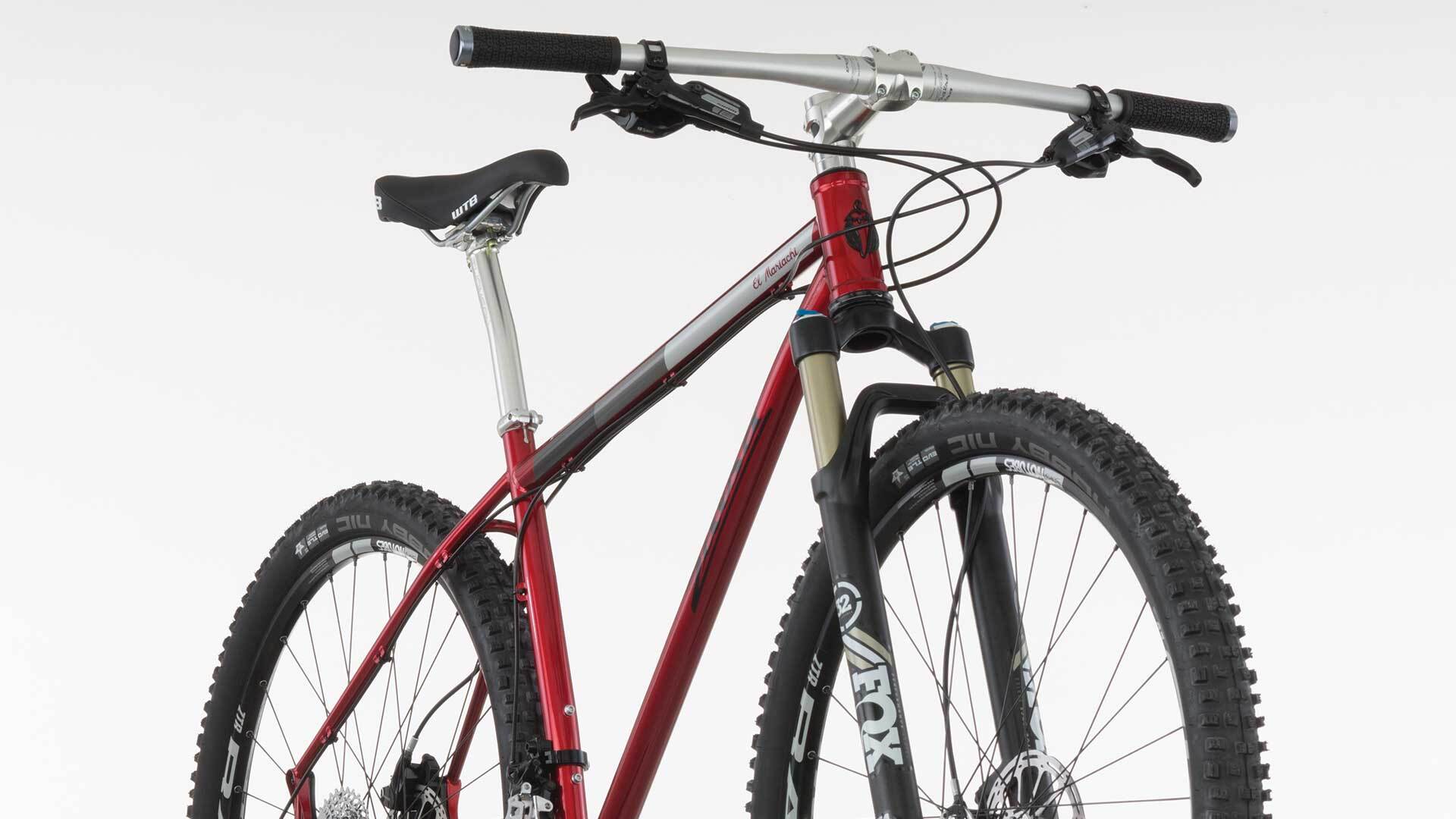

  • Salsa El Mariachi GX bike red front of bike focus

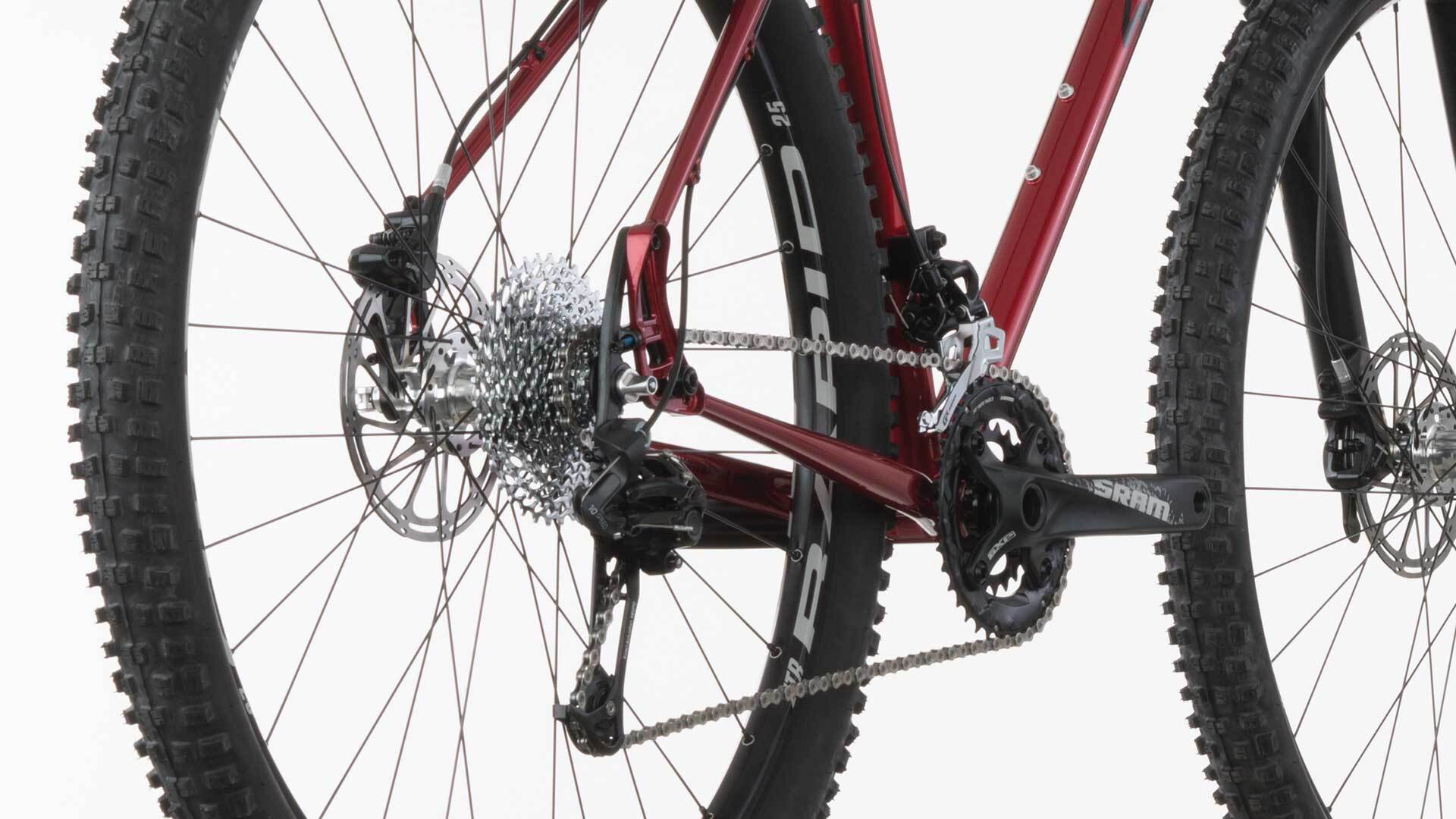

  • Salsa El Mariachi GX bike red rear of bike focus
1 4

2016 El Mariachi GX 2X10

2016 El Mariachi GX 2X10

Archived

2016 El Mariachi GX 2X10

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: El Mariachi Kung Fu 4130 CroMoly
  • Color: Red
  • Fork: Fox FLOAT 32 Performance
  • Rear Shock: SRAM GX HDM
  • Front Der: SRAM GX Type 2, long cage
  • Rear Der: SRAM 1030, 11-36t
  • Cassette: KMC X10
  • Chain: SRAM S1000, 24-38t
  • Crankset: Cane Creek 10 ZS44/28.6 | EC44/40
  • Headset: Thomson X4
  • Stem: Salsa Salt Flat 2
  • Handlebar: Salsa Backcountry Lock-On
  • Grips: SRAM GX
  • Shifters: SRAM DB5
  • Front Brake: SRAM DB5
  • Rear Brake: SRAM Centerline, 160mm front/rear
  • Rotors: Thomson Elite, 20mm setback
  • Seatpost: WTB Volt Comp
  • Saddle: Salsa, 15 x 100mm, thru-axle
  • Front Hub: Salsa, 10 x 135mm, QR
  • Rear Hub: DT Swiss Competition, butted, black
  • Spokes: NoTubes Rapid 25, 32-hole
  • Rims: Nobby Nic, 29 x 2.25", Performance
  • Tires: 28 lb 1 oz for Large

Frame Specs

  • Design Wheel/Tire Size: 29 x 2.1–2.4"
  • Suspension Fork Length (Travel): 501–511mm (100mm)
  • Rigid Fork Length: 483–486mm
  • Fork Offset: 45mm
  • Headset-Upper: ZS44
  • Headset-Lower: EC44
  • Seatpost: 27.2mm
  • Seat Collar: 30.0mm
  • Front Derailleur Type: 3x or 2x, top-pull only
  • Front Derailleur Mount: High direct -mount (26mm offset) via Ø31.8mm clamp Problem Solvers Bracket (FS1323)
  • Bottom Bracket: 73mm BSA, threaded
  • Crankset: 1x: 32t max standard mountain bike, 2x: 40/28t max standard mountain bike, 3x: 44/32/22t max standard mountain bike
  • Rear Brake (Rotor): 51mm standard (160–180mm)
  • Rear Spacing: 135 x 10mm quick-release, 142 x 12mm thru-axle
  • Rear Axle Size: 12 x 172L, TP= 1.75, TL = 20
  • Derailleur Hanger: QR = FS1312; TA = FS1374; SS = FS1318; SSTA = FS1375; L Rohloff = FS1371; TA Kit = FS1370
  • Bottle Mounts: XS–SM = 1, MD–XL = 2

Geometry

Geometry Diagram
X-Small Small Medium Large X-Large
Top Tube Effective Metric 565 580 600 620 635
Seat Tube Length Metric 355.6 381 431.8 482.6 533.4
Head Tube Length Metric 100 100 100 110 120
Head Tube Angle 71 71 71 71 71
Seat Tube Angle 74 73 73 73 73
BB Drop Metric 60 60 60 60 60
Chainstay Length Metric 430 - 447 430 - 447 430 - 447 430 - 447 430 - 447
Fork Length Metric 483 483 483 483 483
Fork Offset Metric 45 45 45 45 45
Wheelbase Metric 1052.3 - 1069.3 1055.9 - 1072.9 1096.3 - 1113.3 1096.3 - 1113.3 1111.7 - 1128.7
Stack Metric 600.4 600.4 600.4 609.8 619.2
Reach Metric 392.9 396.4 416.5 433.6 445.7
Standover Metric 697.4 717.2 752.4 790.2 828.6
Rider Height Metric 157cm - 168cm 165cm - 175cm 173cm - 183cm 180cm - 191cm 188cm - UP
BB Center to Center Metric
Stem Length 70 80 90 100 110
Crank Length 170 170 175 175 175
Handlebar Width 700 700 750 750 750
Seatpost Offset Metric 20 20 20 20 20
  • An average 100mm fork at 20% sag
  • A 29 x 2.25"" tire measuring 740mm in diameter
  • Standover (P) measured vertically to top of toptube from a position 50mm forward of BB center

Supportive Documents

Support Document links

Additional Features

El Mariachi Geometry

Super-short chainstays for improved singletrack agility, while remaining stable and balanced. Alternator dropouts provide user-customizable geometry. Day-in, day-out, versatile and reliable performance. Perfect for long singletrack sessions and bikepacking expeditions

Kung Fu CroMoly Tubeset

Salsa-designed, triple-butted, and frame size-specific seamless Sanko CroMoly Kung Fu tubing

Alternator Dropout Versatility

The Alternator dropout delivers incredible drivetrain versatility. Run singlespeed or geared, QR or thru-axle, freehub or Rohloff. Set the Alternator dropouts all the way forward for a shorter wheelbase that results in quick and nimble handling, or set back for more stability—the power is yours. See our Alternator Page for more info

Massive Tire & Mud Clearance

Fits 29 x 2.4" tires with room to spare for wet conditions

Rear Rack Friendly

Designed for use with the Salsa Alternator Standard Rack

ZS44 Semi-Integrated Headset Standard

Compatible with tapered or straight 1-1/8" steerer forks
