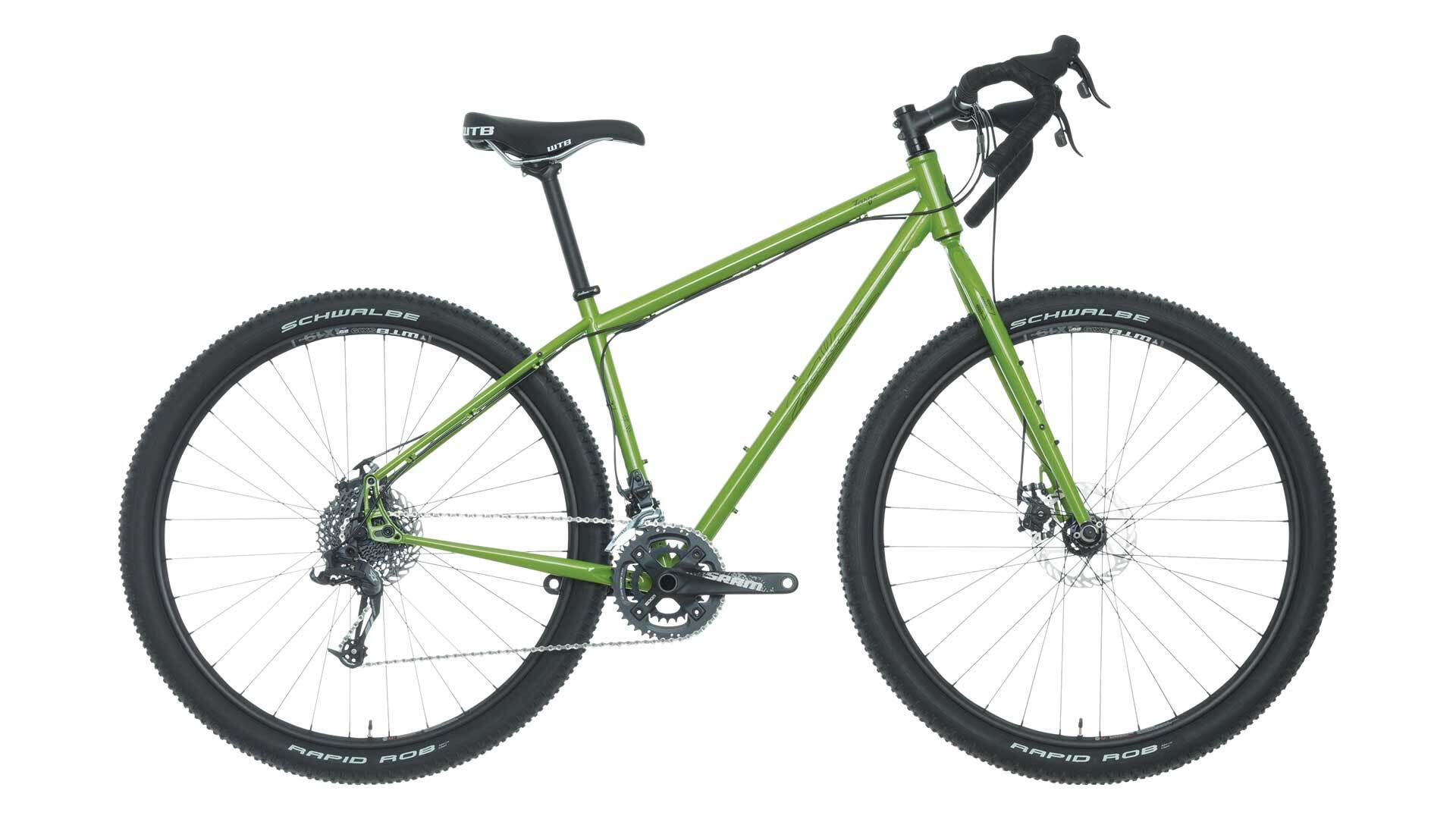

• Salsa Fargo X7 bike green color side view

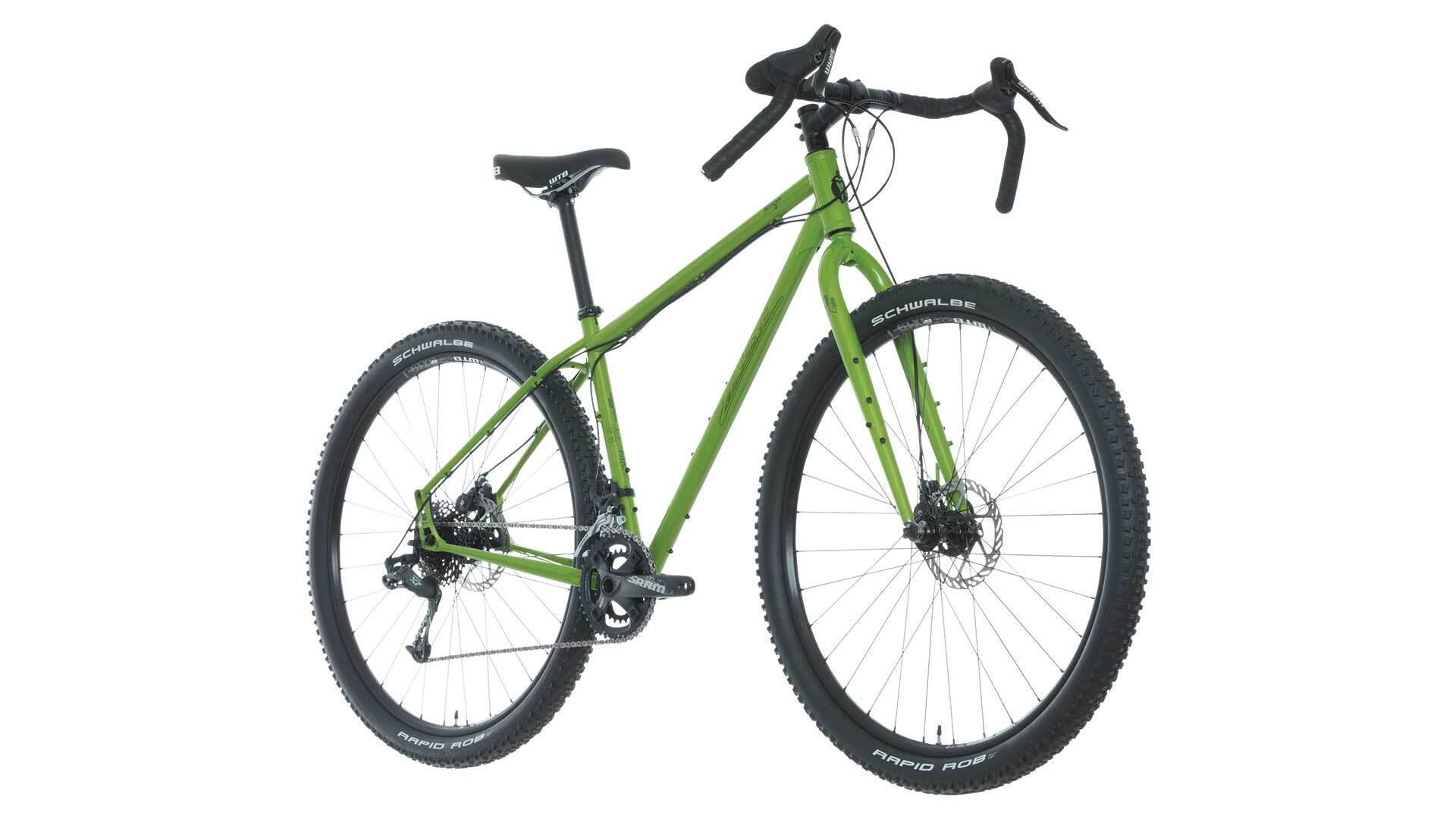

  • Salsa Fargo X7 bike green color front three-quarter view

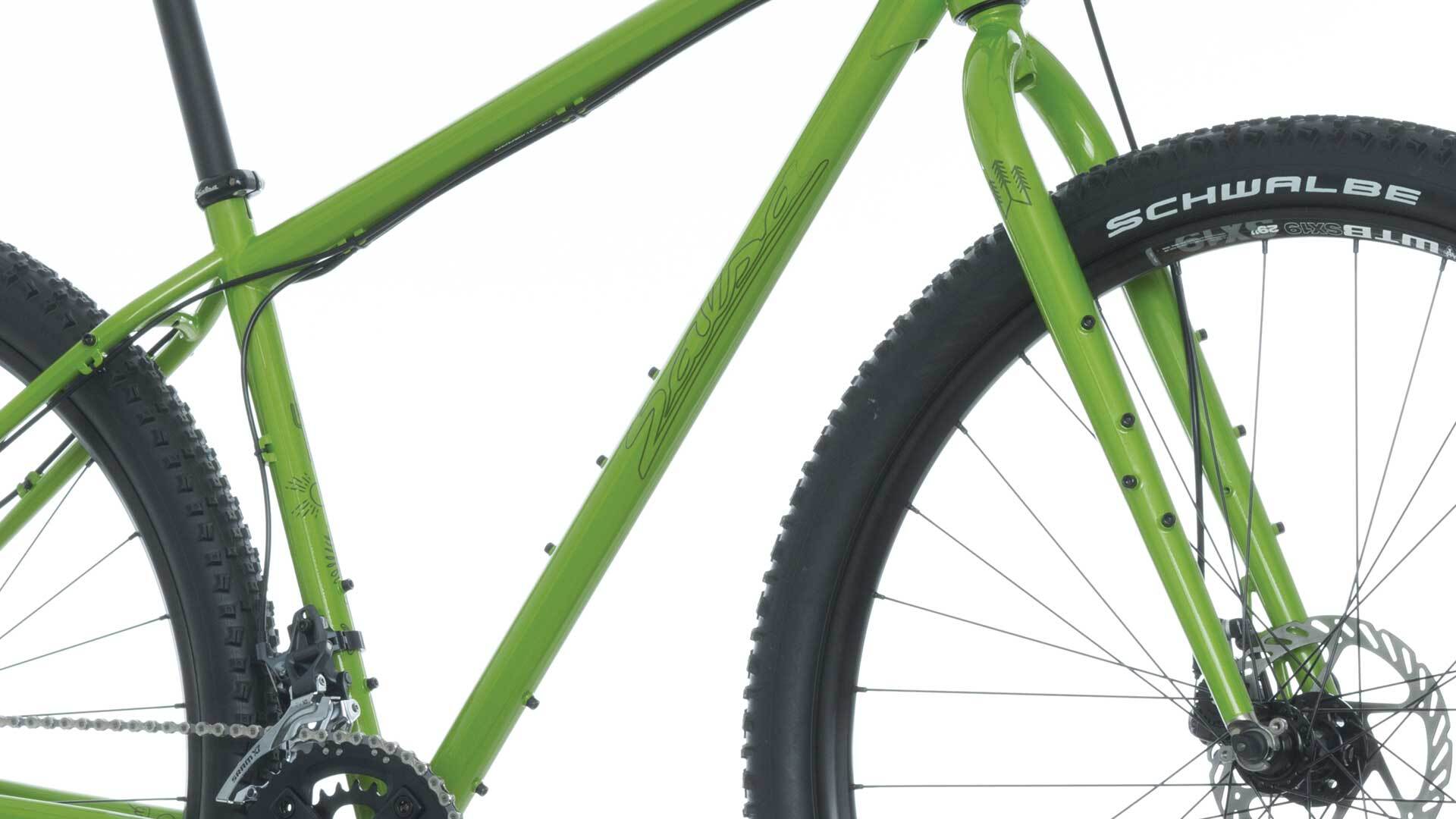

  • Salsa Fargo X7 bike green color front three-quarter view close-up

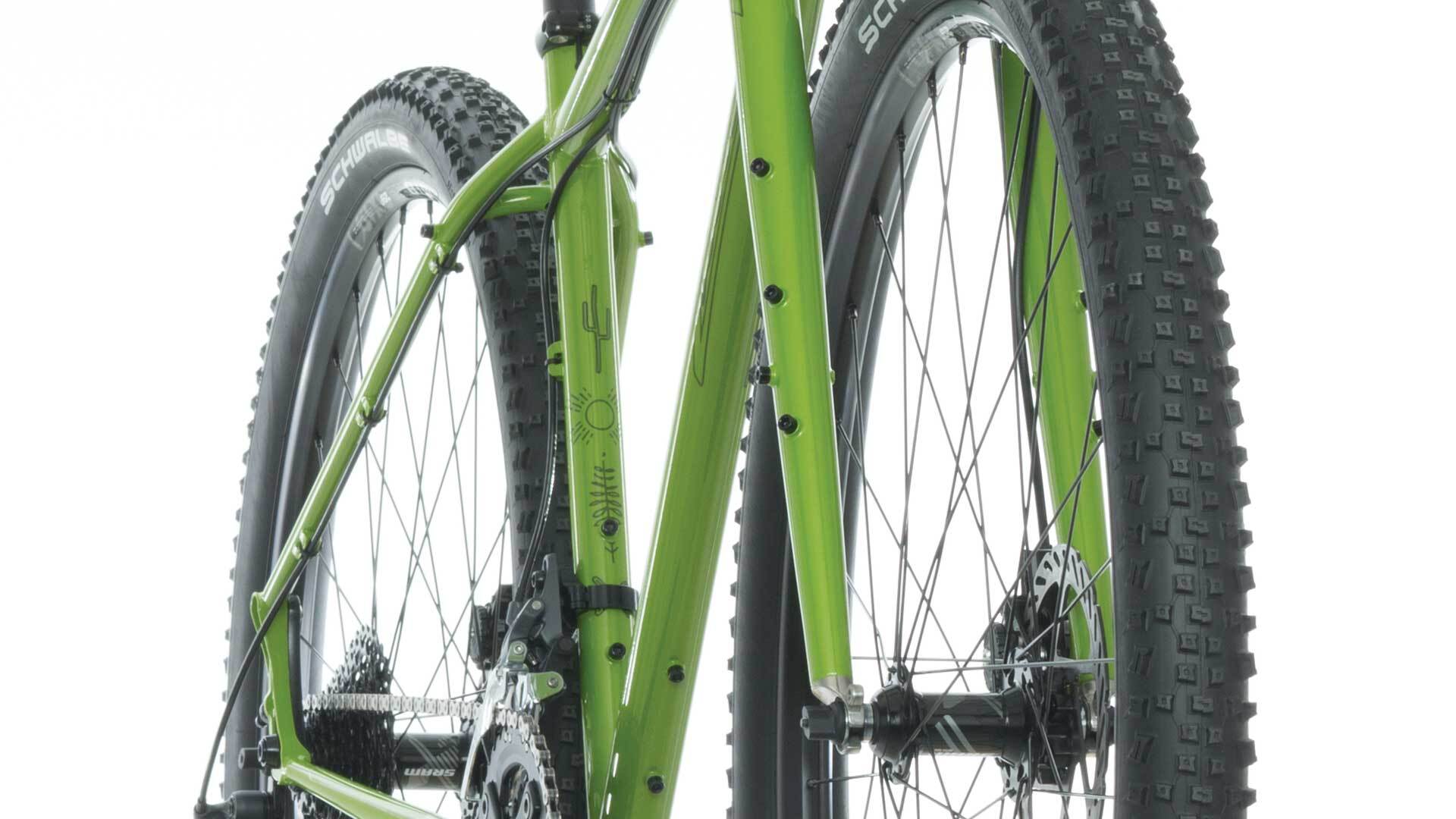

  • Salsa Fargo X7 bike green color front view close-up
1 4

2016 Fargo X7

2016 Fargo X7

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Fargo Kung Fu 4130 CroMoly
  • Color: Green
  • Fork: Firestarter Steel, QR
  • Rear Shock: nil
  • Front Der: SRAM X7 HDM
  • Rear Der: SRAM X7
  • Cassette: SRAM 1020, 11-36t
  • Chain: KMC X10
  • Crankset: SRAM S1000, 28-42t
  • Headset: Cane Creek 10 ZS44/28.6 | ZS44/30
  • Stem: Salsa Guide
  • Handlebar: Salsa Woodchipper 2
  • Grips: Salsa Gel Bar Tape
  • Shifters: SRAM Apex
  • Front Brake: SRAM BB7
  • Rear Brake: SRAM BB7
  • Rotors: SRAM G2CS, 160mm front/rear
  • Seatpost: Zoom SP-218
  • Saddle: WTB Pure V Comp
  • Front Hub: SRAM MTH 506, 100mm QR
  • Rear Hub: SRAM MTH 506, 135mm QR
  • Spokes: DT Swiss Champion, straight, black
  • Rims: WTB SX-19, 32-hole
  • Tires: Schwalbe Rapid Rob, 29 x 2.25"
  • Complete Bike Weight: 28 lb 4 oz for size Medium

Frame Specs

  • Design Wheel/Tire Size: 29 x 2.1–2.3"
  • Suspension Fork Length (Travel): 501–511mm (100mm)
  • Rigid Fork Length: 483–486mm
  • Fork Offset: 45–51mm
  • Headset-Upper: ZS44
  • Headset-Lower: EC44
  • Seatpost: 27.2mm
  • Seat Collar: 30.0mm
  • Front Derailleur Type: 3x or 2x, top-pull only
  • Front Derailleur Mount: High direct-mount (26mm offset) via Ø28.6mm clamp Problem Solvers Bracket (FS1326)
  • Bottom Bracket: 73mm BSA, threaded
  • Crankset: 1x: 32t max standard mountain bike 2x: 42/28t max standard mountain bike 3x: 44/32/22t max standard mountain bike
  • Rear Brake: 51mm I.S.
  • Brake Rotor Compatibility: 160–180mm
  • Rear Spacing: 135 x 10mm QR or 142 x 12mm thru-axle
  • Rear Axle Size: 12 x 174L, TP=1.75, TL=20
  • Derailleur Hanger: QR = FS1312; TA = FS1374; SS = FS1318; SSTA = FS1375; L Rohloff = FS1371; TA Kit = FS1370
  • Bottle Mounts: XS: 2; SM–XL: 3

Geometry

Geometry Diagram
X-Small Small Medium Large X-Large
Top Tube Effective Metric 525 545 565 580 600
Seat Tube Length Metric 355.6 406.4 457.2 508 558.8
Head Tube Length Metric 100 100 125 150 170
Head Tube Angle 69 70 70.5 71 71
Seat Tube Angle 74.5 74 73 73 73
BB Drop Metric 70 70 70 70 70
Chainstay Length Metric 455 - 472 455 - 472 455 - 472 455 - 472 455 - 472
Fork Length Metric 483 483 483 483 483
Fork Offset Metric 45 45 45 45 45
Wheelbase Metric 1060.7 - 1077.7 1064.3 - 1081.3 1068.4 - 1085.4 1078.7 - 1095.7 1099.4 - 1116.4
Stack Metric 608.3 612.7 638.4 664.2 683.1
Reach Metric 356.3 369.3 369.8 376.9 391.2
Standover Metric 697 735.3 781 824.1 862.6
Rider Height Metric 152cm - 163cm 160cm - 175cm 173cm - 183cm 180cm - 191cm 188cm - UP
BB Center to Center Metric
Stem Length 60 70 90 90 100
Crank Length 170 170 175 175 175
Handlebar Width 42 44 44 46 46
Seatpost Offset Metric 20 20 20 20 20
Stem Angle
Wheel Size
Seatpost Dropper Length Travel
Handlebar_Rise_Drop
BB Height

Measurements based on:

  • A Salsa Fargo fork which is equivalent to an average 100mm fork at 20% sag
  • A 29 x 2.25" tire measuring 740mm in diameter
  • Standover (P) measured vertically to top of toptube from a position 50mm forward of BB center

Supportive Documents

Support Document links

Additional Features

Fargo Geometry

Designed as a drop bar mountain bike, optimized for fit with the Salsa Woodchipper bar. Capable of handling everything from technical singletrack trails, two-track, gravel, and the occasional paved road. Predictable handling with or without a load. The bike to ride for multiple surface excursions

Kung Fu CroMoly Tubeset

Salsa-designed, triple-butted, and frame size-specific seamless Sanko CroMoly Kung Fu tubing

Alternator Dropout Versatility

The Alternator dropout delivers incredible drivetrain versatility. Run singlespeed or geared, QR or thru-axle, freehub or Rohloff. Set the Alternator dropouts all the way forward for a shorter wheelbase that results in quick and nimble handling, or set back for more stability—the power is yours. See our Alternator Page for more info

Rear Rack Friendly

Designed for use with the Salsa Alternator Standard Rack

ZS44 Semi-Integrated Headset Standard

Compatible with tapered or straight 1-1/8" steerer forks

Firestarter Steel Fork

The Firestarter steel fork has Three-Pack mounts for Anything Cage compatibility, rack and fender mounts, and mid-blade eyelets for low-rider rack compatibility. Also features our forward-facing stainless steel fork dropouts
