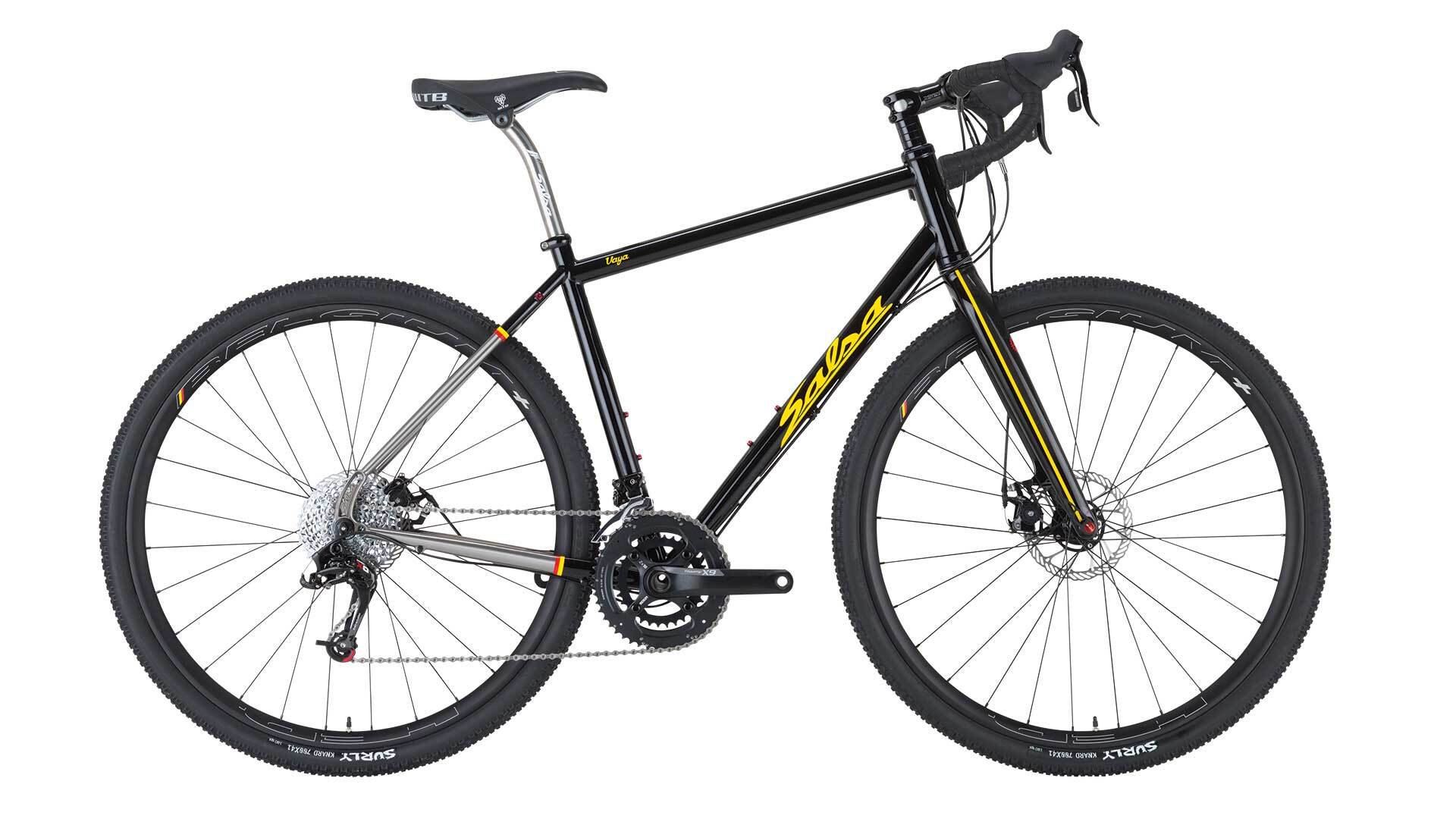

• Salsa Vaya Ti bike black color side view

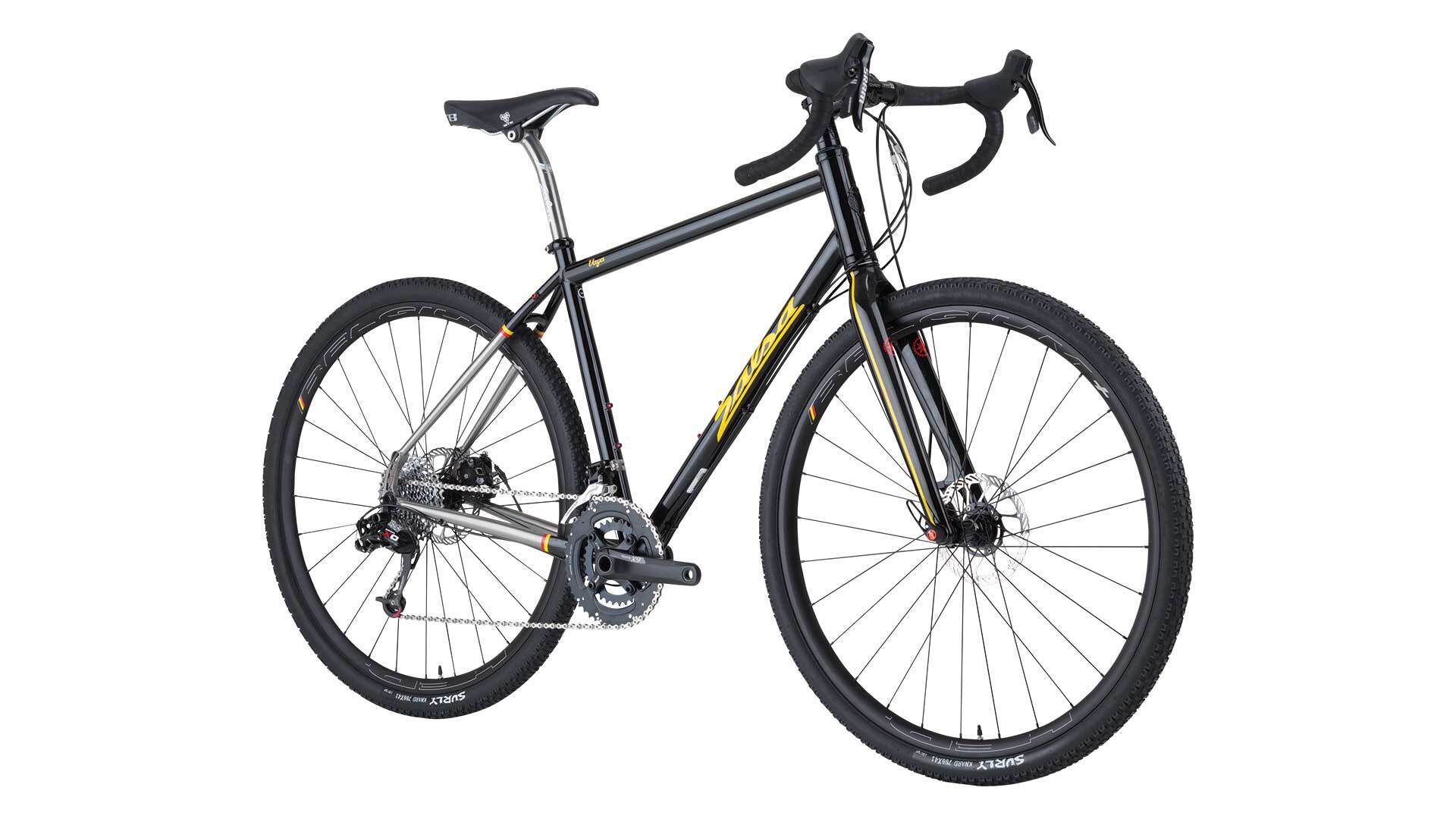

  • Salsa Vaya Ti bike black color front three-quarter view

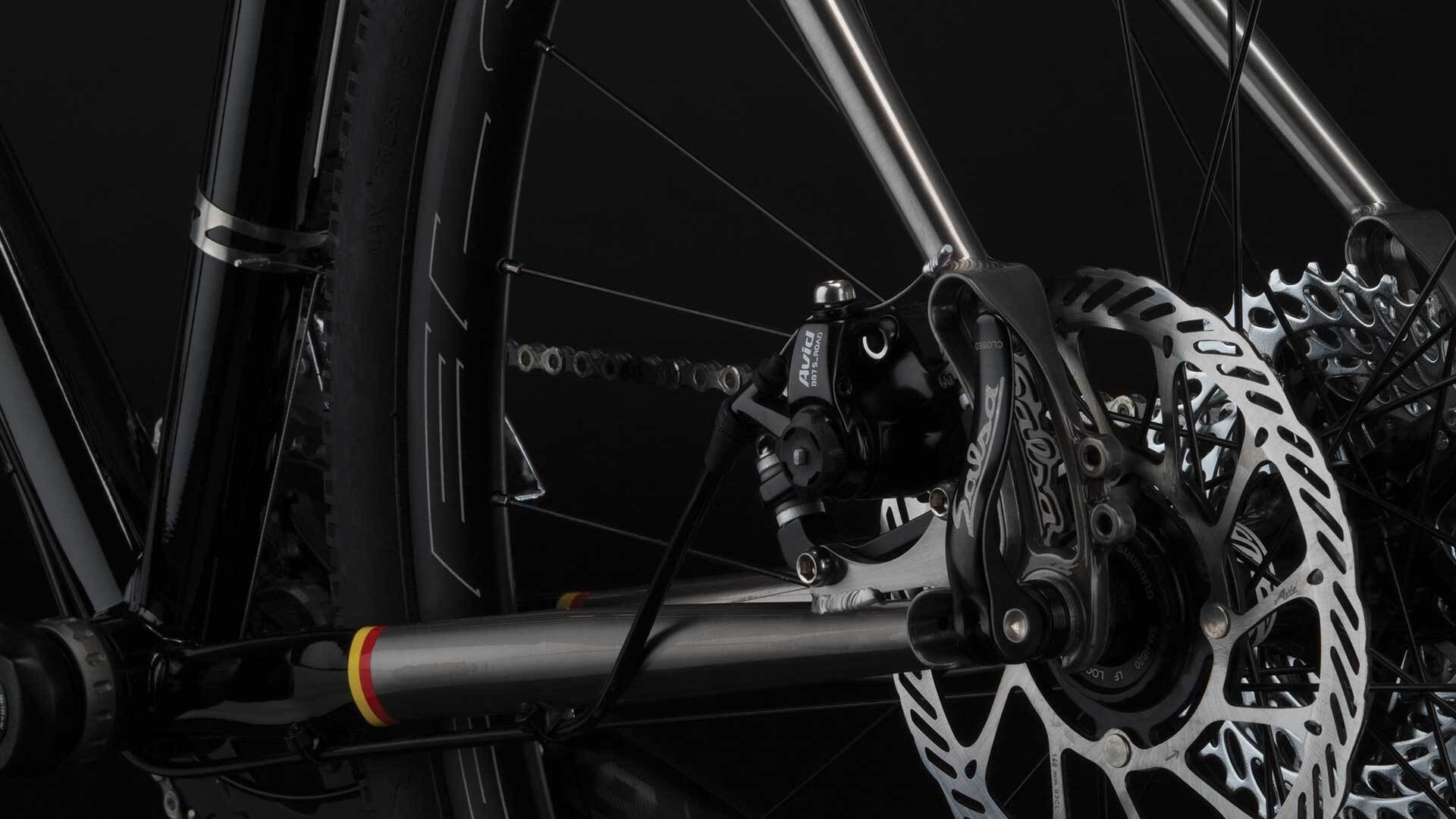

  • Salsa Vaya Ti bike black color rear dropout and disc caliper focus

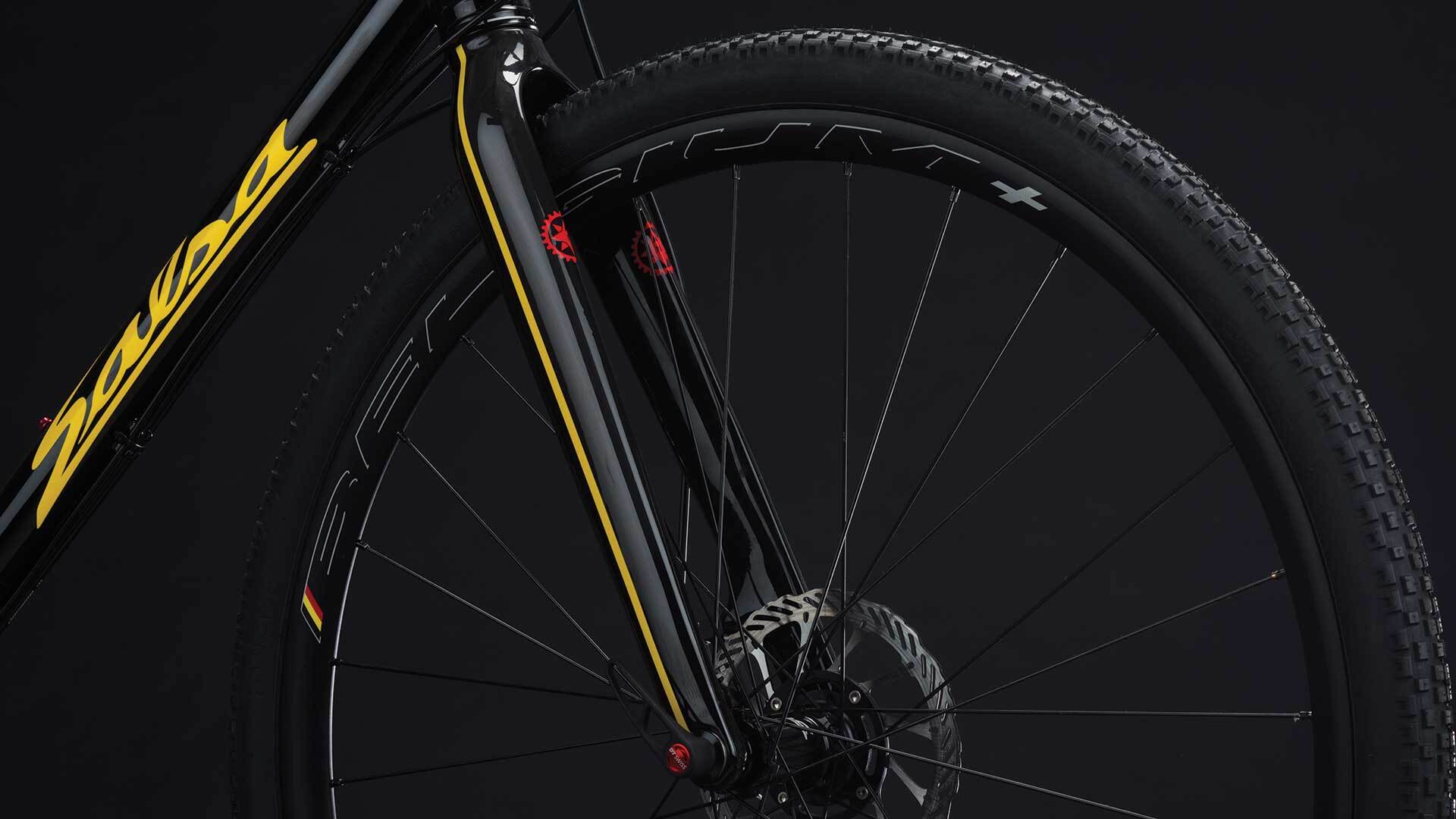

  • Salsa Vaya Ti bike black color fork, down tube and front wheel focus

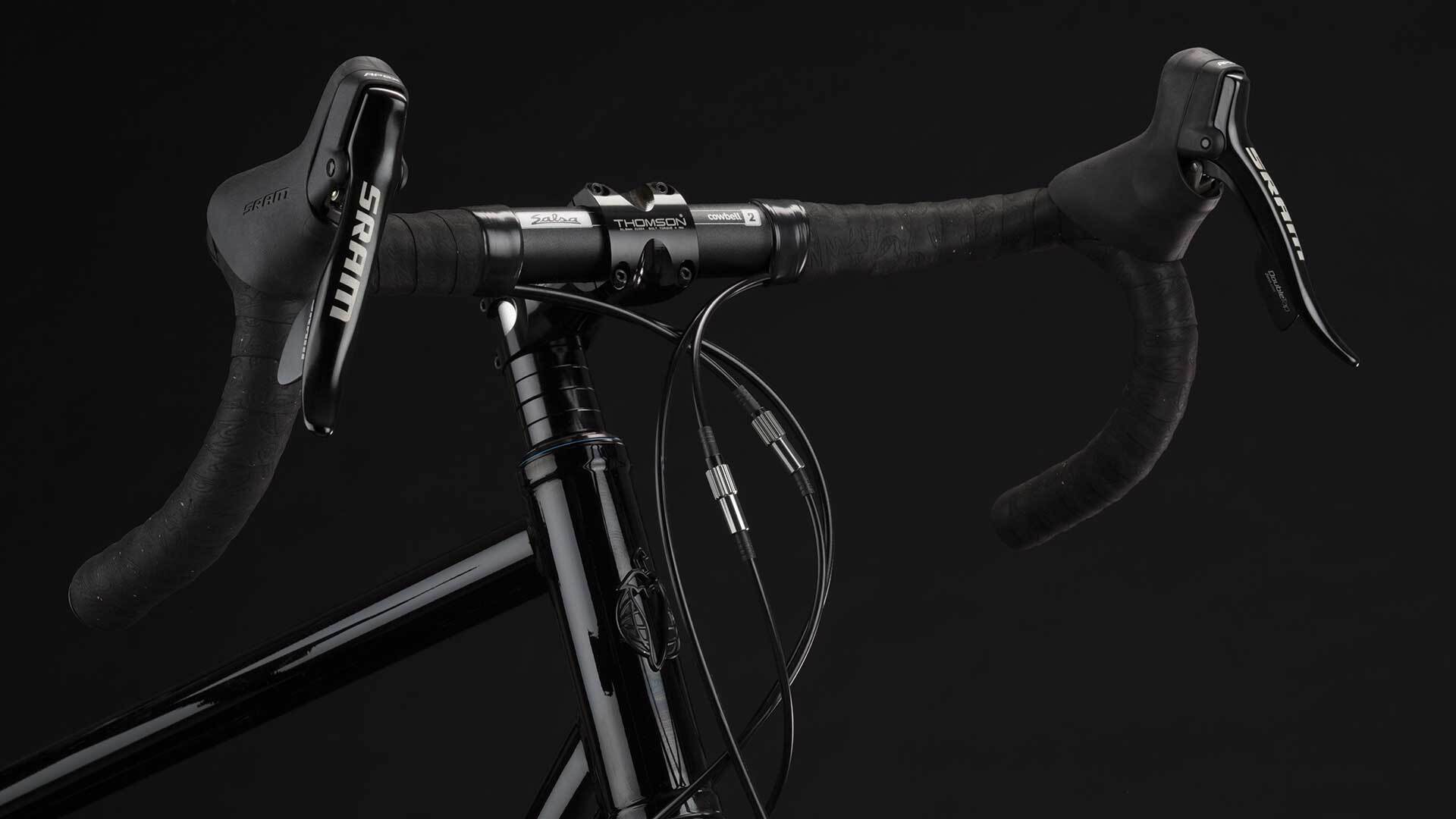

  • Salsa Vaya Ti bike black color headtube, handlebar, and stem area focus
1 5

2016 Vaya Ti X0

2016 Vaya Ti X0

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Vaya Ti
  • Color: Titanium w/ Black
  • Fork: Salsa Vaya Carbon
  • Rear Shock: nil
  • Front Der: SRAM X9 HDM
  • Rear Der: X0 10-speed
  • Cassette: SRAM 1050, 11-36t
  • Chain: KMC X10
  • Crankset: X9 GXP, 48/32t
  • Headset: Cane Creek 40 ZS44/28.6 | EC44/33
  • Stem: Thomson X4
  • Handlebar: Salsa Cowbell 2
  • Grips: Salsa Gel Bar Tape
  • Shifters: SRAM Apex
  • Front Brake: BB7R Black, custom for Salsa
  • Rear Brake: BB7R Black, custom for Salsa
  • Rotors: SRAM G3CL, 160mm front/rear
  • Seatpost: Salsa Regulator Ti w/ setback
  • Saddle: WTB Pure V Race
  • Front Hub: Salsa, 15 x 100mm
  • Rear Hub: Salsa, 10 x 135mm
  • Spokes: DT Swiss Competition, butted, black
  • Rims: HED Belgium+ , 28h, tubeless
  • Tires: Surly Knard, 700 x 42mm, folding
  • Complete Bike Weight: 22 lb 3 oz for 55cm

Frame Specs

  • Design Wheel/Tire Size: Ti: 700 x 45mm w/ fenders Steel: 700 x 42mm w/ fenders
  • Alternative Wheel/Tire Sizes: 405 x 50mm offset
  • Fork Length: 405mm
  • Fork Offset: 50mm
  • Headset-Upper: ZS44
  • Headset-Lower: EC44
  • Seatpost: 27.2mm
  • Seat Collar: Ti: 32mm; Steel: 30mm
  • Front Derailleur Type: Bottom pull
  • Front Derailleur Mount: Band clamp, (Ti: Ø34.9mm, Steel: Ø28.6mm)
  • Bottom Bracket: 68mm BSA, threaded
  • Crankset: 1x crankset: 46t max; 2x crankset: 53/39t max; 3x crankset: 53/39/30t max
  • Rear Brake (Rotor): 51mm standard (140–160mm)
  • Rear Spacing: 135 x 10mm QR
  • Derailleur Hanger: FS2310
  • Bottle Mounts: 2 per frame

Geometry

Geometry Diagram
Metric 49.5 52cm 54cm 55cm 57cm 59cm
Top Tube Effective Metric 495 520 540 550 570 595
Seat Tube Length Metric 380 450 470 510 530 560
Head Tube Length Metric 100 100 145 165 185 205
Head Tube Angle 70.25 71.5 71.5 71.5 71.5 71.5
Seat Tube Angle 75.5 74.5 73.5 73 72.5 72
BB Drop Metric 75 75 75 75 75 75
Chainstay Length Metric 450 450 450 450 450 450
Fork Length Metric 405 405 405 405 405 405
Fork Offset Metric 50 50 50 50 50 50
Wheelbase Metric 1019.4 1023 1034 1039 1054 1072.6
Stack Metric 542.7 547.4 590.1 609.1 628 647
Reach Metric 354.6 368.2 365.2 363.8 372 384.8
Standover Metric 674.3 723.9 752 785 804 829.4
Rider Height Metric 147–158cm 158–165cm 165–173cm 170–178cm 175–185cm 185cm–UP
Stem Length 60 70 80 80 90 100
Crank Length 170 170 170 175 175 175
Handlebar Width 38 40 40 42 44 46
Seatpost Offset Metric 25 25 25 25 25 25
  • Measurements listed are based on a 700 x 41mm tire measuring 709mm in diameter
  • Standover (P) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center

Supportive Documents

Support Document links

Additional Features

Vaya Geometry

Designed as an any road or light touring bike, optimized for fit with Salsa drop bars. Stable handling with a light load, and ready to explore any road

3/2.5 Seamless Titanium Tubeset

Custom-spec’d, triple-butted tubing for frame size appropriate stiffness, compliance, and a fantastic ride quality. Lightweight and superior fatigue life

Rear Rack & Fender Mounts

Integrated rear rack and front and rear fender mounts cast into dropout for durability. Designed to work best with Salsa Wanderlust Rack

Generous Tire Clearance

Clearance for 700c x 47mm tires or 700c x 42mm with fenders

Full-Length Cable Housing with Salsa-Designed Front Derailleur Cable Guide

Improved performance in poor conditions. Full drivetrain cable housing with a front derailleur BB cable guide to keep muck from entering the housing. Clean routing keeps shifting protected. Brake routing is external for easy maintenance

Vaya Carbon Fork

Full carbon fork with a tapered 1-1/8 to 1-1/4" steerer for compliance and ideal ride qualities over rough, uneven surfaces, and a 15 x 100mm thru-axle for confidence-inspired tracking. Hidden fender mounts for a clean look
