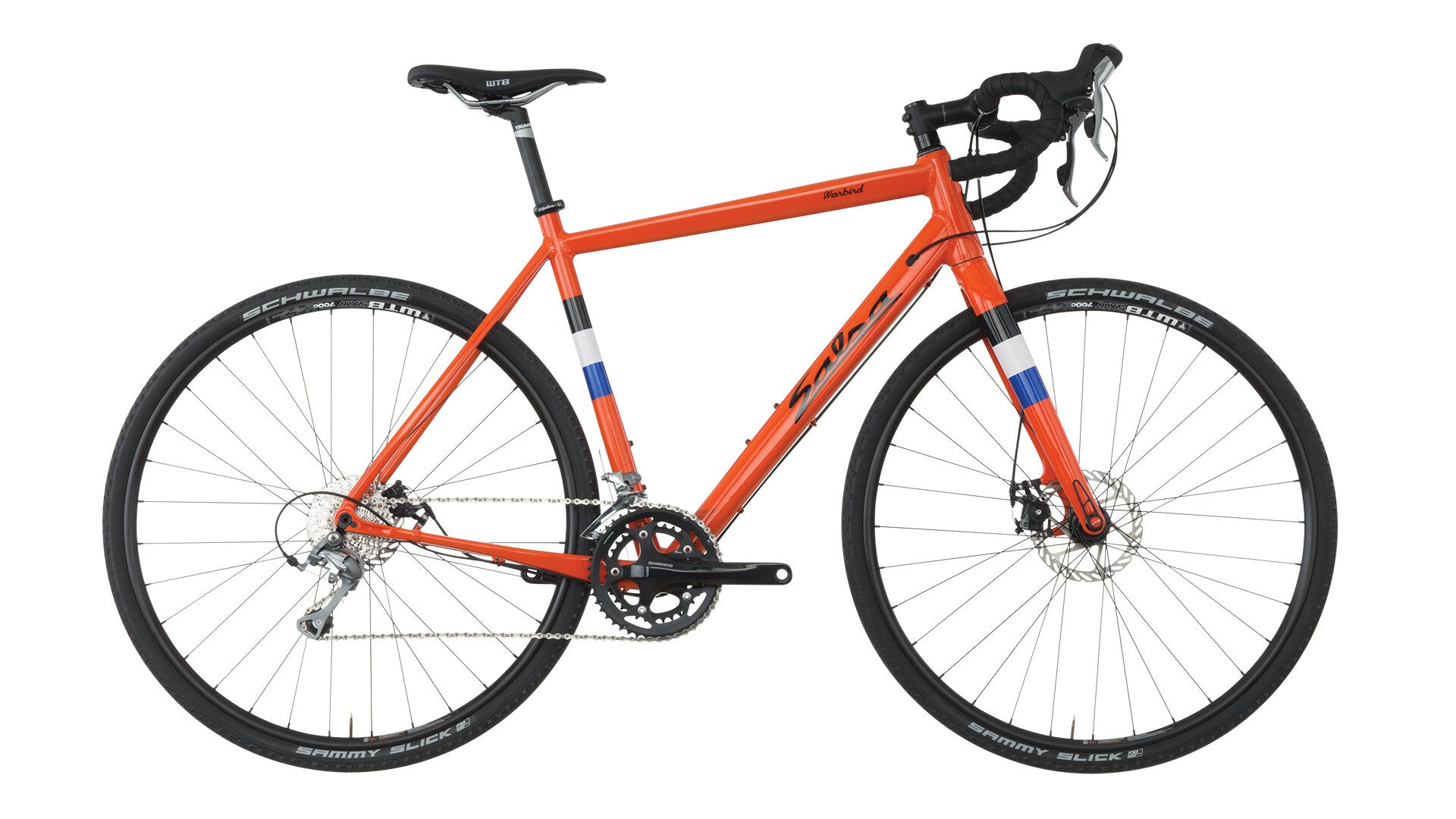

  • Salsa Warbird Tiagra bike orange color side view

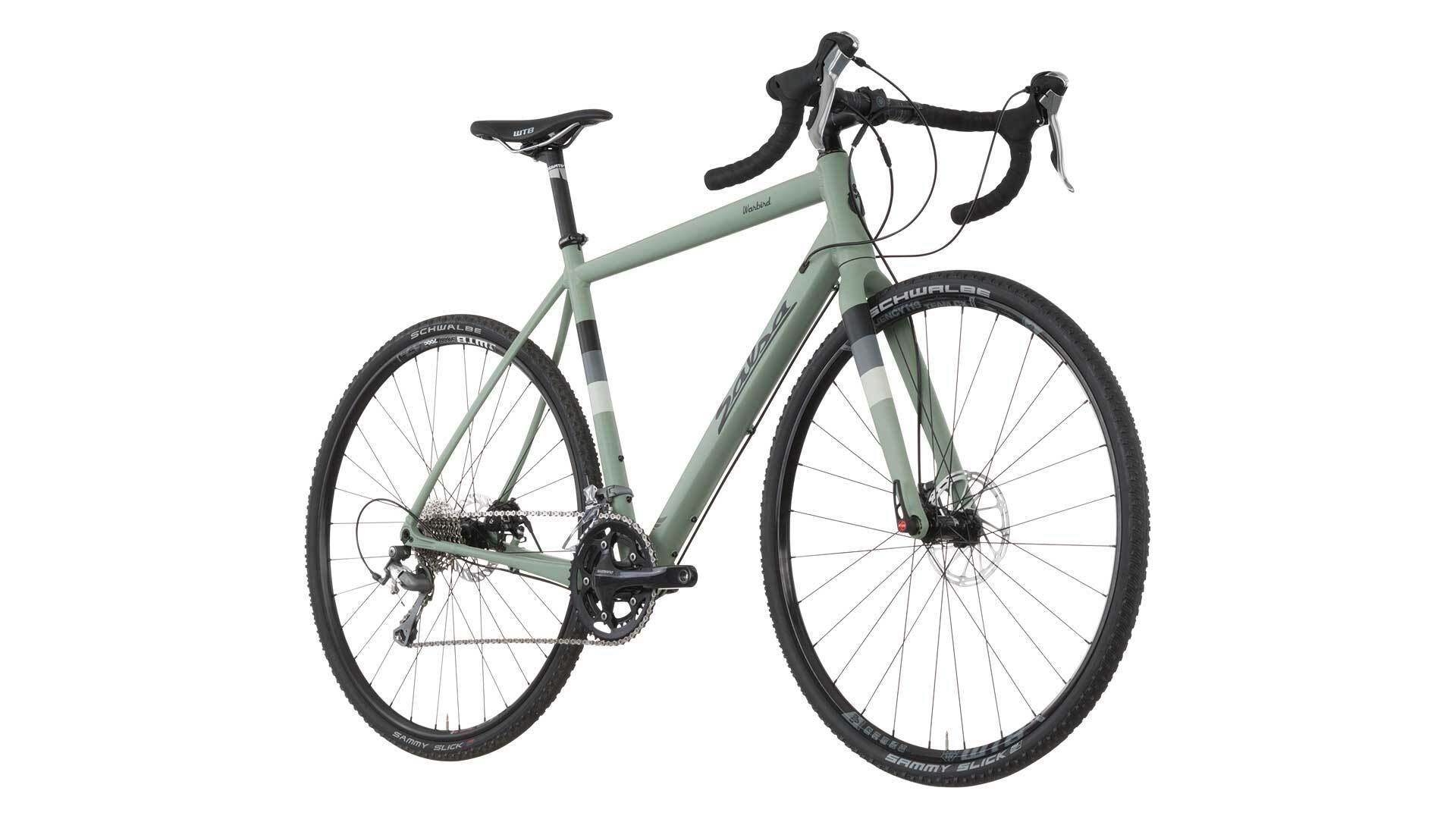

  • Salsa Warbird Tiagra bike light gray color front three-quarter view

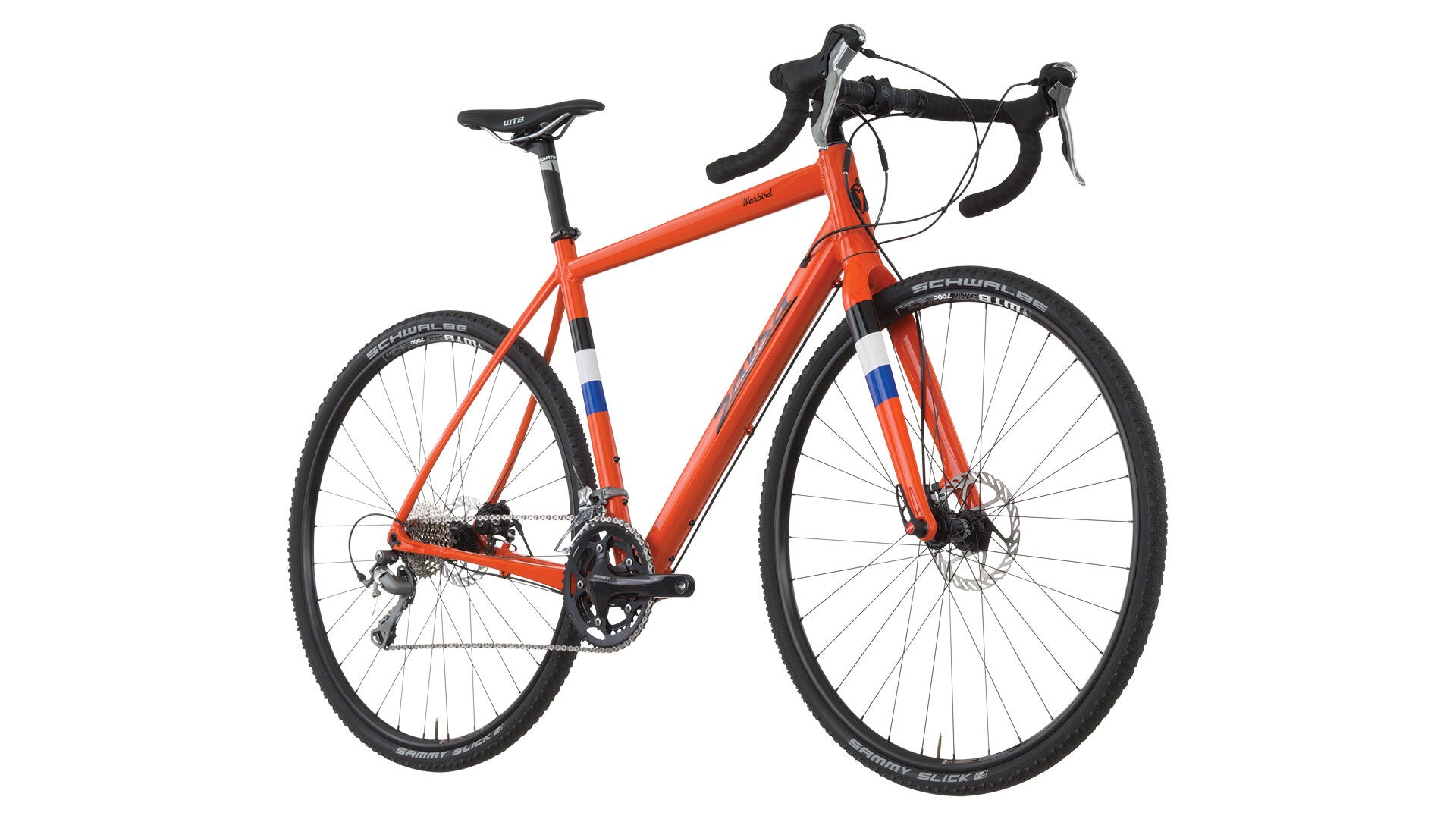

  • Salsa Warbird Tiagra bike orange color front three-quarter view

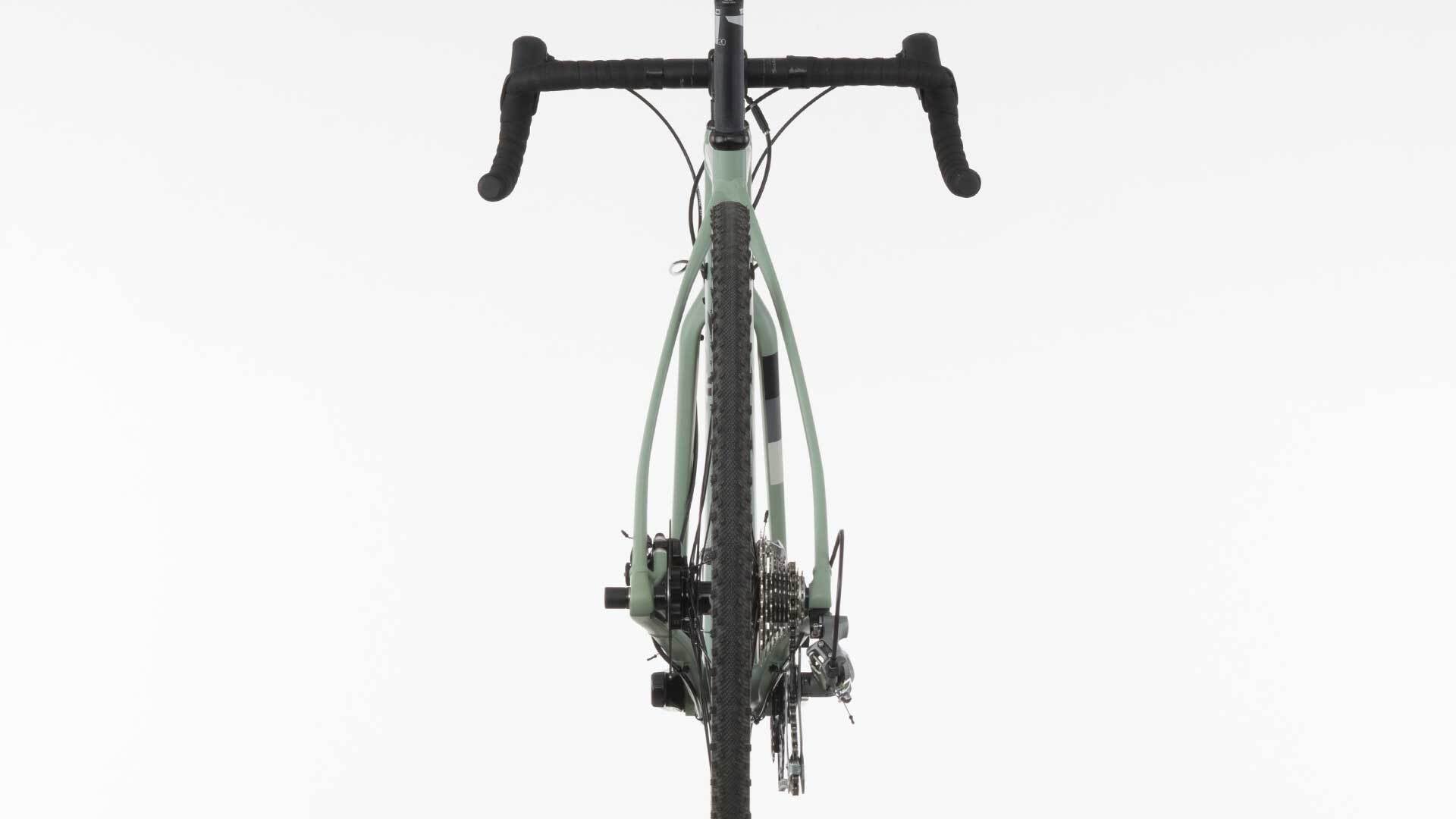

  • Salsa Warbird Tiagra bike light gray color view from back

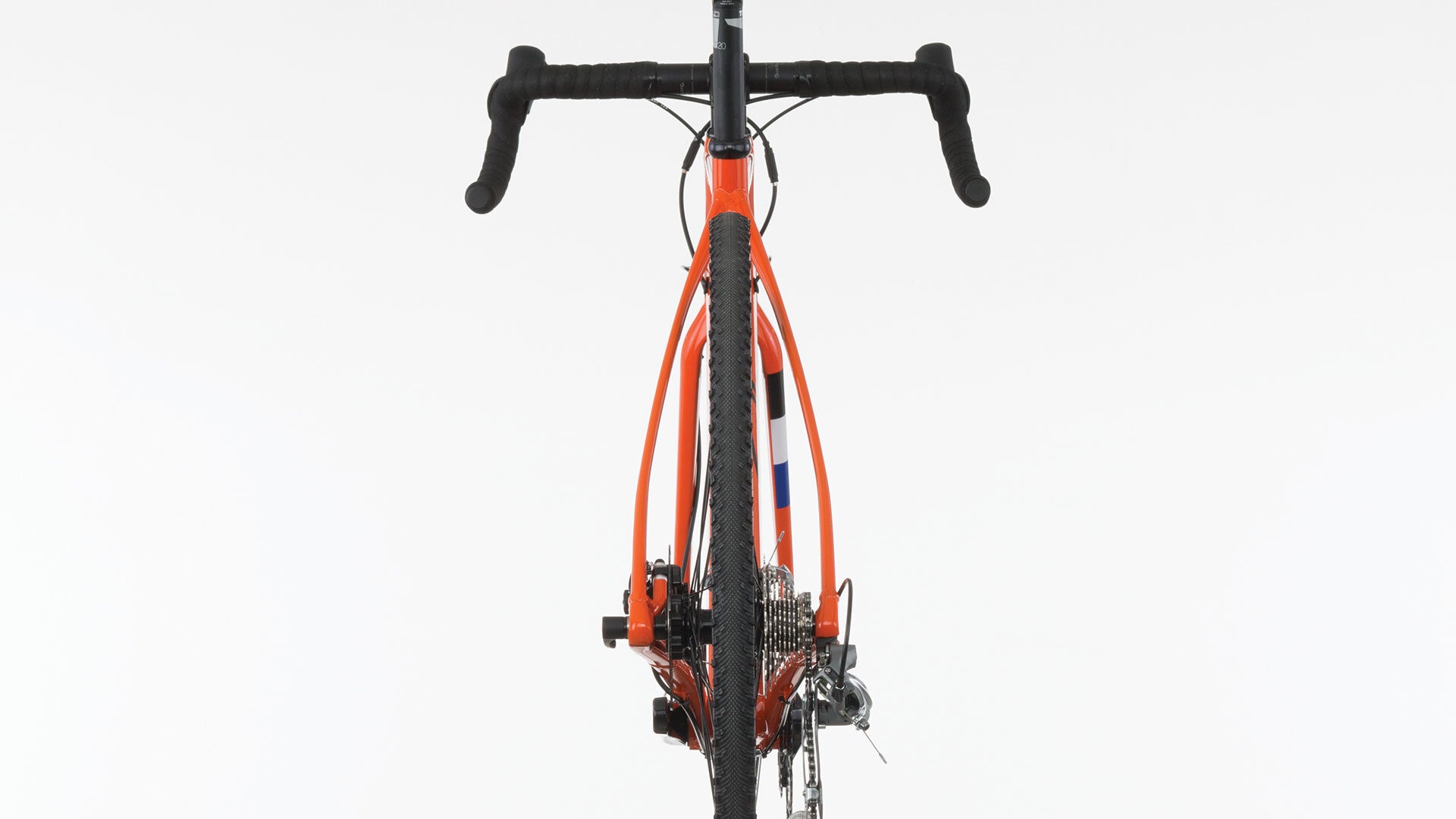

  • Salsa Warbird Tiagra bike orange color view from back

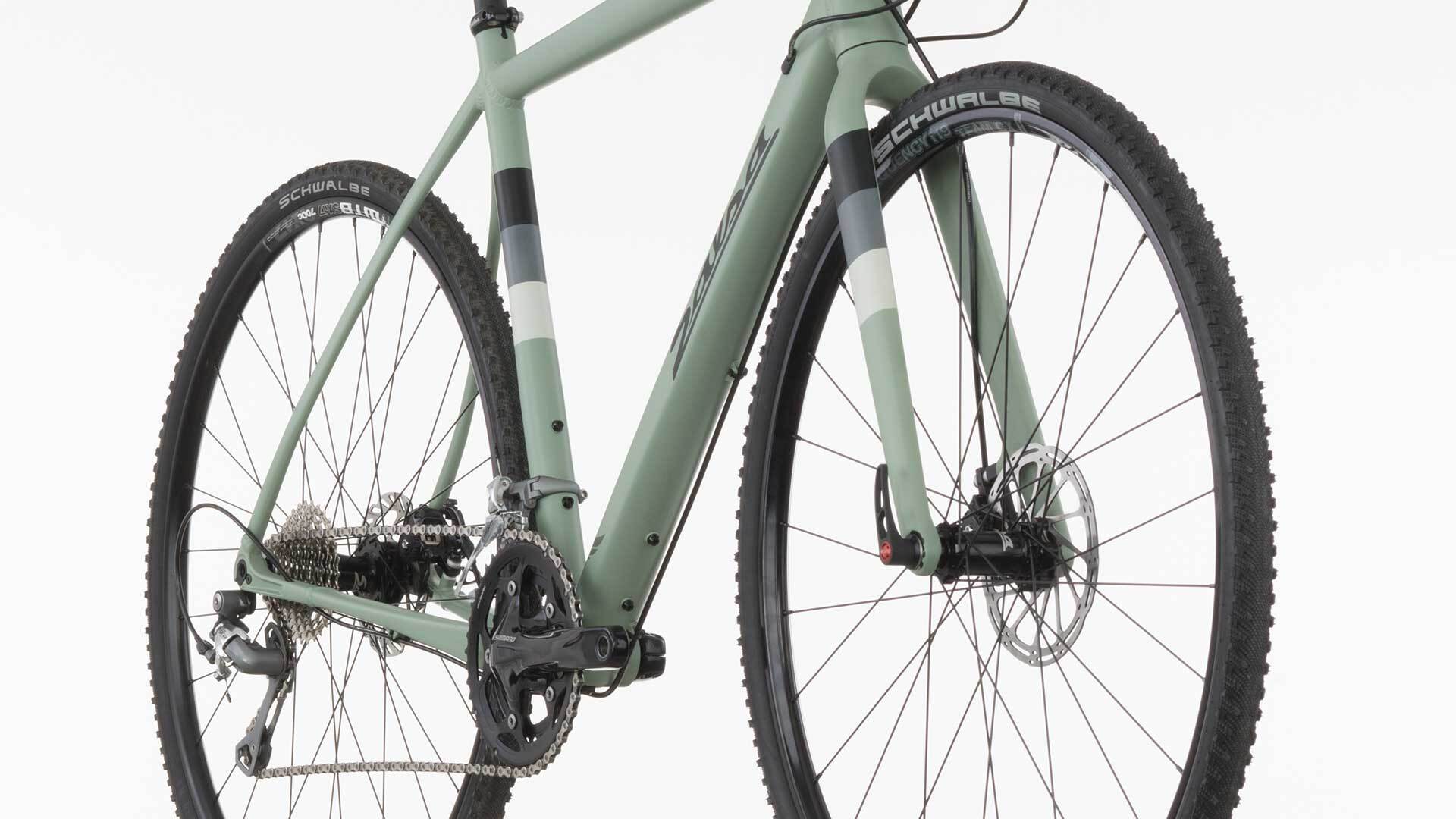

  • Salsa Warbird Tiagra bike light gray color front three-quarter view lower part of bike focus

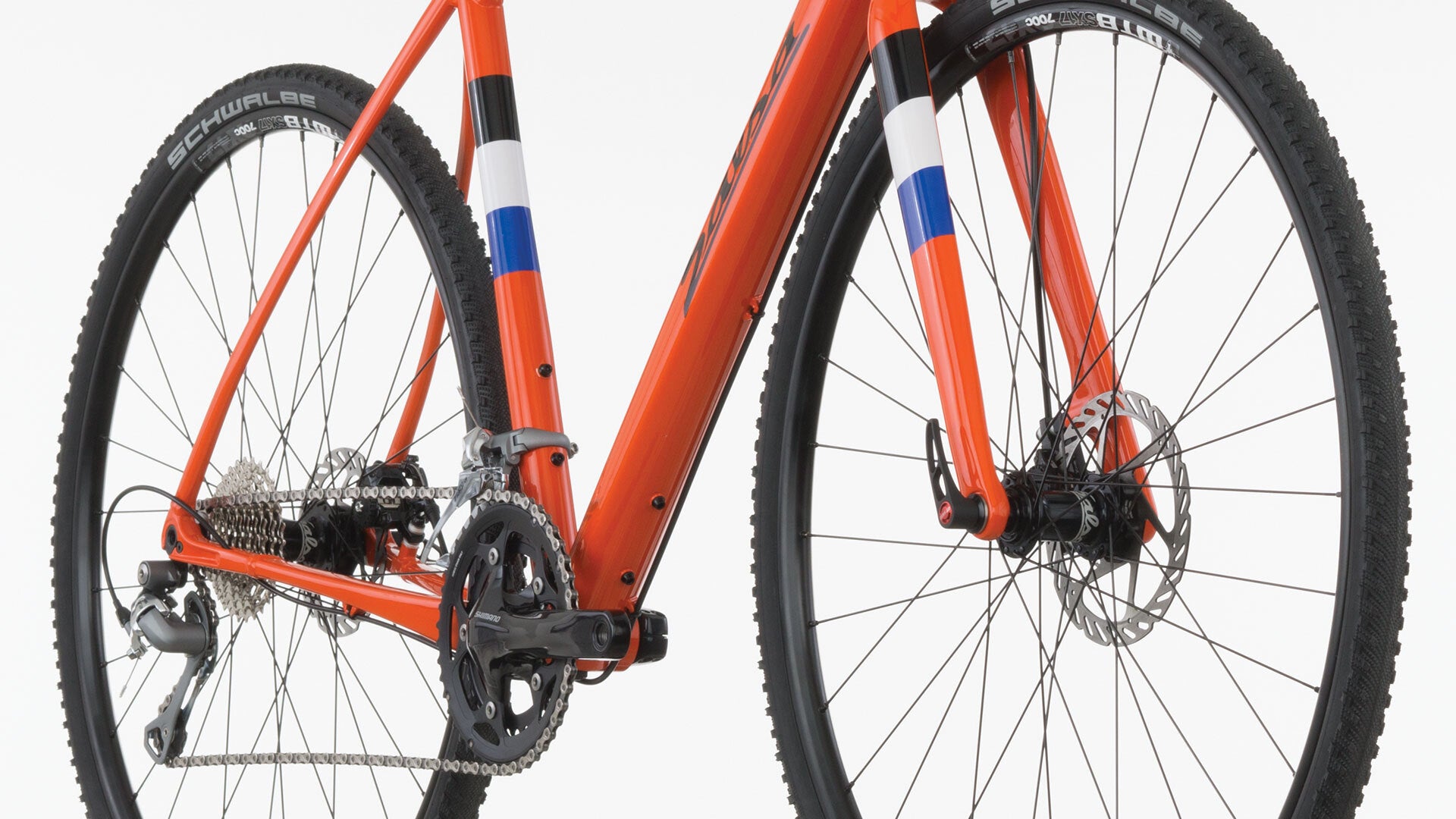

  • Salsa Warbird Tiagra bike orange color front three-quarter view lower part of bike focus
1 8

2016 Warbird Tiagra

2016 Warbird Tiagra

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Salsa Warbird Alloy
  • Color: Army Green or Orange
  • Fork: Warbird Carbon w/ Maxle
  • Rear Shock: nil
  • Front Der: Shimano Tiagra
  • Rear Der: Shimano Tiagra
  • Cassette: Shimano Tiagra 11-30t
  • Chain: KMC X9
  • Crankset: Shimano CX50 BB86, 36/46t
  • Headset: Cane Creek 40 IS41/28.6 | IS47/33
  • Stem: Salsa Guide
  • Handlebar: Salsa Cowbell 3
  • Grips: Salsa Gel Bar Tape
  • Shifters: Shimano Tiagra, 10-speed
  • Front Brake: SRAM BB7R
  • Rear Brake: SRAM BB7R
  • Rotors: 160mm front, 140mm rear
  • Seatpost: Truvativ Stylo T20, 25-offset
  • Saddle: WTB Silverado Comp
  • Front Hub: Salsa, by Formula, 15 x 100mm
  • Rear Hub: Salsa, by Formula, 12 x 142mm
  • Spokes: DT Swiss Champion, straight, black
  • Rims: WTB SX17, 32h
  • Tires: Schwalbe Sammy Slick 35mm, wire bead
  • Complete Bike Weight: 22 lb 6 oz for 56cm

Frame Specs

  • Wheel/Tire Compatability: 700 x 42mm tire
  • Fork: Warbird Carbon Fork, 405 x 45mm offset
  • Headset-Upper: IS41/28.6
  • Headset-Lower: IS47/33
  • Seatpost: 27.2mm
  • Seat Collar: 32.0mm
  • Front Derailleur: Bottom-pull, braze-on only
  • Front Derailleur Bracket: Braze-on
  • Bottom Bracket: PressFit BB86
  • Crankset: 39/53t max. and CX1 46t
  • Rear Brake: 74mm post-mount, 140mm rotor min., 160mm rotor max.
  • Front Brake: see Fork
  • Rear Hub: 142 x 12mm thru-axle
  • Rear Axle Size: M12 x 1.5 - 172 L
  • Front Hub: see Fork
  • Front Axle Size: see Fork
  • Derailleur Hanger: 687 thru-axle
  • Bottle Mounts: 3
  • Cable Routing: Full housing, half internal
  • Frame Weight: 56cm: 1210g

Geometry

Geometry Diagram
Metric 51cm 53cm 55cm 56cm 58cm 60cm
Top Tube Effective Metric 515 535 550 565 580 600
Seat Tube Length Metric 455 495 520 540 575 605
Head Tube Length Metric 100 120 140 160 185 210
Head Tube Angle 70 70.5 70.5 71.5 72 72
Seat Tube Angle 74.5 73.5 73 73 72.5 72
BB Drop Metric 70 70 70 70 70 70
Chainstay Length Metric 430 430 430 430 430 430
Fork Length Metric 405 405 405 405 405 405
Fork Offset Metric 45 45 45 45 45 45
Wheelbase Metric 1007.4 1014 1024.7 1030.3 1034.8 1048.8
Stack Metric 527.7 548.4 567.3 590.1 615.8 639.6
Reach Metric 368.6 372.5 376.6 384.6 385.8 392.2
Standover Metric 716.2 749 771.6 792.4 823.6 850.2
Rider Height Metric 152–160cm 157–165cm 165–175cm 173–183cm 180–190cm 188cm – UP
Stem Length 70 80 90 90 100 110
Crank Length 170 170 172.5 172.5 175 175
Handlebar Width 40 40 42 44 44 46
Seatpost Offset Metric 25 25 25 25 25 25
  • Fork 405 x 45mm offset
  • Standover based on a 700 x 32mm tire measuring 696mm in diameter
  • Standover (P) measured vertically to top of toptube from a position 50mm forward of BB center

Supportive Documents

Support Document links

Additional Features

Aluminum 6069 Tubeset

Salsa-designed AL-6069 hydroformed tubeset for maximum ride quality, low weight, and performance-oriented stiffness

Class 5™ VRS

The Class 5™ Vibration Reduction System has specially shaped seatstays with a tall, thin, vertically oriented profile that promotes vertical compliance by allowing the seatstays to “flex” outwards on impacts. The horizontally oriented chainstays work to resist torque and maintain a laterally stiff rear end. The seatstays and chainstays lack bridges, furthering the full length of the stays to contribute to flexibility. And a rear thru-axle delivers precise tracking while allowing the seatstays to provide that incredible compliance

Internal Cable Routing

Internal cable routing through the downtube, then along the chainstays. Brake routing is external along the downtube and chainstay for easy maintenance. Can be run internally with 1x setups. Frames can be run with full housing internally, cables only, or Di2 routing. Front derailleur cover plate exists to keep frame looking stellar with 1x setups

Full-Length Cable Housing

Improved performance in poor conditions. Drivetrain cable housing is run through the downtube for clean routing and to keep shifting protected. Brake routing is external for easy maintenance; can be run internally with 1x setups

Massive Tire & Mud Clearance

The Warbird can fit up to 42mm tires and still have plenty of room to keep you moving on a muddy B-road

Triple Water Bottle Capacity

Each size can carry up to 3 water bottles on the frame

Full-Length Cable Housing with Salsa-Designed Front Derailleur Cable Guide

Improved performance in poor conditions. Full drivetrain cable housing with a front derailleur BB cable guide to keep muck from entering the housing. Clean routing keeps shifting protected. Brake routing is external for easy maintenance

Warbird Carbon Fork

Full carbon fork with a tapered 1-1/8 to 1-1/4" steerer tube for superior tracking and ride quality. Massive 46mm tire clearance for muddy B-road conditions. 15 x 100mm thru-axle and Salsa-designed carbon layup for frame matching compliance. 74mm post-mount style brake mount. 140 to 160mm disc brake rotor compatible
