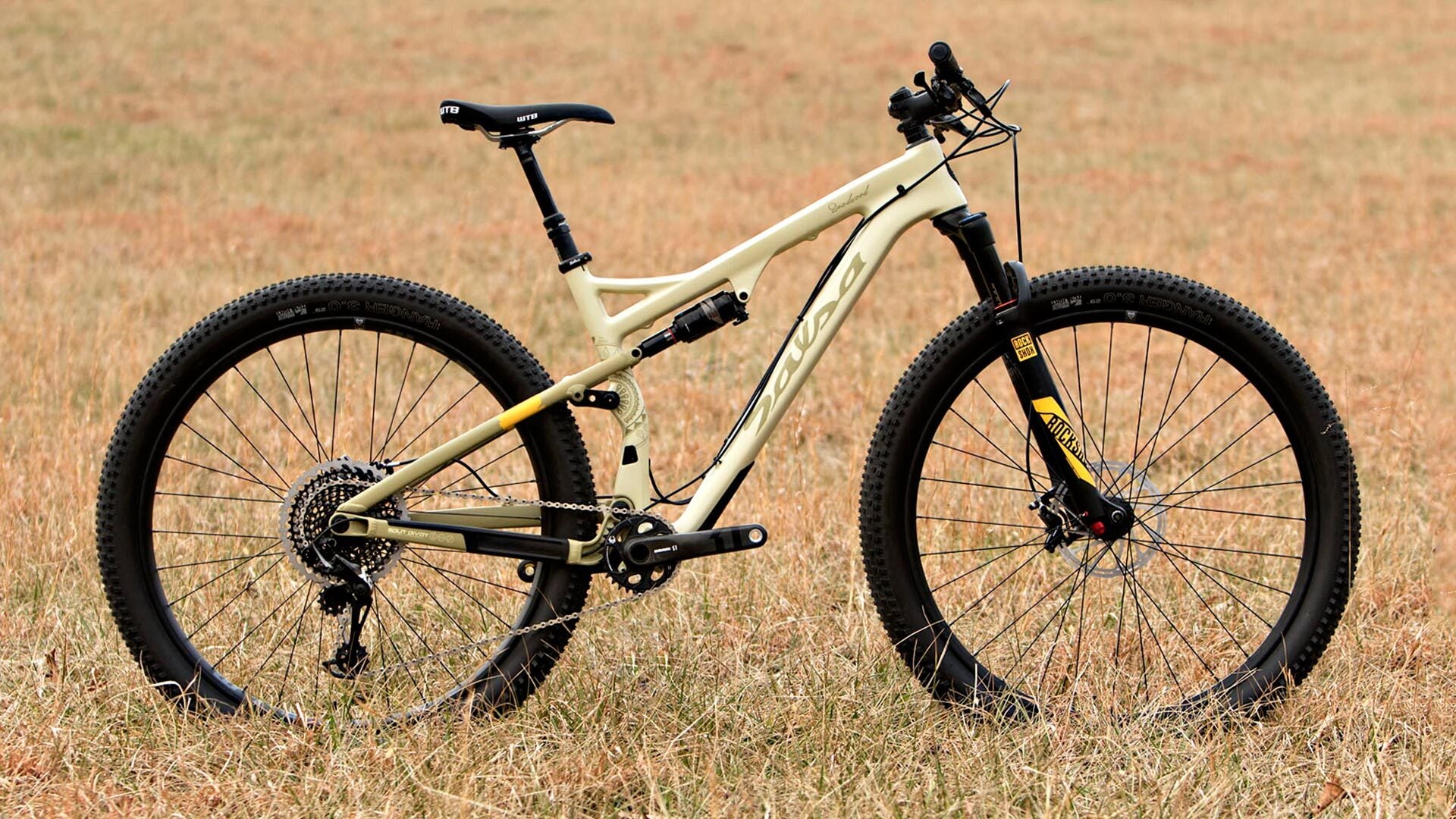

• Salsa Deadwood carbon 29-plus full-suspension bike side view outside

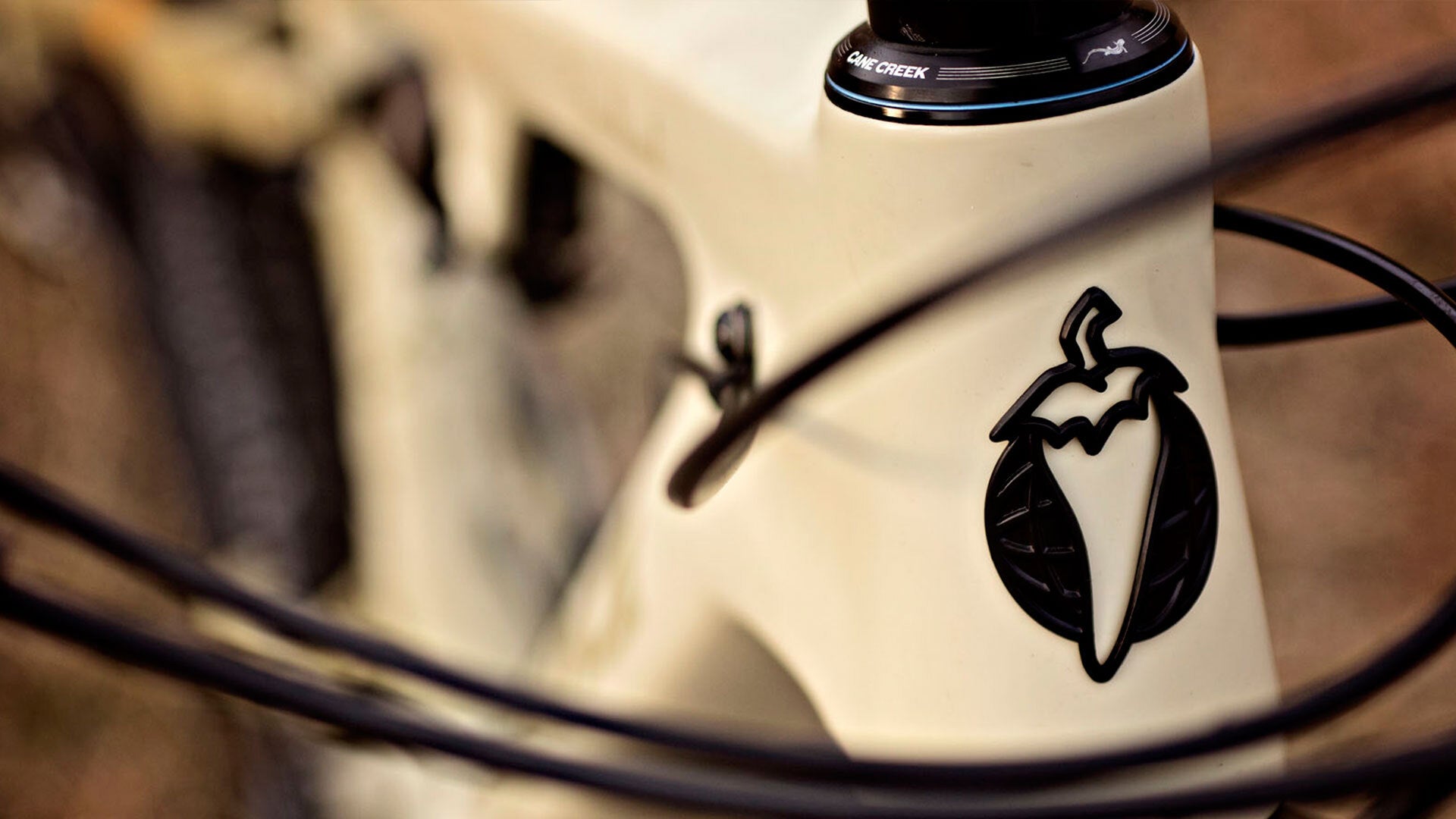

  • Salsa Deadwood carbon 29-plus full-suspension bike side headtube area focus

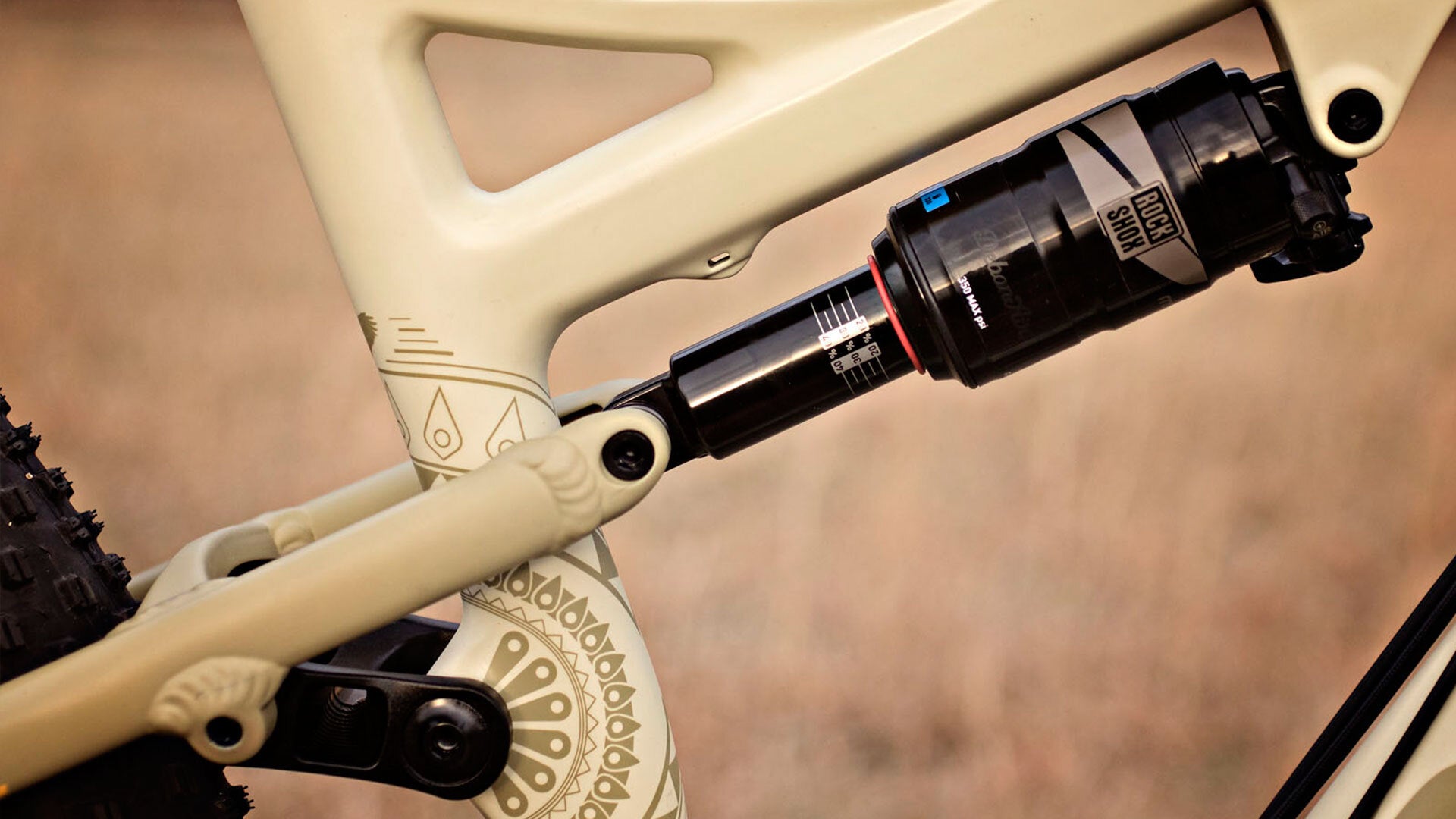

  • Salsa Deadwood carbon 29-plus full-suspension bike rear shock area focus

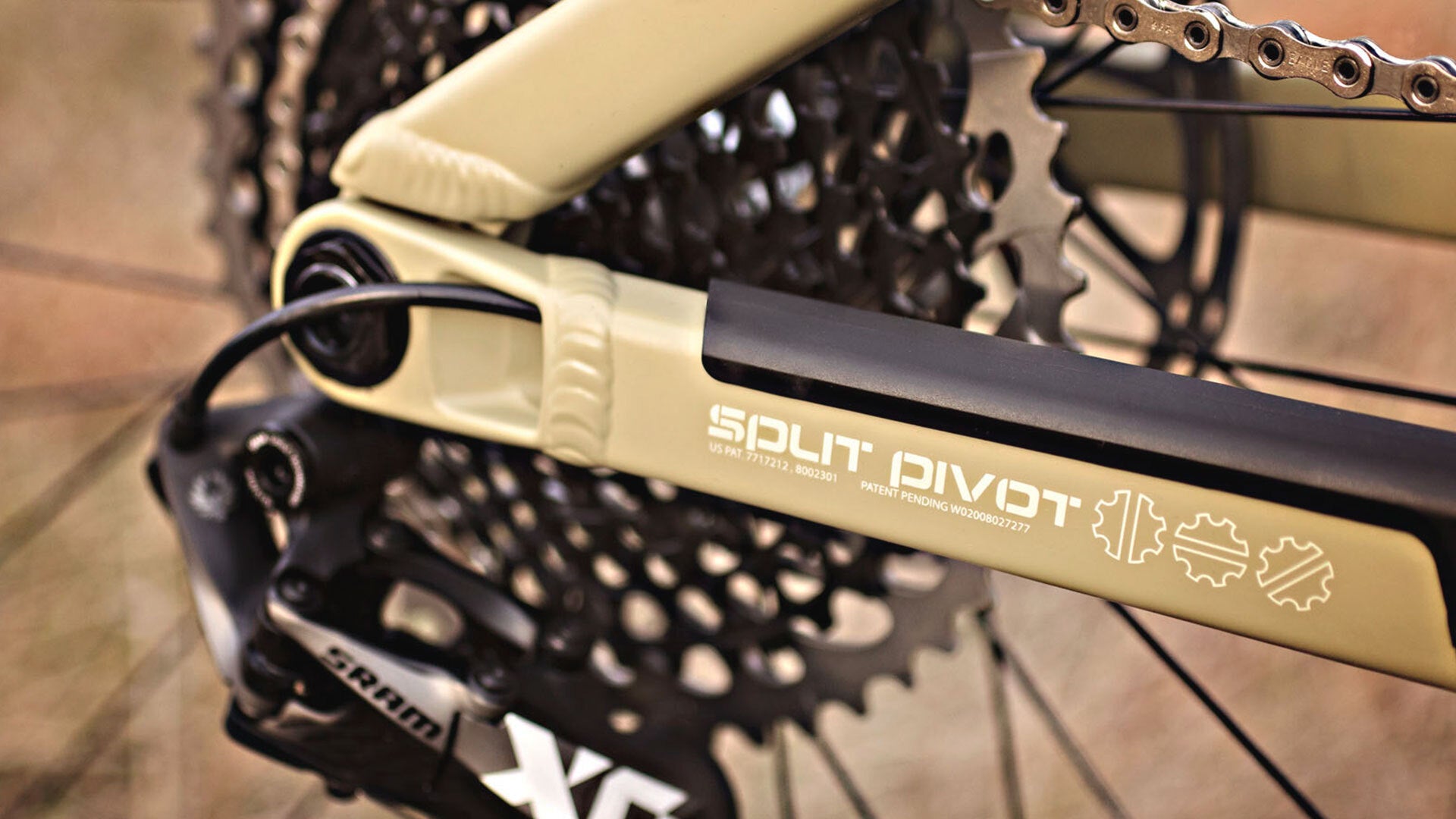

  • Salsa Deadwood carbon 29-plus full-suspension bike rear dropout area focus
1 4

2017 Deadwood 29 Plus Frameset

2017 Deadwood 29 Plus Frameset

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Deadwood Carbon
  • Fork: RockShox Pike RC 100mm
  • Color: Tan
  • Rear Shock: RockShox Monarch RT3 w/ Debonair
  • Front Der: N/A
  • Rear Der: SRAM X01 Eagle
  • Cassette: SRAM X01 Eagle 10-50t
  • Chain: SRAM 12-speed Eagle
  • Crankset: SRAM X1 Carbon Eagle
  • Headset: Cane Creek 40
  • Stem: Salsa Guide Trail
  • Handlebar: Salsa Rustler Carbon
  • Grips: Salsa Backcountry Lock-On
  • Seatpost: RockShox Reverb Stealth
  • Saddle: WTB Volt Pro
  • Front Wheel: DTSwiss 350 110 Boost 32h, WTB Asym i35 tubeless-ready, 2.0/1.8mm butted spokes, brass nipples
  • Rear Wheel: DTSwiss 350 148 Boost 32h, WTB Asym i35 tubeless-ready, 2.0/1.8mm butted spokes, brass nipples
  • Tires: WTB Ranger 29x3.0, light casing, tubeless-ready
  • Complete Bike Weight: 30 lb 15 oz for size Medium
  • Brakes & Rotors: SRAM Guide R, Centerline, 180mm front and rear
  • Shifter: SRAM GX Eagle

Frame Specs

  • Design Wheel/Tire Size: 29 x 2.8–3.0"
  • Suspension Fork Length (Travel): 521mm (100mm)
  • Fork Offset: 51mm
  • Rear Shock Size: 184 x 44.5mm (7.25 x 1.75")
  • Rear Shock Mount: Ø8 x 38mm
  • Forward Shock Mount: Ø8 x 22mm
  • Headset-Upper: ZS44
  • Headset-Lower: ZS56
  • Seatpost: 31.6mm
  • Seat Collar: 36.4mm
  • Front Derailleur Type: Compact 2x; top-pull only
  • Front Derailleur Mount: High direct-mount (29mm offset)
  • Bottom Bracket: PressFit 41 x 92mm
  • Crankset: 2x: 36/24t max Boost MTB only 1x: 32t max Boost MTB only
  • Rear Brake: 51mm standard (140–180mm)
  • Rear Spacing: 148 x 12mm thru-axle
  • Rear Axle Size: 12 x 188L, TP = 1.75 TL = 20
  • Derailleur Hanger: FS2322
  • Bottle Mounts: 1

Geometry

Geometry Diagram
SM MD LG XL
Top Tube Effective Metric 590.2 610.2 630.2 650.2
Seat Tube Length Metric 407 457 508 559
Head Tube Length Metric 100 110 110 120
Head Tube Angle 68 68 68 68
Seat Tube Angle 73.4 73.4 73.4 73.4
BB Drop Metric 45 45 45 45
Chainstay Length Metric 449 449 449 449
Fork Length Metric 521 521 521 521
Fork Offset Metric 51 51 51 51
Wheelbase Metric 1137.9 1158.9 1178.9 1199.9
Stack Metric 605.6 614.9 614.9 624.2
Reach Metric 410.2 427.4 447.4 464.7
Standover Metric 739.5 761.1 783.3 800.9
Rider Height Metric 168–175cm 175–183cm 183–190cm 190cm–UP
BB Center to Center Metric
Stem Length 60 70 70 80
Crank Length 170 175 175 175
Handlebar Width 750mm 750mm 750mm 750mm
Seatpost Offset Metric 0 0 0 0

Supportive Documents

Support Document links

Additional Features

Split Pivot® Rear Suspension

The concentric rear axle pivot in conjunction with precise wheel link, brake link, and control link placement, results in several performance gains: Exceptional bump compliance / Maximum traction / Incredible pedaling efficiency / Predictable braking / Improved frame geometry due to the elimination of unwanted suspension movement during acceleration and braking

Backcountry Singletrack & Endurance Racing-Specific Suspension Travel

Within Deadwood 29+’s 91mm rear wheel travel is a surprising amount small bump sensitivity and supple braking performance. A progressive mid stroke provides support heading into and out of corners. Even on the bigger hits, the travel just doesn’t seem to want to run out. The volume of 29+ wheels and tires and the tuned anti-squat of the Split Pivot® suspension on the Deadwood 29+ lead to an efficient bike that shelters you from the bumps that would otherwise make for taxing hours and days. A 29+, 100mm travel 51mm offset front fork pairs exceptionally well with everything going on behind you

Ample Tire Clearance

Deadwood 29+ is designed to use tires ranging from 2.6 to 3.0" in width on up to a 45mm rims via BOOST 148 spacing. This tire size offers up huge traction, smooth rolling, and increased momentum, great for putting in miles and miles over extremely varied terrain with a planted and confident feel. But with a simple tire swap down to standard 29" widths (2.2–2.5"), Deadwood 29+ gets a snappier, faster accelerating feel, making it better suited for high-octane pursuits and any trail riding where increased agility is desired

Deadwood 29+ Geometry

Like its predecessor Spearfish, Deadwood 29+ continues pairing slack and low “trail bike” style geometry—68° head angle and 45mm BB drop— with travel amounts usually reserved only for steep and twitchy race bikes

High-Modulus Carbon Fiber Front Triangle and 6066-T6 Aluminum Stays

This material offers improved stiffness, better vibration damping, excellent toughness, and weight savings compared to other materials. This frame offers 340g weight savings over the aluminum version. 6066-T6 aluminum heat-treated seatstays and chainstays are paired for durability

Interior Junction Control Molding Technology

We use interior molds at all the main front triangle junctions during layup and curing. This allows for precise control of wall thickness and inner wall smoothness in these areas. This process increases compaction and reduces voids and wrinkles in critical high-stress zones. The end result is a high-quality, consistent performing carbon frame

Full-Size Bottle Compatible

Front triangle is capable of fitting a full-size (28 oz) water bottle

PressFit 41 x 92 mm Bottom Bracket

Compatible with 1x and 2x standard mountain cranks, both GXP and 24mm spindle types

Modular Front Derailleur Bracket

The high direct-mount front derailleur bracket is removable, with a smooth cover blank to take its place, when 1x drivetrain is setup, providing a clean look and saving a few extra grams in the process

Replaceable Derailleur Hanger

Extra sold separately, Salsa Split Pivot® Top Cap Dropout Tool included with frame for field changes without the need to carry a 22mm cone wrench

Replaceable Sealed Cartridge Bearings

17287-2RS (Qty 4), 6801-2RS (Qty 4)

Dropper Post Compatible

Frame accommodates internal routing for a dropper post

Tapered Headtube

The modern standard for mountain bikes, increases front end frame and fork stiffness without adding significant weight
