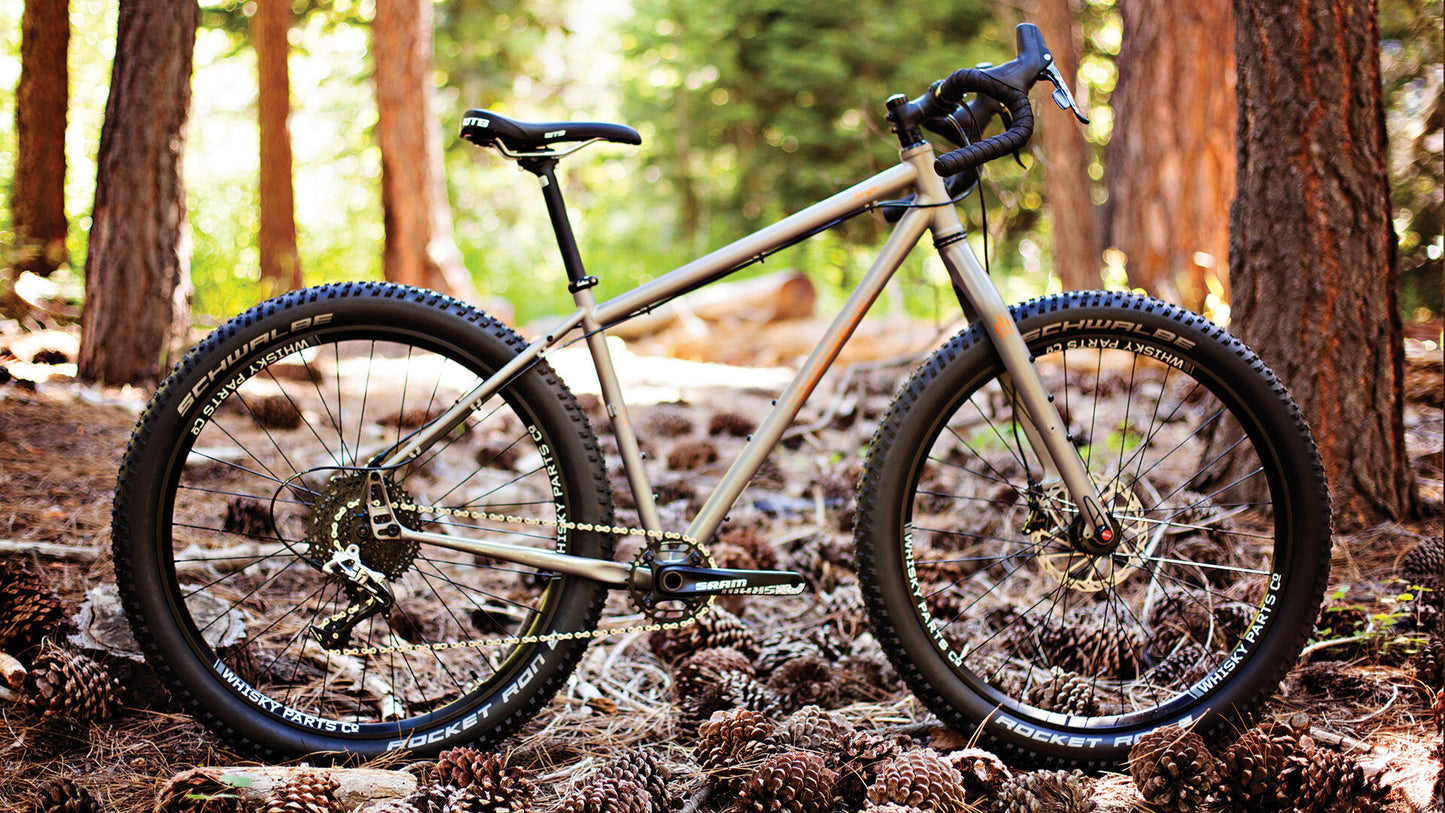

• Salsa Fargo 27.5 Plus Rival bike side view outside in forest

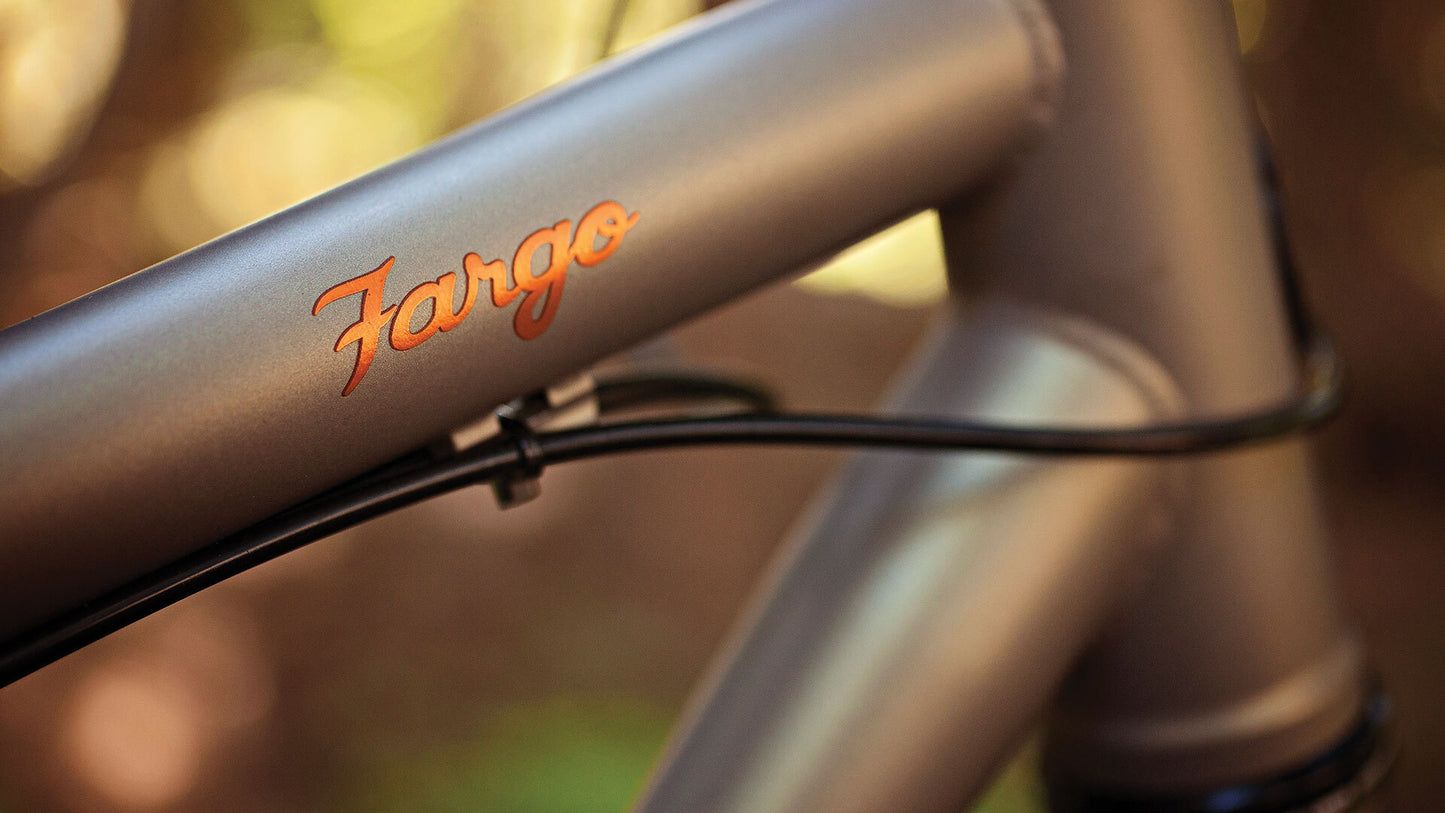

  • Salsa Fargo 27.5 Plus Rival bike top tube decal focus

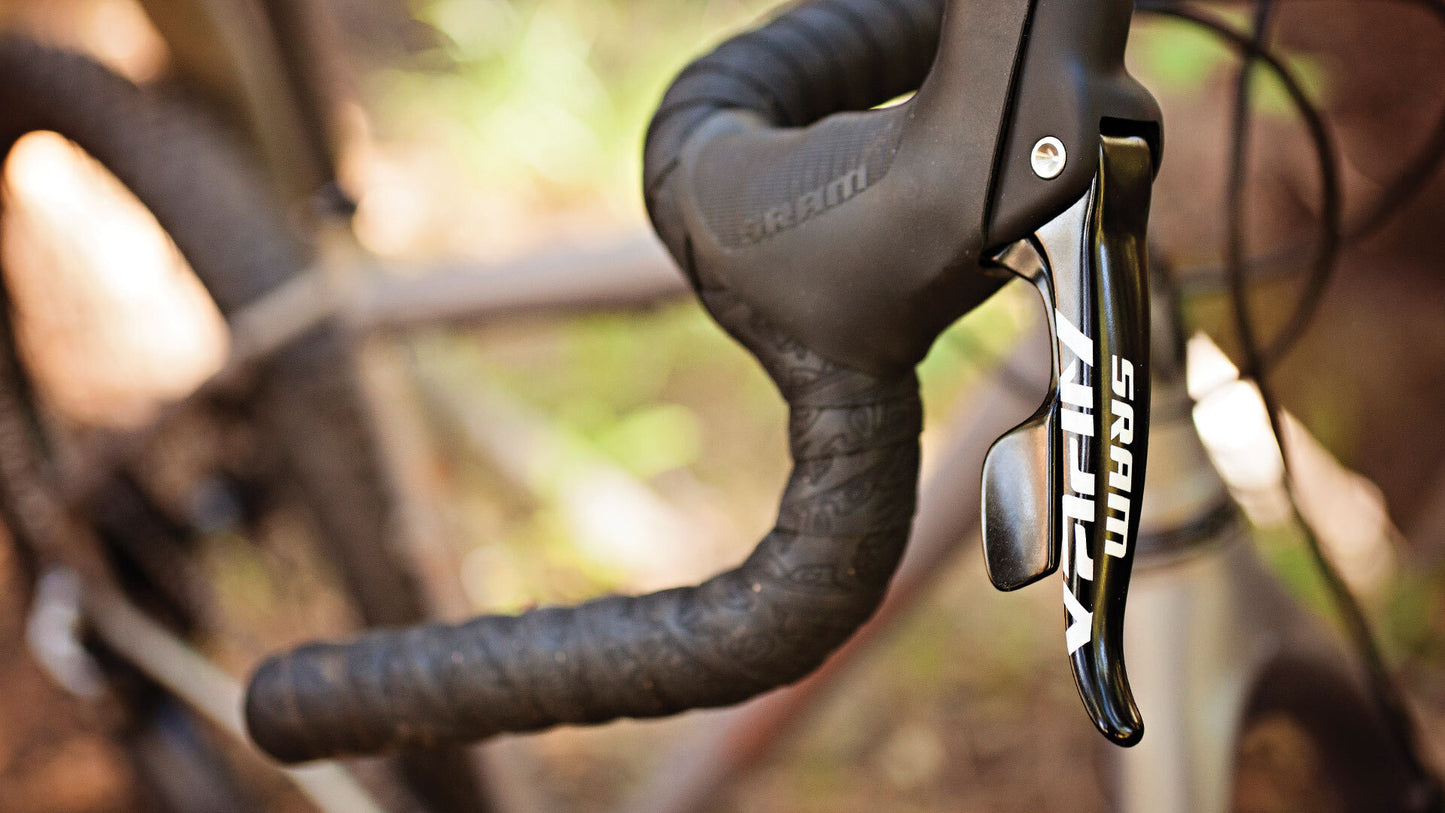

  • Salsa Fargo 27.5 Plus Rival bike handlebar and shifter focus

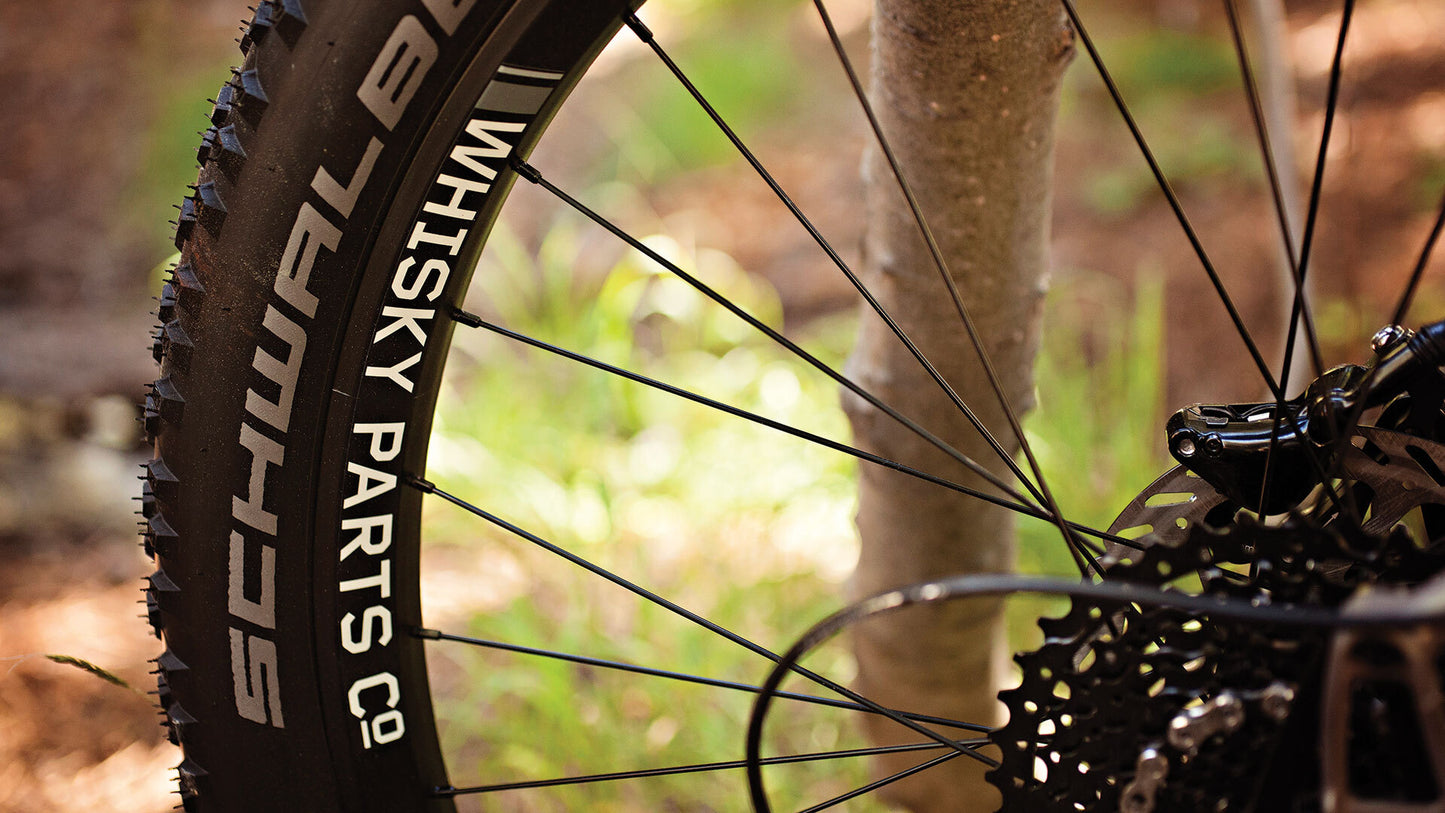

  • Salsa Fargo 27.5 Plus Rival bike rear rim and tire focus

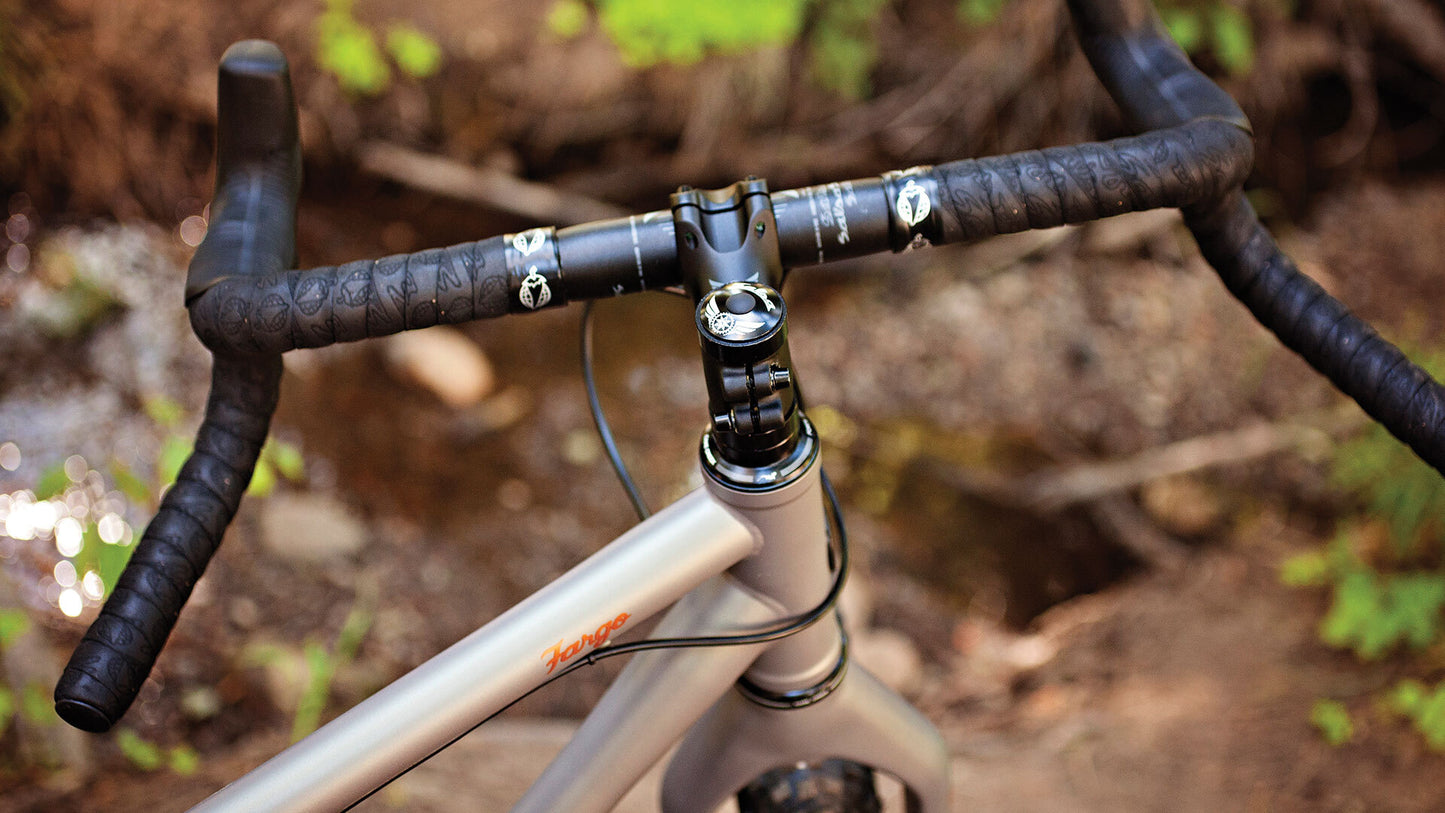

  • Salsa Fargo 27.5 Plus Rival bike handlebar and stem focus

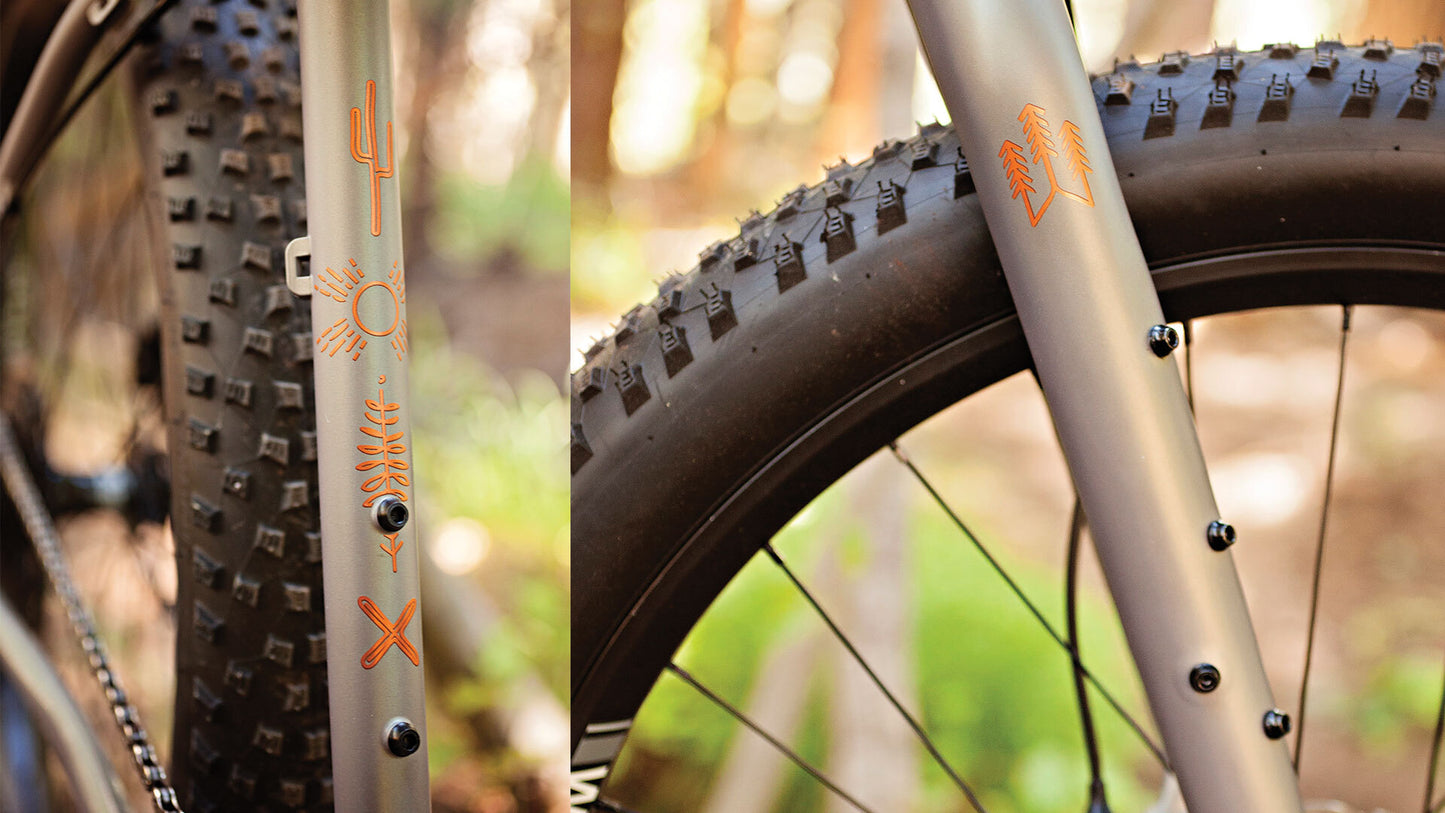

  • Salsa Fargo 27.5 Plus Rival bike split image showing fork and seat tube decals
1 6

2017 Fargo Rival 27.5 Plus Framset

2017 Fargo Rival 27.5 Plus Framset

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Fargo Cobra Kai CroMoly
  • Fork: Salsa Firestarter Carbon
  • Color: Matte Grey
  • Rear Shock: n/a
  • Front Der: n/a
  • Rear Der: SRAM Rival
  • Cassette: Sun Race 11-42t
  • Chain: KMC X11
  • Crankset: SRAM S1000, X-SYNC 32t
  • Shifter: SRAM Apex
  • Brakes & Rotors: SRAM Apex Hydraulic, G2CS 180mm, 160mm
  • Headset: Cane Creek 40
  • Stem: Salsa Guide
  • Handlebar: Salsa Woodchipper 2
  • Grips: Salsa Gel Bar Tape
  • Seatpost: Zoom 27.2 x 350mm set back post
  • Saddle: WTB Volt Comp
  • Front Wheel: Salsa, 32h, 100mm, 15mm Thru-Axle, Whisky No.5 50mm Rim, 2.0 spokes, brass nipples
  • Rear Wheel: Salsa, 32h, 148mm, 12mm Thru-Axle, Whisky No.5 50mm Rim, 2.0 spokes, brass nipples
  • Tires: Schwalbe Rocket Ron Performance, folding, 27.5 x 3"
  • Complete Bike Weight: 27 lbs 11 oz for Medium

Frame Specs

  • Design Wheel/Tire Size: 29 x 2.4"
  • Alternative Wheel/Tire Size: 27.5 x 3.0", 29 x 2.4" w/ fender (29 x 3.0" only compatible on SM–XL frame sizes)
  • Suspension Fork Length (Travel): 501–511mm (100mm)
  • Rigid Fork Length: 483–486mm
  • Fork Offset: 45–51mm
  • Headset-Upper: ZS44
  • Headset-Lower: EC44
  • Seatpost: 27.2mm
  • Seat Collar: 30mm
  • Front Derailleur Mount: 148mm rear spaced: high direct-mount (29mm offset) Problem Solvers Bracket (FS1328); 142mm rear spaced: high direct-mount (26.5mm offset) via 28.6mm clamp Problem Solvers Bracket (FS1326)
  • Bottom Bracket: 73mm BSA, threaded
  • Crankset (Max Ring): 1x crankset: 36t max Boost & 34t non-Boost or 46t Gates Belt Drive Sprocket, 2x crankset: 42/28t max Boost & non-Boost
  • Rear Brake (Rotor): 51mm I.S. (160–180mm)
  • Rear Spacing: 148 or 142mm thru-axle / 135mm QR w/ Alternator reduction plates
  • Rear Axle Size: 148mm rear spaced: 12 x 180L, TP = 1.75, TL = 20 / 142mm rear spaced: 12 x 174L, TP = 1.75, TL = 20 / 135mm rear spaced: quick-release / 142 & 135mm spacing require the use of Salsa / Alternator Reduction plates (FS2360}
  • Derailleur Hanger: QR = FS1312; TA = FS1374; SS = FS1318; SSTA = FS1375; L Rohloff = FS1371; TA Kit = FS1370
  • Fender Mounts: Yes
  • Rack Mounts: Yes
  • Bottle Mounts: XS = 2, SM–XL = 3
  • Stem Clamp: 28.6mm
  • Crown Race: 40mm
  • Front Brake (Rotor): 74mm post mount (160–180mm)
  • Front Spacing: 100 x 15mm thru-axle
  • Front Axle: M15 x 125L, TP = 1.5, TL = 12mm
  • Fork Bottle Mounts: Three-Pack mounts on each fork leg

Geometry

Geometry Diagram
XS SM MD LG XL
Top Tube Effective Metric 520 540 565 590 620
Seat Tube Length Metric 355.6 406.4 457.2 508 558.8
Head Tube Length Metric 90 110 140 170 190
Head Tube Angle 68.5 69 69 69 69
Seat Tube Angle 74 74 73 73 73
BB Drop Metric 70 70 70 70 70
Chainstay Length Metric 445–462 445–462 445–462 445–462 445–462
Fork Length Metric 483 483 483 483 483
Fork Offset Metric 45 45 45 45 45
Wheelbase Metric 1045–1061 1061–1078 1077–1093 1104–1120 1136–1152
Stack Metric 594 615 643.1 671.1 689.7
Reach Metric 349.7 352 368.4 384.8 409.1
Standover Metric 690 732 778 821 859
Rider Height Metric 150cm–160cm 160cm–175cm 173cm–183cm 180cm–191cm 188cm–UP
BB Center to Center Metric
Stem Length 60 70 80 80 80
Crank Length 170 175 175 175 175
Handlebar Width 42cm 44cm 44cm 46cm 46cm
Seatpost Offset Metric 25mm 25mm 25mm 25mm 25mm
Stem Angle
Wheel Size
Seatpost Dropper Length Travel
Handlebar_Rise_Drop
BB Height

Supportive Documents

Support Document links

Additional Features

Fargo Geometry

Designed as a drop-bar MTB, optimized for fit with the Salsa Woodchipper or Cowchipper handlebars. Capable of handling everything from technical singletrack trails, two-track, gravel, and the occasional paved road. Predictable handling with or without a load. The bike to ride for multiple surface excursions

Cobra Kai CroMoly Tubeset

Salsa-designed, triple-butted, and frame size-specific seamless Cobra Kai CroMoly tubing

Alternator Dropouts V1.5

Split-able version of our renowned Alternator Dropout for ultimate drivetrain versatility. Run singlespeed or geared, QR or thru-axle, freehub or Rohloff, or Gates Belt Drive. Set Alternator Dropouts all the way forward for a shorter wheelbase that results in quick and nimble handling, or set back for more stability. See our Alternator Page for more info

Belt Drive Compatible

Tested and certified for belt drive use

Multiple Wheelsize Versatility

Fargo geometry and spacing can accommodate 27.5+, 29", and, on sizes small to x-large, 29+ making for a highly capable bike that’s ready for just about any endeavor

Rear Rack Friendly

Designed for use with the Salsa Alternator Standard Rack

ZS44 Semi-Integrated Headset Standard

Compatible with tapered or straight 1-1/8" steerer forks

Firestarter Carbon Fork

Full carbon fork with a tapered 1-1/8 to 1-1/2” steerer tube for confidence-inspired tracking through the tough stuff. Massive tire clearance, up to 29 x 3" tires. 15 x 100mm thru-axle and Salsa-designed carbon layup for frame-matching compliance. 74mm post-mount style brake mount. 160 to 200mm disc brake rotor compatible
