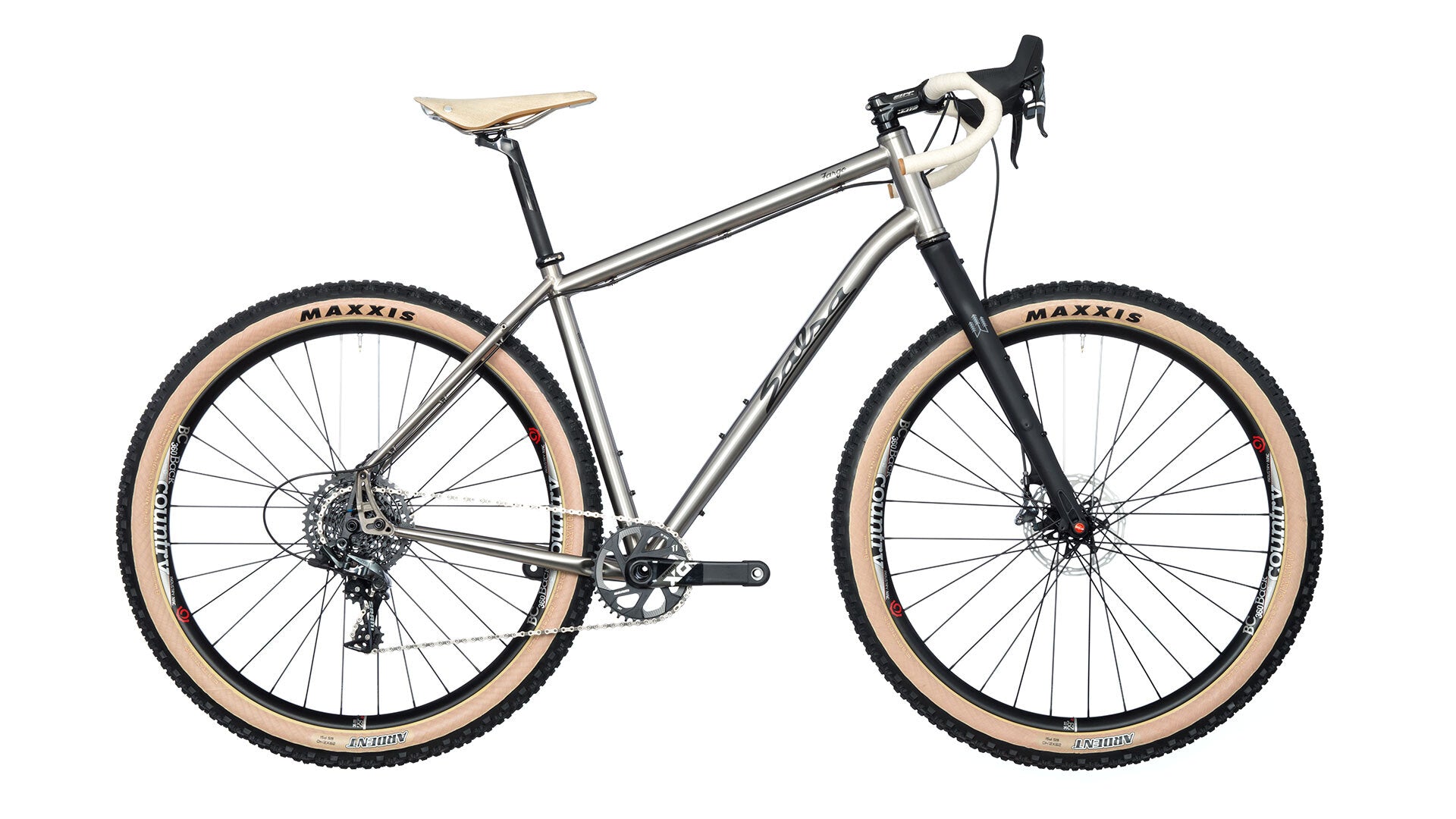

• Fargo Ti custom bike build side view

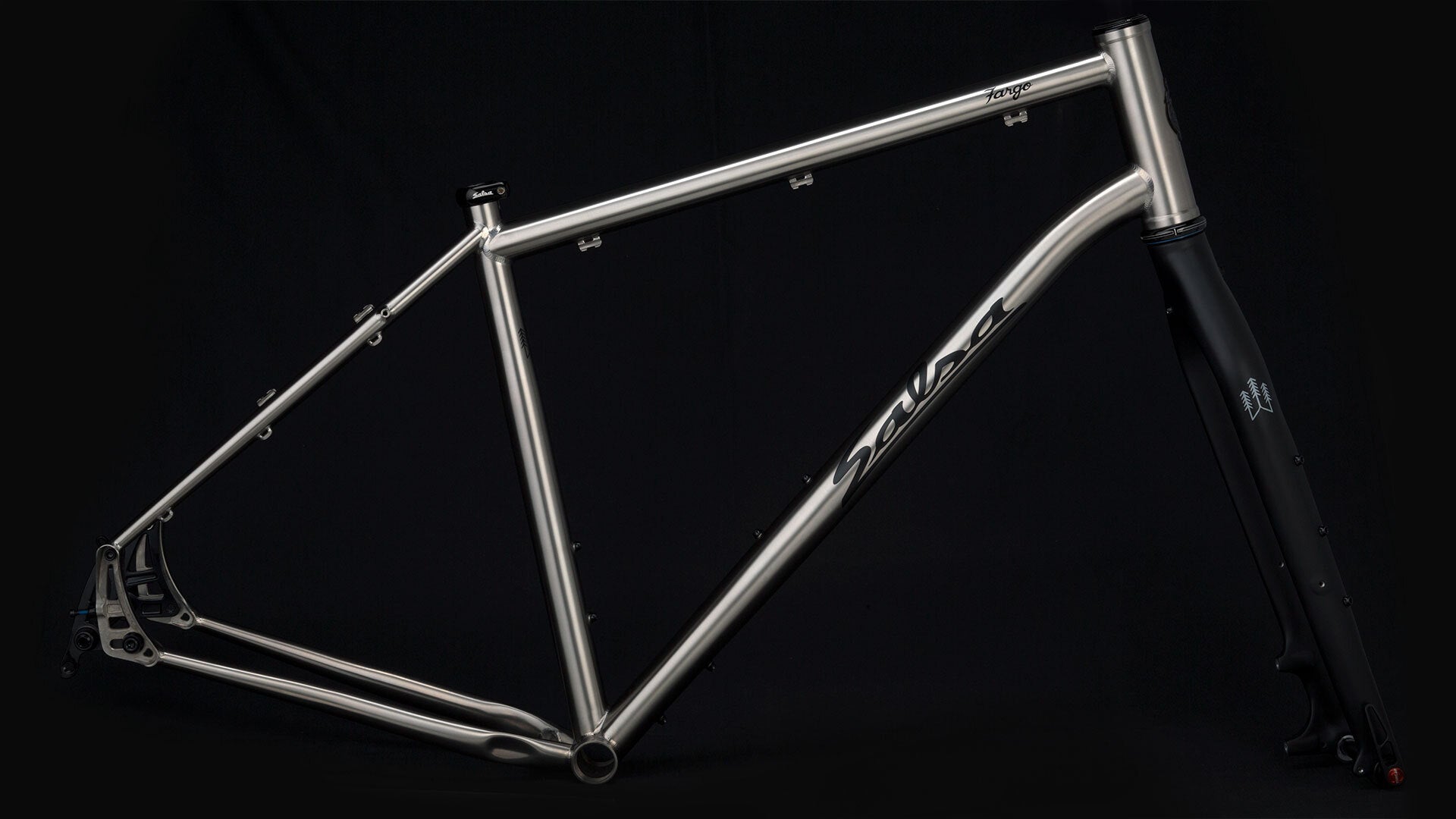

  • Fargo Ti frameset side view

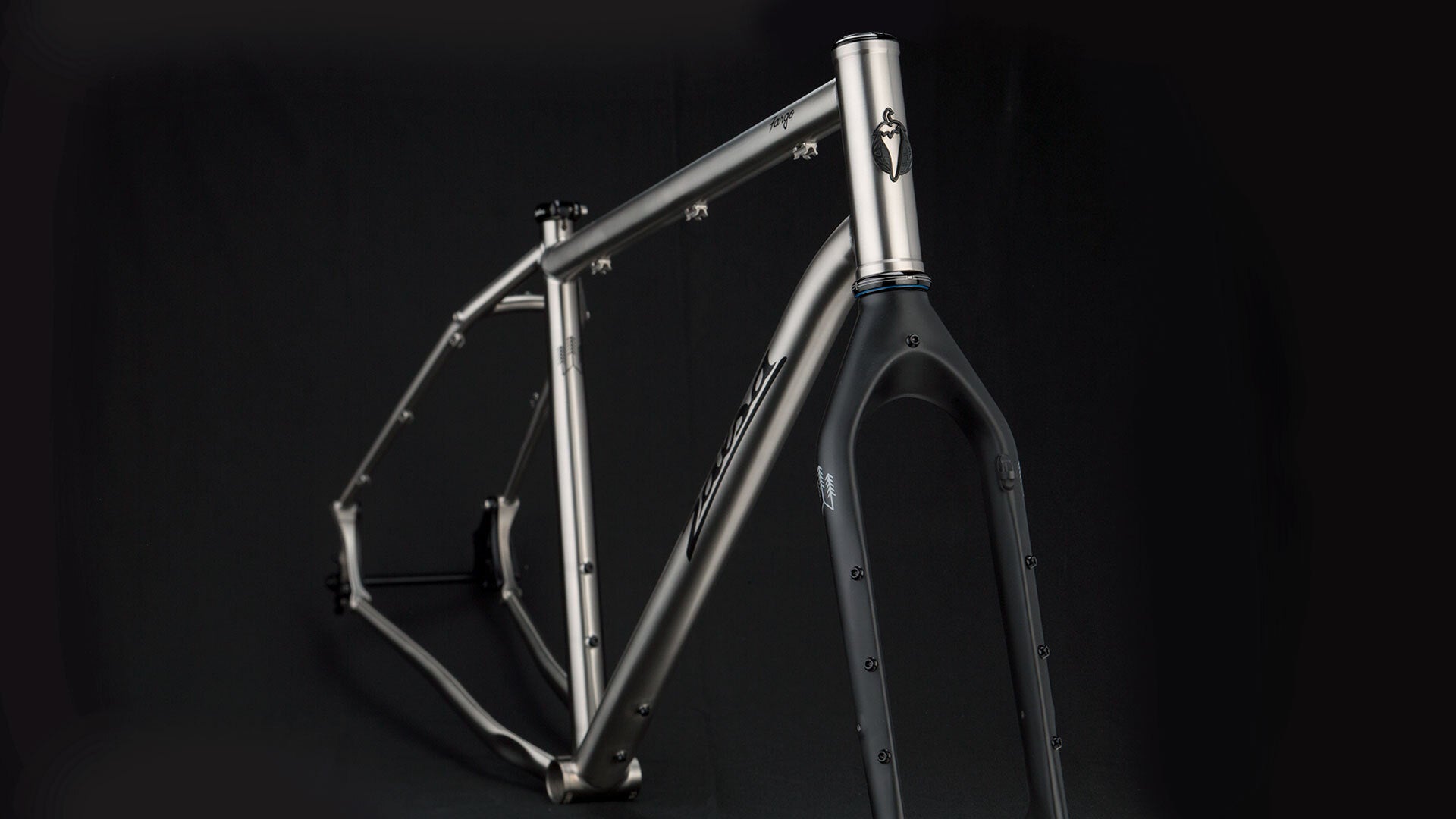

  • Fargo Ti frameset front three-quarter view

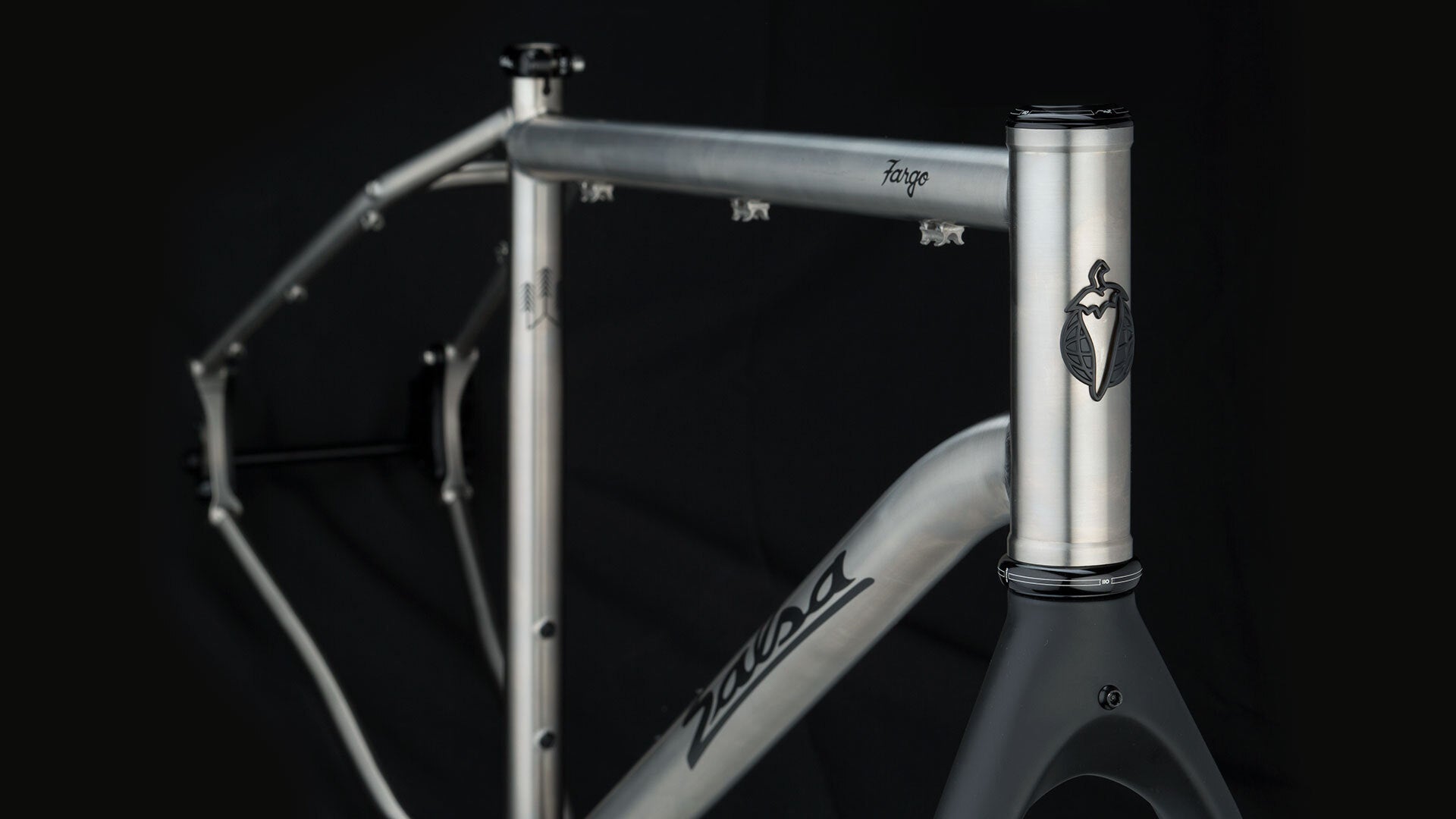

  • Fargo Ti frameset front three-quarter view head tube focus

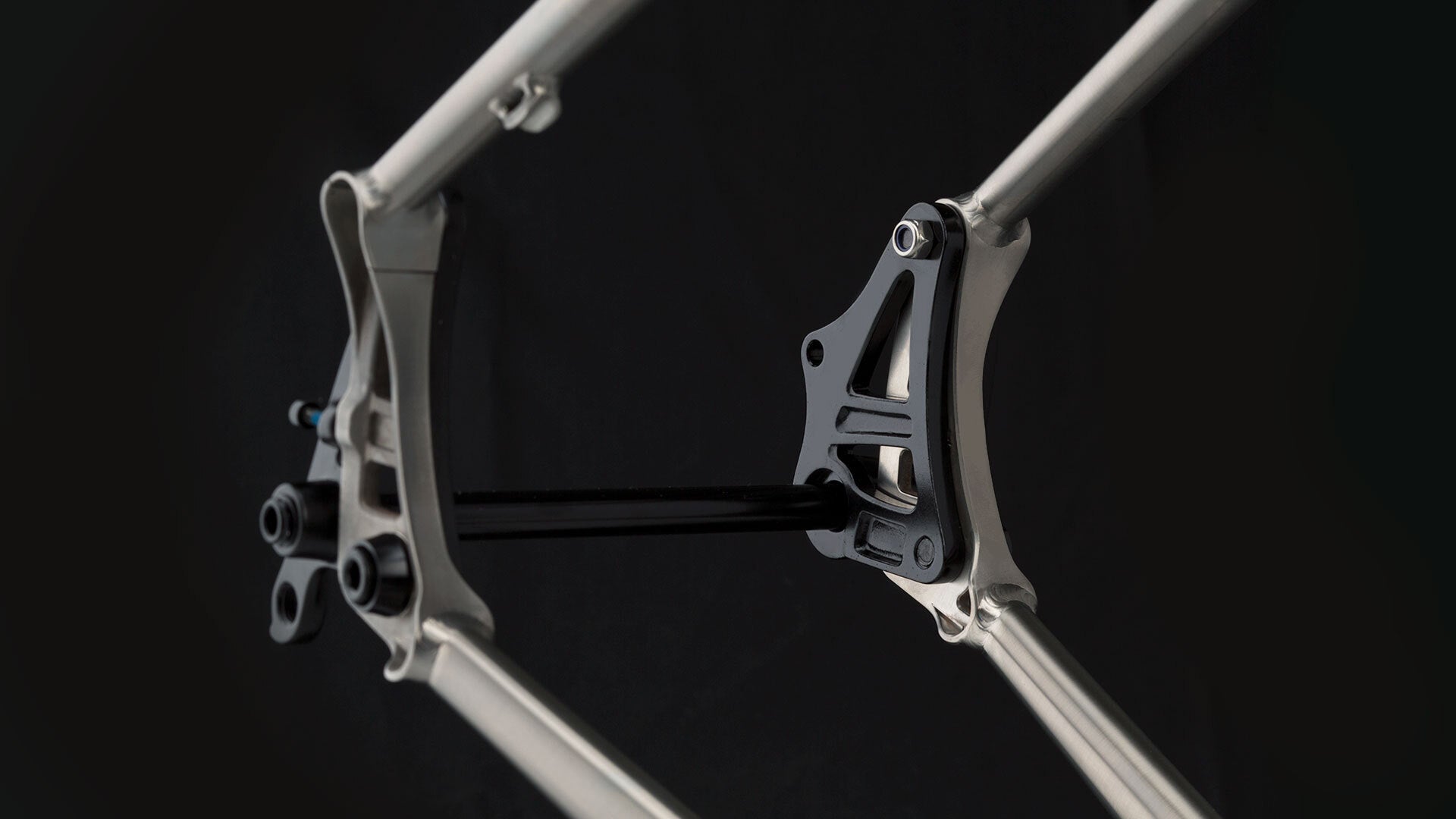

  • Fargo Ti frameset rear dropout focus

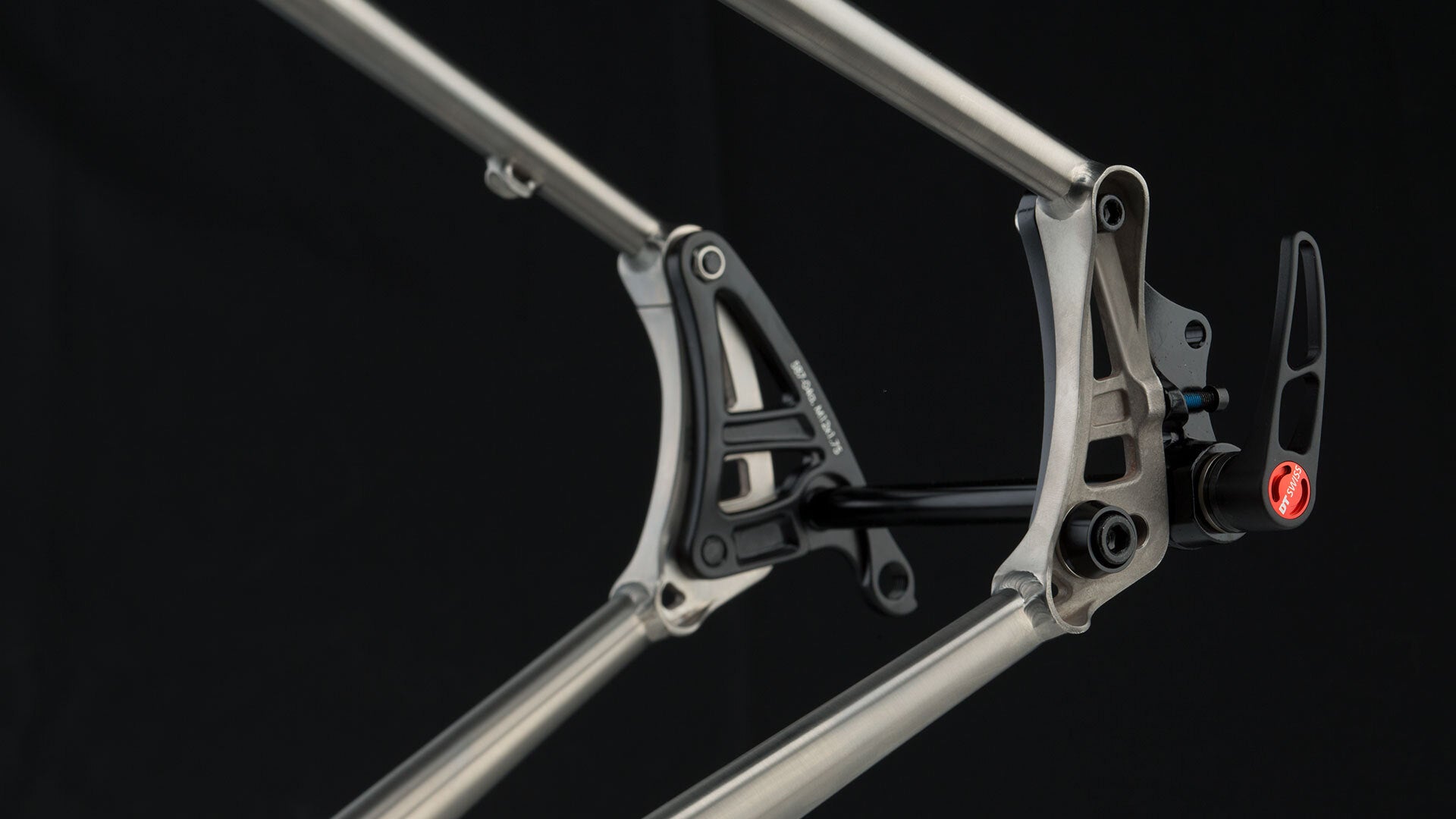

  • Fargo Ti frameset rear dropout focus with thru-axle installed
1 6

2017 Fargo Ti Frameset

2017 Fargo Ti Frameset

Archived

Fargo is our original drop bar mountain bike. A bit of a cult classic, it’s designed for mixed surface riders and bikepackers who want the versatility to take any route and the capability to carry everything needed when they’re out for days on end.

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Frame Specs

  • Design Wheel/Tire Size: 29 x 2.4"
  • Alternative Wheel/Tire Size: 27.5 x 3.0" / 27.5 x 2.2" with fender / 29 x 3.0" (Small through X-Large)
  • Suspension Fork Length (Travel): 501–511 mm (100mm)
  • Rigid Fork Length: 483–486mm
  • Fork Offset: 45–51mm
  • Headset-Upper: ZS44
  • Headset-Lower: EC44
  • Seatpost: 27.2mm
  • Seat Collar: 32mm
  • Front Derailleur Mount: 148mm rear spacing: high direct-mount (29mm offset) Problem Solvers Bracket (FS1328) / 142mm rear spacing: high direct-mount (26.5mm offset) via 34.9mm clamp Problem Solvers Bracket (FS1323)
  • Bottom Bracket: 73mm BSA, threaded
  • Crankset (Max Ring): 1x crankset:  36t max / Boost and 34t non-boost or 46t / Gates Belt Drive sprocket / 2x crankset:  42/28t max. Boost and Non-Boost
  • Rear Brake (Rotor): 51mm I.S. (160–180mm)
  • Rear Spacing: 148mm or 142mm thru-axle / 135mm QR with Alternator Reduction Plates / 148mm rear spacing: 12 x 180L, TP = 1.75, TL = 20 / 142mm rear spacing: 12 x 174L, TP = 1.75, TL = 20 / 135mm rear spacing: quick-release
  • Rear Axle Size: QR = FS1312; TA = FS1385; SS = FS1318;
  • Derailleur Hanger: SSTA = FS1375; L Rohloff = FS1371; TA Kit = FS1370
  • Frameset Weight: 6 lb, 4 oz for size Large w/ fork and Lip-Lock

Geometry

Geometry Diagram
XS SM MD LG XL
Top Tube Effective Metric 520 540 565 590 620
Seat Tube Length Metric 355.6 406.4 457.2 508 558.8
Head Tube Length Metric 90 110 140 170 190
Head Tube Angle 68.5 69 69 69 69
Seat Tube Angle 74 74 73 73 73
BB Drop Metric 70 70 70 70 70
Chainstay Length Metric 445–462 445–462 445–462 445–462 445–462
Fork Length Metric 483 483 483 483 483
Fork Offset Metric 45 45 45 45 45
Wheelbase Metric 1045–1061 1061–1078 1077–1093 1104–1120 1136–1152
Stack Metric 594 615 643.1 671.1 689.7
Reach Metric 349.7 352 368.4 384.8 409.1
Standover Metric 690 732 778 821 859
Rider Height Metric 150cm–160cm 160cm–175cm 173cm–183cm 180cm–191cm 188cm–UP
BB Center to Center Metric
Stem Length 60 70 80 80 80
Crank Length 170 175 175 175 175
Handlebar Width 42cm 44cm 44cm 46cm 46cm
Seatpost Offset Metric 25mm 25mm 25mm 25mm 25mm
Stem Angle
Wheel Size
Seatpost Dropper Length Travel
Handlebar_Rise_Drop
BB Height

Measurements based on:

  • A Firestarter Fork which is 483 x 45 mm offset, this is equivalent to an average 100mm fork at 20% sag
  • Measurements listed are based on a 29 x 2.4" tire measuring 746 mm in diameter
  • Standover (P) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center

Supportive Documents

Support Document links

Additional Features

Fargo Ti Frameset Only

Our legendary Fargo frame, crafted in Titanium, paired with a Salsa Firestarter Carbon fork. Salsa Lip-Lock seat collar included

3/2.5 Seamless Titanium Tubeset

Custom spec’d, triple-butted tubing. Appropriate stiffness and compliance for a fantastic ride quality. Light weight with superior fatigue life

Firestarter Carbon Fork

Full carbon fork with a tapered 1-1/8 to 1-1/2" steerer tube for confidence-inspired tracking through the tough stuff. Massive tire clearance, up to 29 x 3" tires. 15 x 100mm thru-axle and Salsa-designed carbon layup for frame matching compliance. 74mm post-mount style brake mount. 160 to 200mm disc brake rotor compatible

Fargo Geometry

Designed as a drop bar mountain bike, optimized for fit with the Salsa Woodchipper Bar. Capable of handling everything from technical singletrack trails, two-track, gravel, and the occasional paved road. Predictable handling with or without a load. The bike to ride for multiple-surface excursions

Alternator Dropouts V1.5

Split-able version of our renowned Alternator Dropout for ultimate drivetrain versatility

Belt Drive Compatible

Tested and certified for belt drive use

Multiple Wheelsize Versatility

Fargo geometry and spacing can accommodate 27.5+, 29", and, on sizes small to x-large, 29+ making for a highly capable bike that’s ready for just about any endeavor

Rear Rack Friendly

Designed for use with the Salsa Alternator Standard Rack

ZS44 Semi-Integrated Headset Standard

Compatible with tapered or straight 1-1/8" steerer forks
