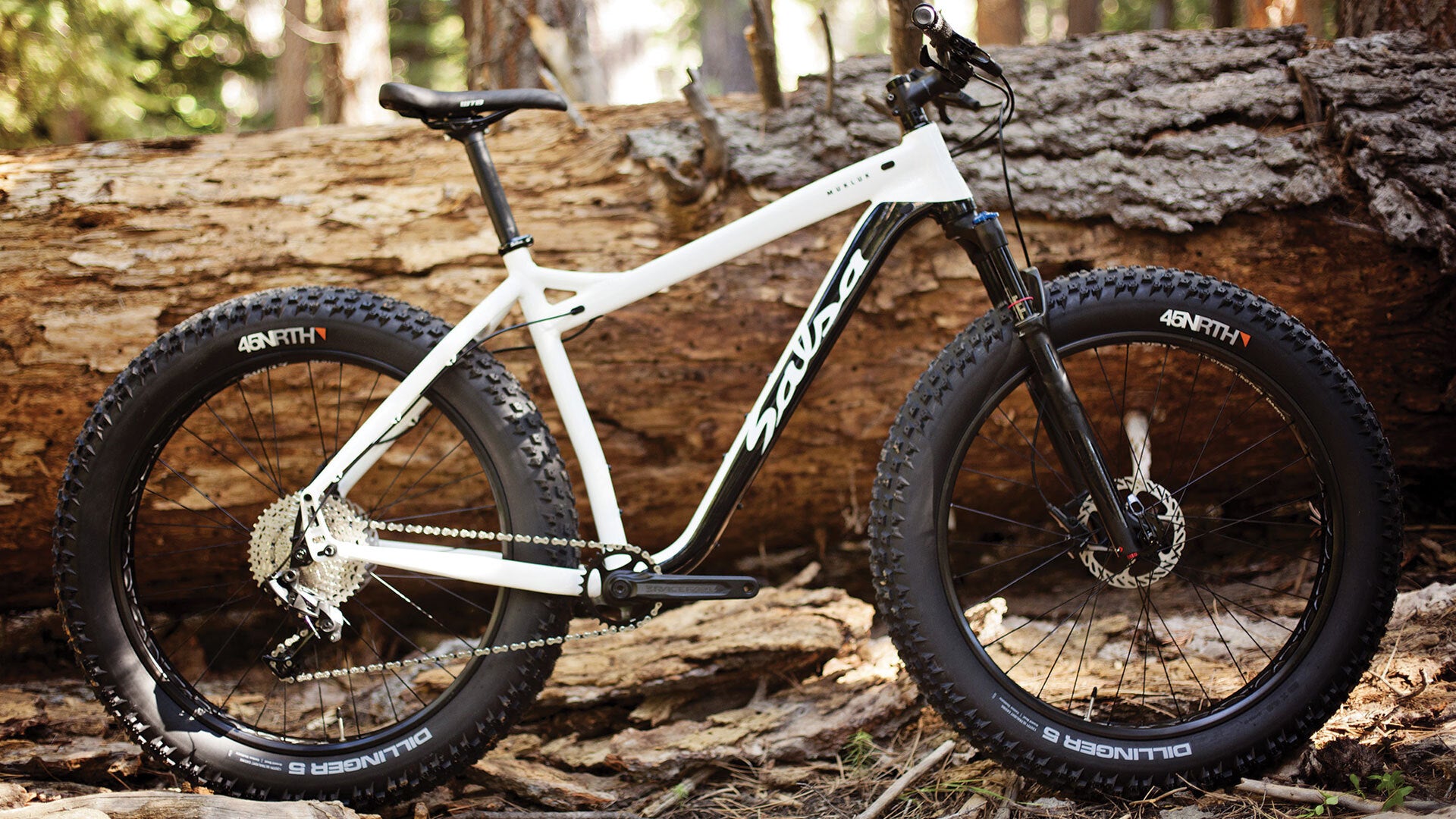

• Salsa Mukluk NX1 SUS bike white and black color side view outside next to downed tree

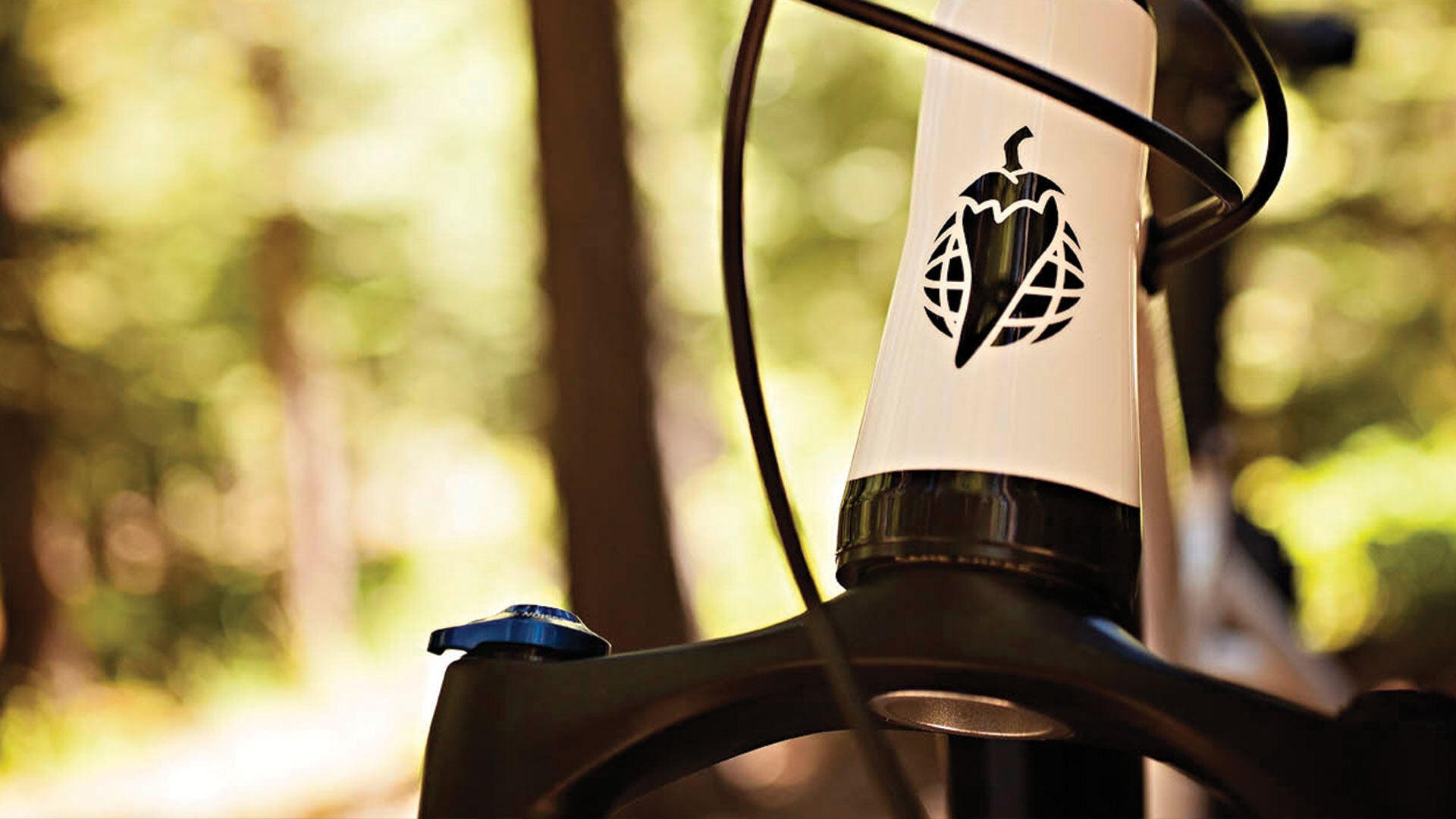

  • Salsa Mukluk NX1 SUS bike white and black color headtube area focus

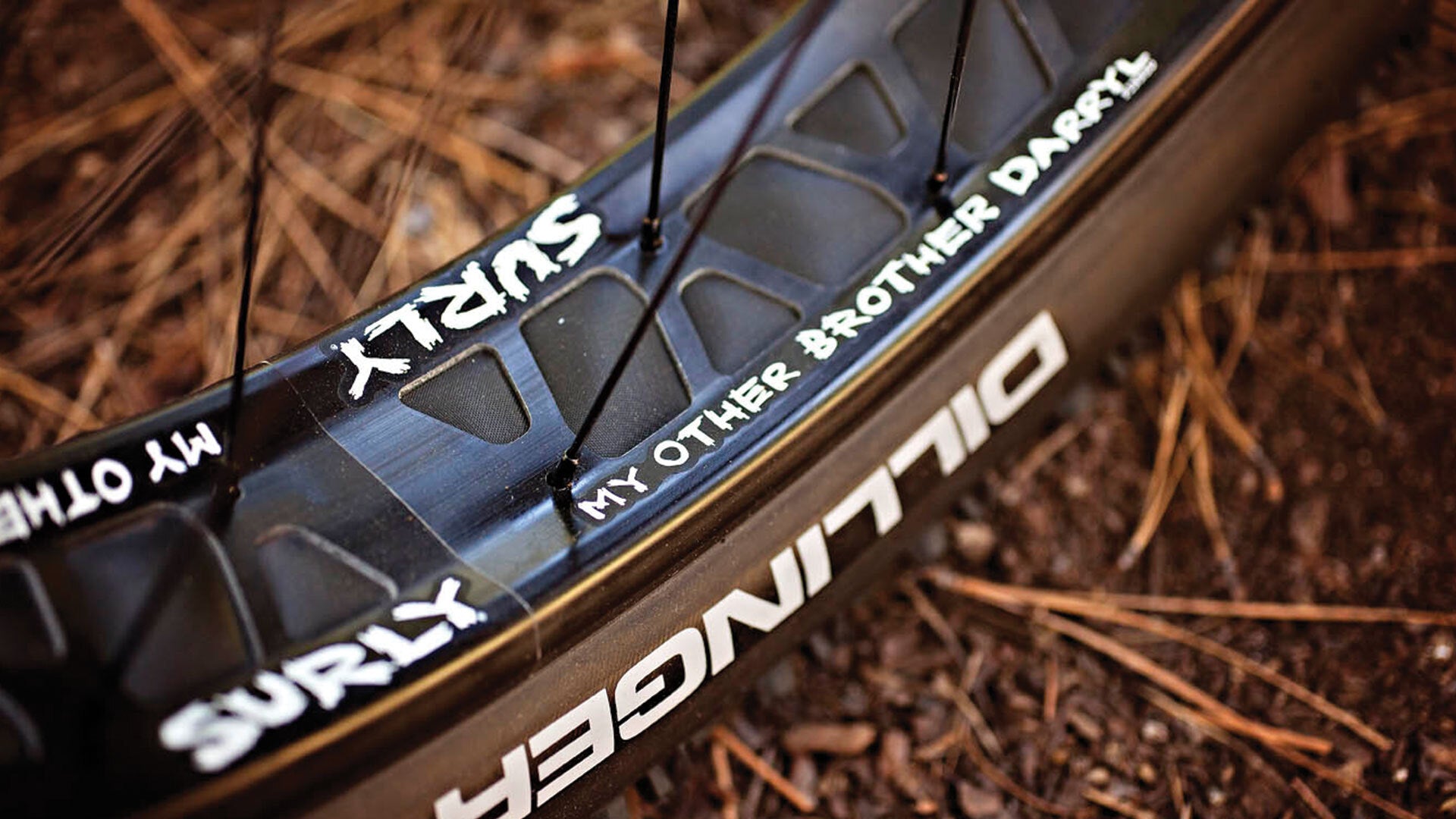

  • Salsa Mukluk NX1 SUS bike white and black color rim and tire close-up

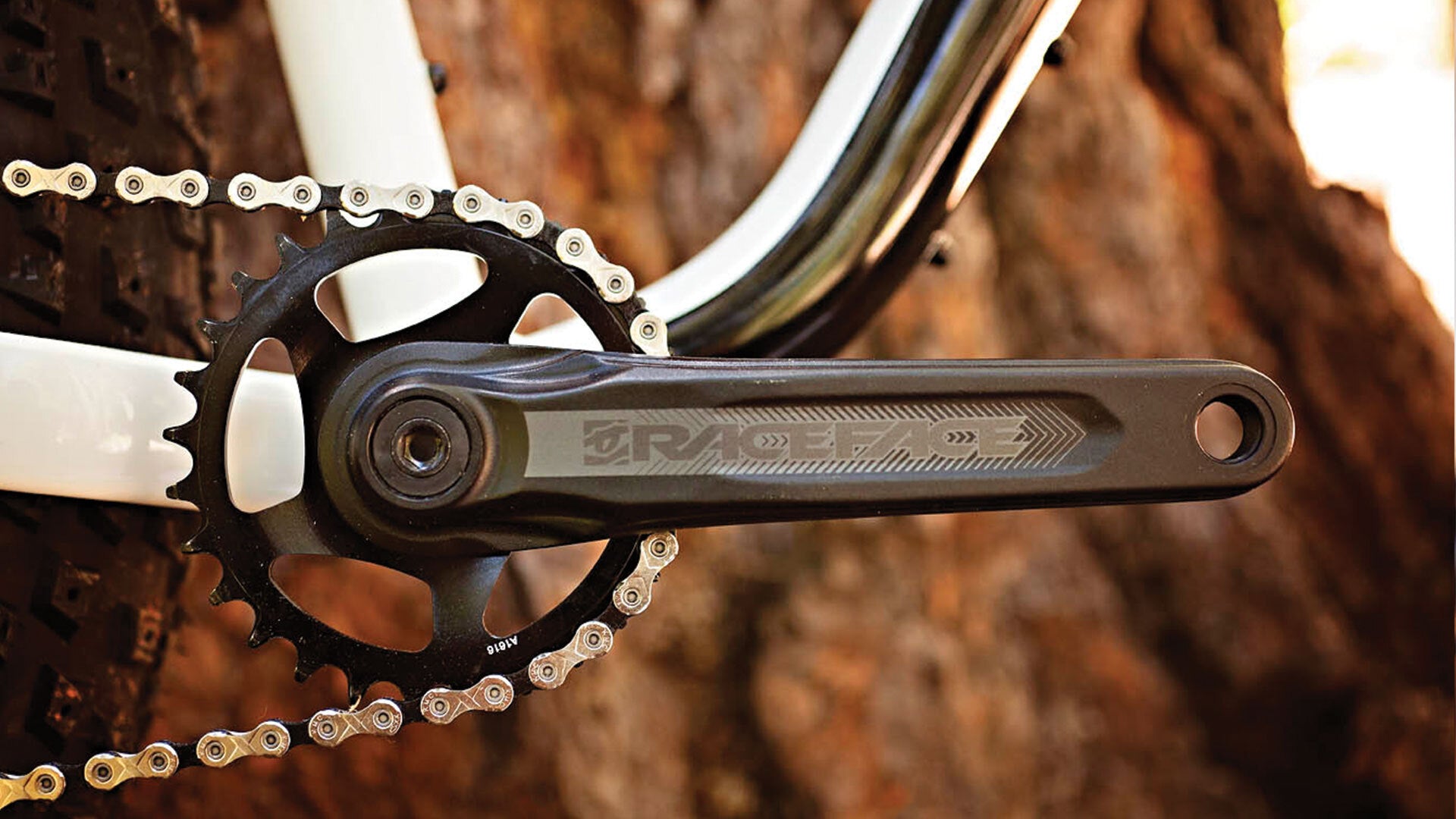

  • Salsa Mukluk NX1 SUS bike white and black color crankset close-up

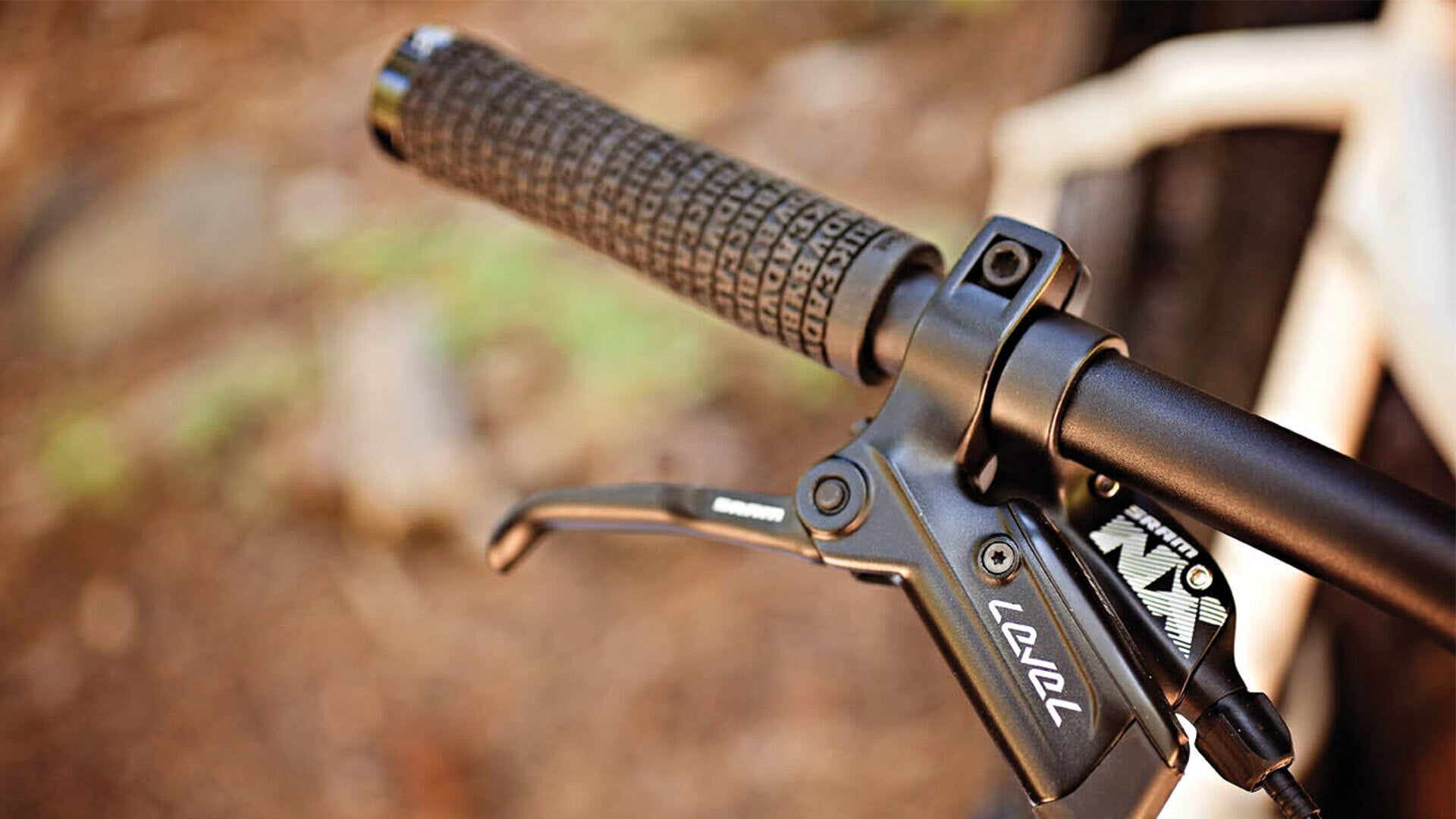

  • Salsa Mukluk NX1 SUS bike white and black color grip, brake, and shift lever area focus
1 5

2017 Mukluk Carbon NX1 Suspension

2017 Mukluk Carbon NX1 Suspension

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Mukluk Aluminum
  • Fork: RockShox Bluto RL Solo Air 100mm
  • Color: Black/White
  • Rear Shock: n/a
  • Front Der: n/a
  • Rear Der: SRAM NX1
  • Cassette: Sun Race 11-42t
  • Chain: KMC X11
  • Crankset: Race Face Aeffect, 28T
  • Shifter: SRAM NX1
  • Brakes & Rotors: SRAM Level, G2CS 160mm
  • Headset: Cane Creek 15
  • Stem: Salsa Guide
  • Handlebar: Salsa Rustler 3
  • Grips: Salsa Backcountry
  • Seatpost: Zoom 31.6 x 350mm set back post
  • Saddle: WTB Volt Comp
  • Front Wheel: Salsa 32h, 150mm, 15mm Thru-Axle, Surly MOBD, 2.0 spokes, brass nipples
  • Rear Wheel: Salsa 32h, 197mm, 12mm Thru-Axle, Surly MOBD, 2.0 spokes, brass nipples
  • Tires: 45NRTH, Dillinger 5, 60 tpi
  • Complete Bike Weight: 33 lbs 10 oz for Medium

Frame Specs

  • Design Wheel/Tire Size: 26 x 4.33" on up to 100mm rim
  • Alternate Wheel/Tire Sizes: 26 x 3.8–4.8" on up to 100mm rim; 27.5 x 3.0–3.25"; 29 x 2.3–3.0"
  • Rigid Fork Length: 483–486mm
  • Suspension Fork Length (Travel): 511mm (100mm)
  • Fork Offset: 50–51mm
  • Headset-Upper: ZS44
  • Headset-Lower: ZS56
  • Seatpost: 31.6mm
  • Seat Collar: 35.0mm
  • Dropper Compatible (Routing): Yes, internal
  • Front Derailleur Type: Compact 2x top-pull only
  • Front Derailleur Mount: High direct mount (55mm offset) via Ø35mm clamp Problem Solvers bracket (FS1325)
  • Bottom Bracket: 100mm, threaded
  • Crankset (Max Ring): 75mm chainline fat bike cranks only
  • Rear Brake (Rotor): 2x: 36/24t max; 1x: 32t max
  • Rear Spacing: 51mm standard (160–180 rotors)
  • Rear Axle Size: 197 x 12mm thru-axle
  • Derailleur Hanger: 12 x 229L, TP = 1.5, TL = 20, FS1374, FS1376
  • Bottle Mounts: 2 per frame
  • Accessory Mounts: 1 per frame
  • Stem Clamp: Ø28.6mm
  • Crown Race: Ø40mm
  • Front Brake (Rotor): 74mm post mount (160–180mm)
  • Front Spacing: 150 x 15mm thru-axle
  • Front Thru-Axle: 15 x 198L, TP = 1.5, TL = 9
  • Fork Bottle Mounts: 2 Three-Pack bosses per fork

Geometry

Geometry Diagram
XS SM MD LG XL
Top Tube Effective Metric 573 594 615 636 657
Seat Tube Length Metric 406 406 457 508 558
Head Tube Length Metric 100 110 120 130 140
Head Tube Angle 69 69 69 69 69
Seat Tube Angle 73 73 73 73 73
BB Drop Metric 63 63 63 63 63
Chainstay Length Metric 440–457 440–457 440–457 440–457 440–457
Fork Length Metric 483 483 483 483 483
Fork Offset Metric 51 51 51 51 51
Wheelbase Metric 1085.2 1107 1128.7 1150.4 1172.1
Stack Metric 592.7 602.1 611.4 620.7 630.1
Reach Metric 391.8 409.9 428.1 446.2 464.4
Standover Metric 684.5 678.1 719.7 758 773.9
Rider Height Metric 157–168cm 165–175cm 173–183cm 180–191cm 188–UP
Stem Length 40 50 60 70 80
Crank Length 170 170 170 175 175
Handlebar Width 750mm 750mm 750mm 750mm 750mm
Seatpost Offset Metric 0 0 0 0 0

Measurements based on:

  • for Rigid/100mm Sus: A Salsa Bearpaw fork which is equialent to a 100mm Rockshox Bluto fork at 25% sag.
  • a 26 x 4.8" tire measuring 759mm in diameter
  • standover is measured from ground to top of toptube at forward portion of the kink

Supportive Documents

Support Document links

Additional Features

1x & 2x Drivetrain Compatible

This frame is compatible with both 1x and 2x drivetrain setups. A removable direct mount front derailleur bracket allows for clean 1x build

Full-Length Internal Housing Cable Routing

Full-length housing improves shifting performance in poor conditions and increases use time between maintenance intervals

Multiple Bottle Cages

Accepts 3 bottles per frame

100mm Threaded Bottom Bracket

Provides the widest number of crankset and Q-factor choices while providing the correct chainline

Dropper Post Compatible

Frame accommodates internal routing for a dropper post

Rear Wheel & Tire Options

Mukluk is designed for use with up to 26 x 4.8" fat bike tires on rims up to 100mm wide. The frame is also capable with the following wheel and tire combinations: 29 x 2.25–3" (including 29+) / 27.5 x 3.0–3.25" (aka 27.5+)

RockShox Bluto Suspension Fork Included

100mm travel. Tapered steerer tube. 150 x 15mm thru-axle hub spacing, 74mm post-mount fork

Front Fork Wheel & Tire Options

The fork included with this frame works with the following wheel and tire combinations: 26 x 3.8–4.8" on up to a 100mm rim / 29 x 2.25–3" (including 29+) / 27.5 x 3.0–3.25" (27.5+)

6066-T6 Aluminum Tubeset

Top-shelf, double and triple-butted, heat-treated 6066-T6 aluminum tubing is used throughout the frame. This 6000-series aluminum has better strength and fatigue characteristics than 6061 and 7000-series aluminums, allowing for a stronger and lighter overall frame. Additionally, the tubing is strategically shaped and formed for additional stiffness and strength optimization in key stress areas

Salsa Fat Bike Geometry

The geometry used across our entire fat bike line has remained basically unchanged since developing the Beargrease Carbon back in 2012. We’ve adapted it to all our fat bike models because it works extremely well in all conditions and use cases, whether it be riding groomed singletrack at your local trail, exploring a deserted beach, or embarking across the wild frozen expanses of Alaska in the ITI race. At its core, we use the shortest chainstay possible in conjunction with a headtube angle and fork offset that place the rider’s center of gravity further over the rear wheel. This location and combination of front and rear center is key to getting a fat bike that is stable, steers well in loose conditions, and still also feels nimble and agile despite the massive wheels and tires. For 2017, all models, regardless of 4 or 5" tire size, feature 440mm or shorter chainstay lengths! A low bottom bracket height is also key, to keep the rider’s center of gravity low, and to make dabbing and dismounting easier

197 x 12mm Symmetrical Rear Spacing

Results in a strong rear wheel and frame; maintains proper chainline with crankset

Tapered Headtube

The modern standard for mountain bikes increases front-end frame and fork stiffness without adding significant weight

Alternator Dropout Versatility

The Alternator dropout delivers incredible drivetrain versatility. Run singlespeed or geared, QR or thru-axle, freehub or Rohloff. Set the Alternator dropouts all the way forward for a shorter wheelbase that results in quick and nimble handling, or set back for more stability – the power is yours. See our Alternator Page for more info
