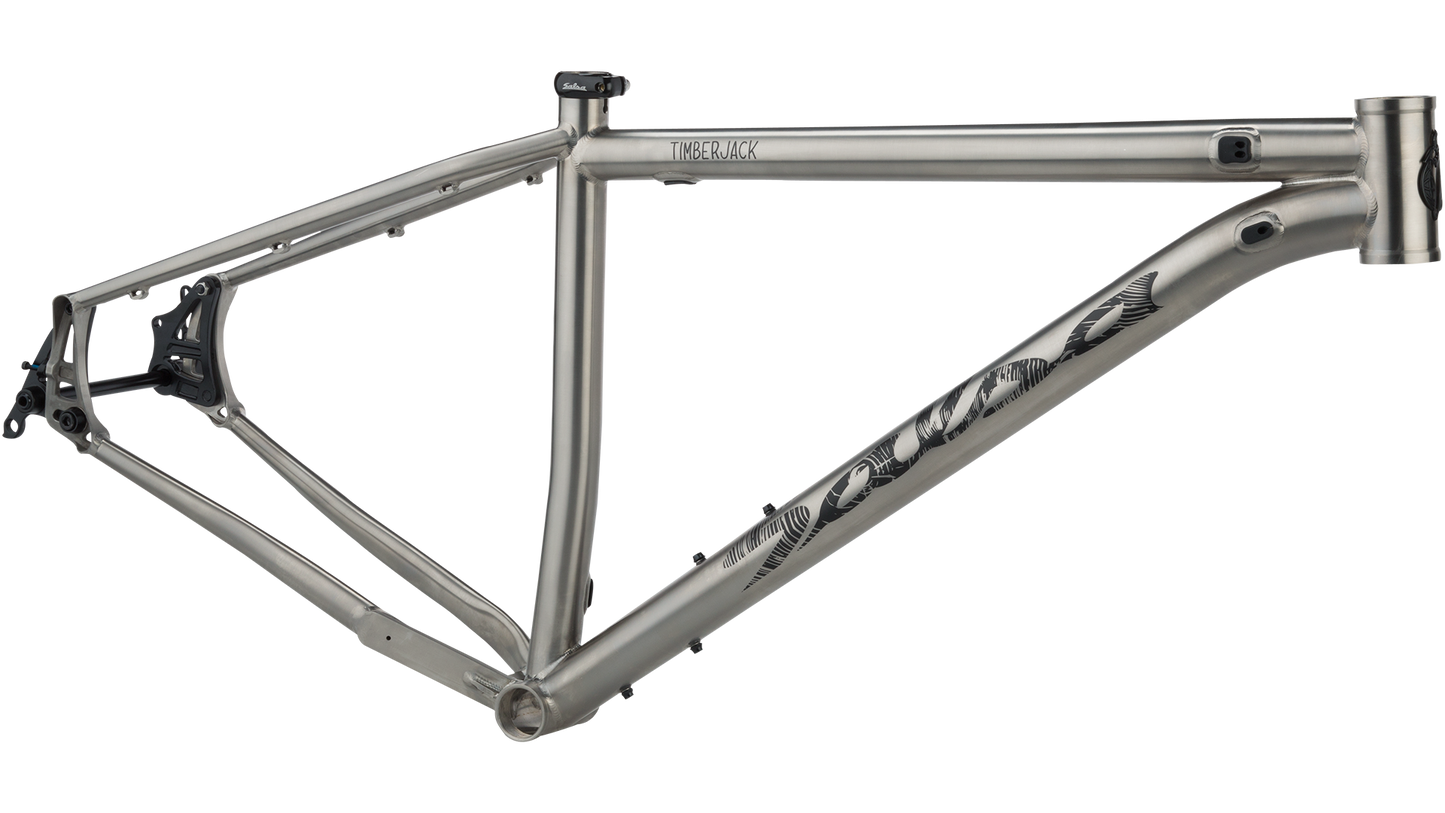

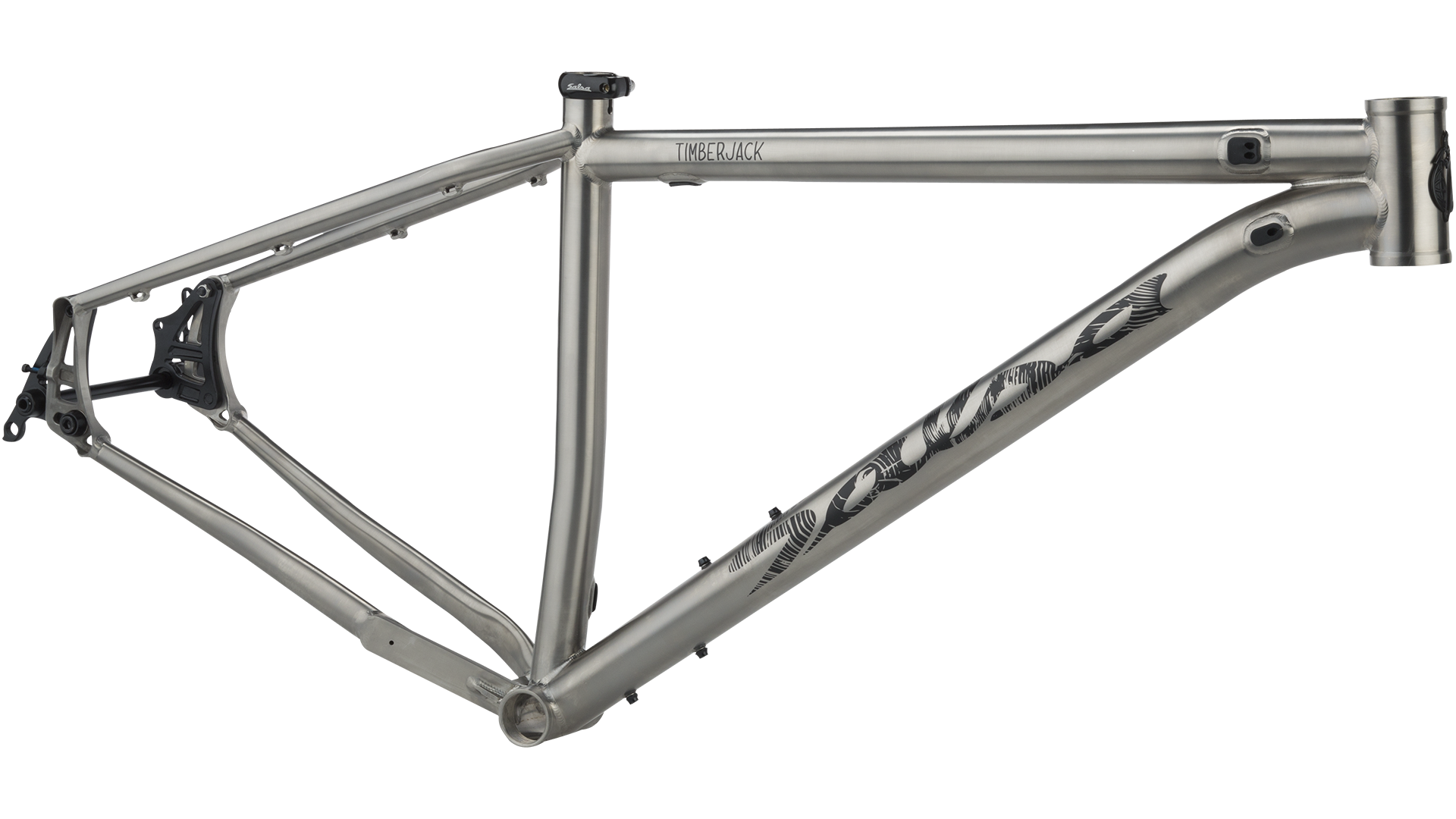

• Salsa Timberjack Ti Frame - Silver, Side view
1 1

2017 Timberjack Ti Frame

2017 Timberjack Ti Frame

Size

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

Use the previous and next buttons to traverse through the carousel.

Product Details

Build Kit

Components

Drivetrain

Wheels

*Specifications are subject to change without notice

Geometry

Geometry Diagram
SizeX-SmallSmallMediumLargeX-Large
A. Effective Top Tube 567.0 587.0 607.0 637.0 667.2
B. Stand Over 696.0 713.0 749.0 787.0 825.0
C. Reach 400.0 420.0 439.0 467.0 492.0
D. Stack 601.0 601.0 601.0 610.0 624.0
E. Total Seat Tube Length 355.6 381.0 431.8 482.6 533.4
F. Headtube Length 100.0 100.0 100.0 110.0 125.0
G. Headtube Angle
68.8
68.8
68.8
68.8
68.8
H. Seat Tube Angle
74.4
74.4
74.4
74.4
74.4
I. BB Drop 64.0 64.0 64.0 64.0 64.0
K. Chainstay Length 420.0- 437.0 420.0- 437.0 420.0- 437.0 420.0- 437.0 420.0- 437.0
L. Fork Length Axle to Crown 483.0 483.0 483.0 483.0 483.0
M. Fork Offset 45.0 45.0 45.0 45.0 45.0
N. Wheelbase 1071.0- 1086.0 1091.0- 1107.0 1112.0- 1128.0 1143.0- 1159.0 1174.0- 1190.0
Crank Arm Length
Handlebar Width
Recommended Rider Height 157.0 - 168.0 160.0 - 175.0 173.0 - 183.0 180.0 - 191.0
Stem Length

Measurements based on:

  • A 502 x 51 mm offset fork which is equivalent to an average 130mm fork at 30% sag, or a 483 x 45 mm offset fork which is equivalent to an average 100mm fork at 20% sag.
  • 29 x 2.4" tire measuring 746 mm in diameter.
  • Standover (P) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center.

Frame Specs

Supportive Documents

Support Document links

Additional Features

Timberjack Ti Frame Only

Our Timberjack frame, crafted in Titanium. Salsa Lip-Lock seat collar included

3/2.5 Seamless Titanium Tubeset

Custom spec’d, triple-butted tubing. Appropriate stiffness and compliance for a fantastic ride quality. Light weight with superior fatigue life

Timberjack Geometry

Timberjack uses longer toptubes and shorter stems that put the rider in a confidence-inspiring position off-road. Using the same stem length, offsets, and angles on each frame size, we provide riders across our size range with the same consistent front-end experience. This formula on the business side, with “party-in-the-back” chainstays that can be as short as 420mm, means you’ve got an agile missile ready to ruckus on any trail

Versatile Build Options

Timberjack offers a variety of canvases for the off-road artist. Build it with 27.5+ or 29er wheels and tires, a 130mm travel suspension fork or our rigid Firestarter fork, or geared or singlespeed with the Alternator dropouts that can change chainstay lengths from 420 to 437mm. With multiple dropout plate options, rear spacing of the frame can be 135mm QR, 142mm thru-axle, or BOOST-148. Timberjack can easily adapt to whatever flavor of undertaking you’re up for

Suspension Fork Compatible

Designed around a 130mm travel (51mm offset) suspension fork or our Firestarter fork

Rear Wheel & Tire Options

27.5 x 3.0" or 29 x 2.6"

Alternator Dropout Versatility

The Alternator Dropout delivers incredible drivetrain versatility. Run singlespeed or geared, QR or thru-axle, freehub or Rohloff. Set the Alternator Dropouts all the way forward for a shorter wheelbase and quick, nimble handling, or set back for more stability. See our Alternator page for more info

1x & 2x Drivetrain Compatible

This frame is compatible with both 1x and 2x drivetrain setups. A removable direct mount front derailleur bracket allows for clean 1x build

Full-Length Internal Housing Cable Routing

Full-length housing improves shifting performance in poor conditions and increases use time between maintenance intervals

Dropper Post Compatible

Frame accommodates internal routing for a dropper post

Replaceable Derailleur Hanger

Extra sold separately

FAQ

What size wheels/tires can I use on this frame?

Timberjack is designed around 27.5 x 2.8-3.0" or 29 x 2.1-2.6"

Can I use a suspension fork on this frame?

Yes, this frame was designed and tested for use with a suspension fork with an axle-to-crown length up to 541mm (typically 130mm of travel). Check the fork manufacturer's specifications to ensure the model and travel combination you intend to use is equal to or less than this length. Using a longer length fork will void the frame warranty and could result in frame failure. Suspension forks with 51mm offset are needed, but 45mm offset is also acceptable with rigid forks.

How do I take care of the Alternator dropouts?

Periodically, we recommend that you remove the bolts, and clean the dirt and grime off the hardware and the frame surfaces. Then, lightly regrease the threaded parts and re-assemble.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

What is the warranty for this bike?

View <a href="http://salsacycles.com/support/warranty" target="_blank" rel="noreferrer noopener">Warranty</a>

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
