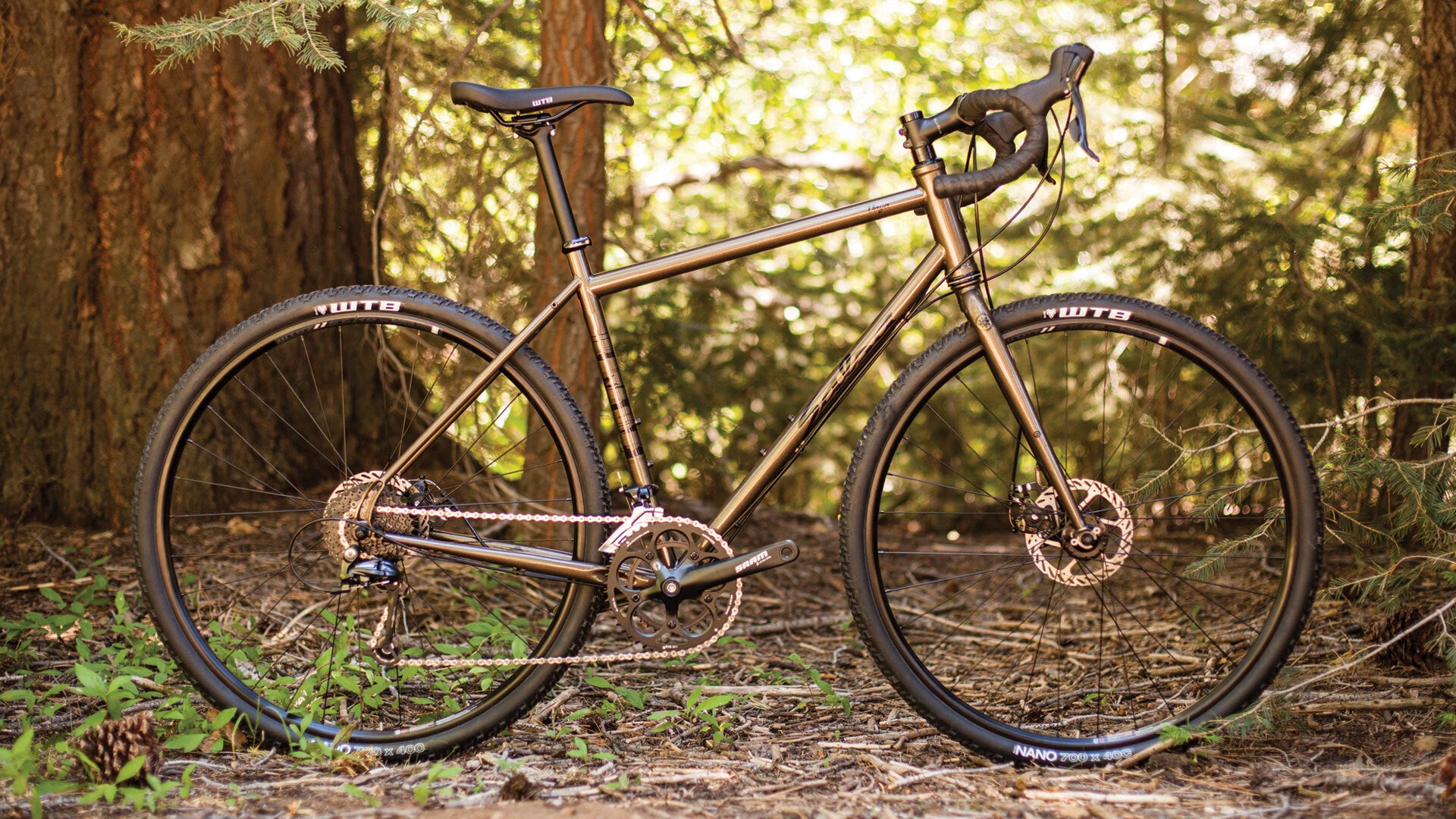

• Salsa Vaya Deore bike green color side view in forest

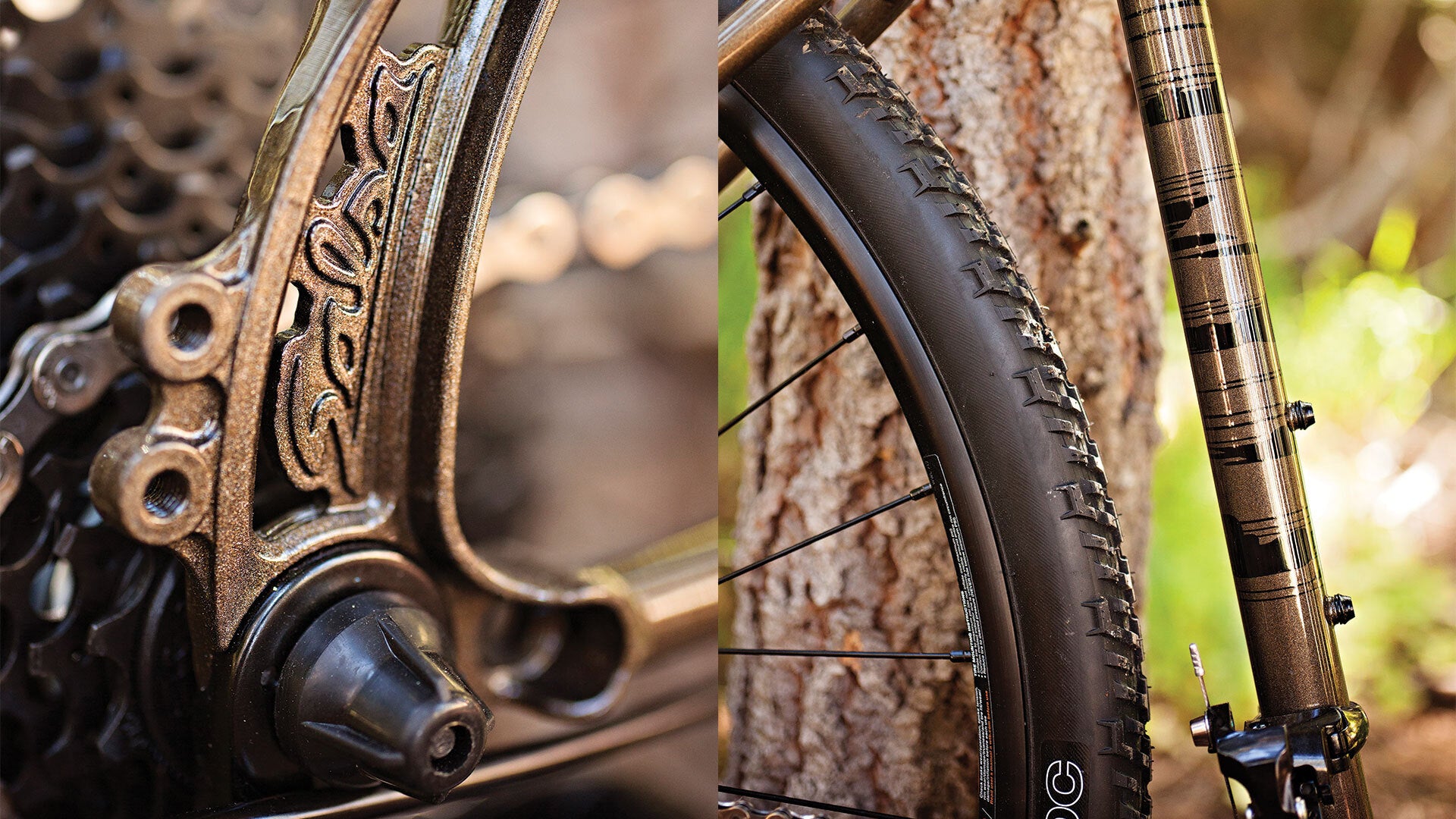

  • Close-up of a bicycle headlight with a blurred natural background

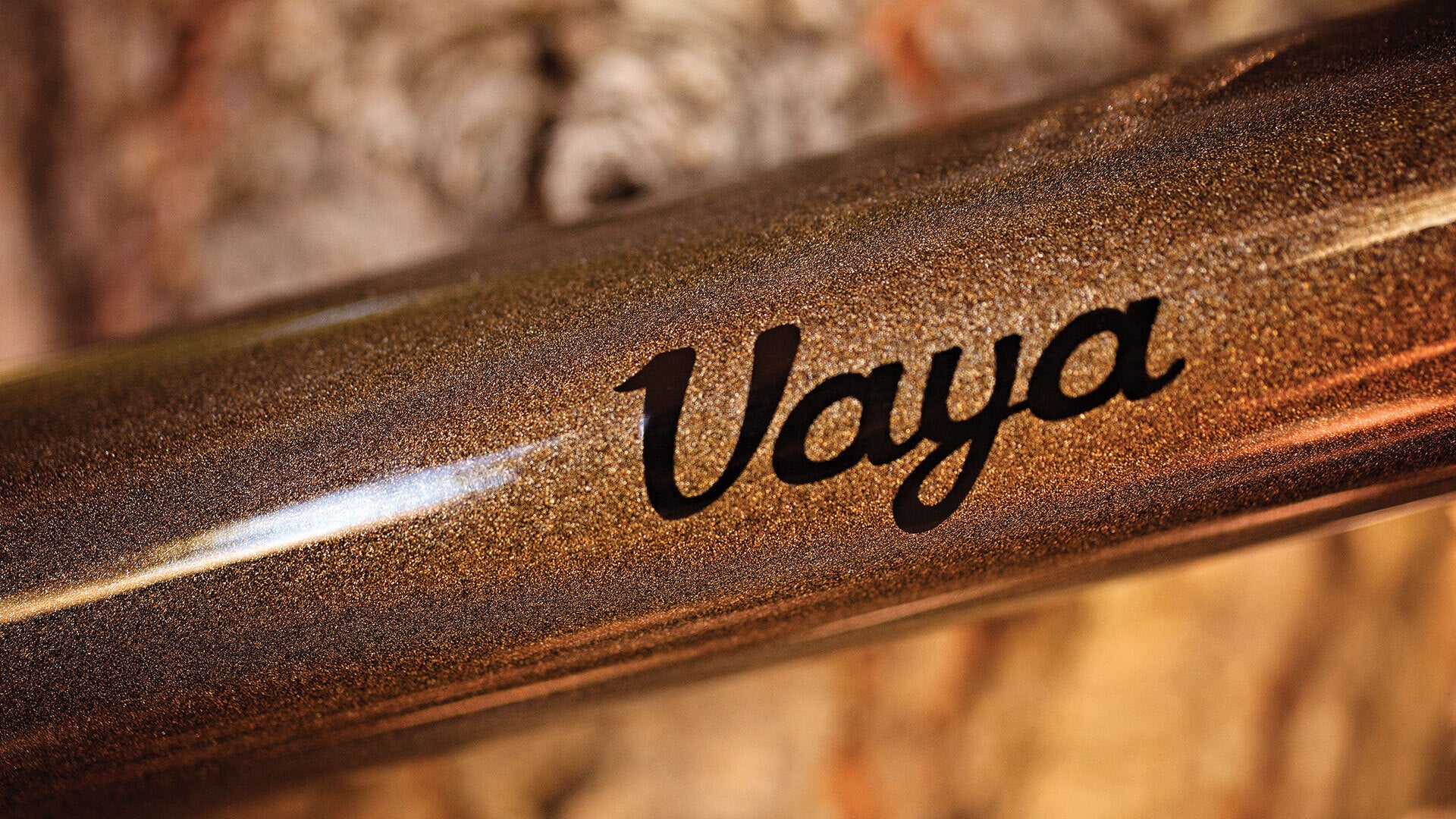

  • Close-up of a metallic object with 'Vaya' engraved on it, against a blurred natural background.

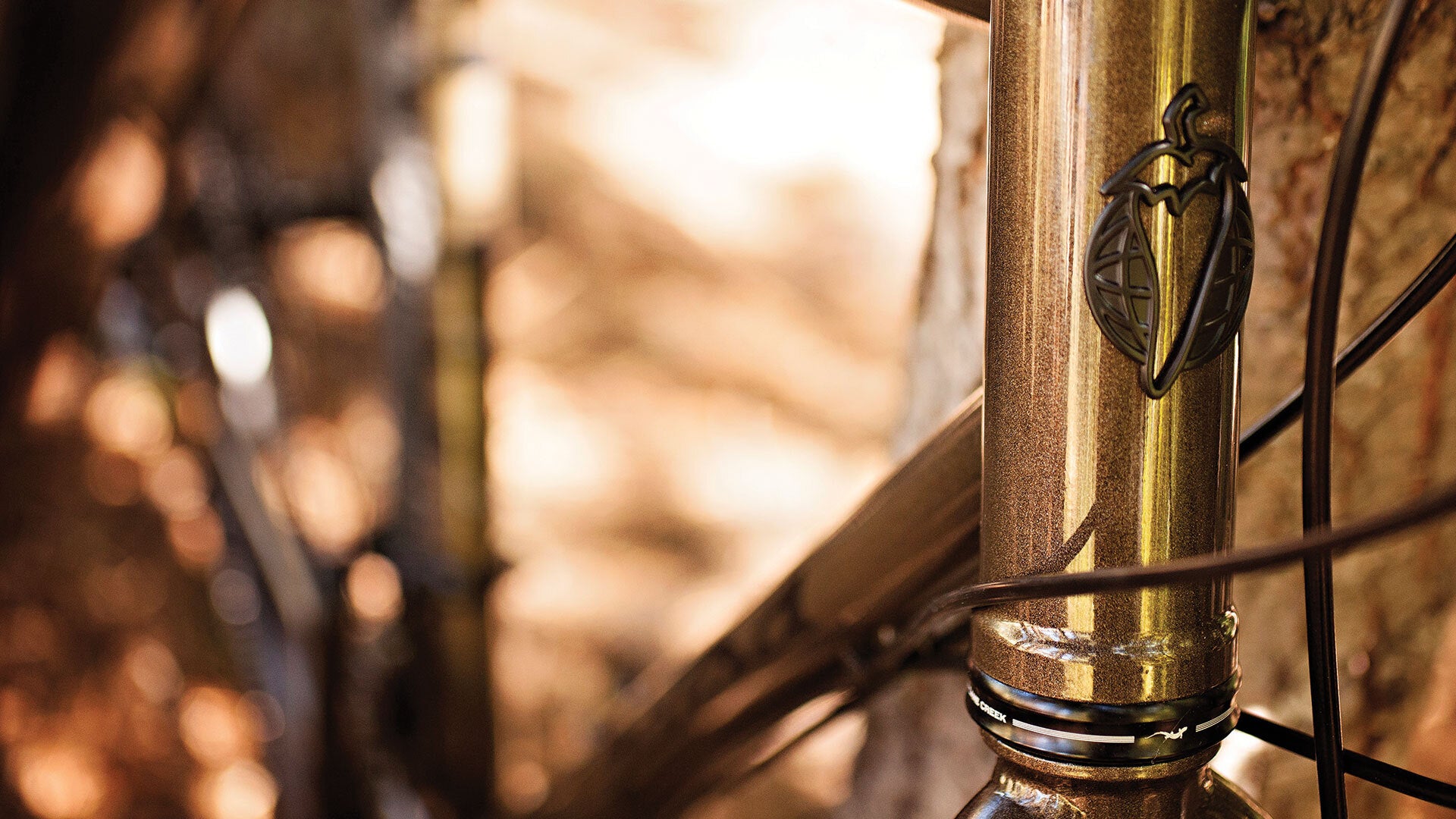

  • Close-up of a bicycle's gear system and tire against a natural background.
1 4

2017 Vaya Deore Green

2017 Vaya Deore Green

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Vaya Kung Fu CroMoly
  • Fork: Vaya CroMoly
  • Color: Dark Green or Dark Red
  • Rear Shock: n/a
  • Front Der: SRAM Apex
  • Rear Der: Shimano Deore 9 SPD
  • Cassette: SRAM PG 920 11-34t
  • Chain: KMC X9
  • Crankset: SRAM S150 48/34T
  • Shifter: Shimano Sora
  • Brakes & Rotors: Avid BB7, G2CS 160mm
  • Headset: Cane Creek 10
  • Stem: Salsa Guide
  • Handlebar: Salsa Cowbell 3
  • Grips: Salsa Gel Bar Tape
  • Seatpost: Zoom 27.2 x 350mm set back post
  • Saddle: WTB Pure V
  • Front Wheel: Salsa, 32h, 100mm, WTB i19 TCS, 2.0 spokes, brass nipples
  • Rear Wheel: Salsa, 32h, 135mm, WTB i19 TCS, 2.0 spokes, brass nipples
  • Tires: WTB Nano 700 x 40mm Comp, 27 tpi
  • Complete Bike Weight: 27 lbs 5 oz for 55cm

Frame Specs

  • Design Wheel/Tire Size: 700c x 50mm w/o fenders
  • Alternative Wheel/Tire Size: 700c x 45mm with fenders
  • Fork Length: 405mm
  • Fork Offset: 50mm
  • Headset-Upper: ZS44
  • Headset-Lower: EC44
  • Seatpost: 27.2mm
  • Seat Collar: 30mm
  • Front Derailleur Mount: Band clamp, 28.6mm, bottom-pull
  • Bottom Bracket: 68mm BSA, threaded
  • Crankset (Max Ring): 1x crankset: 46t max, 2x crankset: 53/39t max, 3x crankset: 53/39/30t max
  • Rear Brake (Rotor): 51mm standard, (140–160mm)
  • Rear Spacing: 135mm
  • Rear Axle Size: 10 x 135mm QR
  • Derailleur Hanger: FS2310
  • BB Cable Guide: 06-000682
  • Rack Mounts: Yes
  • Fender Mounts: Yes
  • Bottle Mounts: 3
  • Stem Clamp: 28.6mm
  • Crown Race: 33mm
  • Front Brake (Rotor): 74mm post-mount (140–160mm)
  • Front Spacing: 100mm
  • Front Axle: Quick-release

Geometry

Geometry Diagram
Metric 49.5cm 52cm 54cm 55cm 57cm 59.5cm
Top Tube Effective Metric 495 520 540 550 570 595
Seat Tube Length Metric 380 450 470 510 530 560
Head Tube Length Metric 100 100 145 165 185 205
Head Tube Angle 70.25 71.5 71.5 71.5 71.5 71.5
Seat Tube Angle 75.5 74.5 73.5 73 72.5 72
BB Drop Metric 75 75 75 75 75 75
Chainstay Length Metric 450 450 450 450 450 450
Fork Length Metric 405 405 405 405 405 405
Fork Offset Metric 50 50 50 50 50 50
Wheelbase Metric 1019.4 1022.7 1034 1038.9 1053.5 1072.6
Stack Metric 542.7 547.4 590.1 609.1 628 647
Reach Metric 354.6 368.2 365.2 363.8 372 384.8
Standover Metric 660.1 713.7 742 776.3 795.6 821
Rider Height Metric 147–158 cm 158–165 cm 165–173 cm 170–178 cm 175–185 cm 185–UP
Stem Length 60 70 80 80 90 100
Crank Length 165 165 170 172.5 175 175
Handlebar Width 38cm 40cm 40cm 42cm 44cm 46cm
Seatpost Offset Metric 25 25 25 25 25 25
  • Measurements listed are based on a 700c x 41mm tire measuring 709mm in diameter.
  • Standover (P) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center.

Supportive Documents

Support Document links

Additional Features

Vaya Geometry

Designed as an any road or light touring bike, optimized for fit with Salsa drop bars. Stable handling with a light load, and ready to explore any road

Kung Fu CroMoly Tubeset

Salsa designed, triple-butted, and frame size-specific seamless Sanko CroMoly Kung Fu tubing

Rear Rack & Fender Mounts

Integrated rear rack and front and rear fender mounts cast into dropout for durability. Designed to work best with Salsa Wanderlust Rack

Generous Tire Clearance

Clearance for 700c x 50mm tires or 700c x 45mm with fenders

Full-Length Cable Housing w/ Salsa Designed Front Derailleur Cable Guide

Improved performance in poor conditions. Full drivetrain cable housing with a front derailleur BB cable guide to keep muck from entering the housing. Clean routing keeps shifting protected. Brake routing is external for easy maintenance

Vaya Steel Fork

4130 steel fork with a tapered 1-1/8 to 1-1/4" steerer for compliance and ideal ride qualities over rough, uneven surfaces, and Salsa investment-cast dropout. Fender and mid-blade rack mounts included
