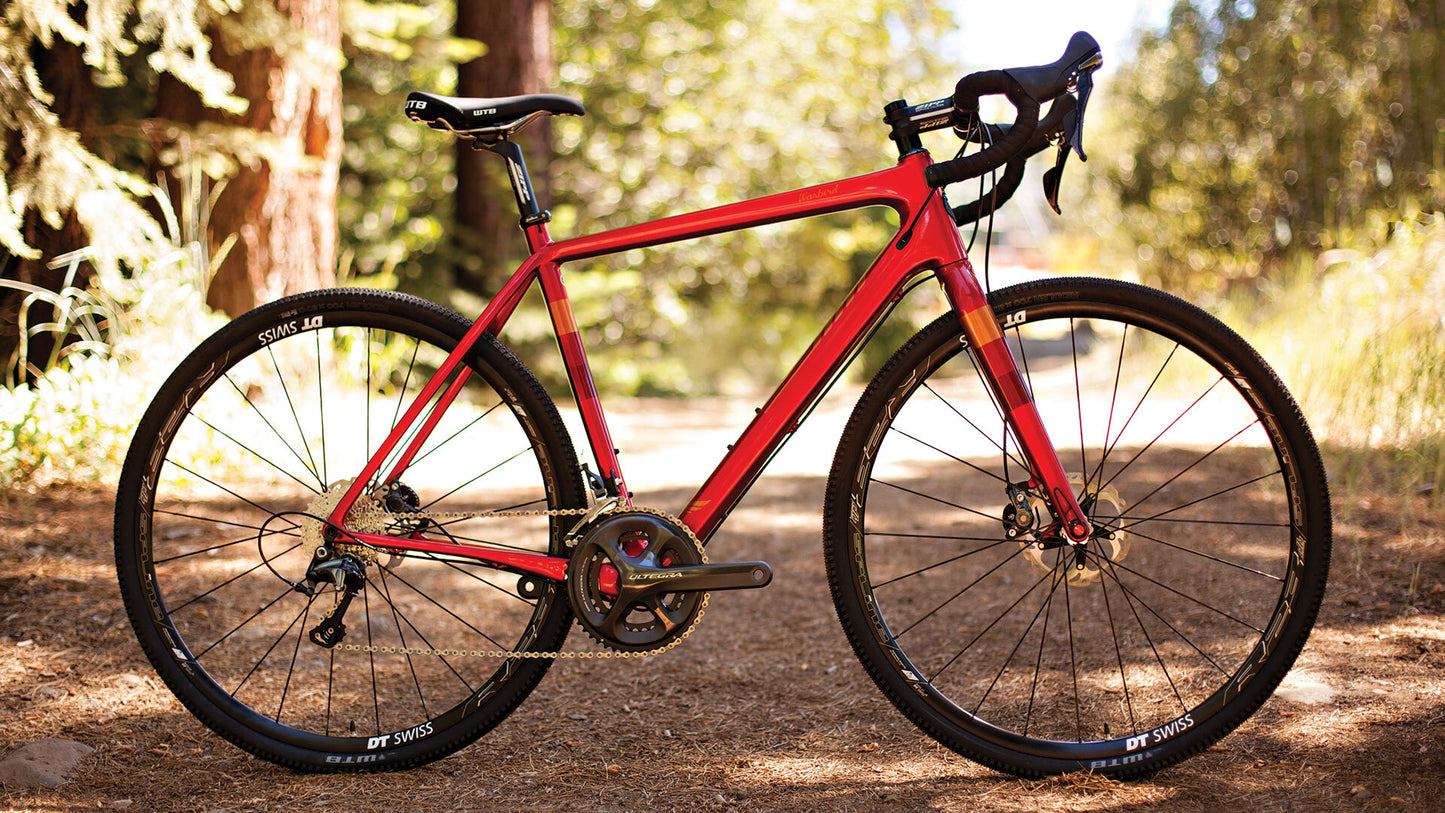

2017 Warbird Carbon Ultegra

2017 Warbird Carbon Ultegra

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

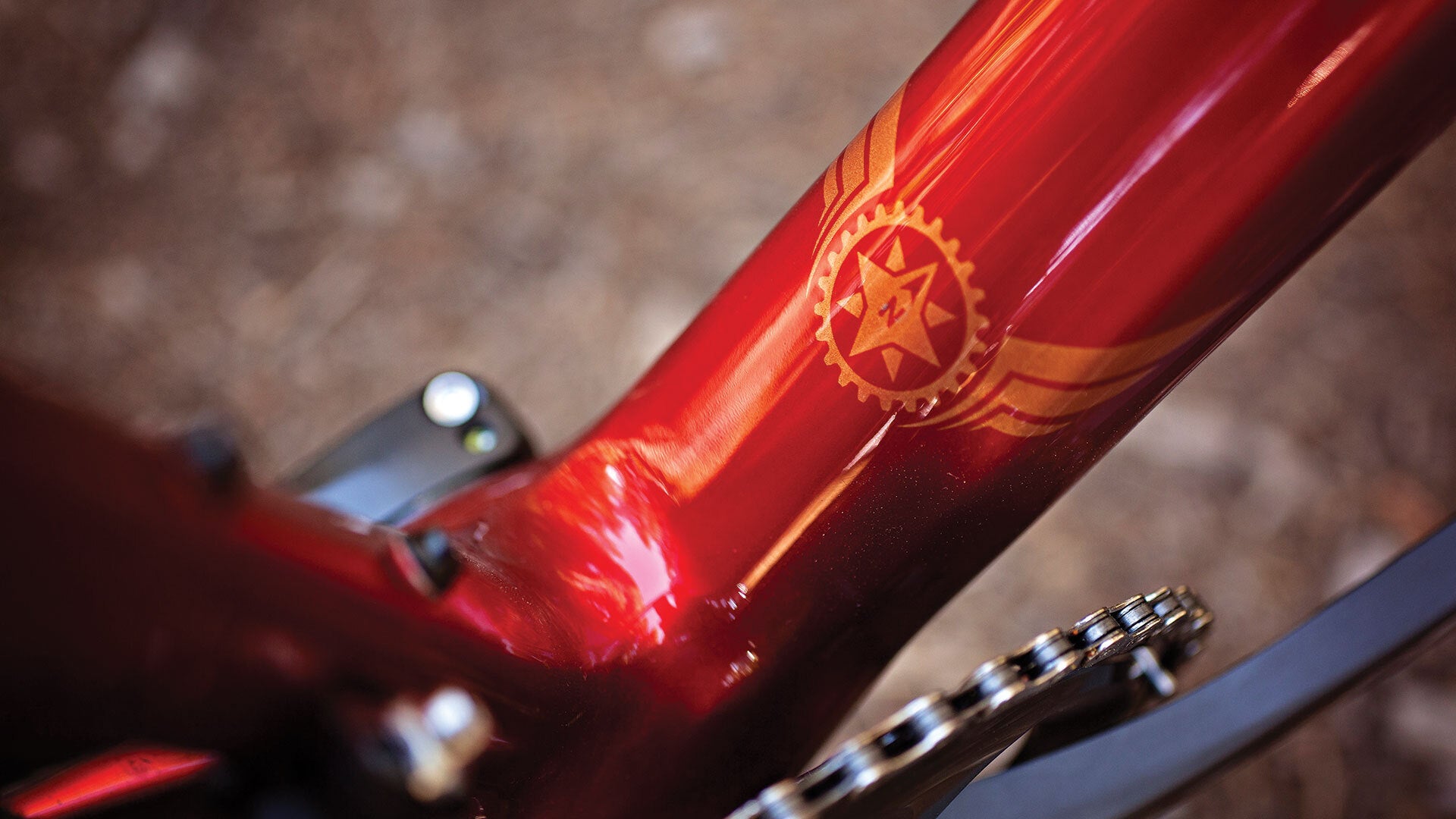

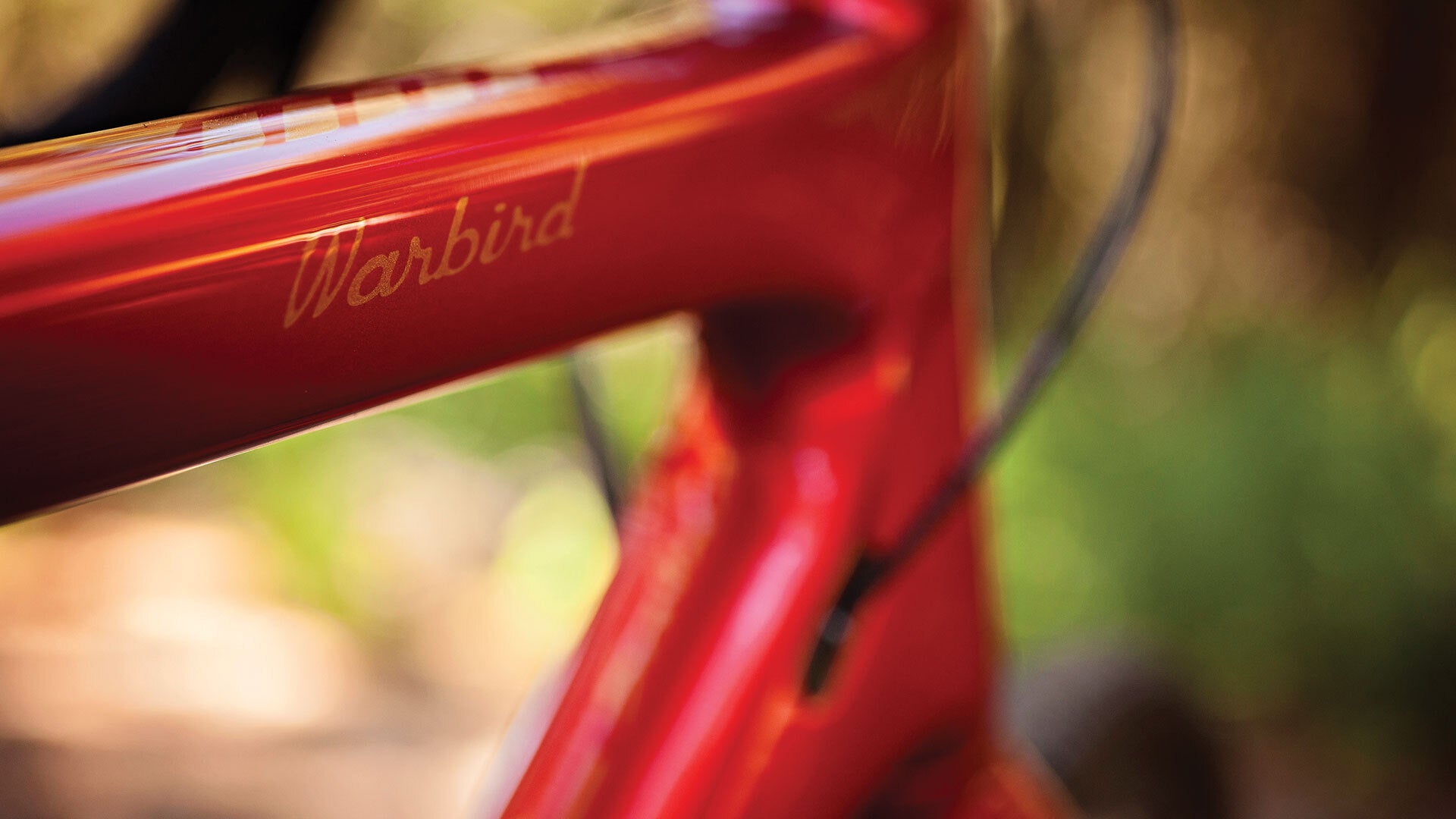

  • Frame: Warbird Carbon
  • Fork: Warbird Carbon
  • Color: Red/Orange
  • Rear Shock: n/a
  • Front Der: Shimano Ultegra
  • Rear Der: Shimano Ultegra
  • Cassette: Shimano 5800, 11-32t
  • Chain: KMC X11

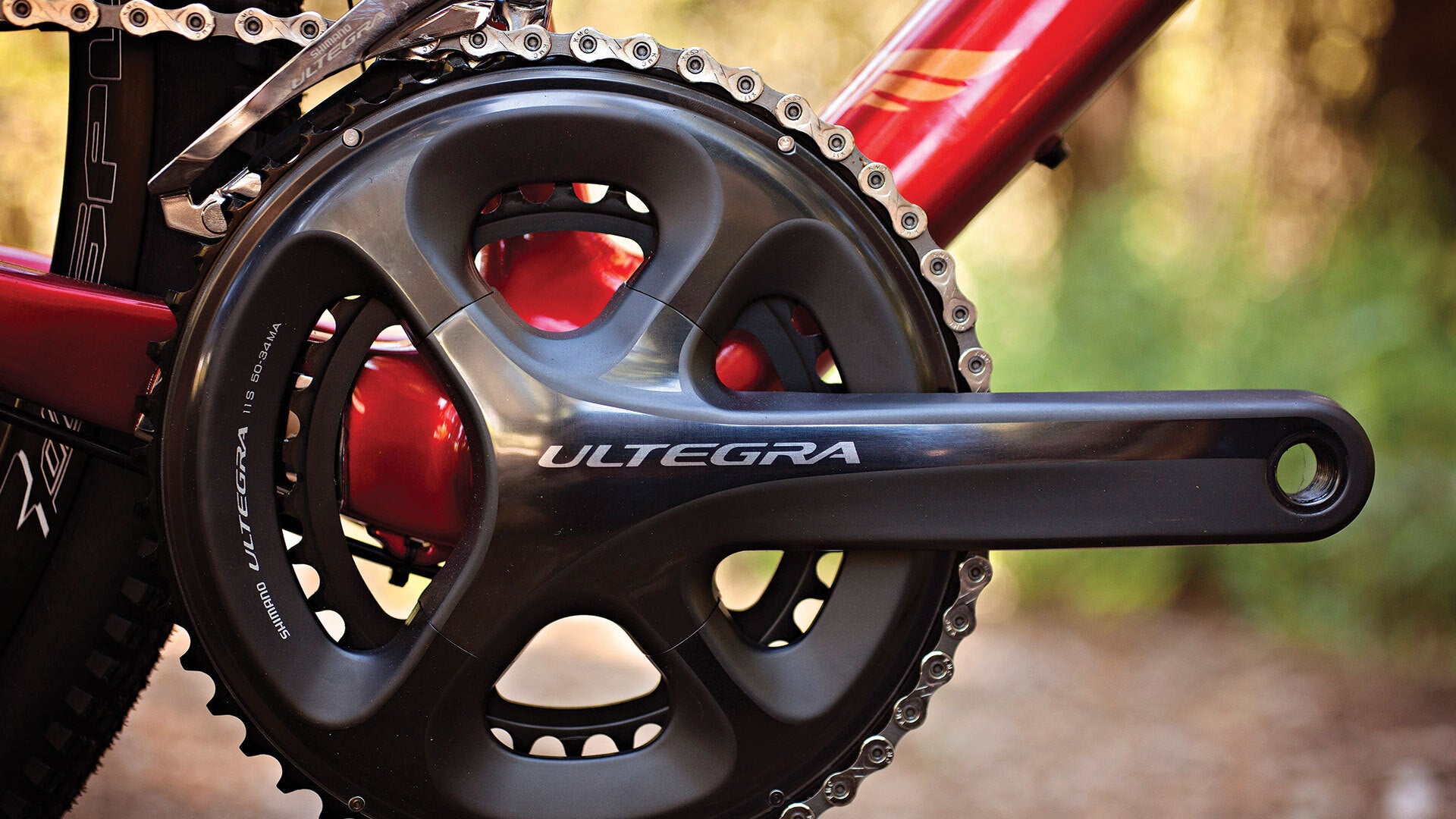

  • Crankset: Shimano Ultegra, 50/34t
  • Shifter: Shimano RS785
  • Brakes & Rotors: Shimano RS685, XT 160mm
  • Headset: Cane Creek 40

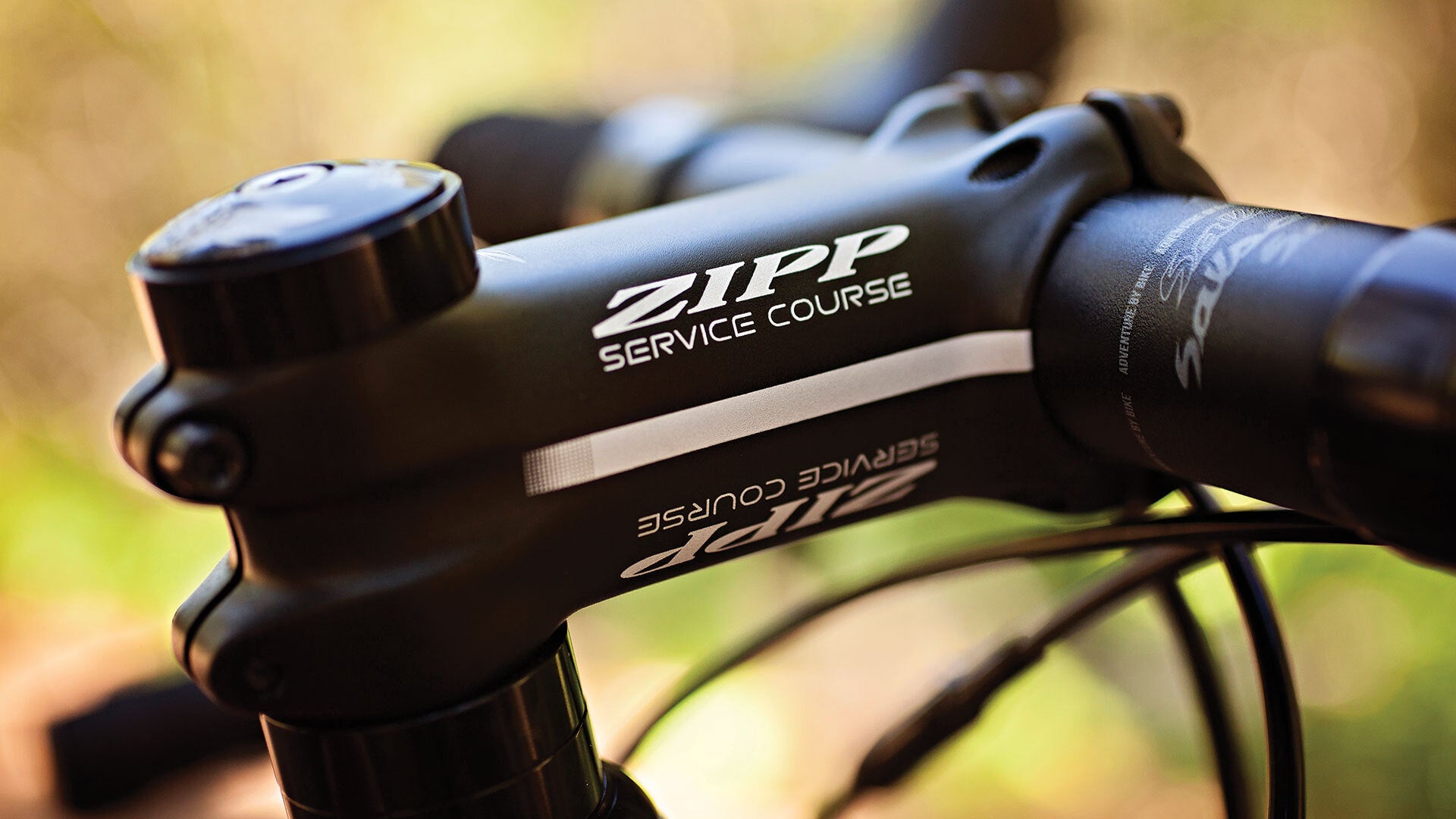

  • Stem: Zipp Service Course
  • Handlebar: Salsa Cowbell 2
  • Grips: Salsa Gel Bar Tape
  • Seatpost: Zipp Service Course 27.2 x 350 set-back
  • Saddle: WTB Volt Pro

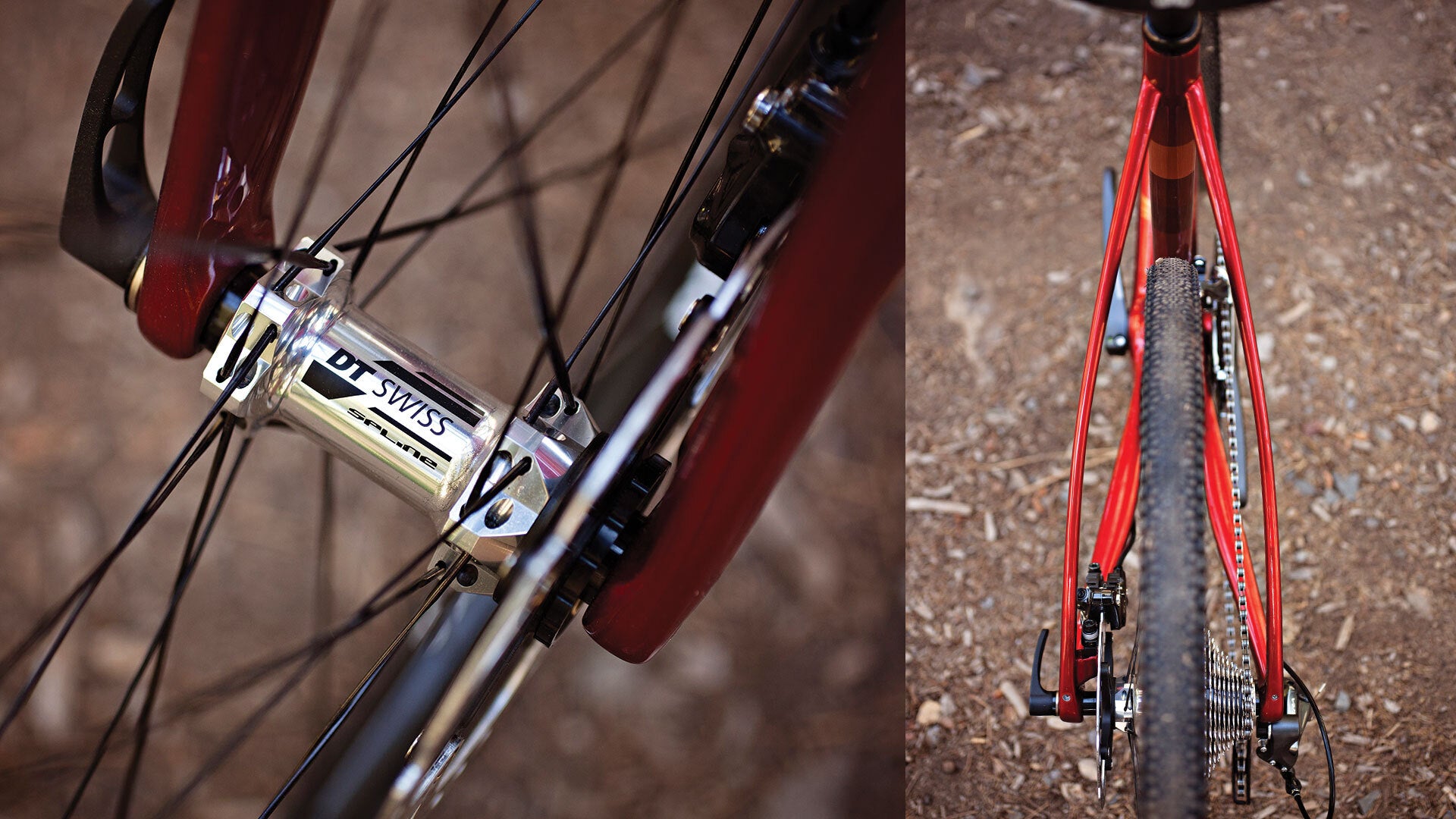

  • Front Wheel: DT Swiss R23DB, 15 x 100mm Thru-Axle
  • Rear Wheel: DT Swiss R23DB, 12 x 142mm Thru-Axle
  • Tires: WTB Riddler 700c x 37mm tubeless-compatible 120tpi
  • Complete Bike Weight: 19 lbs 12 oz for 56cm, set up tubeless

Frame Specs

  • Design Wheel/Tire Size: 700c x 44mm
  • Rigid Fork Length: 405mm
  • Fork Offset: 45mm
  • Headset-Upper: IS41
  • Headset-Lower: IS47
  • Seatpost: 27.2mm
  • Seat Collar: 32.0mm
  • Front Derailleur Type: Bottom pull
  • Front Derailleur Mount: Braze-on
  • Bottom Bracket: PressFit 41 x 86mm
  • Crankset: 2x: 39/53t max, 1x: 46t max
  • Rear Brake (Rotor): 74mm post mount, 140–160mm
  • Rear Spacing: 142mm
  • Derailleur Hanger: FS2339
  • Bottle Mounts: 3 per frame
  • Fender Mounts: Yes (refer to Frame Fender Mount Instructions)
  • Stem Clamp: Ø28.6mm
  • Crown Race: Ø33mm
  • Front Brake (Rotor): 74mm post mount (140–160mm)
  • Front Spacing: 100 x 15mm thru-axle
  • Front Thru-Axle: Ti: 15 x 125L, TP = 1.5, TL = 12mm
  • Front Fender Mounts: Yes (refer to Fork Fender Mount Instructions)

Geometry

Geometry Diagram
Metric 51cm 53cm 55cm 56cm 58cm 60cm
Top Tube Effective Metric 515 535 550 565 580 600
Seat Tube Length Metric 455 495 520 540 575 605
Head Tube Length Metric 100 120 140 160 185 210
Head Tube Angle 70 70.5 70.5 71.5 72 72
Seat Tube Angle 74.5 73.5 73 73 72.5 72
BB Drop Metric 70 70 70 70 70 70
Chainstay Length Metric 430 430 430 430 430 430
Fork Length Metric 405 405 405 405 405 405
Fork Offset Metric 45 45 45 45 45 45
Wheelbase Metric 1007.4 1014 1024.7 1030.6 1034.9 1048.8
Stack Metric 527.7 548.4 567.3 590.1 615.8 639.6
Reach Metric 368.6 372.5 376.6 384.6 385.8 392.2
Standover Metric 716.2 749 771.6 792.4 823.6 850.2
Rider Height Metric 152cm–160cm 157cm–165cm 165cm–175cm 173cm–183cm 180cm–190cm 188cm–UP
Stem Length 70 80 90 90 100 110
Crank Length 170 170 170 172.5 175 175
Handlebar Width 38cm 40cm 42cm 42cm 44cm 46cm
Seatpost Offset Metric 20 20 20 20 20 20
  • A Warbird Carbon Fork which is 405 x 45mm offset.
  • Measurements listed are based on a 700c x 32mm tire measuring 696mm in diameter.
  • Standover (P) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center.

Supportive Documents

Support Document links

Additional Features

Warbird Geometry

As the demands of gravel racing grew in scope, so too did the need for a re-examination of what was and wasn’t working with the bicycles riders were using at the time. The result was the first modern gravel-racing-specific bike. Warbird places the rider in a position that can be maintained for hours on end over bumpy B-roads and shifting surfaces, drastically reducing fatigue. A low bottom bracket and a stable wheelbase help keep tires planted without robbing speed

Interior Junction Control Molding Technology

We use interior molds at all the main front triangle junctions during layup and curing. This allows for precise control of wall thickness and inner wall smoothness in these areas. This process increases compaction and reduces voids and wrinkles in critical high-stress zones. The end result is a top-quality carbon frame that delivers consistent high performance

Class 5™ VRS

The Class 5™ Vibration Reduction System has specially shaped seatstays with a tall, thin, vertically oriented profile that promotes vertical compliance by allowing the seatstays to "flex" outwards on impacts. The horizontally oriented chainstays work to resist torque and maintain a laterally stiff rear end. The seatstays and chainstays lack bridges, furthering the full length of the stays to contribute to flexibility. And a rear thru-axle delivers precise tracking while allowing the seatstays to provide that incredible compliance

Internal Cable Routing

Internal cable routing through the downtube, then along the chainstays. Brake routing is external along the downtube and chainstay for easy maintenance. Can be run internally with 1x setups. Frames can be run with full housing internally, cables only, or Di2 routing. Front derailleur cover plate exists to keep frame looking stellar with 1x setups

Full-Length Cable Housing

Improved performance in poor conditions. Drivetrain cable housing is run through the downtube for clean routing and to keep shifting protected. Brake routing is external for easy maintenance; can be run internally with 1x setups

Massive Tire & Mud Clearance

The Warbird can fit up to 44mm tires, 38mm with fenders, and still have plenty of room to keep you moving on a muddy B-Road

Hidden Fender Mounts

The option for protection from the elements is there when you need it, but the attachment points are tucked away to maintain the pure race bike look

Triple Water Bottle Capacity

Each size can carry up to 3 water bottles on the frame

Warbird Carbon Fork

Full carbon fork with a tapered 1-1/8 to 1-1/4" steerer tube for superior tracking and ride quality. Massive 46mm tire clearance for muddy B-road conditions. 15 x 100mm thru-axle and Salsa-designed carbon layup for frame matching compliance. 74mm post-mount style brake mount. 140 to 160mm disc brake rotor compatible. Hidden fender mounts
