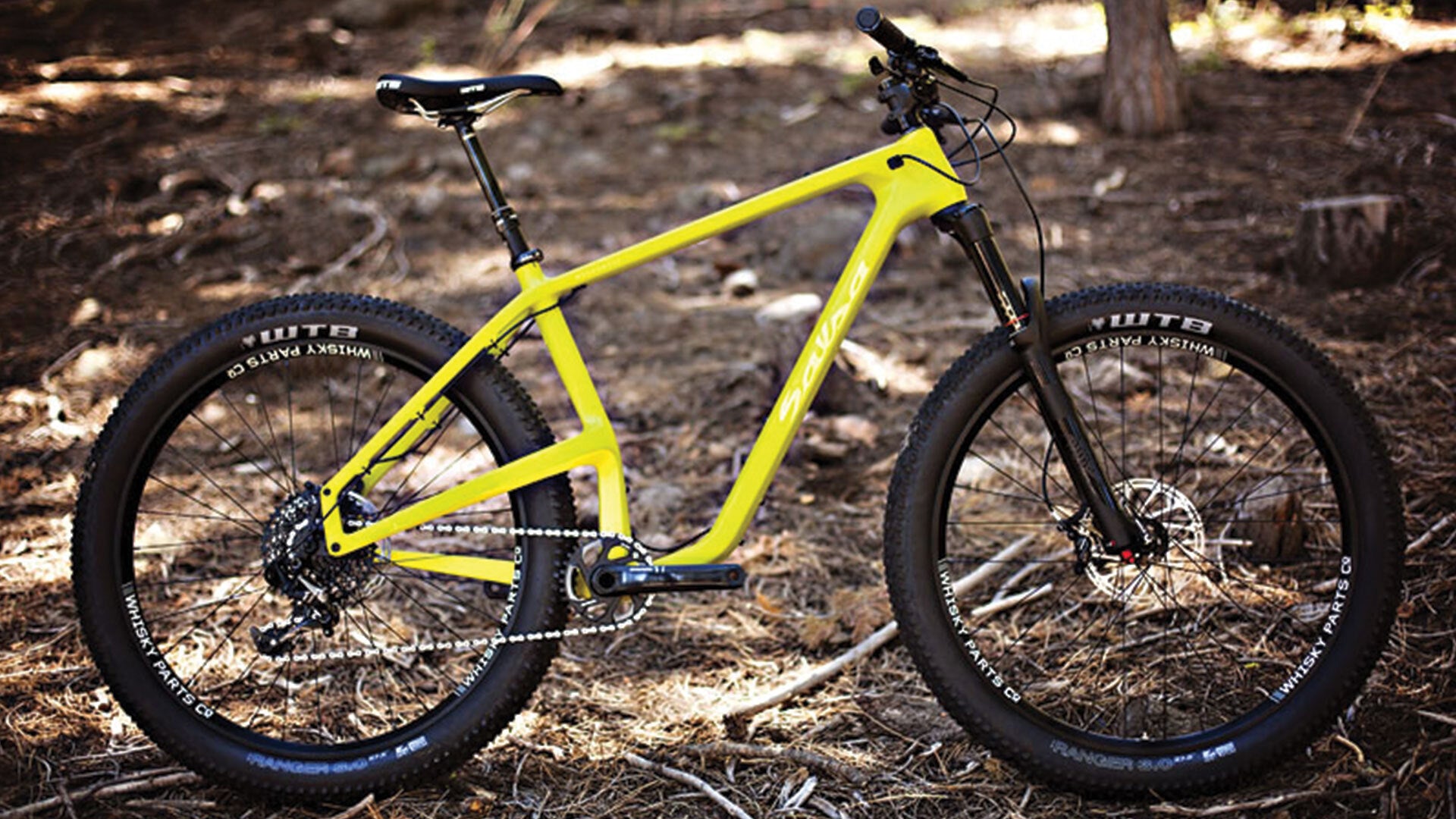

• Salsa Woodsmoke 27.5 Plus X01 bike hi-viz yellow color side view in forest

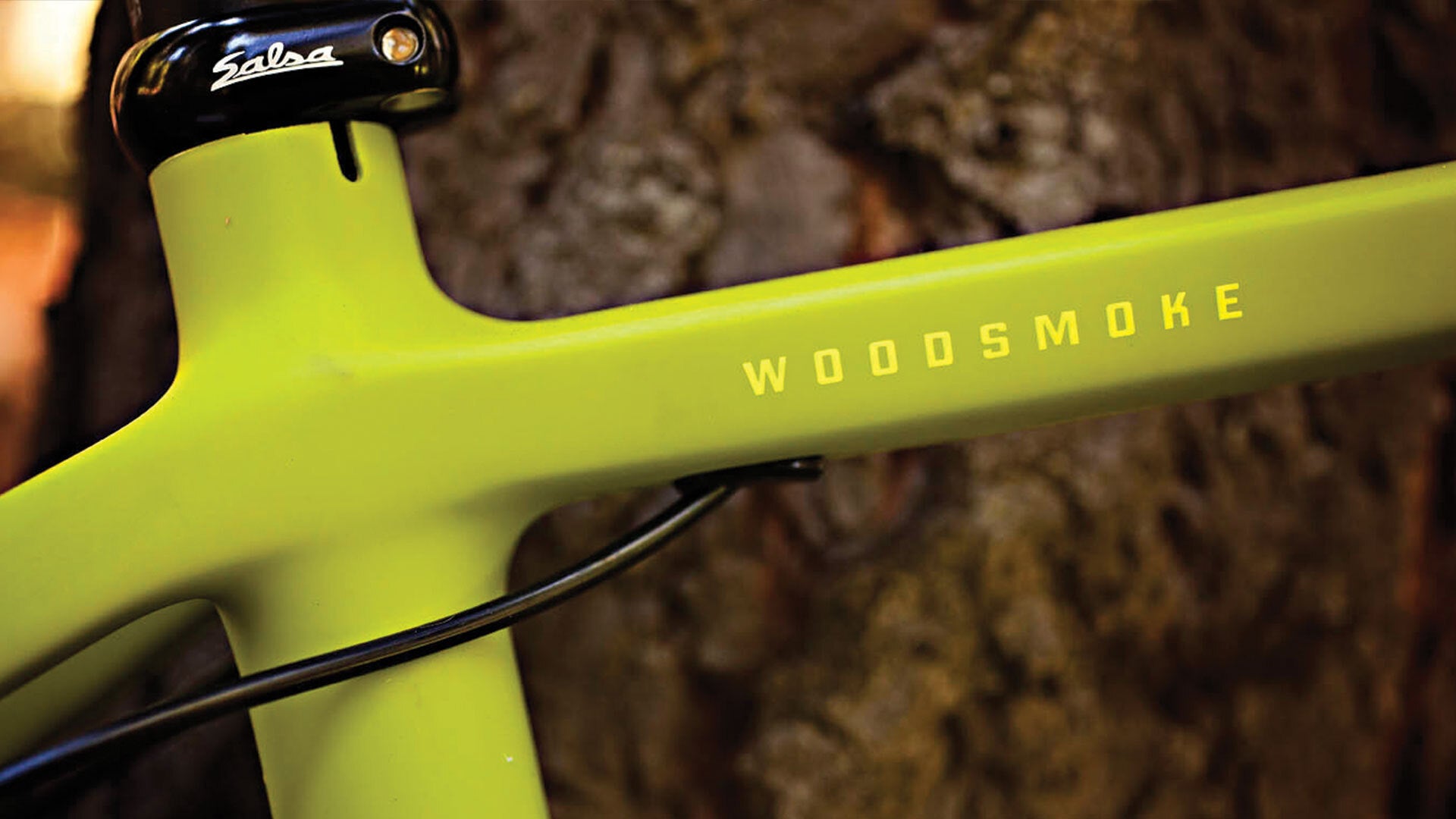

  • Close-up of a bright yellow bicycle frame with 'Salsa' branding and 'WOODSMOKE' text.

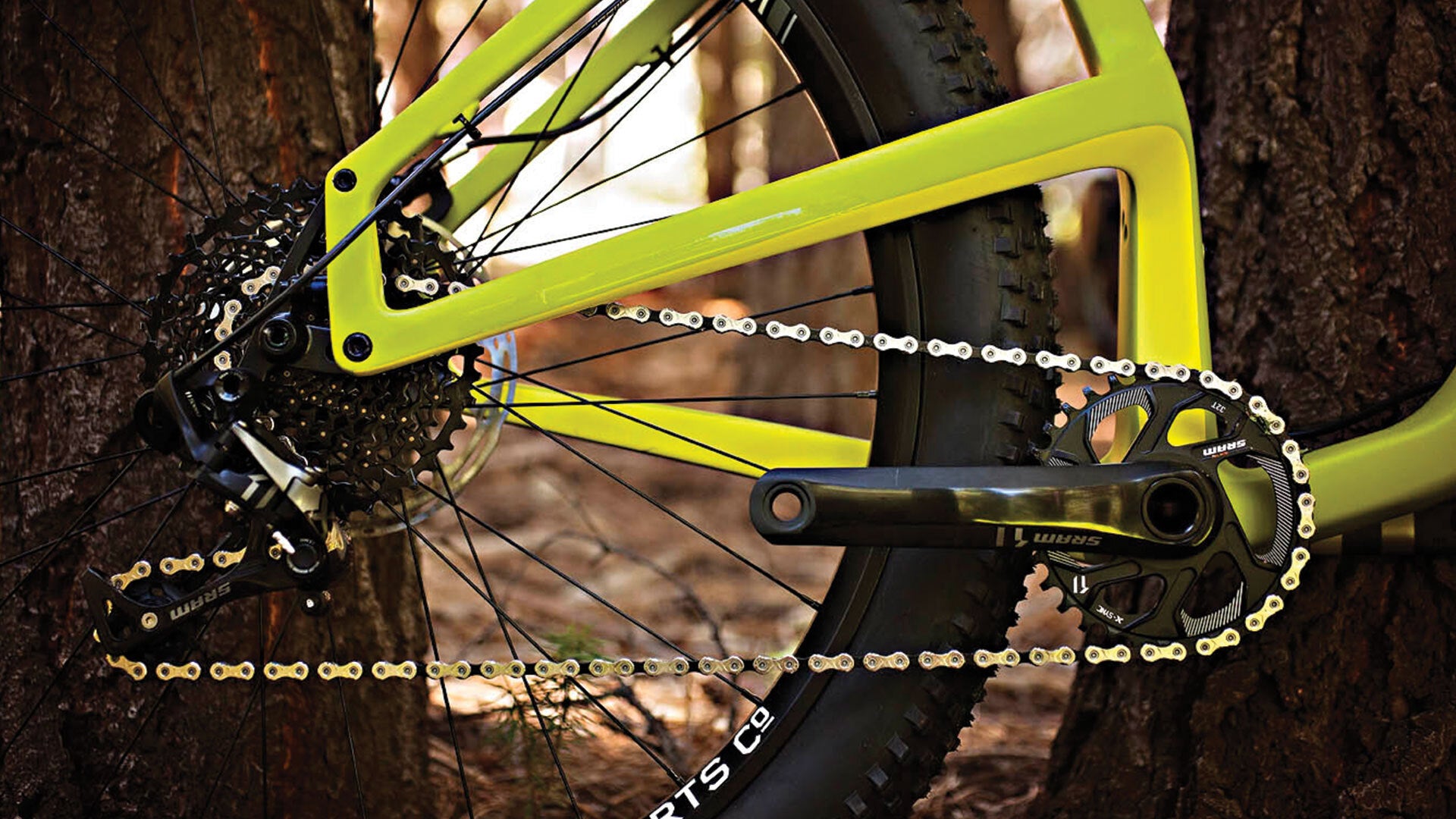

  • Salsa Woodsmoke 27.5 Plus X01 bike hi-viz yellow color drivetrain focus
  • Close-up of a yellow bicycle frame with a blurred background

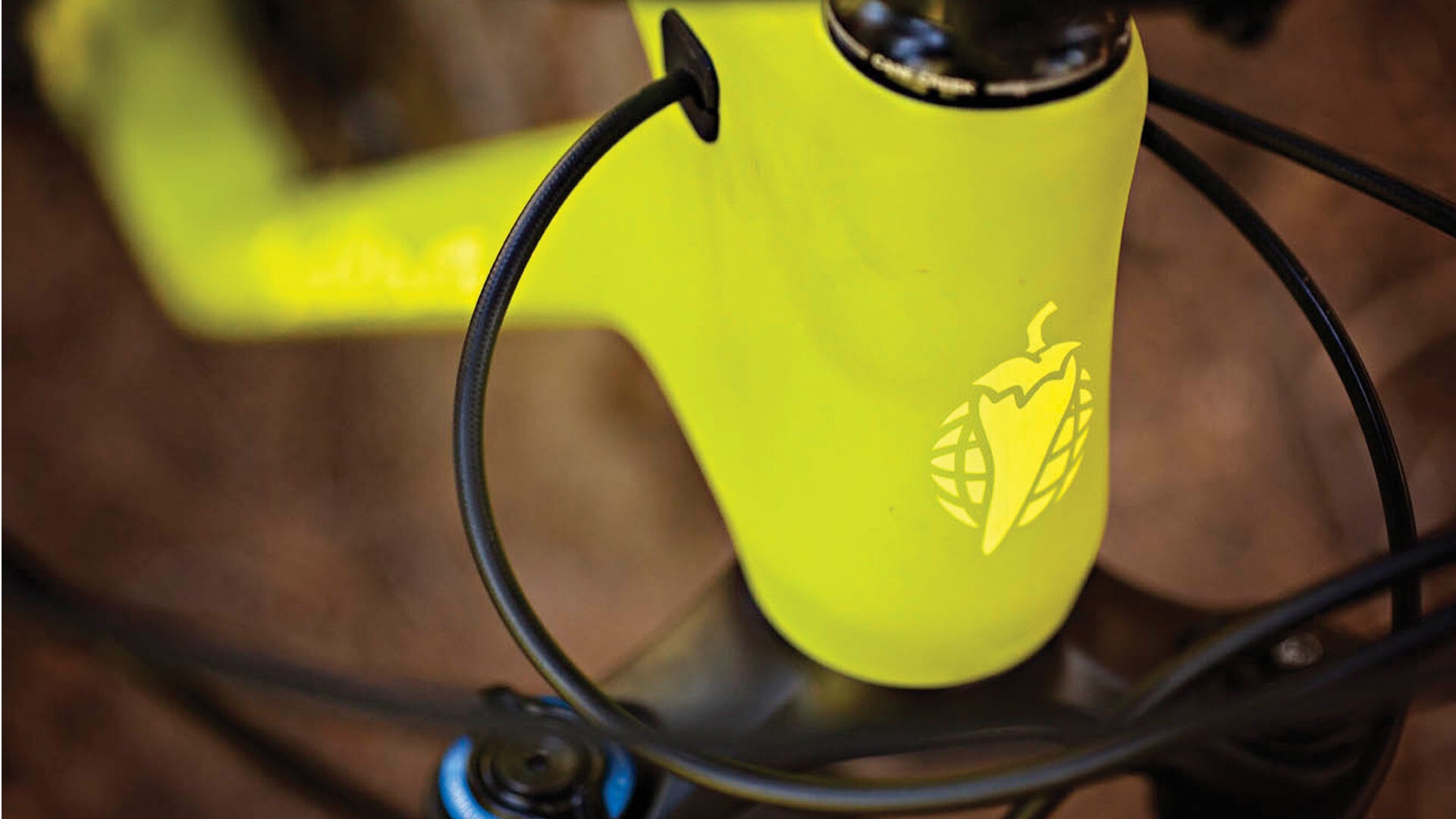

  • Salsa Woodsmoke 27.5 Plus X01 bike hi-viz yellow color head tube detail focus
1 5

2017 Woodsmoke 27.5 Plus X01

2017 Woodsmoke 27.5 Plus X01

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Woodsmoke Carbon
  • Fork: RockShox Pike RC Solo Air 130mm
  • Color: Green
  • Rear Shock: n/a
  • Front Der: n/a
  • Rear Der: SRAM XO1
  • Cassette: SRAM XG 1150 10-42t
  • Chain: KMC X11
  • Crankset: SRAM X1 1400, XSYNC 32T
  • Shifter: SRAM XO1
  • Brakes & Rotors: SRAM Guide RS, Centerline 180mm
  • Headset: Cane Creek 40
  • Stem: Salsa Guide
  • Handlebar: Salsa Rustler 2
  • Grips: Salsa Backcountry Lock-On
  • Seatpost: RockShox Reverb
  • Saddle: WTB Volt Race
  • Front Wheel: Salsa, 32h, 110mm, 15mm Thru-Axle, Whisky No. 5, 2.0/1.8 spokes, brass nipples
  • Rear Wheel: Salsa, 32h, 148mm, 12mm Thru-Axle, Whisky No. 5, 2.0/1.8 spokes, brass nipples
  • Tires: WTB Ranger 27.5 x 3.0", Dual DNA compound, lightweight tubeless casing, UST aramid bead
  • Complete Bike Weight: 28 lbs 6 oz for Large, set up tubeless

Frame Specs

  • Design Wheel/Tire Size: 29 x 3.0" (at 417mm rear center)
  • Alternative Wheel/Tire Size: 27.5 x 3.25" (at 409mm rear center), 27.5 x 3.0" (at 405mm), 29 x 2.4" (at 402mm)
  • Suspension Fork Length (Travel): 29 x 3.0" = 543mm (120mm) 27.5 x 3.0–3.25" = 541–563mm (130–140mm) 29 x 2.4" = 531–563mm (120–140mm)
  • Rigid Fork Length: 483–507mm
  • Fork Offset: 51mm
  • Headset-Upper: IS41
  • Headset-Lower: IS52
  • Seatpost: 30.9mm
  • Seat Collar: 35.0mm
  • Dropper Compatible (Routing): Yes
  • Front Derailleur Mount: High direct-mount, SRAM GX top-pull and Shimano side-swing front-pull only in 27.5 plus and 29"
  • Bottom Bracket: PressFit 41 x 92mm
  • Crankset (Max Ring): 1x crankset: 54t max Boost, 2x crankset: 36/24t max Boost
  • Rear Brake, (Rotor): 51mm I.S., (160–180mm)
  • Rear Spacing: 148mm
  • Rear Axle Size: 12 x 180L, TP = 1.75, TL = 20
  • Derailleur Hanger: Fixed Position - D: FS2354, ND: FS2357 Adjustable - D: FS2352, ND: FS2356
  • Bottle Mounts: 3

Geometry

Geometry Diagram
Metric XS SM MD LG XL
Top Tube Effective Metric 571 591 611 641 671
Seat Tube Length Metric 355.6 381 431.8 482.6 533.4
Head Tube Length Metric 100 100 110 120 130
Head Tube Angle 68.4 68.4 68.4 68.4 68.4
Seat Tube Angle 73.9 73.9 73.9 73.9 73.9
BB Drop Metric 62 62 62 62 62
Chainstay Length Metric 400–417 400–417 400–417 400–417 400–417
Fork Length Metric 499 499 499 499 499
Fork Offset Metric 51 51 51 51 51
Wheelbase Metric 1062–1078 1082–1098 1103–1119 1134–1150 1165–1181
Stack Metric 604 604 613 623 632
Reach Metric 391 411 428 456 483
Standover Metric 700 720 759 788 817
Rider Height Metric 157cm–168cm 160cm–175cm 173cm–183cm 180cm–191cm 188cm–UP
Stem Length 50 50 50 50 50
Crank Length 170 170 170 175 175
Handlebar Width 750mm 750mm 750mm 750mm 750mm
Seatpost Offset Metric 9mm 9mm 9mm 9mm 9mm
  • Build 1: A 507 x 51 mm offset fork which is equivalent to an average 120mm fork at 30% sag
  • Build 2: A 509 x 51 mm offset fork which is equivalent to an average 130mm fork at 25% sag
  • Build 3: A 499 x 51 mm offset fork which is equivalent to an average 120mm fork at 25% sag
  • Measurements listed are based on the tire diameter associated with each chart.
  • Standover (P) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center.

Supportive Documents

Support Document links

Additional Features

Salsa Woodsmoke Geometry

Woodsmoke uses a longer toptube and shorter stem to put the rider in a confidence-inspiring position for off-road riding. Using the same stem length, offsets, and angles on each frame size, we provide riders across our size range with the same consistent front-end experience. Combining this front end with ultra-short chainstays, as short as 400mm, makes Woodsmoke an extremely agile trail bike

Ultra-Short Chainstays

Woodsmoke challenges the current notion of “short.” Inspired by our previous hardtail development and elevated chainstay bikes of the past, we wanted to push the limits of chainstay length. Not just short for short’s sake though, the Woodsmoke has monster truck rollover with sports car nimbleness. With Woodsmoke geometry and the option of 27.5+, 29", and 29+ wheels and tires, Woodsmoke is the ideal blend of the best traction for the task at hand and all day shredability

Versatile Build Options

Woodsmoke offers a variety of canvases for the off-road artist.  Build it with 29+, 27.5+, or 29er tires for the appropriate use case and traction. Use a 120–140mm travel suspension fork or our rigid Firestarter fork. Build it up geared or singlespeed with the Alternator 2.0 dropouts that can change chainstay lengths from 400 to 417mm long ). Woodsmoke can easily adapt to whatever flavor of undertaking you’re up for

1x & 2x Drivetrain Compatible

This frame is compatible with both 1x and 2x drivetrain setups. A removable direct mount front derailleur bracket allows for clean 1x build.  2x builds are possible for 27.5+ and 29er setups. 29+ is 1x only

Alternator Dropouts V2.0

Alternator Dropouts deliver incredible drivetrain versatility. Run singlespeed or geared. Set the dropouts all the way forward for a shorter wheelbase and more nimble handling, or set back for increased stability. See our Alternator page for more info

Rear Wheel & Tire Options

29 x 3.0", 27.5 x 3.25", or 29 x 2.4"

Interior Junction Control Molding Technology

We use interior molds at all the main front triangle junctions during lay up and curing. This allows for precise control of wall thickness and inner wall smoothness in these areas. This process increases compaction and reduces voids and wrinkles in critical high-stress zones. The end result is a top-quality carbon frame that delivers consistent high performance

Suspension Fork Compatible

Designed around a 120mm travel fork for 29+, 130mm travel fork for 27.5+, and 120mm travel fork for 29er (51mm offset for all). Compatible with 140mm travel forks. Also compatible with Salsa Firestarter fork for fully rigid setup

Full-Length Internal Housing Cable Routing

Full-length housing improves shifting performance in poor conditions and increases use time between maintenance intervals

Multiple Bottle Cages

Accepts 3 bottles per frame

Dropper Post Compatible

Frame accommodates internal routing for a dropper post

Tapered Headtube

The modern standard for mountain bikes increases front-end frame and fork stiffness without adding significant weight

Replaceable Derailleur Hanger

Extra sold separately
