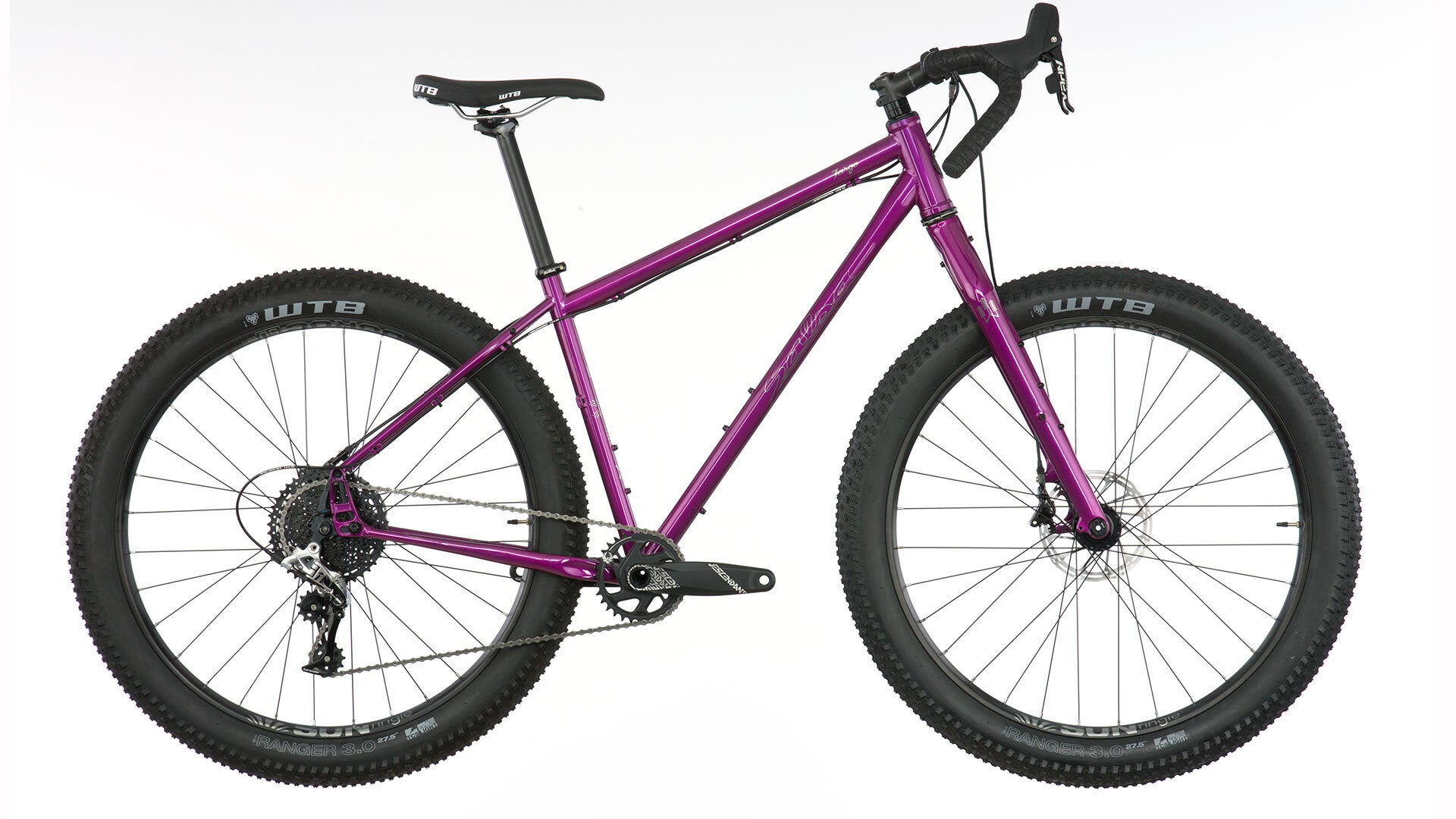

• Salsa Fargo Rival 27.5 Plus bike purple color side view

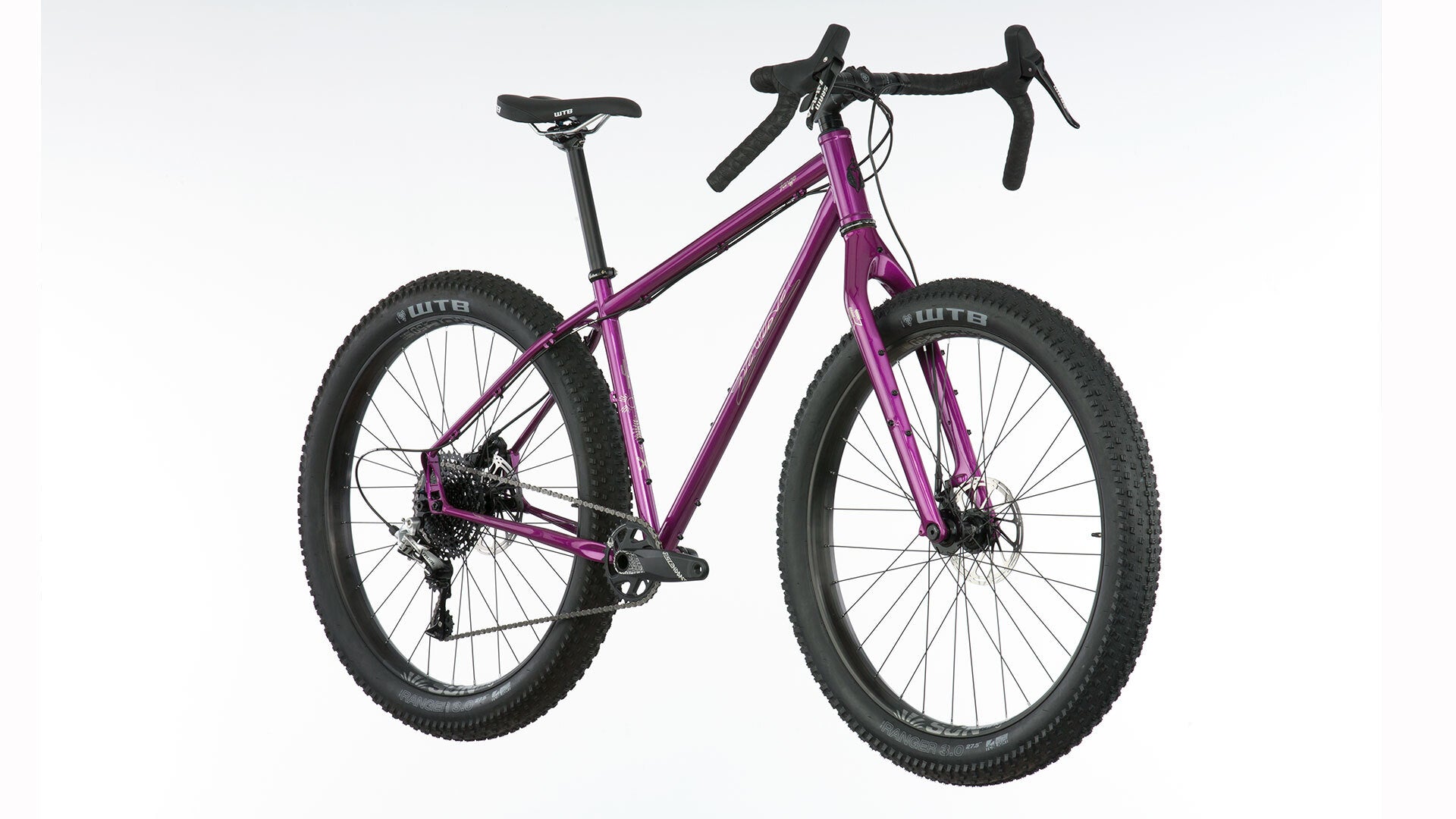

  • Salsa Fargo Rival 27.5 Plus bike purple color front three-quarter view

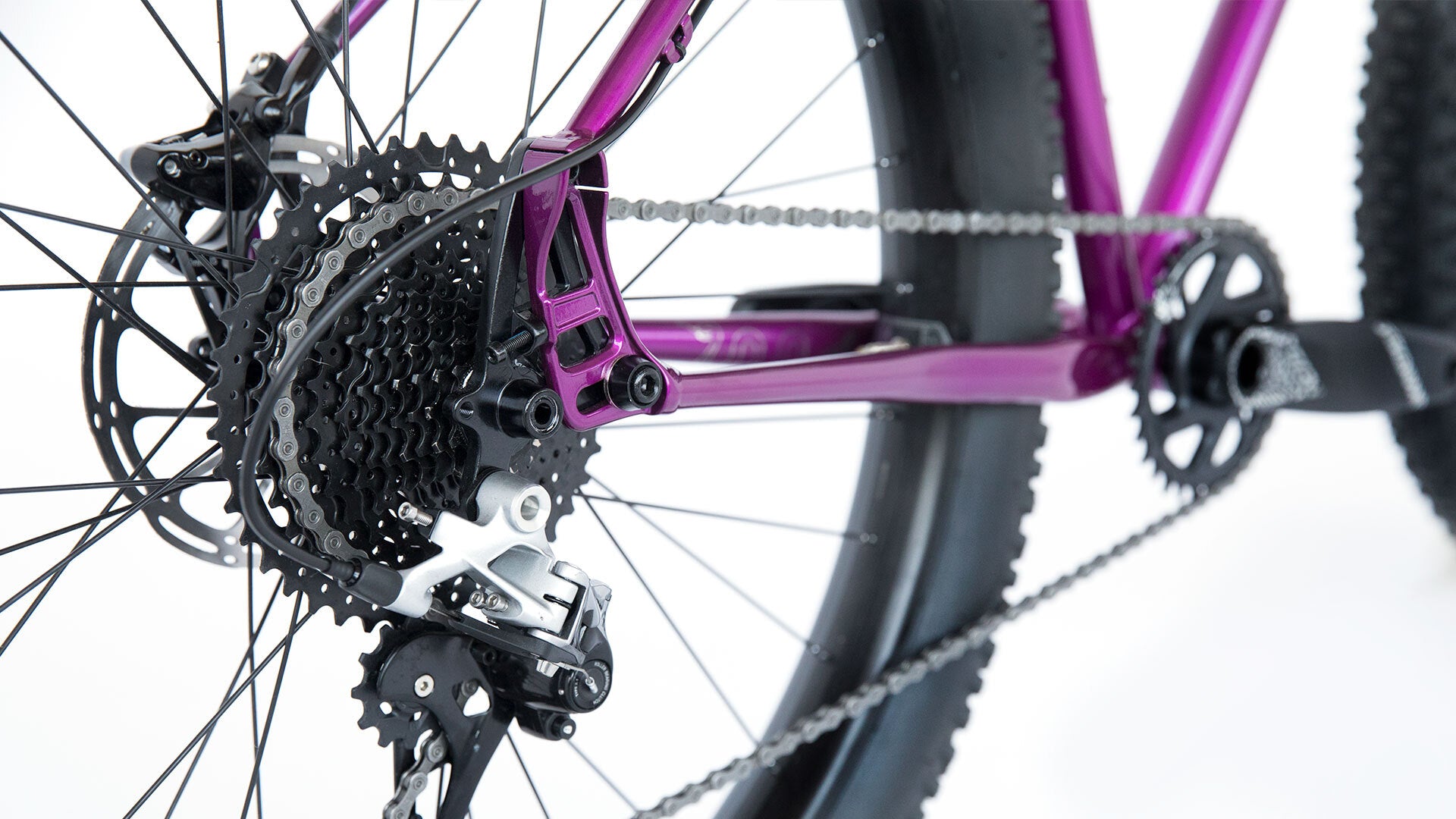

  • Salsa Fargo Rival 27.5 Plus bike purple color rear dropout area focus

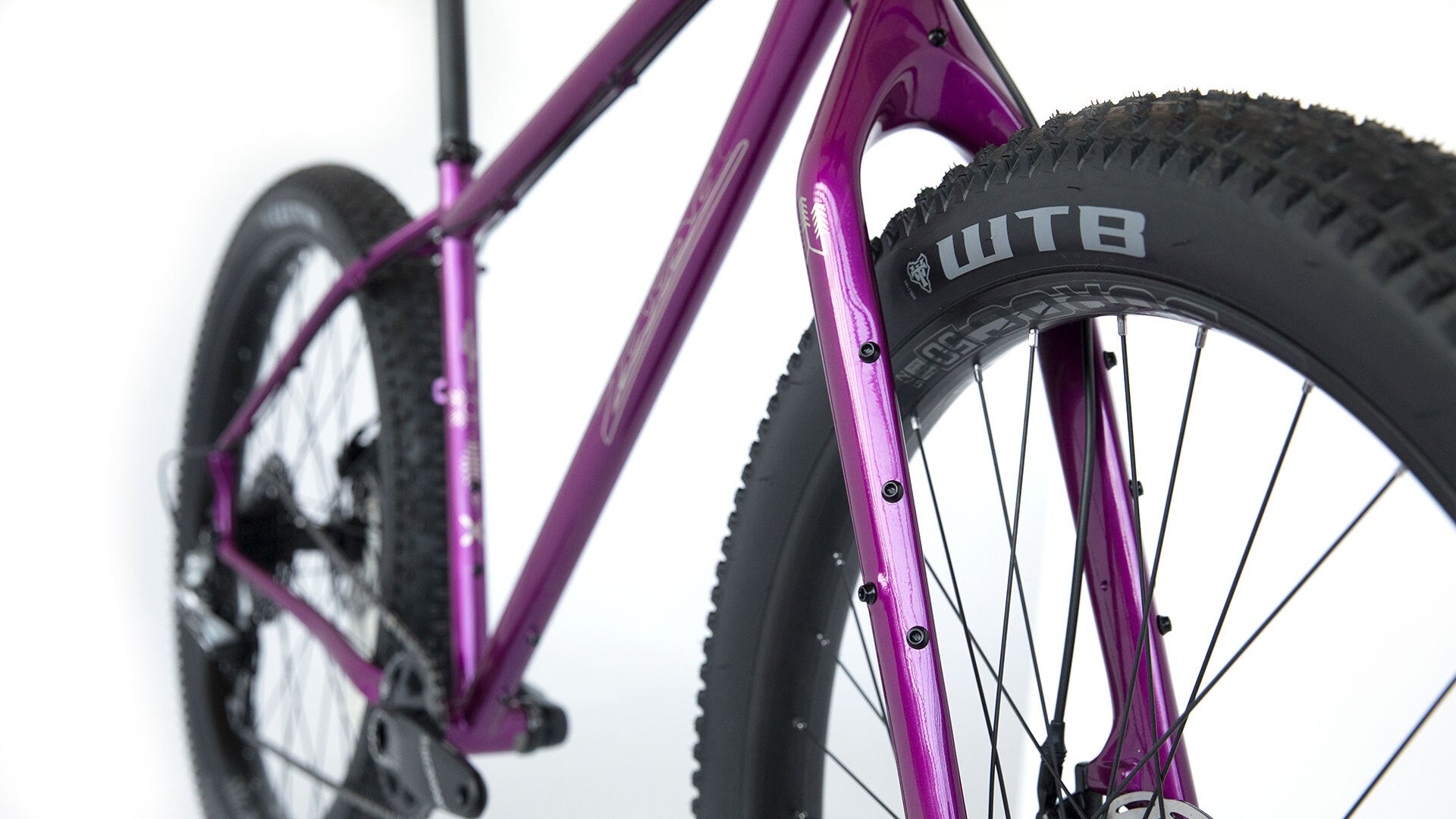

  • Salsa Fargo Rival 27.5 Plus bike purple color fork and front tire focus
1 4

2018 Fargo Rival 1 27.5

2018 Fargo Rival 1 27.5

Archived

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Fargo Cobra Kai CroMoly
  • Fork: Salsa Firestarter Carbon
  • Color: Purple
  • Rear Shock: N/A
  • Front Der: N/A
  • Rear Der: SRAM Rival 1x Long Cage
  • Cassette: SunRace CSMS8 11-42t
  • Chain: SRAM PC1110
  • Crankset: SRAM Descendant, XSYNC 32t
  • Shifter: SRAM Apex
  • Brakes & Rotors: SRAM Apex Hydraulic, Centerline 160mm
  • Headset: Cane Creek 40
  • Stem: Salsa Guide
  • Handlebar: Salsa Woodchipper 2
  • Grips: Salsa Gel Bar Tape
  • Seatpost: Promax 27.2 x 350mm
  • Saddle: WTB Volt Comp
  • Front Wheel: SUNringlé Duroc 27.5" x 50mm, 100 x 15mm thru-axle
  • Rear Wheel: SUNringlé Duroc 27.5" x 50mm, 148 x 12mm thru-axle
  • Tires: WTB Ranger 27.5 x 3", Dual DNA, UST bead
  • Complete Bike Weight: 26 lb for size MD

Frame Specs

  • Design Wheel/Tire Size: 29 x 2.4"
  • Alternative Wheel/Tire Size: 27.5 x 3.0", 29 x 2.2" w/ fender  / (29 x 3.0" only compatible on SM–XL frame sizes)
  • Suspension Fork Length (Travel): 501–511mm (100mm)
  • Rigid Fork Length: 483–486mm
  • Fork Offset: 45–51mm
  • Headset-Upper: ZS44
  • Headset-Lower: EC44
  • Seatpost: 27.2mm
  • Seat Collar: 30mm
  • Front Derailleur Mount: 148mm rear spaced: high direct mount (29mm offset) Problem Solvers Bracket (FS1328) / 142mm rear spaced: high direct mount (26.5mm offset) via 28.6mm clamp Problem Solvers Bracket (FS1326)
  • Bottom Bracket: 73mm BSA, threaded
  • Crankset (Max Ring): 1x crankset: 36t max Boost & 34t non-Boost or 46t Gates Belt Drive Sprocket, 2x crankset: 42/28t max Boost & Non-Boost
  • Rear Brake, (Rotor): 51mm I.S. (160–180mm)
  • Rear Spacing: 148mm thru-axle / 142mm thru-axle or 135mm QR with Alternator Reduction Plates
  • Rear Axle Size: 148mm rear spaced: 12 x 180L, TP = 1.75, TL = 20 / 142mm rear spaced: 12 x 174L, TP = 1.75, TL = 20  / 135mm rear spaced: quick release / 142 & 135mm spacing require the use of Salsa Alternator Reduction plates (FS2360)
  • Derailleur Hanger: QR = FS1312; TA = FS1385; SS = FS1318; SSTA = FS1375; L Rohloff = FS1371; TA Kit = FS1370
  • Fender Mounts: Yes
  • Rack Mounts: Yes
  • Bottle Mounts: XS = 2, SM–XL = 3
  • Stem Clamp: 28.6mm
  • Crown Race: 40mm
  • Front Brake (Rotor): 74mm post mount (160–180mm)
  • Front Spacing: 100 x 15mm thru-axle
  • Front Axle: M15 x 125L, TP = 1.5, TL = 12mm
  • Fork Bottle Mounts: Three-Pack mounts on each fork leg

Geometry

Geometry Diagram
XS SM MD LG XL
Top Tube Effective Metric 520 540 565 590 620
Seat Tube Length Metric 355.6 406.4 457.2 508 558.8
Head Tube Length Metric 90 110 140 170 190
Head Tube Angle 68.5 69 69 69 69
Seat Tube Angle 74 74 73 73 73
BB Drop Metric 70 70 70 70 70
Chainstay Length Metric 445–462 445–462 445–462 445–462 445–462
Fork Length Metric 483 483 483 483 483
Fork Offset Metric 45 45 45 45 45
Wheelbase Metric 1045–1061 1061–1078 1077–1093 1104–1120 1136–1152
Stack Metric 594 615 643.1 671.1 689.7
Reach Metric 349.7 352 368.4 384.8 409.1
Standover Metric 690 732 778 821 859
Rider Height Metric 150cm–160cm 160cm–175cm 173cm–183cm 180cm–191cm 188cm–UP
BB Center to Center Metric
Stem Length 60 70 70 80 80
Crank Length 170 170 175 175 175
Handlebar Width 42cm 44cm 44cm 46cm 46cm
Seatpost Offset Metric 12 12 12 12 12
Stem Angle
Wheel Size
Seatpost Dropper Length Travel
Handlebar_Rise_Drop
BB Height

Measurements based on:

  • A Firestarter Fork which is 483 x 45 mm offset, this is equivalent to an average 100mm fork at 20% sag
  • Measurements listed are based on a 29 x 2.4" tire measuring 746 mm in diameter
  • Standover (P) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center

Supportive Documents

Support Document links

Additional Features

Cobra Kai CroMoly Tubeset

Salsa-designed, triple-butted, and frame size-specific seamless Cobra Kai CroMoly tubing

Firestarter Carbon Fork

Full carbon fork with a tapered 1-1/8 to 1-1/2" steerer tube for confidence-inspired tracking through the tough stuff. Massive tire clearance, up to 29 x 3" tires. 15 x 100mm thru-axle and Salsa-designed carbon layup for frame matching compliance. 74mm post-mount style brake mount. 160 to 200mm disc brake rotor compatible. Three-Pack mounts allow the use of Anything Cages or water bottles, with low-rider mounts for racks and panniers

Fargo Geometry

Designed as a drop bar mountain bike, optimized for fit with the Salsa Woodchipper or Cowchipper handlebars. Capable of handling everything from technical singletrack trails, two-track, gravel, and the occasional paved road. Predictable handling with or without a load. The bike to ride for multiple-surface excursions

Alternator Dropouts V1.5

Split-able version of our renowned Alternator Dropout for ultimate drivetrain versatility. Run singlespeed or geared, QR or thru-axle, freehub or Rohloff, or Gates Belt Drive. Set Alternator Dropouts all the way forward for a shorter wheelbase that results in quick and nimble handling, or set back for more stability. See our Alternator Page for more info

Belt Drive Compatible

Tested and certified for belt drive use

Multiple Wheelsize Versatility

Fargo geometry and spacing can accommodate 27.5+, 29", and, on sizes small to x-large, 29+ making for a highly capable bike that’s ready for just about any endeavor

Rear Rack Friendly

Designed for use with the Salsa Alternator Standard Rack
