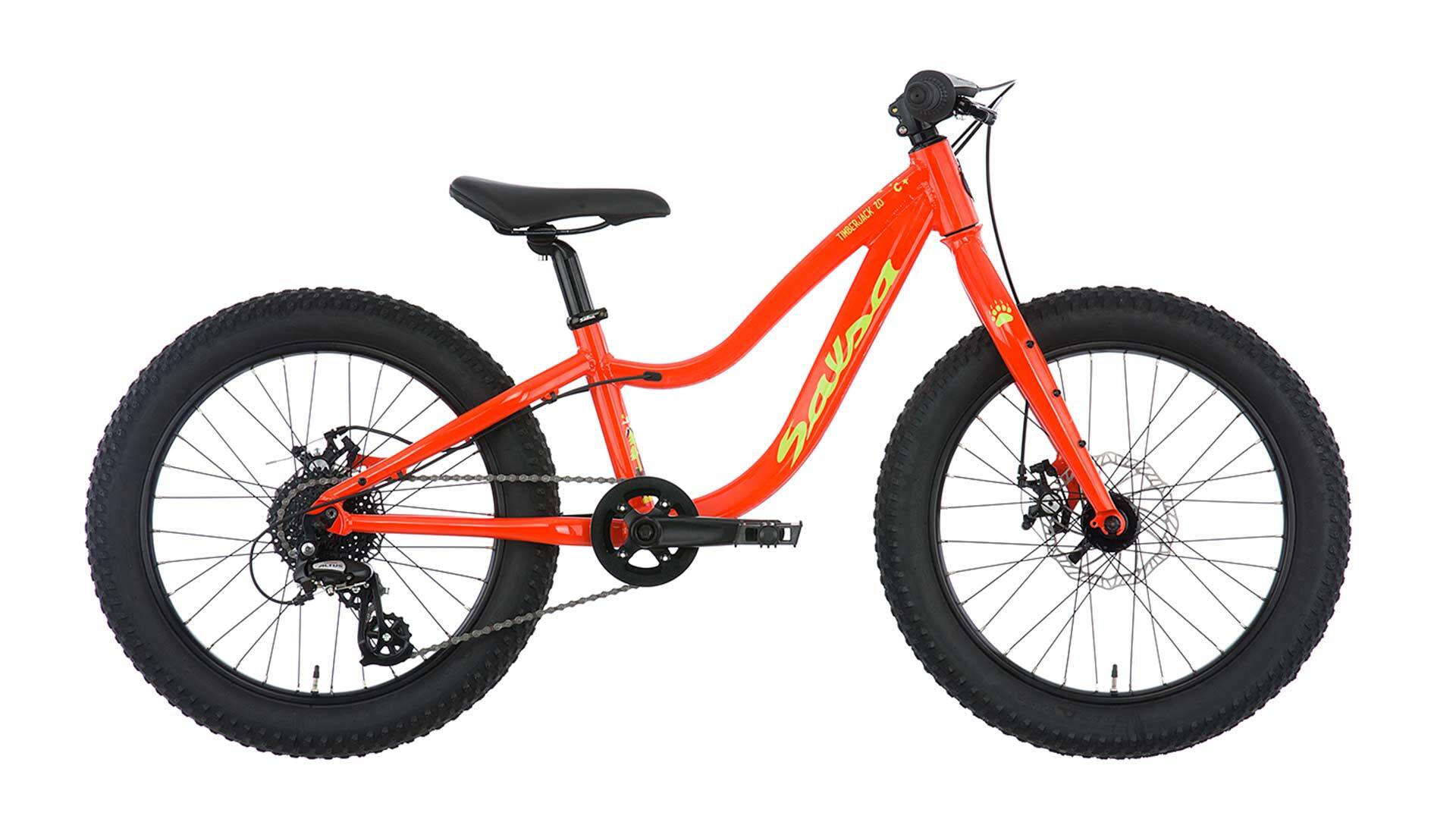

• Salsa Timberjack 20 bike orange color side view

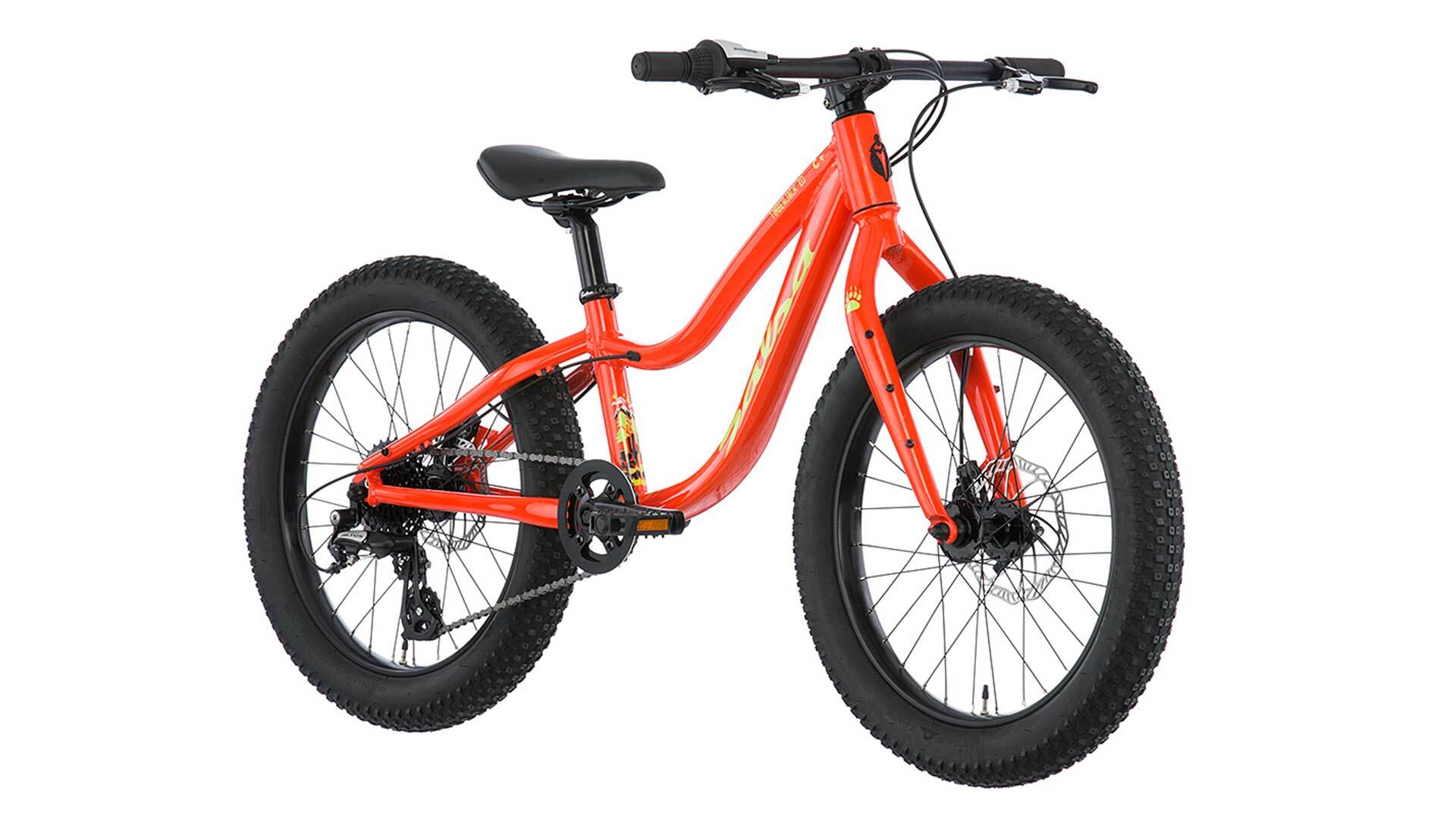

  • Salsa Timberjack 20 bike orange color front three-quarter view

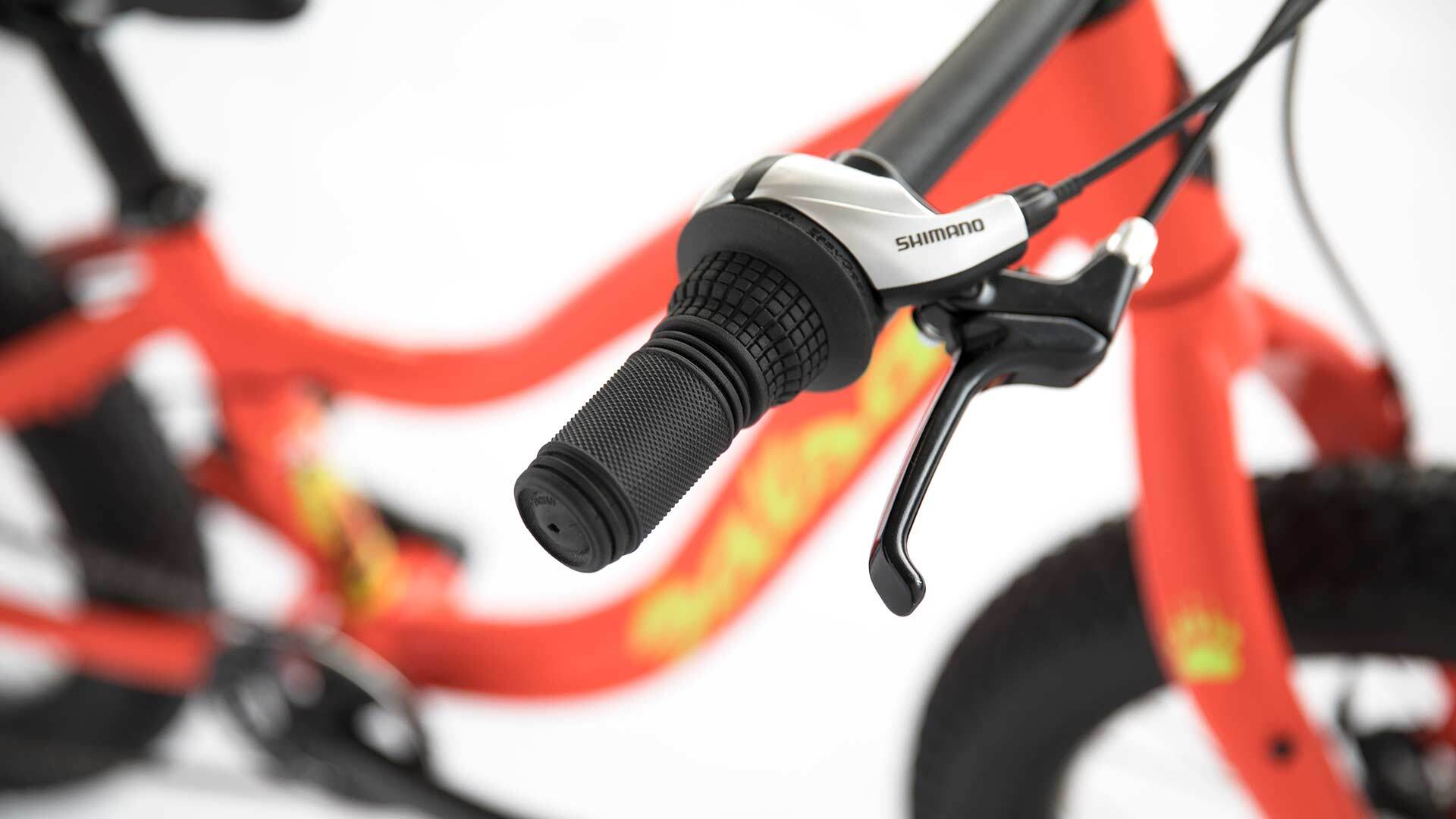

  • Close-up of bicycle handlebar with Shimano components on a blurred background

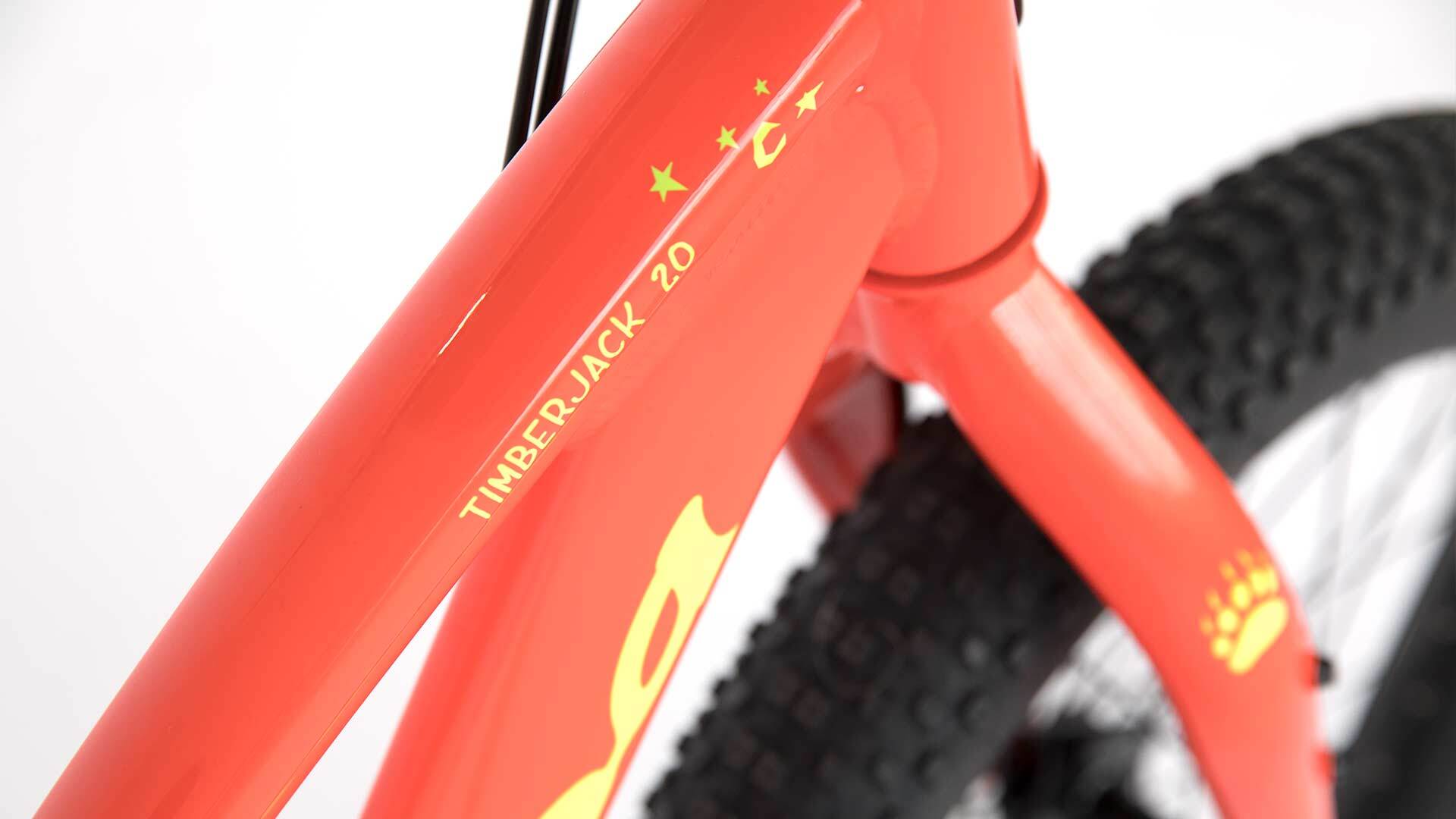

  • Close-up of a red bicycle frame with 'Timberjack' branding on a white background

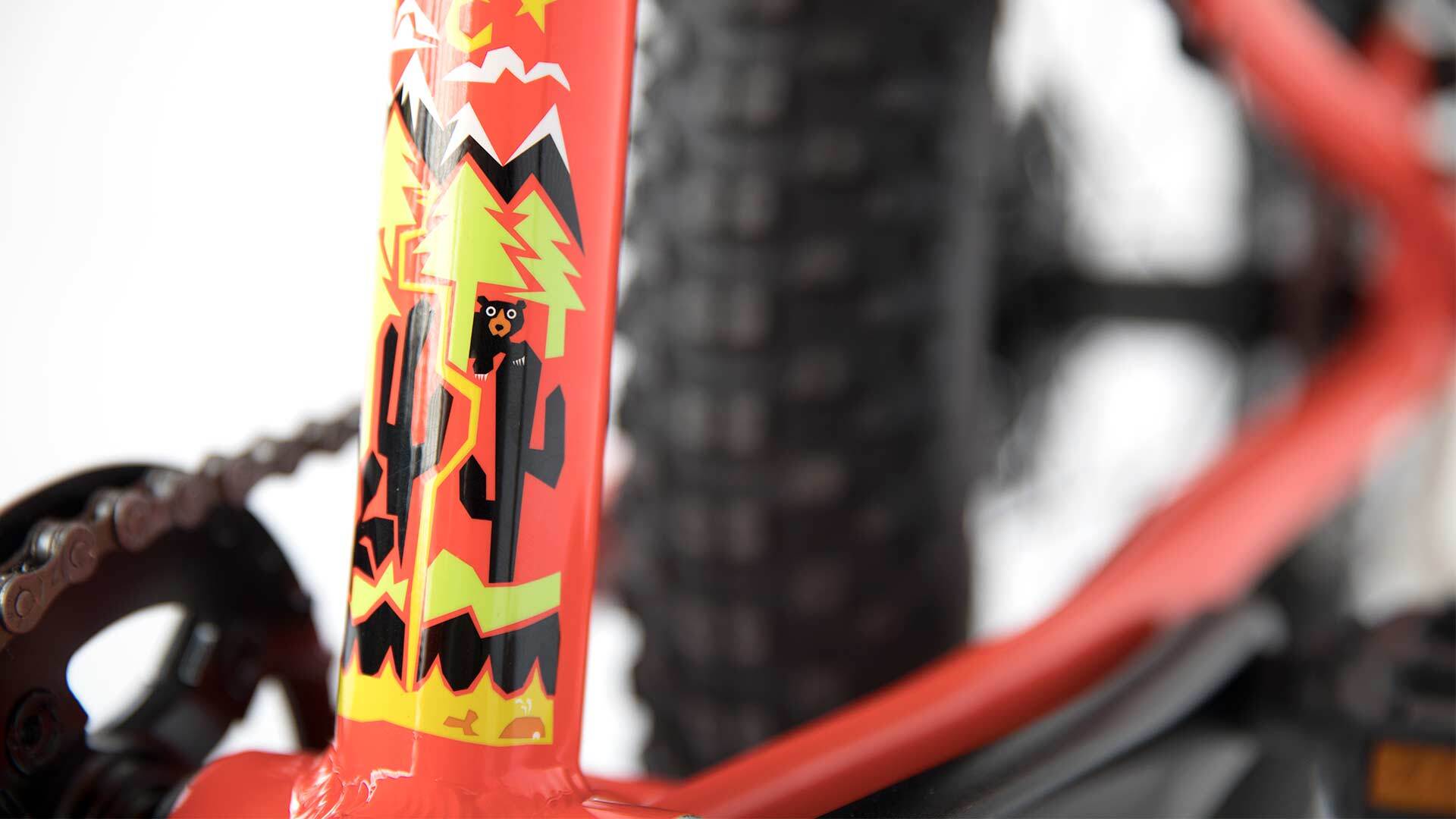

  • Close-up of a red bicycle frame with colorful graphics on a blurred background
1 5

2018 Timberjack 20

2018 Timberjack 20

Archived

Timberjack 20 features a kid-sized aluminum frame and fork with 20 x 3” plus-sized tires so younger riders can be as big a part of the adventure as the grownups. Use the fork’s Three-Pack mounting bosses for water bottles, Anything Cages and gear, or just to carry empty containers for collecting sticks, rocks, leaves, bugs…you name it!

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Timberjack 20" Kids Plus AL
  • Fork: Timberjack 20" Kids Plus AL
  • Color: Orange
  • Rear Shock: N/A
  • Front Der: N/A
  • Rear Der: Shimano M310 Altus
  • Cassette: SunRace CSM400, 12-32t, 8-speed
  • Chain: KMC ZS7
  • Crankset: Samox, 28t
  • Shifter: Shimano Tourney Revo
  • Brakes & Rotors: Promax Mechanical, 160mm, 140mm
  • Headset: Cane Creek 10
  • Stem: Promax
  • Handlebar: Promax
  • Grips: Velo
  • Seatpost: Promax 31.6 x 300mm
  • Saddle: Velo
  • Front Wheel: Formula 32h, WTB i35 20", 1.8 spokes, brass nipples
  • Rear Wheel: Formula 32h, WTB i35 20", 1.8 spokes, brass nipples
  • Tires: Chao Yang, 20 x 3"
  • Complete Bike Weight: 23 lb

Frame Specs

  • Design Wheel/Tire Size: 20 x 3.0"
  • Rigid Fork Length: 373mm
  • Suspension Fork Length: 382 mm (60 mm travel) maximum fork length allowed, unsagged
  • Fork Offset: 40mm
  • Headset-Upper: ZS44/28.6
  • Headset-Lower: ZS44/30
  • Seatpost: 31.6mm
  • Seat Collar: 35mm
  • Dropper Compatible (Routing): No
  • Front Derailleur Mount: N/A
  • Bottom Bracket: 73mm BSA, threaded
  • Crankset (Max Ring): 30t max
  • Rear Brake, (Rotor): 160mm
  • Rear Spacing: 141mm
  • Rear Axle Size: 141 x 10mm, bolt-on
  • Derailleur Hanger: FS0100
  • Bottle Mounts: One on downtube, two Three-Pack mounts on fork
  • Rack Mounts: No
  • Fender Mounts: No
  • Front Spacing: 110mm
  • Front Axle Size: 9 x 110 bolt on

Geometry

Geometry Diagram
Metric 20
Top Tube Effective Metric 460
Seat Tube Length Metric 260
Head Tube Length Metric 100
Head Tube Angle 68.5
Seat Tube Angle 73
BB Drop Metric 10
Chainstay Length Metric 370
Fork Length Metric 373
Fork Offset Metric 40
Wheelbase Metric 908
Stack Metric 439
Reach Metric 326
Standover Metric 467
BB Center to Center Metric 140
Stem Length 600mm
Crank Length 40
Handlebar Width 125–146cm
Seatpost Offset Metric 23.5

Measurements based on:

  • An unsprung bike (no sag)
  • A 24" fork which is equivalent to an average 80mm travel suspension fork at 20% sag

Supportive Documents

Support Document links

Additional Features

Timberjack Kids Geometry

The geometry of our Timberjack 20 & 24 accommodates the different riding style and abilities of younger riders. Kids steer by “pushing” the handlebar left and right and “response leaning” rather than leaning and “response countersteering” like adults do. This combined wit the lower strength of a child relative to an adult means that the steering and handling needs to be quicker and more responsive than a “normal” mountain bike

3-Inch Plus-Sized Tires

For floatation, traction, and most importantly, added stability that can help smaller bodies stay upright in loose conditions

Aluminum 6061-T6 heat-treated frame

Strong, rugged, and lightweight, and built to persevere in the world of the young adventurer. “Full-size” features include internal cable routing for the rear brake and front triangle bottle mount

Timberjack Kids Aluminum Fork

Our rigid fork includes Three-Pack mounts on each fork leg, allowing kids to carry extra waterbottles or gear, just like mom and dad’s bikes

BOOST Width Hub Spacing

Uses modern, plus-bike spacing with bolt-on hubs

1 x 8 Narrow Wide Drivetrain

Easy to learn and operate with one twist shifter

Parts That Fit Smaller Bodies Better

Size specific saddle, adjustable brake levers for small hands and safer stopping, and small pedals to better fit smaller feet
