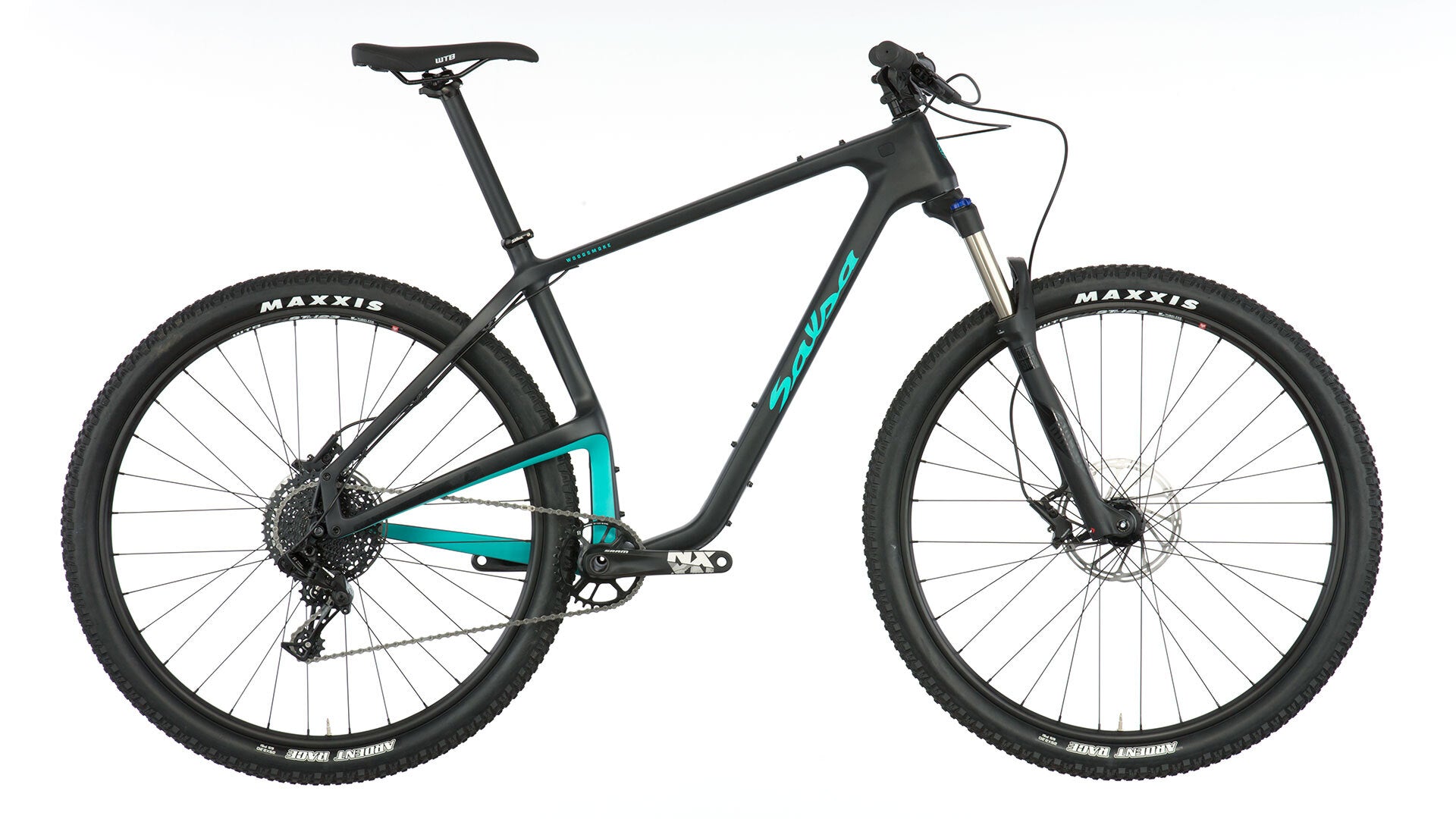

• Salsa Woodsmoke Carbon NX1 29 bike carbon color side view

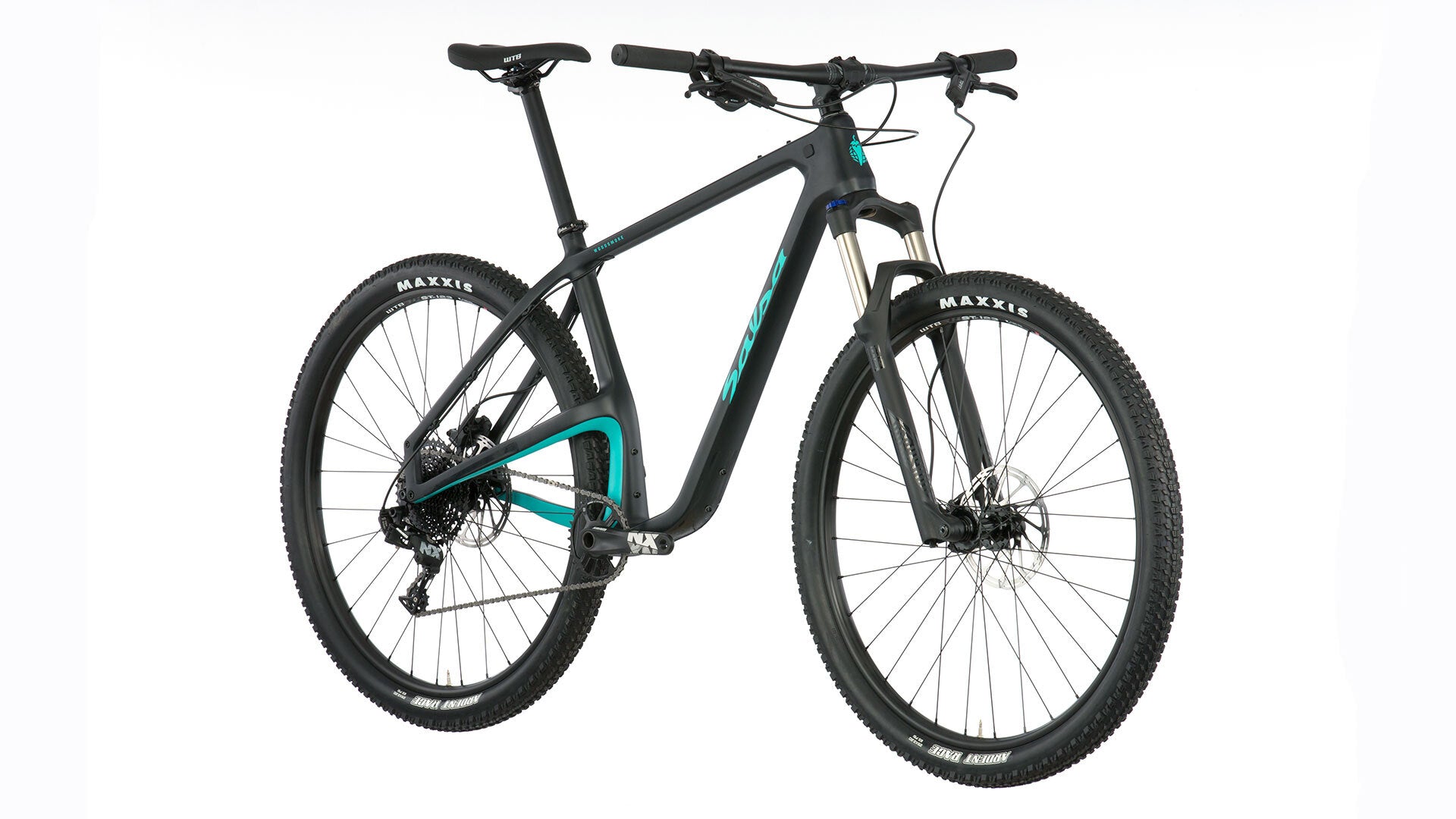

  • Salsa Woodsmoke Carbon NX1 29 bike carbon color front three-quarter view

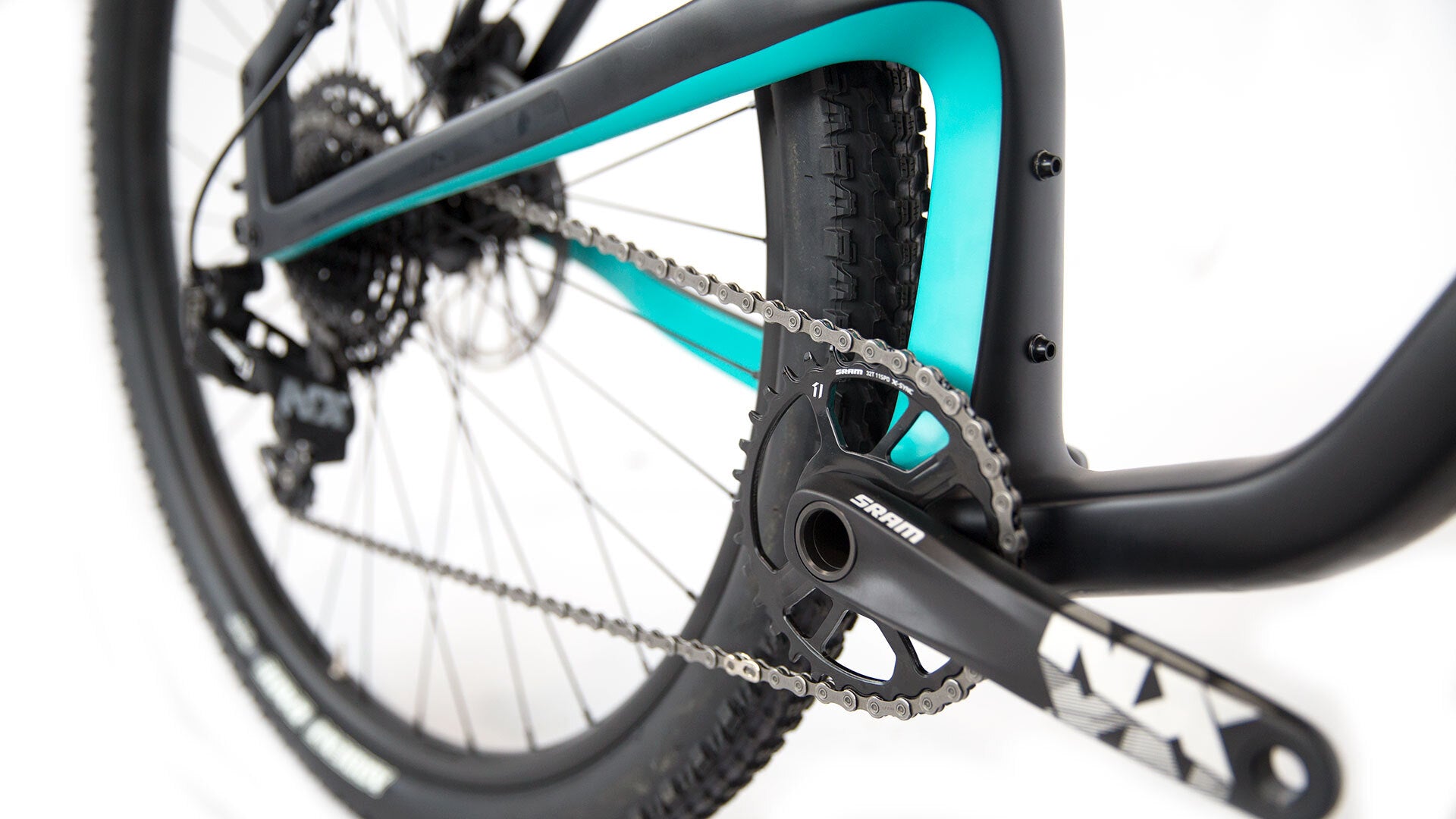

  • Salsa Woodsmoke Carbon NX1 29 bike carbon color drive train focus

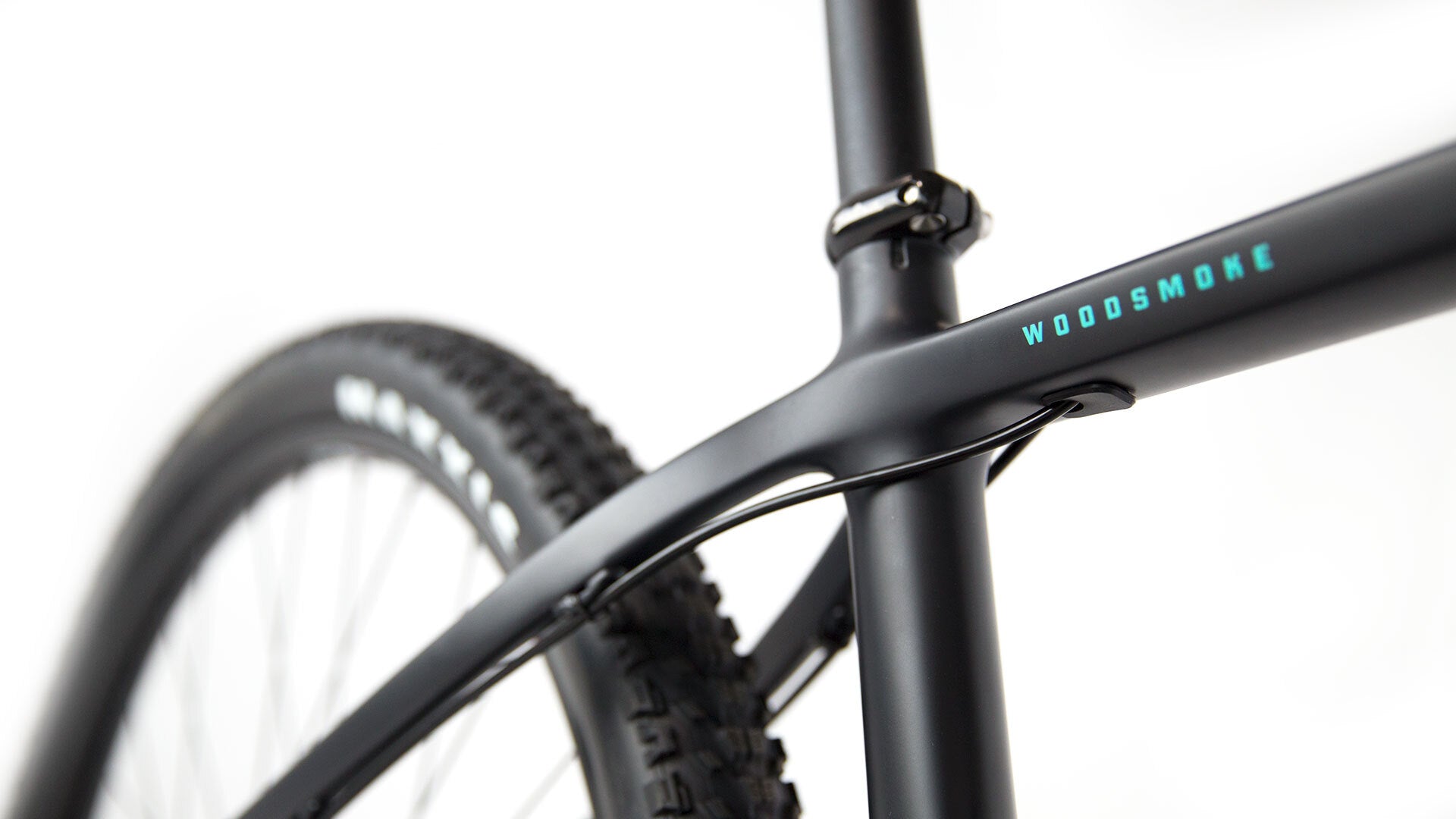

  • Close-up of a bicycle frame with 'Woodsmoke' branding on a white background
1 4

2018 Woodsmoke NX1 29

2018 Woodsmoke NX1 29

Archived

Woodsmoke NX1 29 brings cross-country speed both uphill and down, to our incredible Woodsmoke carbon frame. Up front, the RockShox Judy fork smooths the trail, while the 29er wheels and tires provide fast acceleration and overall speed.

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Woodsmoke Carbon
  • Fork: RockShox Judy Silver Solo Air 120mm BOOST
  • Color: Black/Teal
  • Rear Shock: N/A
  • Front Der: N/A
  • Rear Der: SRAM NX1 Long Cage
  • Cassette: SunRace CSMS7 11-42t
  • Chain: SRAM PC1110
  • Crankset: SRAM NX, Boost XSYNC 32t
  • Shifter: SRAM NX1
  • Brakes & Rotors: SRAM DB Level, Centerline 180
  • Headset: Cane Creek 15
  • Stem: Salsa Guide Trail
  • Handlebar: Salsa Salt Flat 3
  • Grips: Salsa File Tread
  • Seatpost: Promax 30.9 x 350mm
  • Saddle: WTB Volt Sport
  • Front Wheel: SUNRinglé Charger Comp 29" alloy straight gauge Wheelsmith spokes, brass nipples
  • Rear Wheel: SUNRinglé Charger Comp 29", 148 x 12mm thru-axle, alloy straight gauge Wheelsmith spokes, brass nipples
  • Tires: Maxxis Ardent 29 x 2.2", 60 tpi
  • Complete Bike Weight: 27 lb, 14 oz for size LG

Frame Specs

  • Designed Wheel/Tire Size: 29 x 2.4–3.0" and 27.5 x 2.8–3.25"
  • Alternative Wheel/Tire Size: 29 x 2.4–3.0" and 27.5 x 2.8–3.25"
  • Suspension Fork Length (Travel): 27.5 x 2.8–3.25" = 541–563mm (130–140mm), 29 x 2.4–3.0" = 531–563mm (120–140mm)
  • Rigid Fork Length: 483–507mm
  • Fork Offset: 51mm
  • Headset-Upper: IS41
  • Headset-Lower: IS52
  • Seatpost: 30.9mm
  • Seat Collar: 35.0mm
  • Dropper Compatible (Routing): Yes
  • Front Derailleur Mount: High direct-mount, SRAM GX top-pull and Shimano side-swing front-pull only in 27.5"+ and 29"
  • Bottom Bracket: PressFit 41 x 92mm
  • Crankset (Max Ring): 1x crankset: 54t max Boost, 2x crankset: 36/24t max Boost
  • Rear Brake, (Rotor): 51mm I.S., (160–180mm)
  • Rear Spacing: 148mm
  • Rear Axle Size: 12 x 180L, TP = 1.75, TL = 20
  • Derailleur Hanger: Fixed Position - D: FS2354, ND: FS2357 Adjustable - D: FS2352, ND: FS2356
  • Bottle Mounts: 3

Geometry

Geometry Diagram
Metric XS - 27.5 x 2.8 with 140mm Fork SM - 27.5 x 2.8 with 140mm Fork MD - 27.5 x 2.8 with 140mm Fork LG - 27.5 x 2.8 with 140mm Fork XL - 27.5 x 2.8 with 140mm Fork XS - 29 x 30 with 120mm Fork SM - 29 x 30 with 120mm Fork MD - 29 x 30 with 120mm Fork LG - 29 x 30 with 120mm Fork XL - 29 x 30 with 120mm Fork XS - 29 x 2.4 with 120mm Fork SM - 29 x 2.4 with 120mm Fork MD- 29 x 2.4 with 120mm Fork LG - 29 x 2.4 with 120mm Fork XL - 29 x 2.4 with 120mm Fork
Top Tube Effective Metric 569 589 609 639 669 571 591 611 641 671 571 591 611 641 671
Seat Tube Length Metric 355.6 381 431.8 482.6 533.4 355.6 381 431.8 482.6 533.4 355.6 381 431.8 482.6 533.4
Head Tube Length Metric 100 100 110 120 130 100 100 110 120 130 100 100 110 120 130
Head Tube Angle 68.3 68.3 68.3 68.3 68.3 67.8 67.8 67.8 67.8 67.8 68.4 68.4 68.4 68.4 68.4
Seat Tube Angle 73.8 73.8 73.8 73.8 73.8 73.3 73.3 73.3 73.3 73.3 73.9 73.9 73.9 73.9 73.9
BB Drop Metric 63 63 63 63 63 62 62 62 62 62 62 62 62 62 62
Chainstay Length Metric 405–417 405–417 405–417 405–417 405–417 409–417 409–417 409–417 409–417 409–417 400–417 400–417 400–417 400–417 400–417
Fork Length Metric 497 497 497 497 497 507 507 507 507 507 499 499 499 499 499
Fork Offset Metric 46 46 46 46 46 51 51 51 51 51 51 51 51 51 51
Wheelbase Metric 1058–1070 1078–1090 1099–1111 1130–1142 1161–1173 1075–1191 1096–1112 1117–1132 1148–1164 1179–1195 1062–1078 1082–1098 1103–1119 1134–1150 1165–1181
Stack Metric 601 602 611 619 629 596 606 615 624 633 604 604 613 623 632
Reach Metric 396 416 433 460 487 392 409 426 453 481 391 411 428 456 483
Standover Metric 686 706 746 775 804 714 734 773 802 831 700 720 759 788 817
Rider Height Metric 157cm–168cm 160cm–175cm 173cm–183cm 180cm–191cm 188cm–UP 157–168cm 160cm–175cm 173cm–183cm 180cm–191cm 188cm–UP 157cm–168cm 160cm–175cm 173cm–183cm 180cm–191cm 188cm–UP
Stem Length 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50
Crank Length 170 170 175 175 175 170 170 175 175 175 170 170 175 175 175
Handlebar Width 750mm 750mm 750mm 800mm 800mm 750mm 750mm 750mm 800mm 800mm 750mm 750mm 750mm 800mm 800mm
Seatpost Offset Metric 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
  • Build 1: A 507 x 51mm offset fork which is equivalent to an average 120mm fork at 30% sag
  • Build 2: A 509 x 51mm offset fork which is equivalent to an average 130mm fork at 25% sag
  • Build 3: A 499 x 51mm offset fork which is equivalent to an average 120mm fork at 25% sag
  • Measurements listed are based on the tire diameter associated with each chart
  • Standover (P) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center

Supportive Documents

Support Document links

Additional Features

Interior Junction Control Molding Technology

We use interior molds at all the main front triangle junctions during lay up and curing. This allows for precise control of wall thickness and inner wall smoothness in these areas. This process increases compaction and reduces voids and wrinkles in critical high stress zones. The end result is a top-quality carbon frame that delivers consistent high performance

Woodsmoke Geometry

Woodsmoke uses a longer toptube and shorter stem to put the rider in a confidence-inspiring position for off-road riding. Using the same stem length, offsets, and angles on each frame size, we provide riders across our size range with the same consistent front-end experience. Combining this front end with ultra-short chainstays, as short as 400mm, makes Woodsmoke an extremely agile trail bike

Ultra-Short Chainstays

Woodsmoke challenges the current notion of “short.” Inspired by our previous hardtail development and elevated chainstay bikes of the past, we wanted to push the limits of chainstay length. Not just short for short’s sake though, the Woodsmoke has monster truck rollover with sports car nimbleness. With Woodsmoke geometry and the option of 27.5+, 29", and 29+ wheels and tires, Woodsmoke is the ideal blend of the best traction for the task at hand and all-day shredability

Alternator Dropouts V2.0

Alternator Dropouts deliver incredible drivetrain versatility. Run singlespeed or geared. Set the dropouts all the way forward for a shorter wheelbase and more nimble handling, or set back for increased stability. See our Alternator page

Versatile Build Options

Woodsmoke offers a variety of canvases for the off-road artist. Build it with 29+, 27.5+, or 29er tires for the appropriate use case and traction. Use a 120–140mm travel suspension fork or our rigid Firestarter fork. Build it up geared or singlespeed with the Alternator 2.0 dropouts that can change chainstay lengths from 400 to 417mm long). Woodsmoke can easily adapt to whatever flavor of undertaking you’re up for

1x & 2x Drivetrain Compatible

This frame is compatible with both 1x and 2x drivetrain setups. A removable direct-mount front derailleur bracket allows for clean 1x build. 2x builds are possible for 27.5+ and 29er setups. 29+ is 1x only

Rear Wheel & Tire Options

29 x 2.4–3.0", 27.5 x 2.8–3.25"

Suspension Fork Compatible

Designed around a 120mm travel fork for 29+, 130–140mm travel fork for 27.5+, and 120mm travel fork for 29er (51mm offset for all). Also compatible with Salsa Firestarter fork for fully rigid setup

Full-Length Internal Housing Cable Routing

Full-length housing improves shifting performance in poor conditions and increases use time between maintenance intervals

Dropper Post Compatible

Frame accommodates internal routing for a dropper post

Multiple Bottle Cages

Accepts 3 bottles per frame
