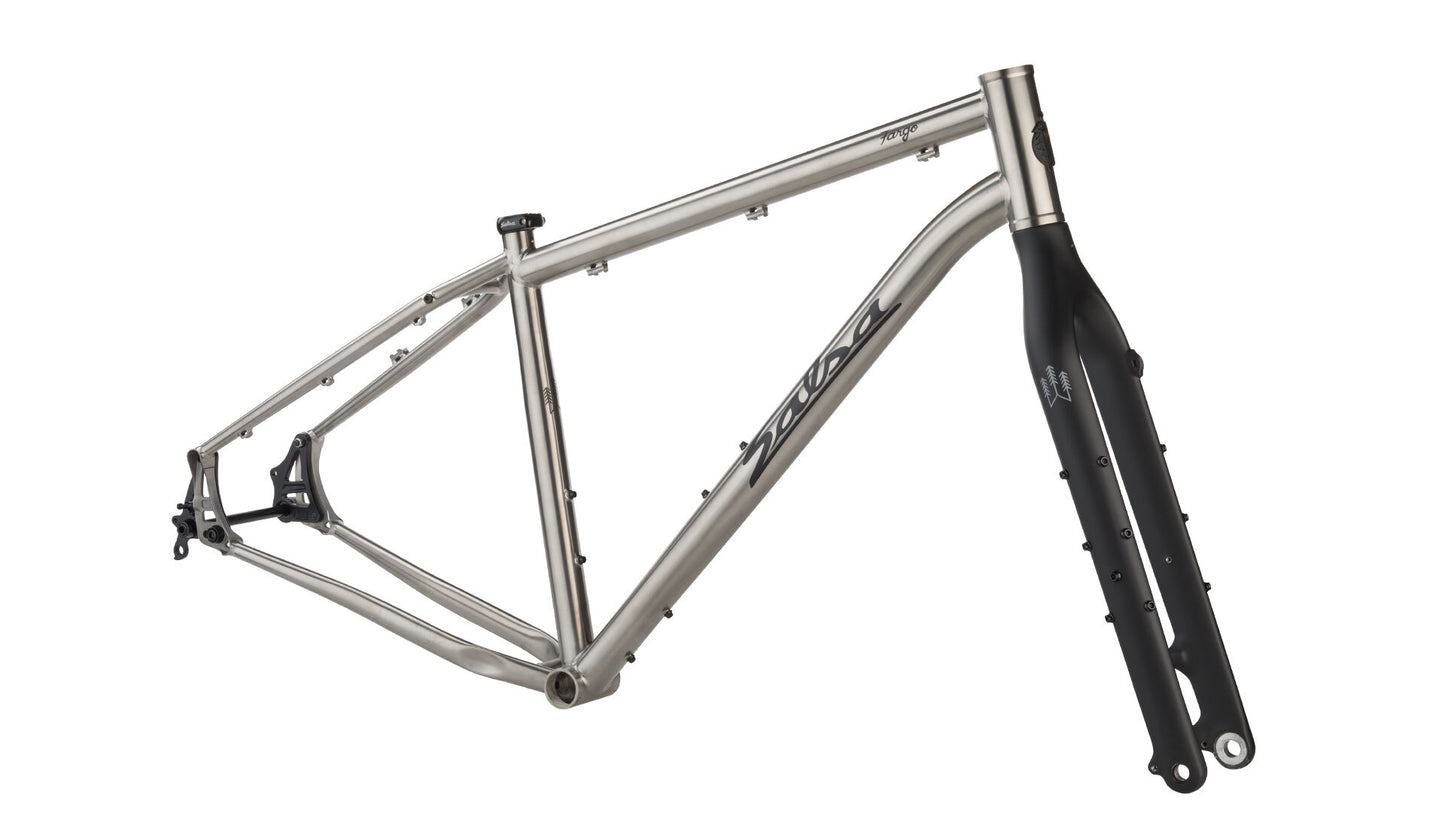

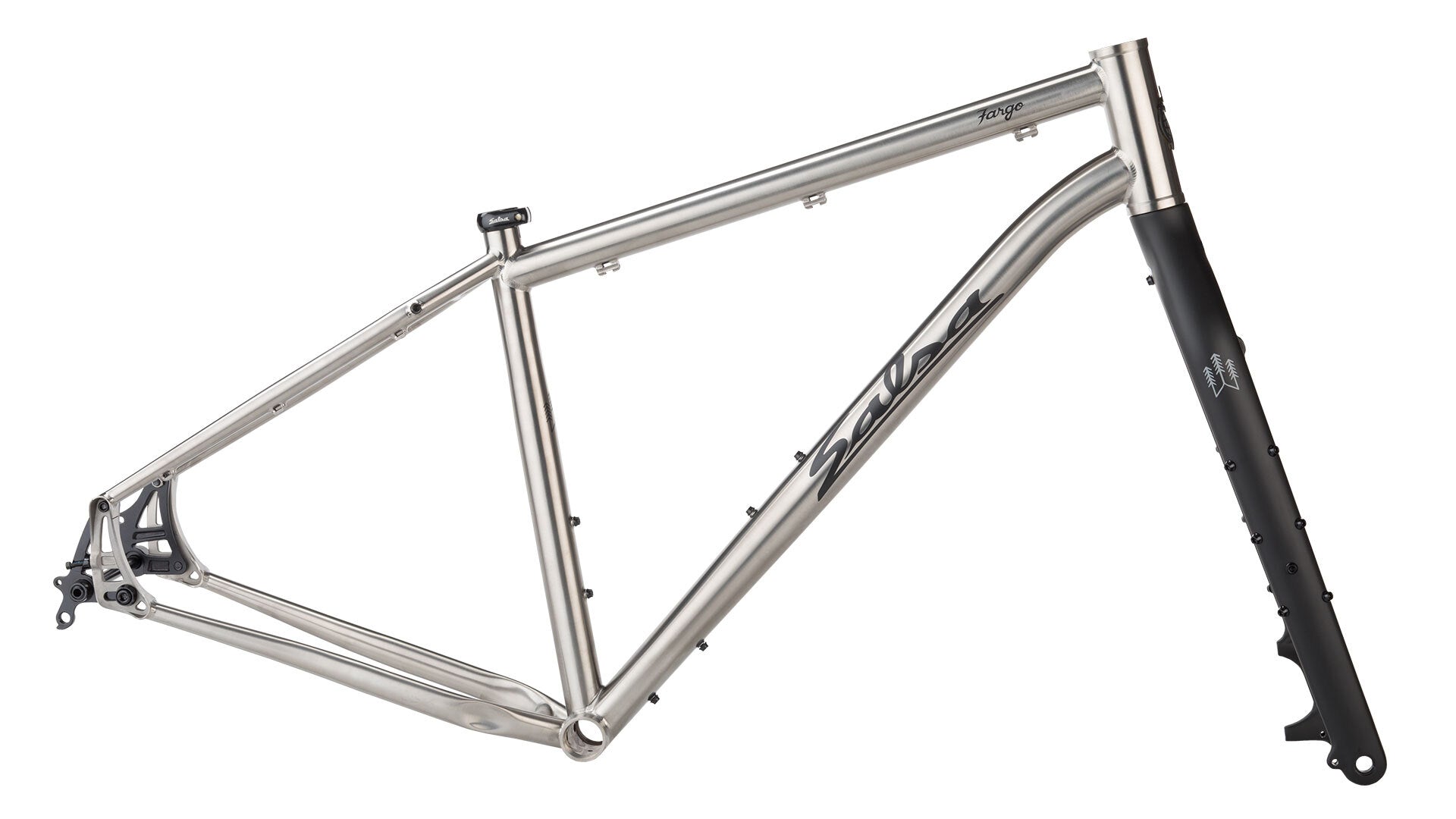

• Salsa Fargo Ti frameset with carbon fork side view
  • Salsa Fargo Ti frameset with carbon fork front three-quarter view

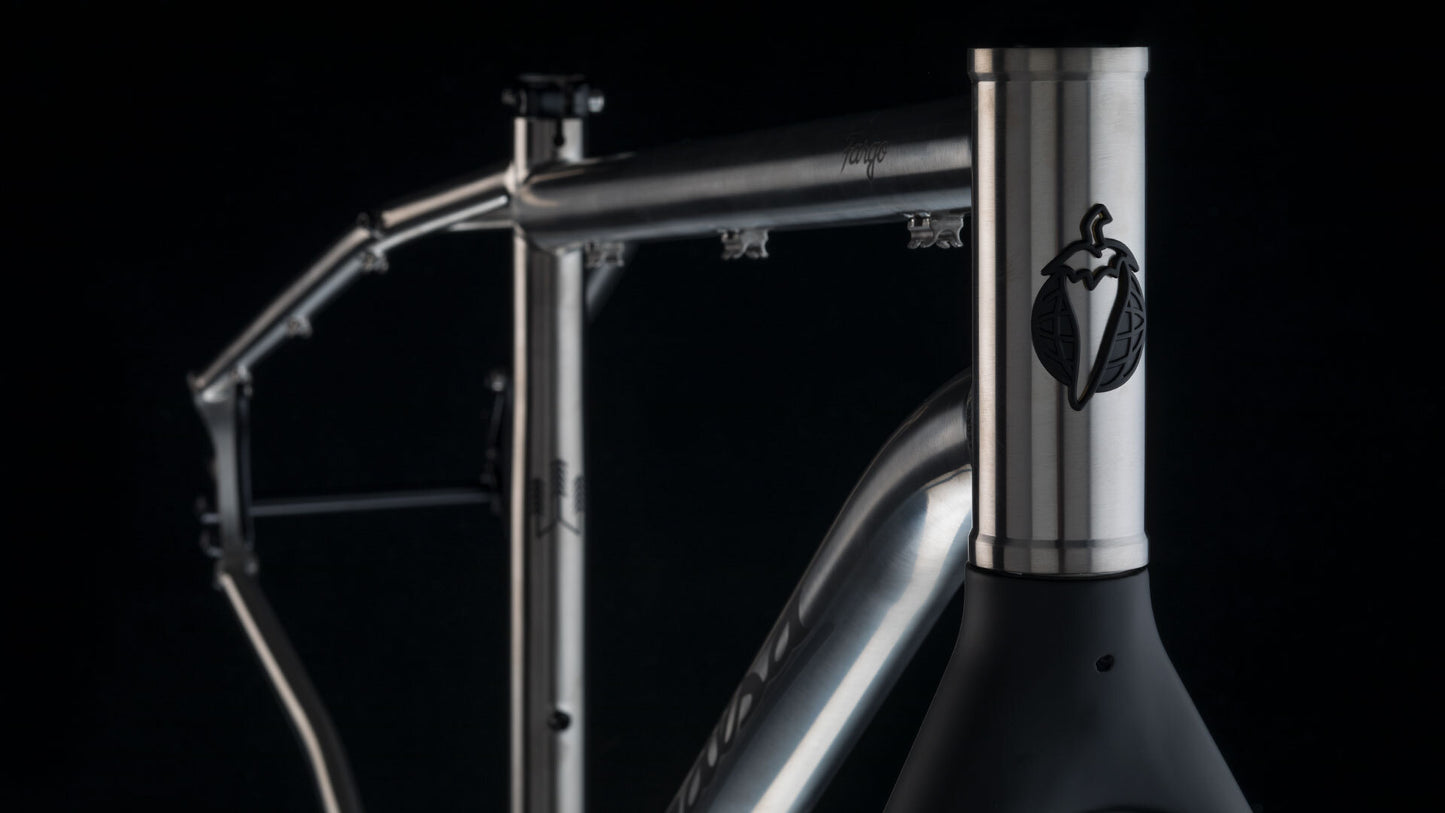

  • Salsa Fargo Ti frameset with carbon fork head tube area focus
  • Salsa Fargo Ti frameset with carbon fork crown area focus

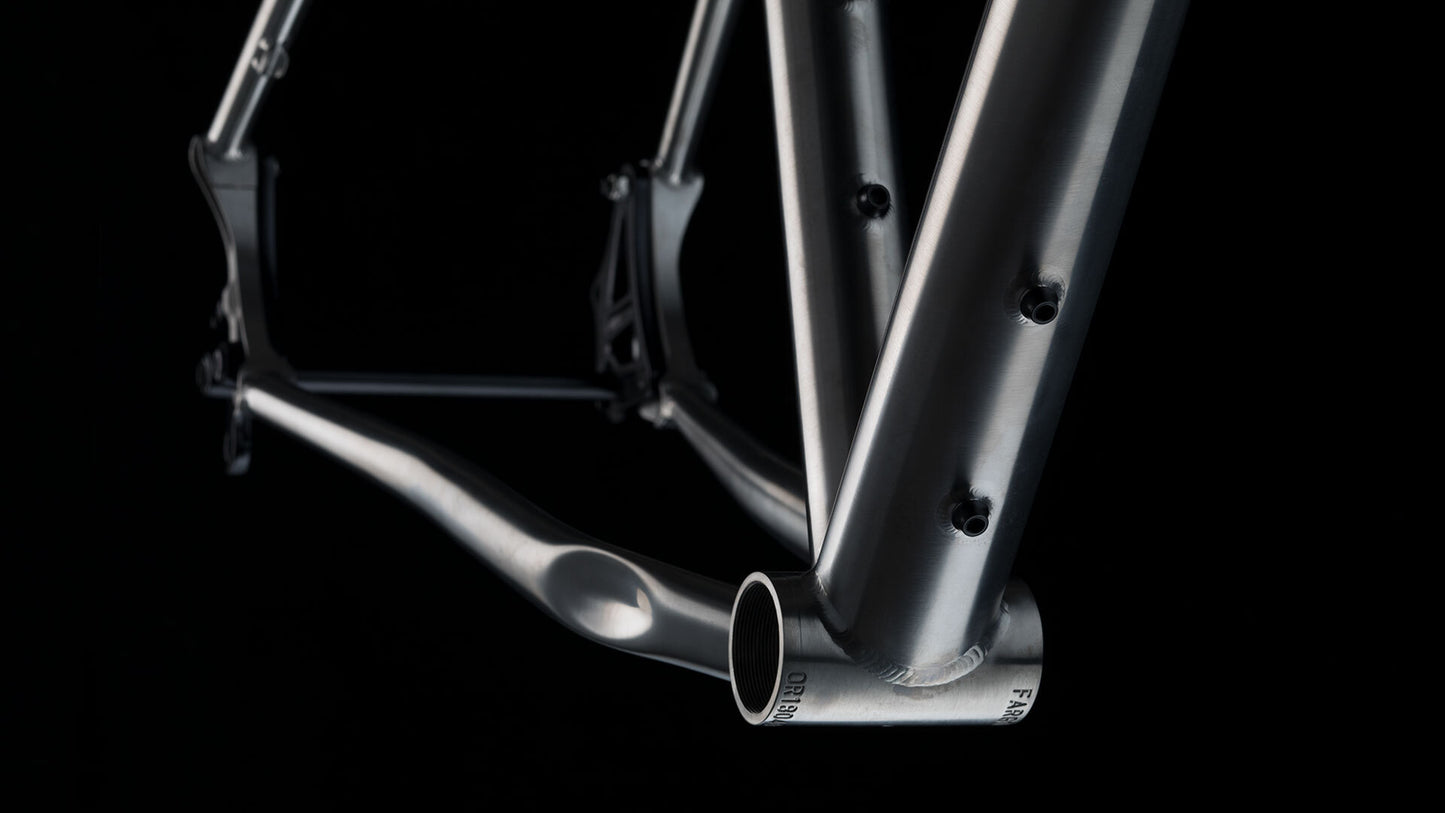

  • Salsa Fargo Ti frameset with carbon fork bottom bracket area focus

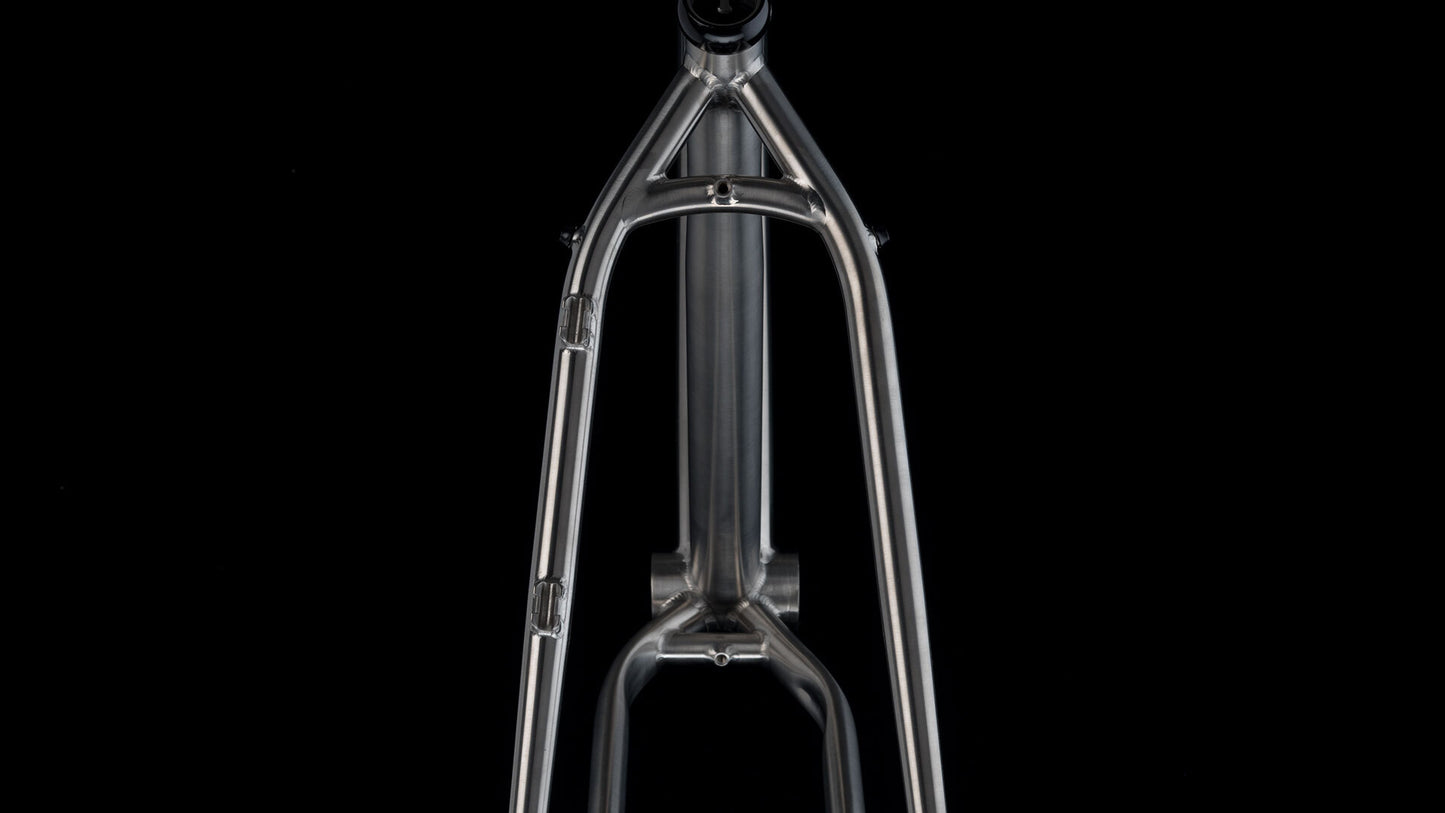

  • Salsa Fargo Ti frameset with carbon fork seat stay area focus

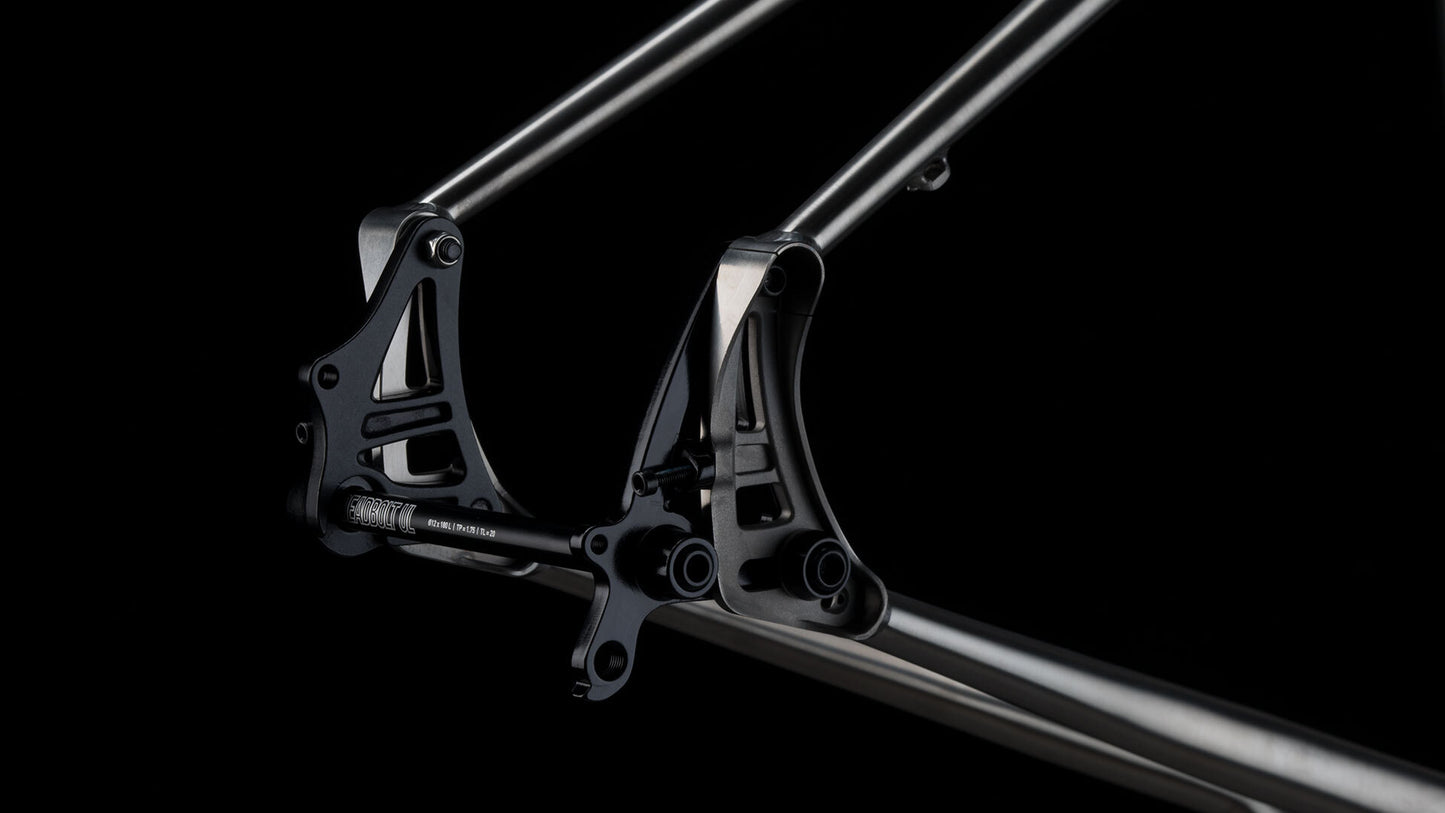

  • Salsa Fargo Ti frameset with carbon fork rear alternator dropout area focus
1 7

2019 Fargo Ti Frameset

2019 Fargo Ti Frameset

Archived

The premium Titanium version of our Fargo frameset features a 3/2.5 seamless tubeset, split-able Alternator v1.5 dropouts, and our feature-rich Firestarter 110 Deluxe fork. Fargo Ti brings the amazing ride quality of titanium to the mixed surface, bikepacking world of the Fargo.

This is an archived bike model. Explore the current range of Salsa bikes here.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

  • Frame: Fargo 3/2.5 seamless triple-butted Titanium
  • Fork: Firestarter 110 Carbon
  • Color: Titanium
  • Headset: Cane Creek 40

Frame Specs

  • Design Wheel/Tire Size: 29 x 2.4"
  • Alternative Wheel/Tire Size: 27.5 x 3.0" / 27.5 x 2.2" with fender / 29 x 3.0" (Small through X-Large) / 29 x 3.0" (Small through X-Large)
  • Suspension Fork Length (Travel): 501–511mm (100 mm)
  • Rigid Fork Length: 483–486mm
  • Fork Offset: 45-51mm, Firestarter Carbon Boost (15 x 110 mm) fork features 51mm offset
  • Front Brake (Rotor): 180mm maximum rotor size
  • Headset-Upper: ZS44
  • Headset-Lower: EC44
  • Seatpost: 27.2mm
  • Seat Collar: 32mm
  • Front Derailleur Mount: 148mm rear spacing: high direct-mount (29mm offset) Problem Solvers Bracket (FS1328) / 142mm rear spacing: high direct-mount (26.5mm offset) via 34.9mm clamp Problem Solvers Bracket (FS1323)
  • Bottom Bracket: 73mm BSA, threaded
  • Crankset (Max Ring): 1x crankset: 36t max / Boost and 34t non-boost or 46t / Gates Belt Drive sprocket / 2x crankset: 42/28t max Boost and Non-Boost
  • Rear Brake (Rotor): 51mm I.S. (160–180mm)
  • Rear Spacing: 148mm or 142mm thru-axle / 135mm QR with Alternator Reduction Plates
  • Rear Axle Size: 148mm rear spaced: 12 x 180L, TP = 1.5**, TL = 20 / 142mm rear spaced: 12 x 174L, TP = 1.5**, TL = 20 / 135mm rear spaced: quick release / 142 & 135mm spacing require the use of Salsa Alternator Reduction plates (FS2360) **Pre-2022 Fargo models use Alternator plates and thru-axles with 1.75 TP (thread pitch). Both 1.5 and 1.75 TP plates are compatible with the Fargo frame. Ensure TP of plate and axle match before installing.
  • Derailleur Hanger: QR = FS1312; TA = FS1385; SS = FS1318; SSTA = FS1375; L Rohloff = FS1371; TA Kit = FS1370
  • Frameset Weight: 6 lb, 4 oz for size Large w/ fork and Lip-Lock

Geometry

Geometry Diagram
Size XS SM MD LG XL
A. Effective Top Tube 520 540 565 590 620
B. Stand Over 692 734 781 823 861
C. Reach 350 364 368 385 409
D. Stack 594 615 643 671 690
E. Total Seat Tube Length 355.6 406.4 457.2 508 558.8
F. Headtube Length 90 110 140 170 190
G. Headtube Angle 68.5 69 69 69 69
H. Seat Tube Angle 74 74 73 73 73
I. BB Drop 70 70 70 70 70
K. Chainstay Length 445–462 445–462 445–462 445–462 445–462
L. Fork Length Axle to Crown 480 480 480 480 480
M. Fork Offset 51 51 51 51 51
N. Wheelbase 1050–1067 1067–1084 1083–1100 1110–1127 1141–1158
Recommended Rider Height 150cm–160cm 160cm–175cm 173cm–183cm 180cm–191cm 188cm–UP

Measurements based on:

  • A Firestarter Fork which is 483 x 45mm offset, this is equivalent to an average 100mm fork at 20% sag
  • Measurements listed are based on a 29 x 2.4" tire measuring 746mm in diameter
  • Standover (P) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center

Supportive Documents

Support Document links

Additional Features

Fargo Ti Frameset Only

Our legendary Fargo frame, crafted in Titanium, paired with a Salsa Firestarter Carbon fork. Salsa Lip-Lock seat collar included

3/2.5 Seamless Titanium Tubeset

Custom spec’d, triple-butted tubing. Appropriate stiffness and compliance for a fantastic ride quality. Lightweight with superior fatigue life

Firestarter 110 Carbon Deluxe Fork

The most full-featured high modulus carbon bikepacking fork available. Tapered 1-1/8” to 1-1/2” steerer tube. 180mm maximum rotor size. 27.5 x 2.8–3.0” or 29 x 2.2–3.0” tire capable. Four sets of Three-Pack mounts offer incredible load carrying possibilities. Mid-blade mounts for low rider racks. Internal routing for 110 Boost Dynamo hubs. Fender mounts (compatible with 29 x 2.2” tire maximum)

Fargo Geometry

Designed as a drop bar mountain bike, optimized for fit with the Salsa Woodchipper Bar. Capable of handling everything from technical singletrack trails, two-track, gravel, and the occasional paved road. Predictable handling with or without a load. The bike to ride for multiple-surface excursions

Alternator Dropouts V1.5

Split-able version of our renowned Alternator Dropout for ultimate drivetrain versatility

Belt Drive Compatible

Tested and certified for belt drive use

Multiple Wheelsize Versatility

Fargo geometry and spacing can accommodate 27.5+, 29", and, on sizes Small to X-Large, 29+ making for a highly capable bike that’s ready for just about any endeavor

Rear Rack Friendly

Designed for use with the Salsa Alternator Standard Rack

Cane Creek 40 Headset Included

Frameset utilizes ZS44 semi-integrated headset standard, compatible with tapered or straight 1-1/8” steerer forks

FAQ

Can I run 27.5+ rims and tires on this frameset?

Yes, you can. To maintain appropriate geometry we recommend using 27.5 x 3.0" tires.

Can I run 29+ rims and tires on this frameset?

Yes, on sizes Small through X-Large. 29+ is not possible on size X-Small due to toe overlap.

Can I run flat bars on my Fargo?

Yes, but it is important to keep in mind that the Fargo is designed specifically as a drop bar mountain bike. Switching to a flat bar essentially results in a very short toptube length, compared to how a traditional flat bar mountain bike would be designed.

Can I use a suspension fork on this frame?

Yes, this frame was designed and tested for use with a suspension fork with an axle-to-crown length up to 511mm (typically 100mm of travel). Check the fork manufacturer's specifications to ensure the model and travel combination you intend to use is equal to or less than this length. Using a longer length fork will void the frame warranty and could result in frame failure. Forks with 45mm offset are recommended, but 51mm offset is also acceptable (decreases mechanical trail by 6mm).

How do I take care of the alternator dropouts?

Periodically, we recommend that you remove the bolts and clean the dirt and grime off the hardware and the frame surfaces. Then, lightly re-grease the threaded parts and re-assemble.

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
