Vaya Frameset

Vaya Frameset

$1,249.00 USD
$1,249.00 USD $1,249.00 USD
Size

Vaya is designed to handle any road surface, from pavement to gravel to dirt. Whether you’re on a fast tour or just taking your time, this all-road adventure and light touring bike is a versatile machine that feels great lightly loaded or unloaded.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

1 1

Product Details

Build Kit

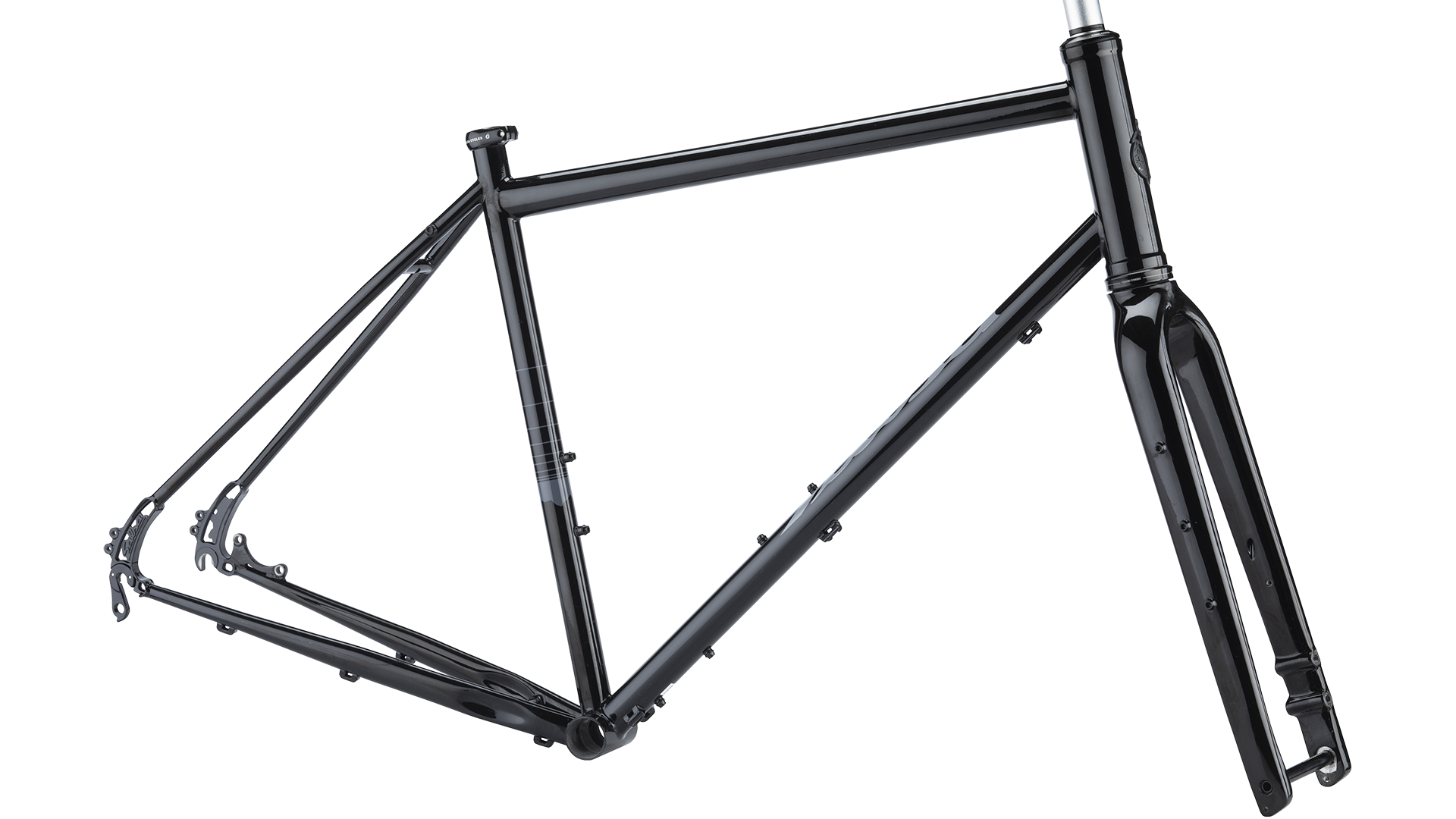

Frameset

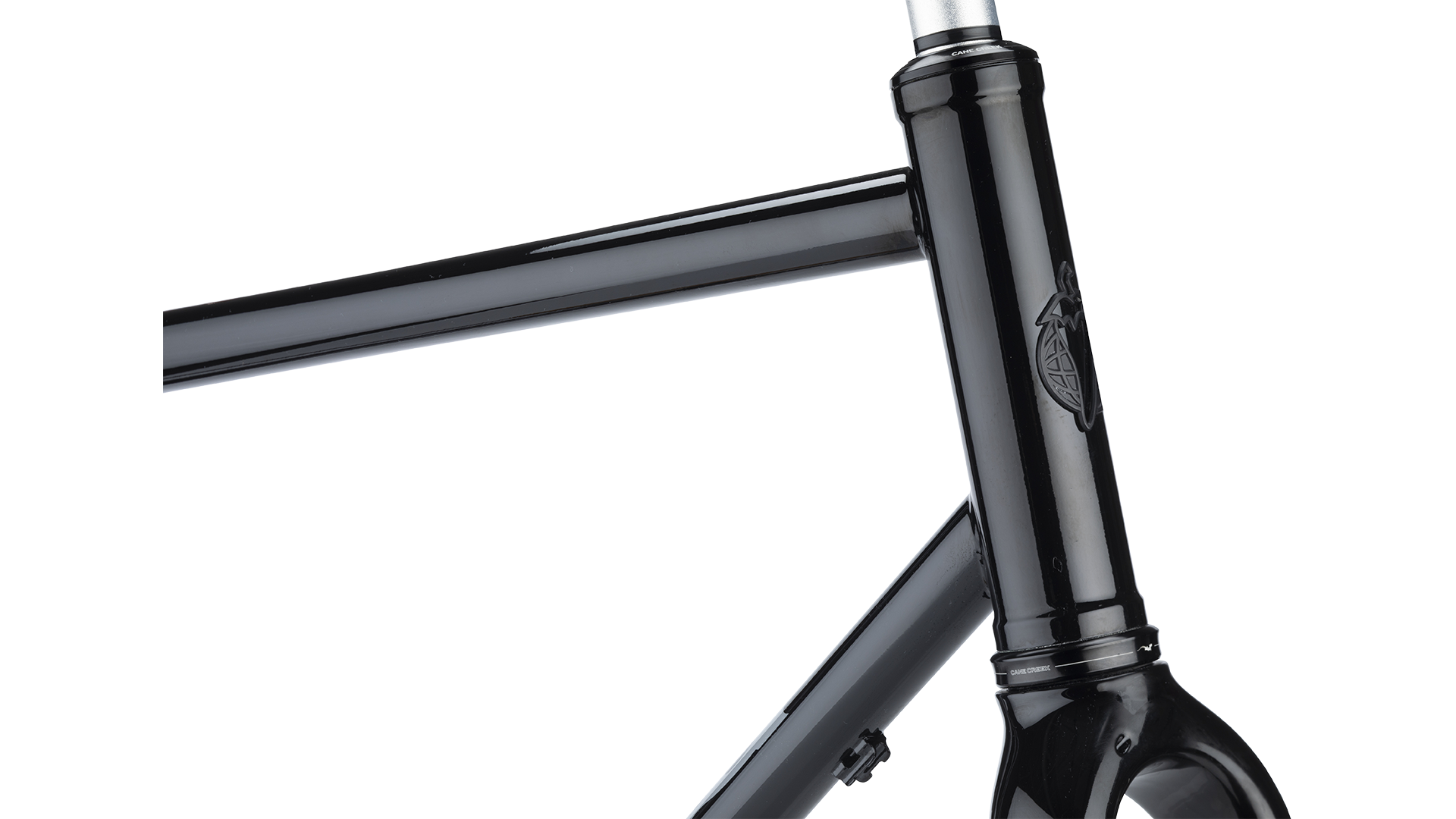

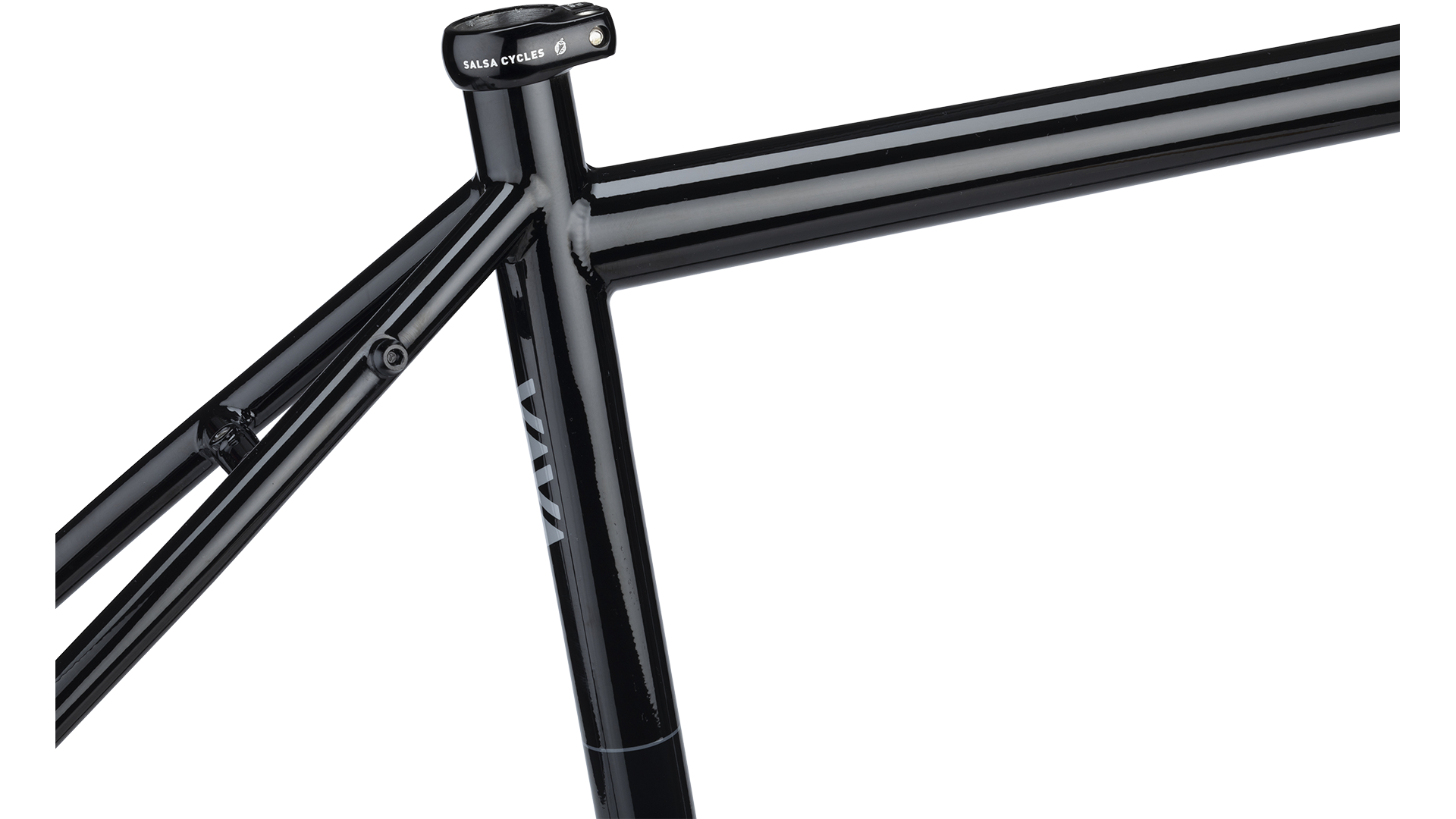

Frame

Vaya Triple Butted CroMoly

Color

Black

Fork

Waxwing

Rear Shock

N/A

Components

Headset

Cane Creek 10

Drivetrain

Wheels

*Specifications are subject to change without notice

Geometry

Geometry Diagram
Size49.5cm52cm54cm55cm57cm59.5cm
A. Effective Top Tube 495.0 520.0 540.0 550.0 570.0 595.0
B. Stand Over 660.1 713.7 742.0 776.3 795.6 821.0
C. Reach 354.6 368.2 365.2 363.8 372.0 384.8
D. Stack 542.7 547.4 590.1 609.1 628.0 647.0
E. Total Seat Tube Length 380.0 450.0 470.0 510.0 530.0 560.0
F. Headtube Length 100.0 100.0 145.0 165.0 185.0 205.0
G. Headtube Angle
70.25
71.5
71.5
71.5
71.5
71.5
H. Seat Tube Angle
75.5
74.5
73.5
73.0
72.5
72.0
I. BB Drop 75.0 75.0 75.0 75.0 75.0 75.0
K. Chainstay Length 450.0 450.0 450.0 450.0 450.0 450.0
L. Fork Length Axle to Crown 405.0 405.0 405.0 405.0 405.0 405.0
M. Fork Offset 50.0 50.0 50.0 50.0 50.0 50.0
N. Wheelbase 1019.4 1022.7 1034.0 1038.9 1053.5 1072.6
Crank Arm Length
Handlebar Width
Recommended Rider Height 147.0 - 158.0 158.0 - 165.0 165.0 - 173.0 170.0 - 178.0 175.0 - 185.0 188.0
Stem Length

Measurements based on:

  • A 700 x 41mm tire measuring 709mm in diameter
  • Standover (P) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center

Frame Specs

  • Design Wheel/Tire Sizes 700c x 32–45mm w/o fenders
  • Alternate Wheel/Tire Sizes 700c x 38mm max. w/ fenders
  • Rigid Fork Length 405mm
  • Fork Offset 50mm
  • Rear Spacing 135mm
  • Rear Axle Size 10 x 135mm QR
  • Rear Brake (Rotor) 51mm standard, (140–160mm)
  • Front Brake (Rotor) Flat mount 160, 160mm max, flat mount frame standard 35mm thickness, 42mm bolt length
  • Headset - Upper ZS44
  • Headset - Lower EC44
  • Front Spacing 100mm
  • Front Axle Size Steel fork: quick-release / Carbon fork: thru-axle, M12 x 120 L / TP=1.5, TL=20mm
  • Crown Race 40mm 36° integrated crown race
  • Stem Clamp 28.6mm
  • Seatpost 27.2mm
  • Seatpost Clamp 30mm
  • Front Derailleur Clamp Band clamp, 28.6mm, bottom pull
  • Derailluer Hanger FS2310

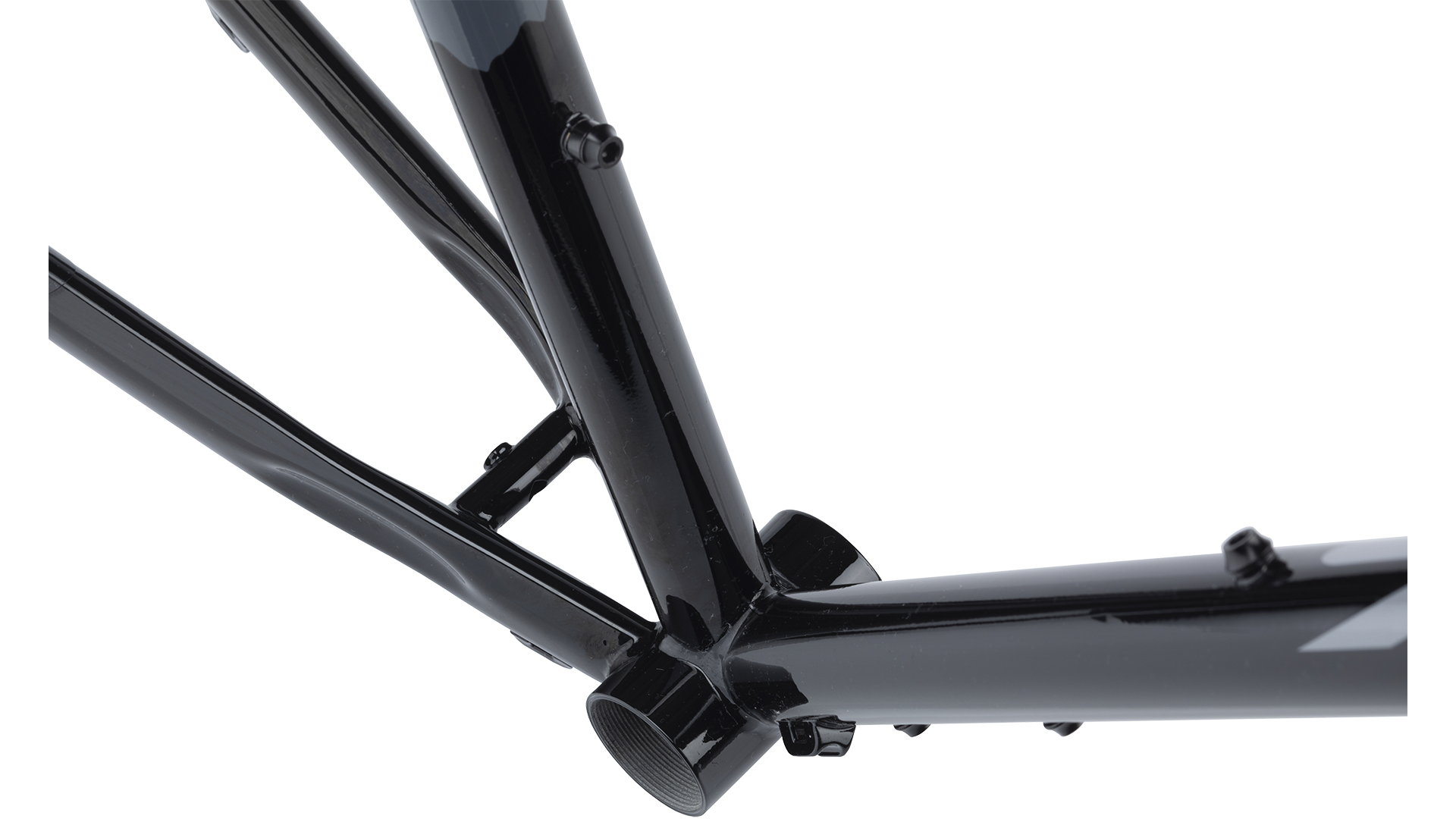

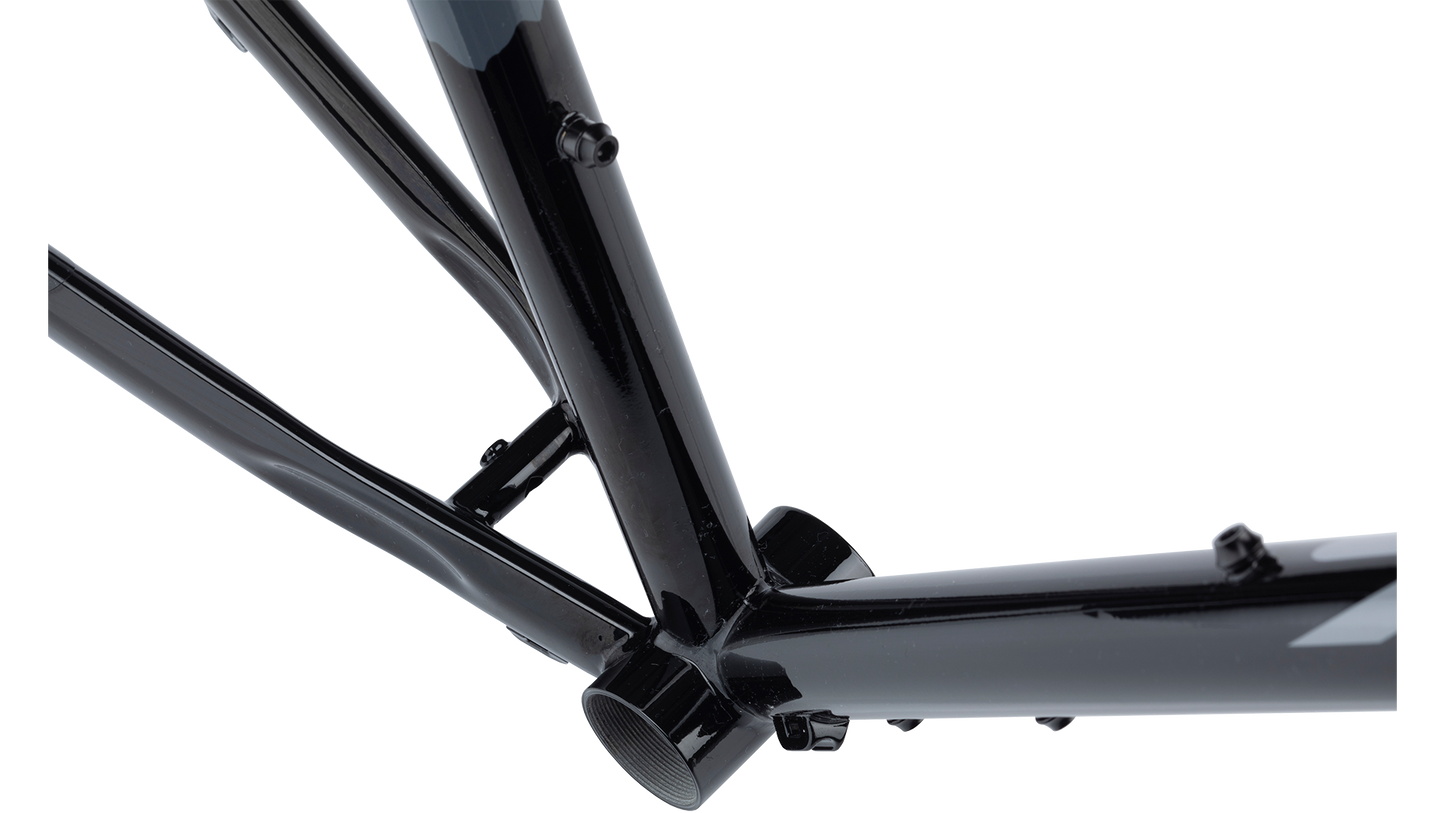

  • Bottom Bracket 68mm BSA, threaded
  • Crankset (Max Ring) 1x crankset: 46t max, 2x crankset: 52/36t max, 3x crankset: 53/39/30t max
  • Accessory Mounts Rack Mounts
  • Bottle Mounts 3
  • Front Fender Mounts Only compatible with QR fenders
  • Rear Fender Mounts Only compatible with QR fenders

Supportive Documents

Support Document links

Additional Features

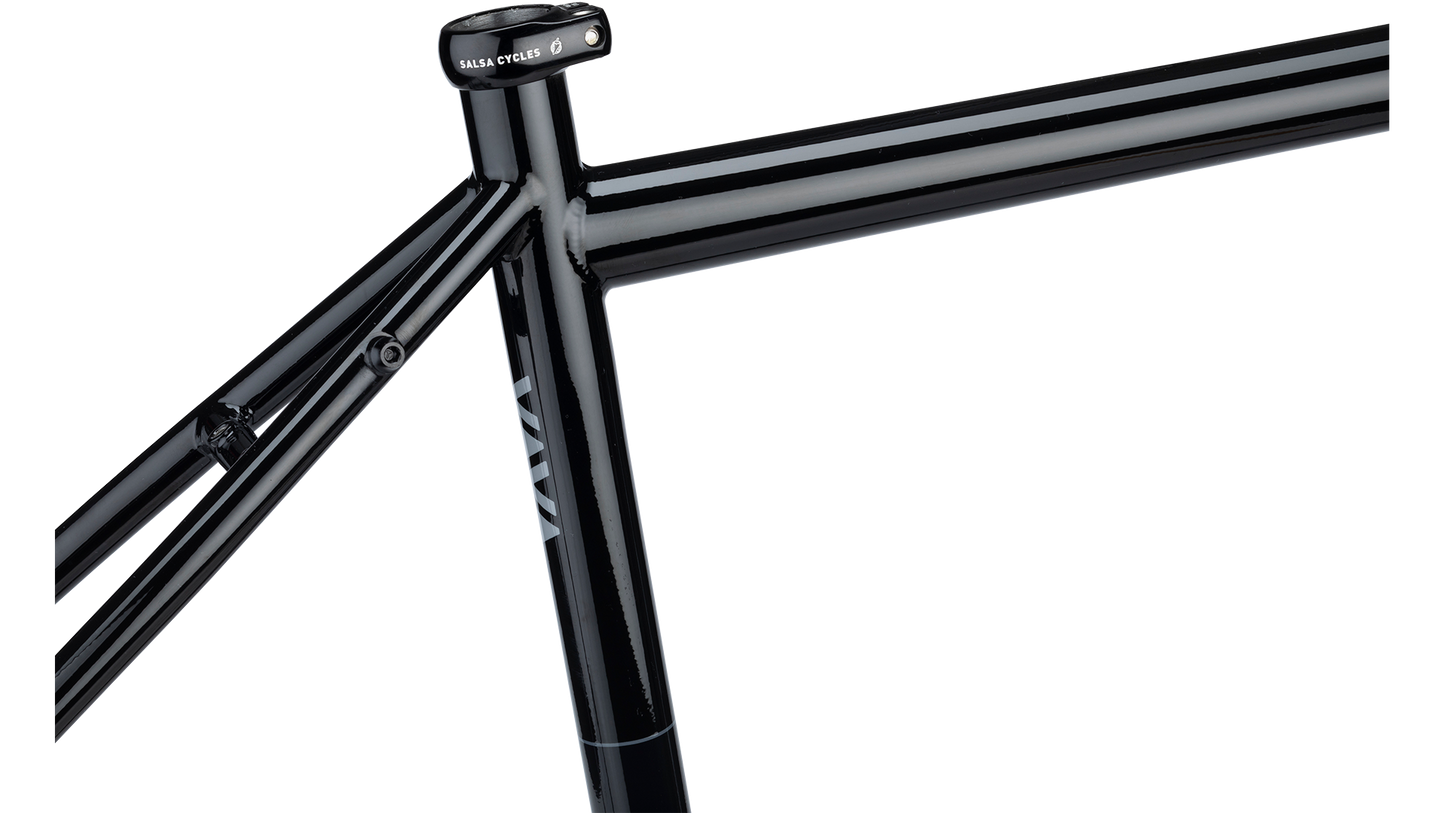

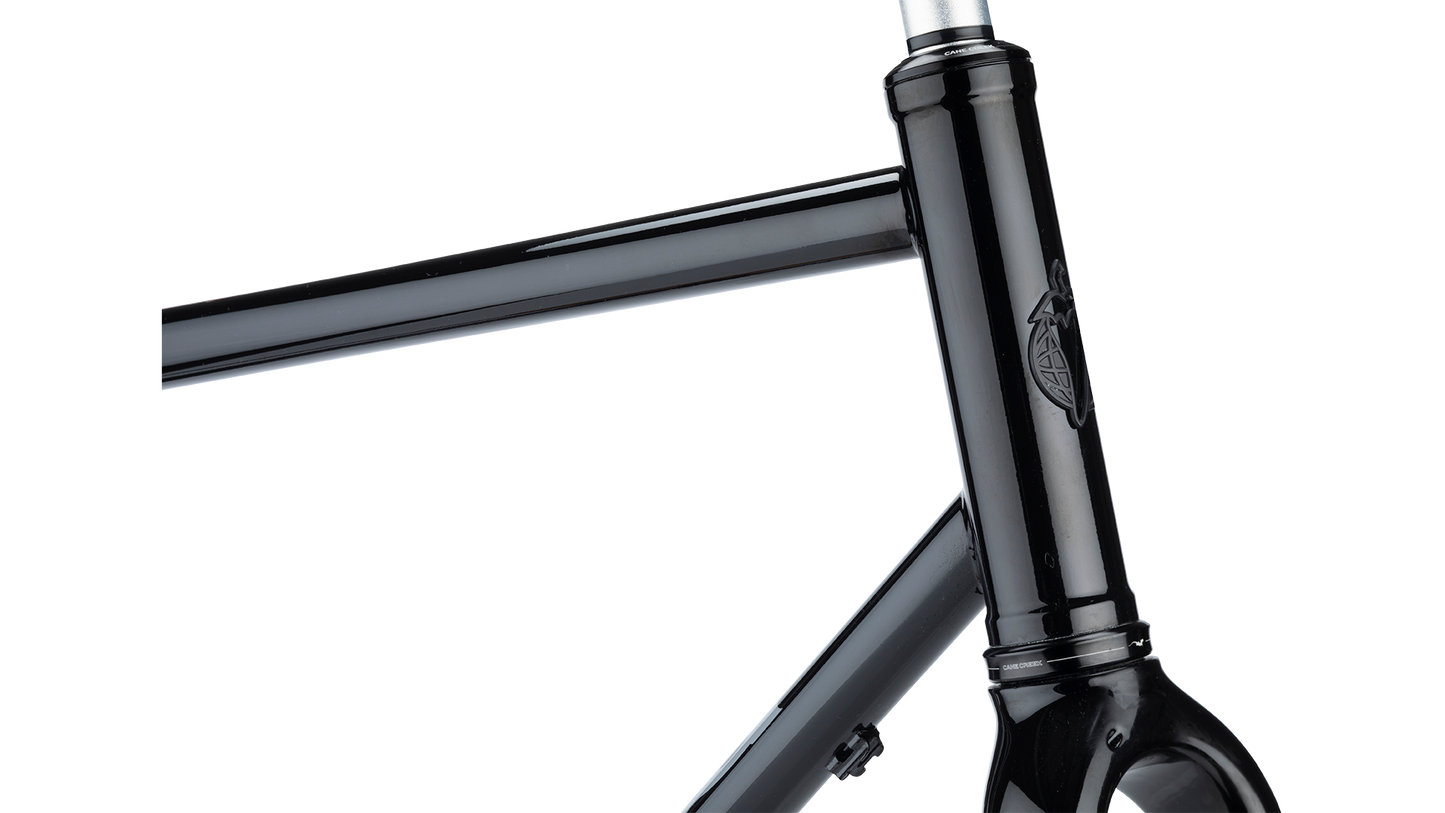

Triple Butted CroMoly Tubeset

Salsa-designed, triple-butted, and frame size-specific seamless Sanko CroMoly tubing

Waxwing Fork

The Waxwing fork features carbon fiber construction with an aluminum steerer tube. The feature-rich fork includes Three-Pack mounts, mid-blade low rider rack mounts, internal dynamo wire routing, and fender mounts

Vaya Geometry

Designed as an any-road or light touring bike, optimized for fit with Salsa drop bars. Stable handling with a light load, and ready to explore on any road surface

Generous Tire Clearance

Clearance for 700c x 45mm tires or 700c x 38mm with fenders

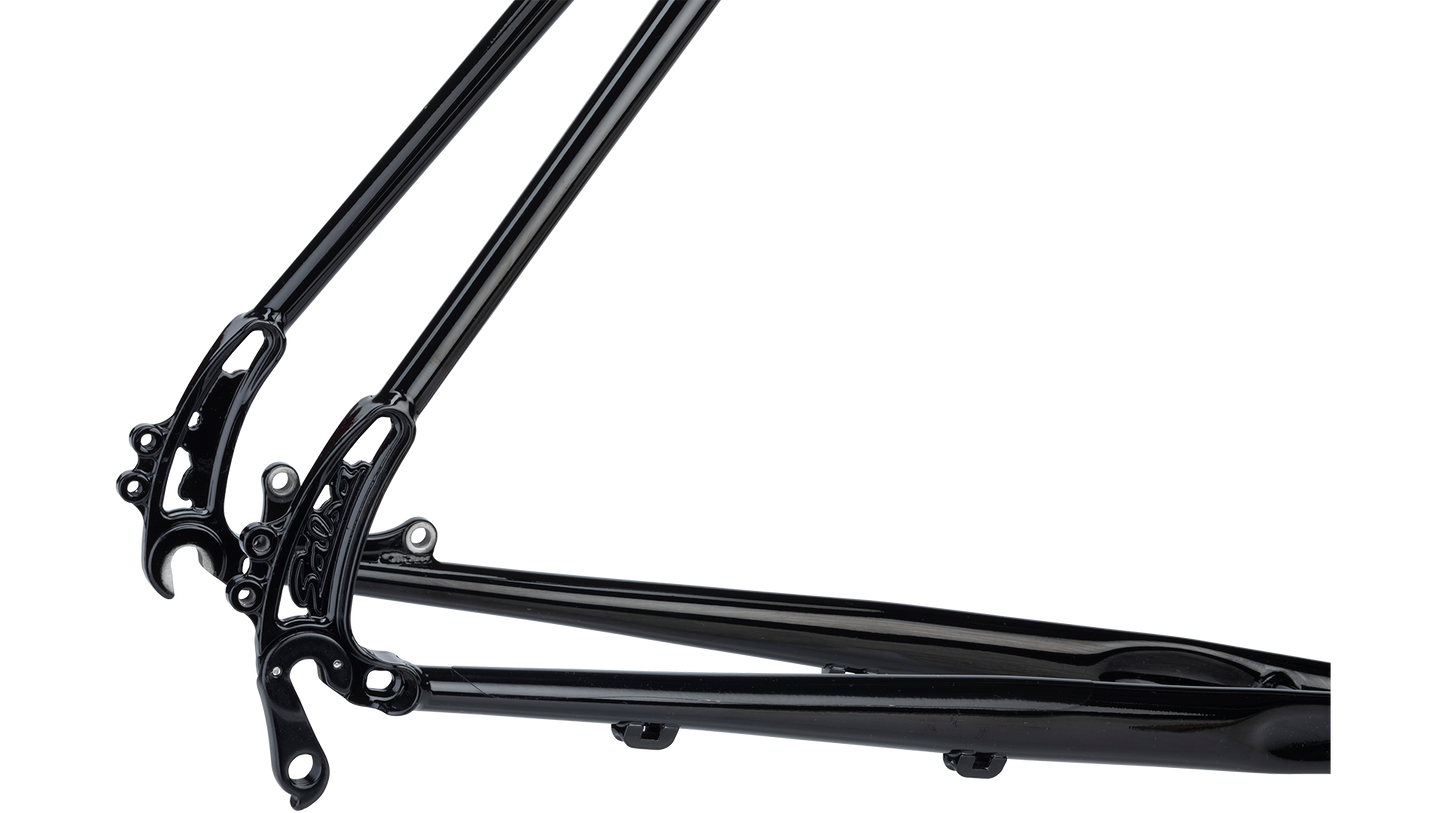

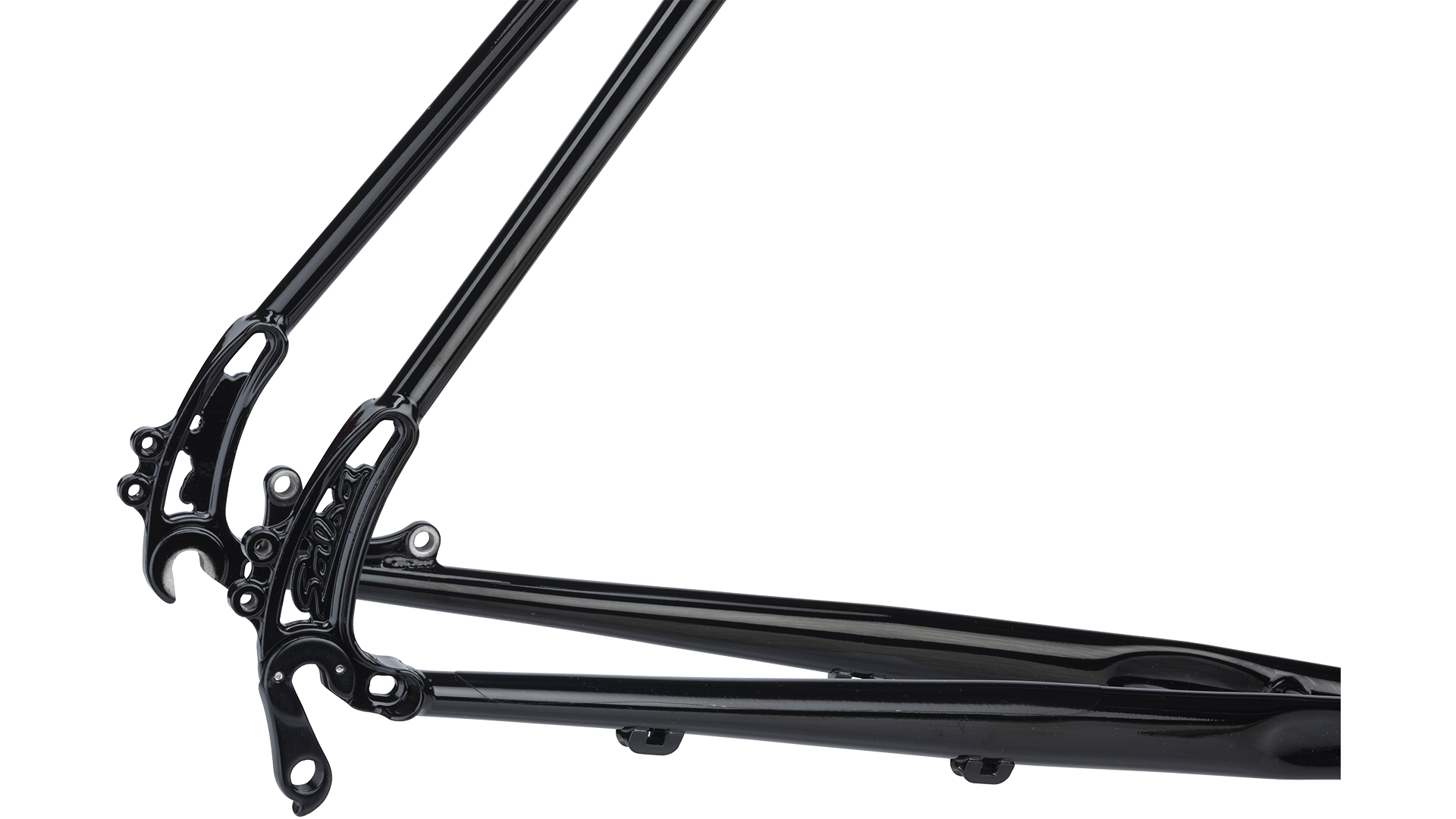

Rear Rack & Fender Mounts

Integrated rear rack and front and rear fender mounts cast into dropout for durability. Designed to work best with the Salsa Wanderlust Rack

Full-Length Cable Housing w/ Salsa Designed Front Derailleur Cable Guide

Improved performance in poor conditions. Full drivetrain-cable housing with a front derailleur BB cable guide to keep muck from entering the housing. Clean routing keeps shifting protected. Brake routing is external for easy maintenance

FAQ

Can I use a suspension fork on this frame?

No, this frame was not designed or tested for use with a suspension fork.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

What is the warranty for this bike?

View Warranty

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
